INJORA Tow Truck Crane Kit & INJS2065-360 Winch Servo for 1/18 TRX4M
INJORA INJS2065-360 Waterproof 7KG Winch Servo & Tow Truck Crane Kit for 1/18 TRX4M
Note:
-
Chassis: Compatible only with TRX4M stock chassis, INJORA TRX4M Universal Chassis (4M-89 & 4M-111).
-
Body: Fits INJORA IR40-18 and IR60-18 bodies. If you're using a different body, make sure there's enough space to install it.
-
Tx & Rx: Not compatible with the stock TRX4M transmitter and receiver. Your receiver must have a free channel so you can use a knob on the transmitter to control the winch servo separately.
Features:
- Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease

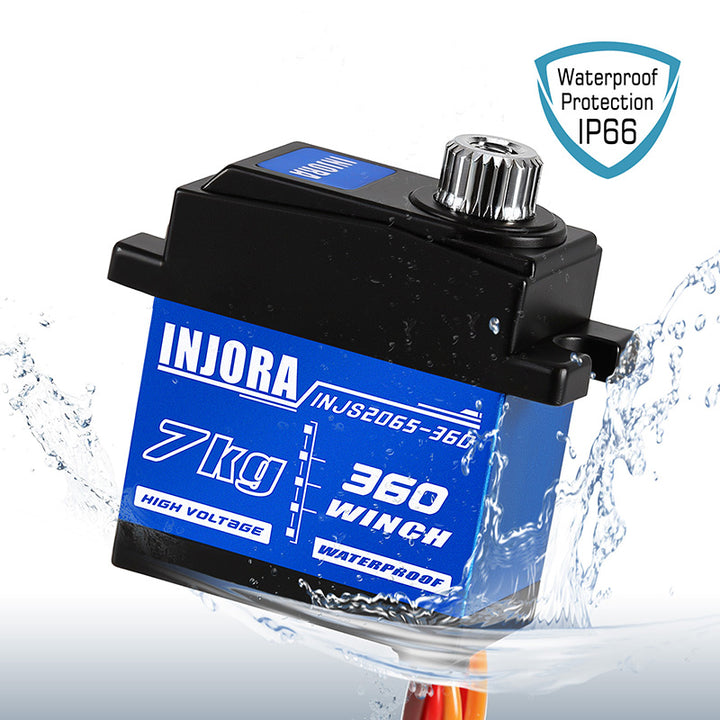

- IP66 Waterproof Design – Built to perform in wet and muddy conditions
- Overload Protection – Smart current cutoff helps prevent damage under heavy load

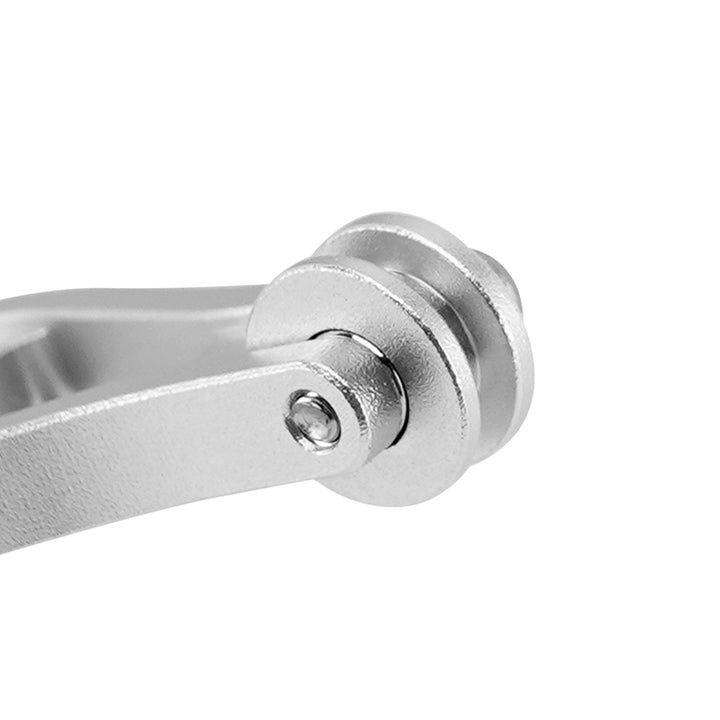

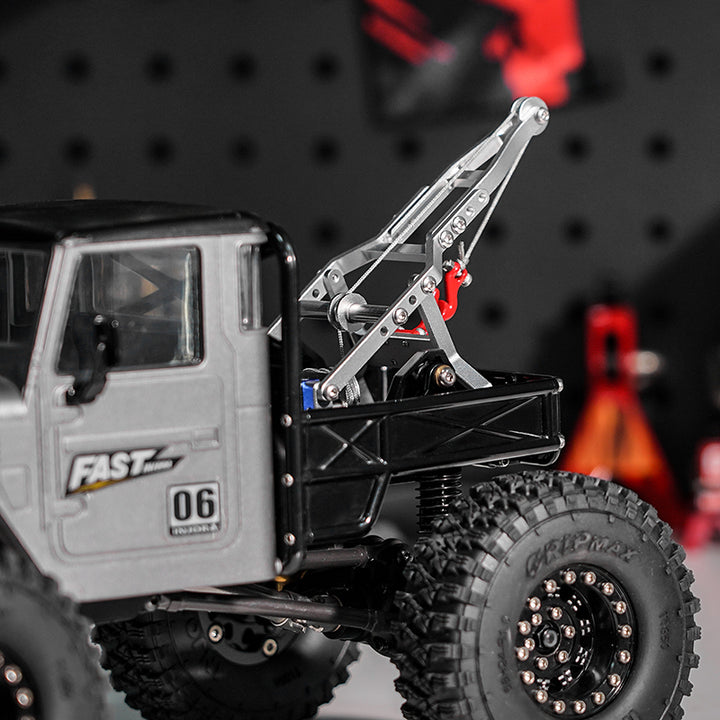

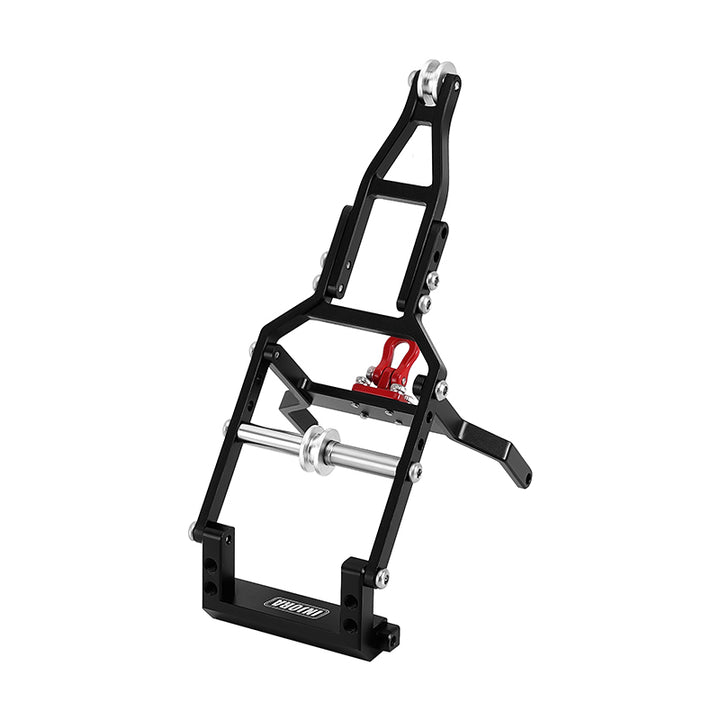

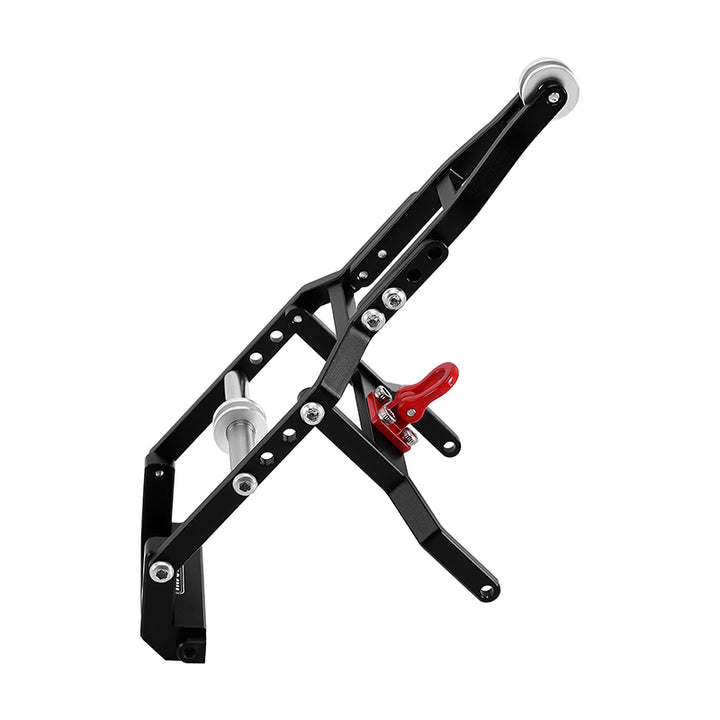

- CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail

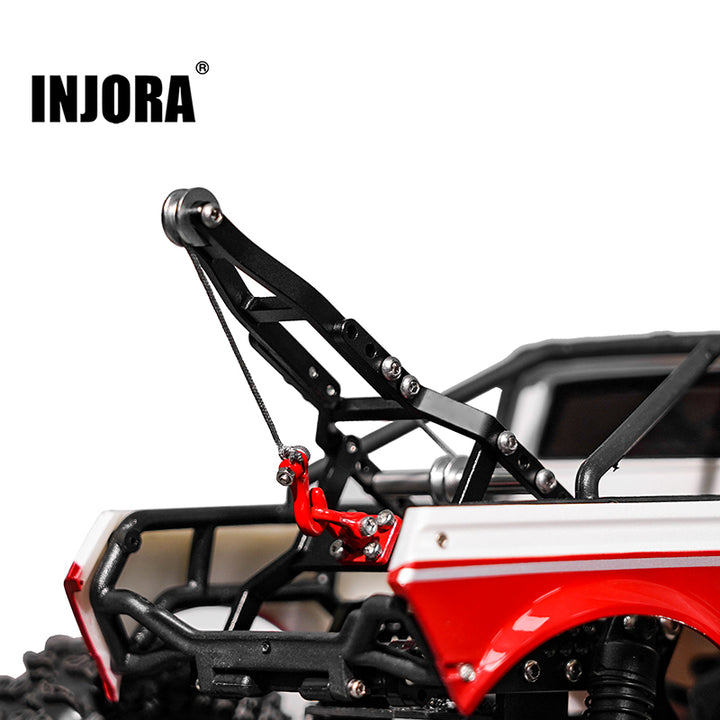

- Red Tow Hook Included – Adds functionality and a bold visual touch
- Enhanced Visual Appeal – Instantly boosts your rig's realism and trail presence

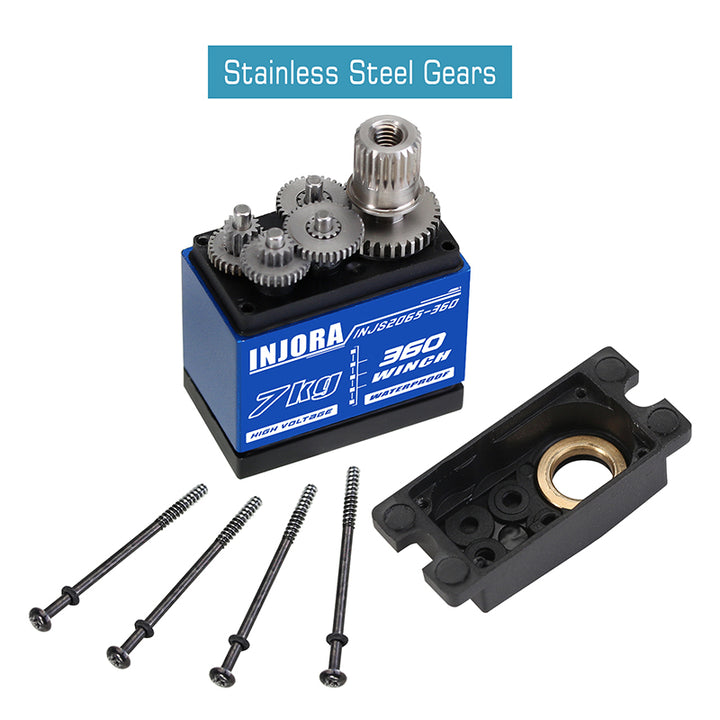

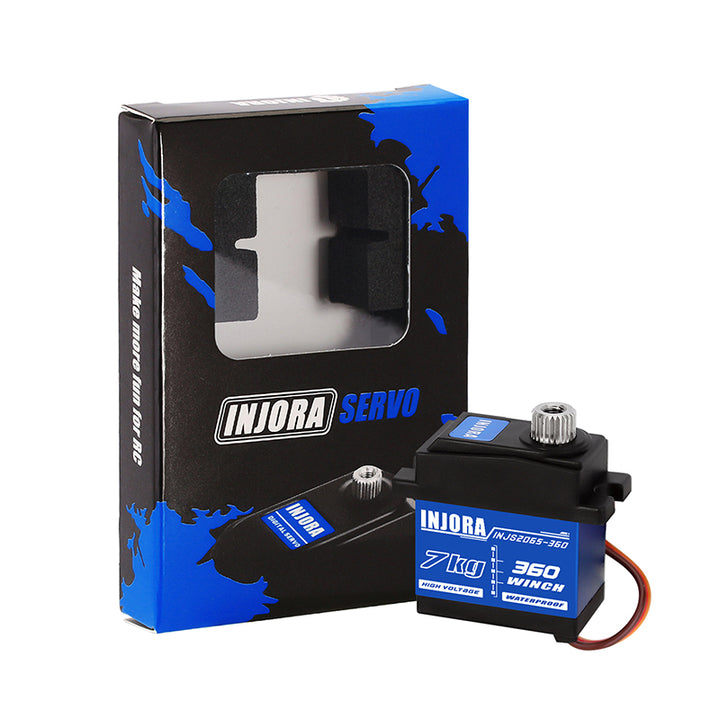

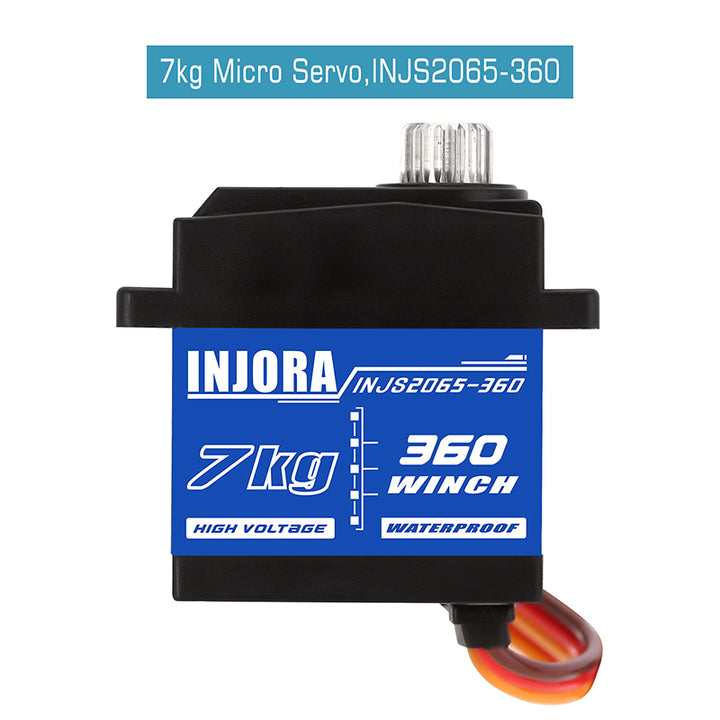

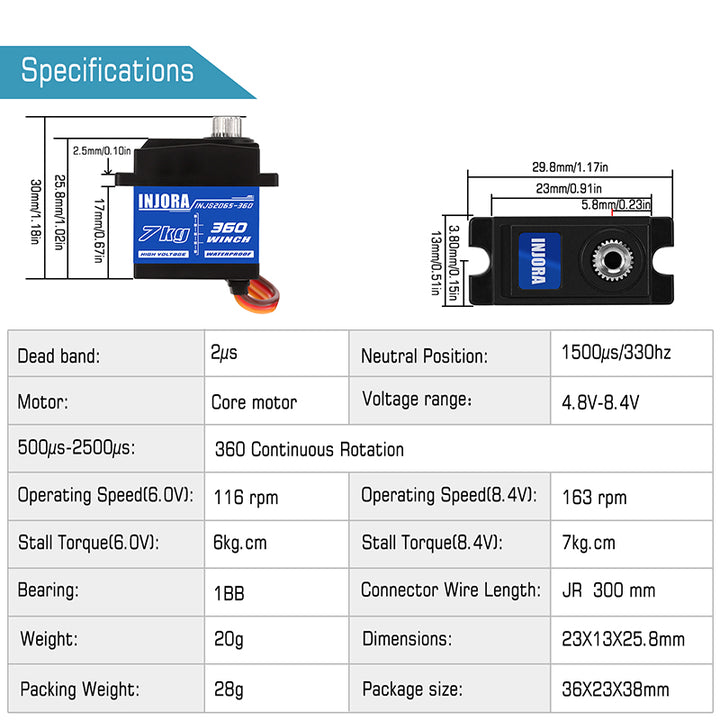

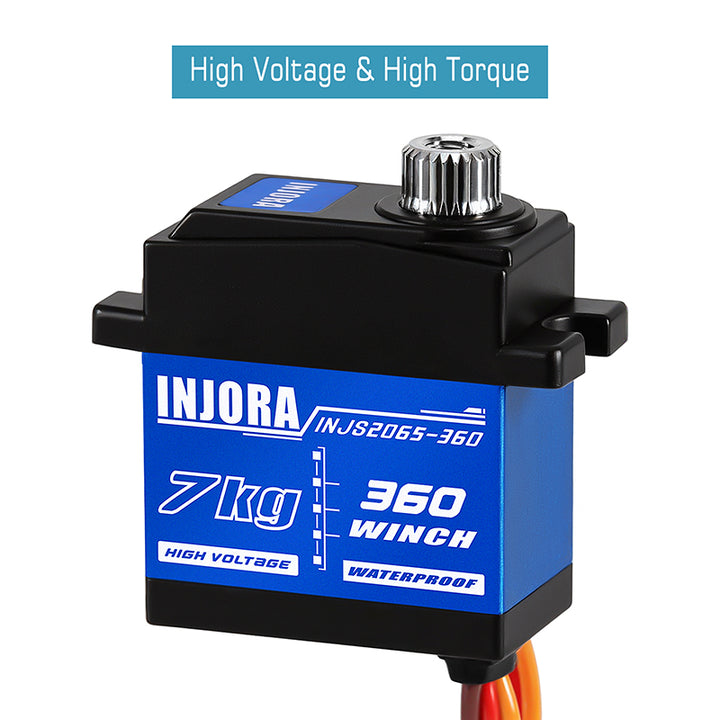

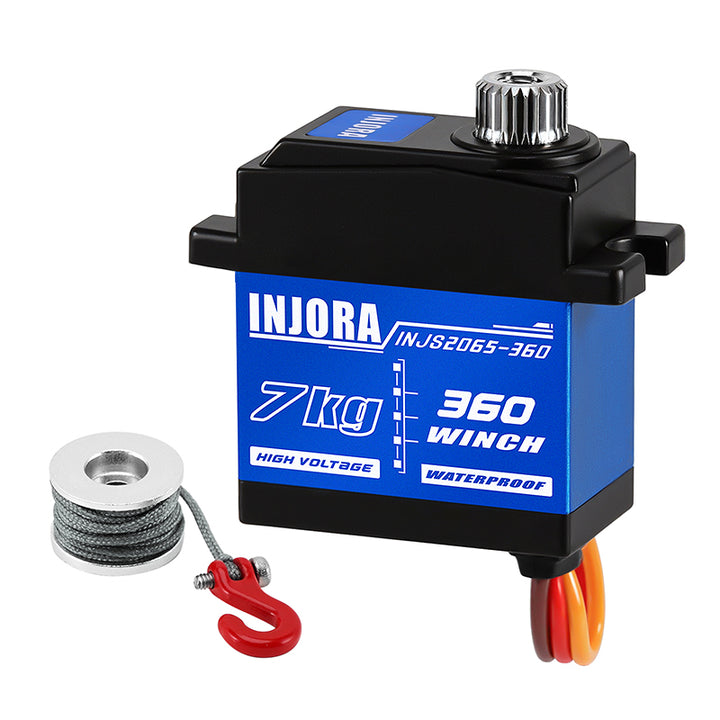

Winch Servo Specifications:
- Part Number: INJS2065-360
- Output Spline: 25T
- Dead band: 2μs
- Neutral Position: 1500μs/330hz
- Motor: Core Motor
- Voltage Range: 4.8V-8.4V
- 500-2500μs Angle: 360 Continuous Rotation
- Operating Speed (6.0V): 116 rpm
- Operating Speed (8.4V): 163 rpm
- Stall Torque(6.0V): 6.0 kg.cm
- Stall Torque(8.4V): 7.0 kg.cm
- Dimensions: 23*13*25.8mm
- Weight: 20g
- Connector Wire Length: JR 300mm
- Bearing: 1BB
-
Spline: Φ5.9 25T

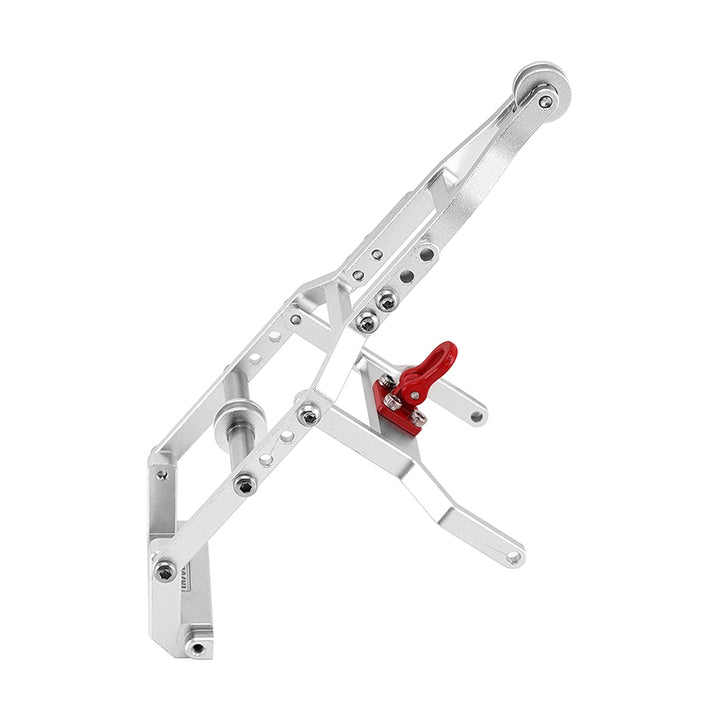

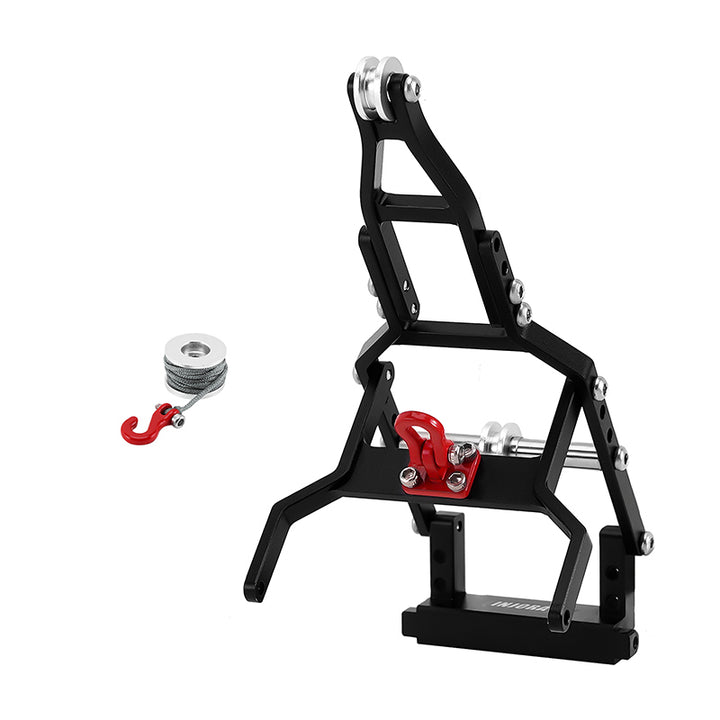

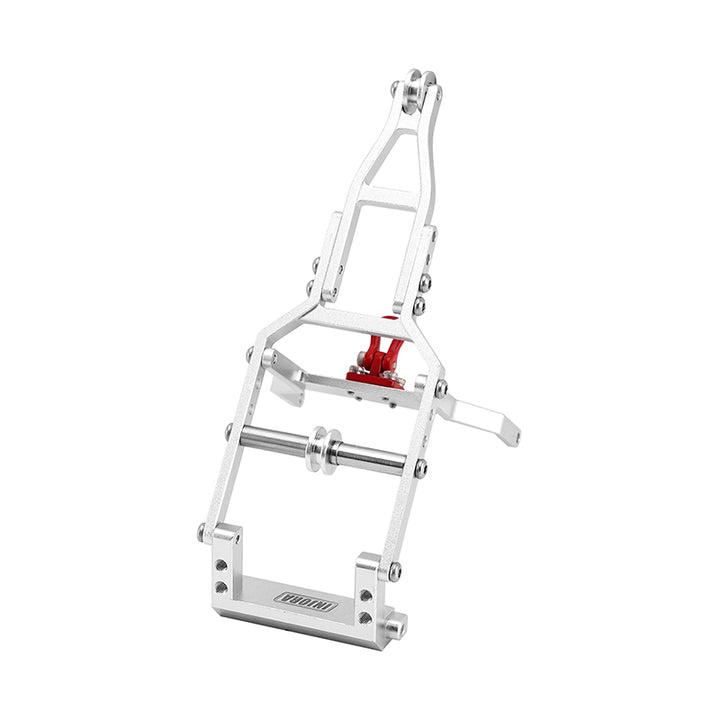

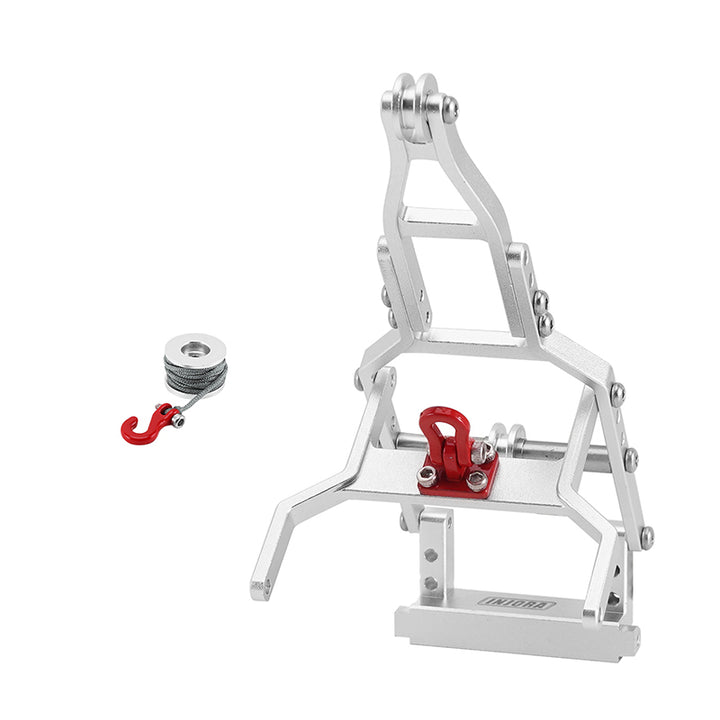

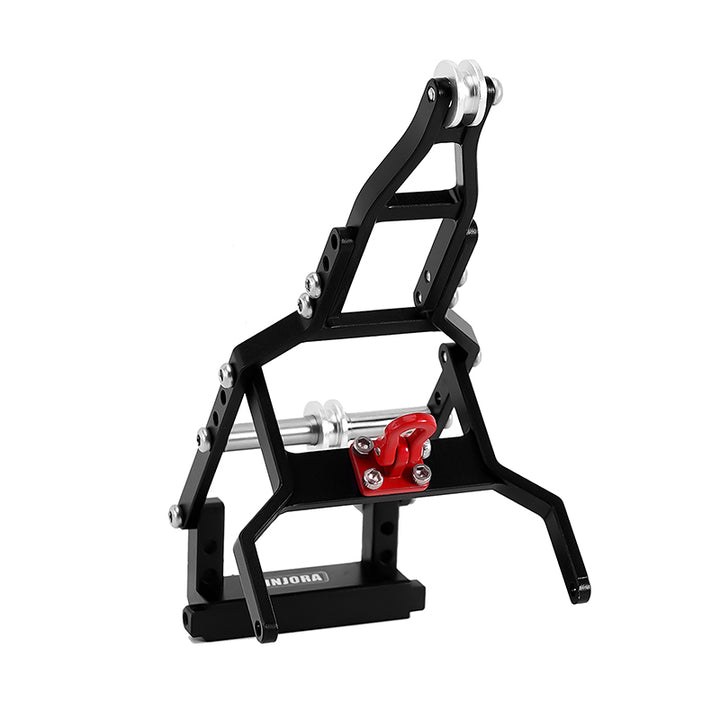

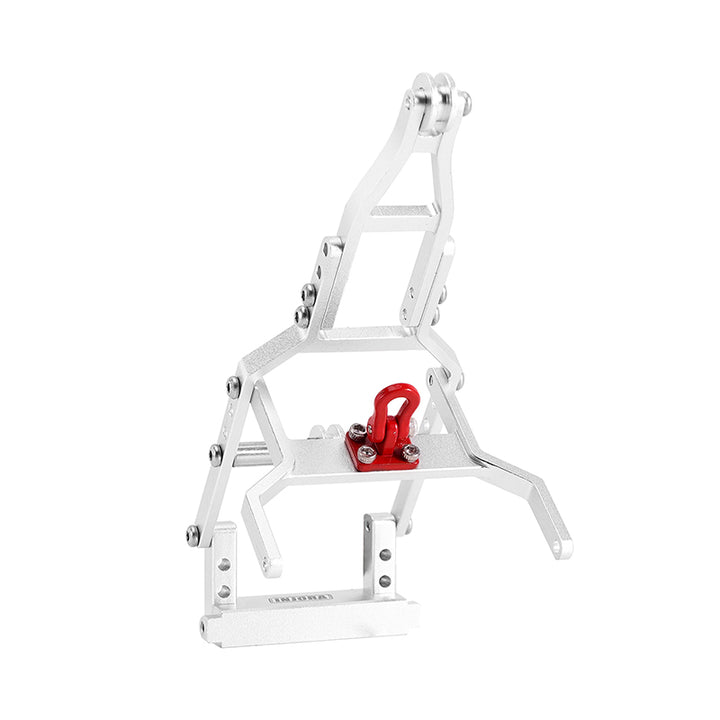

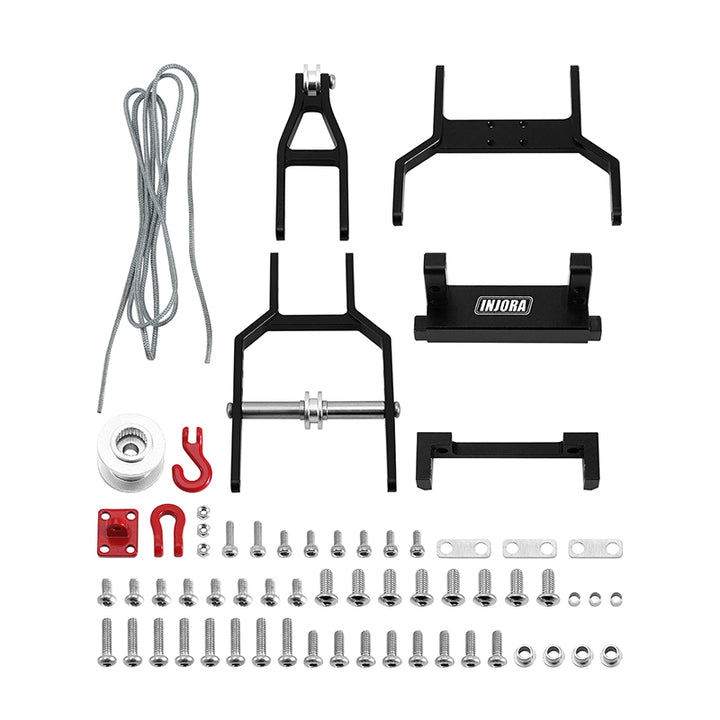

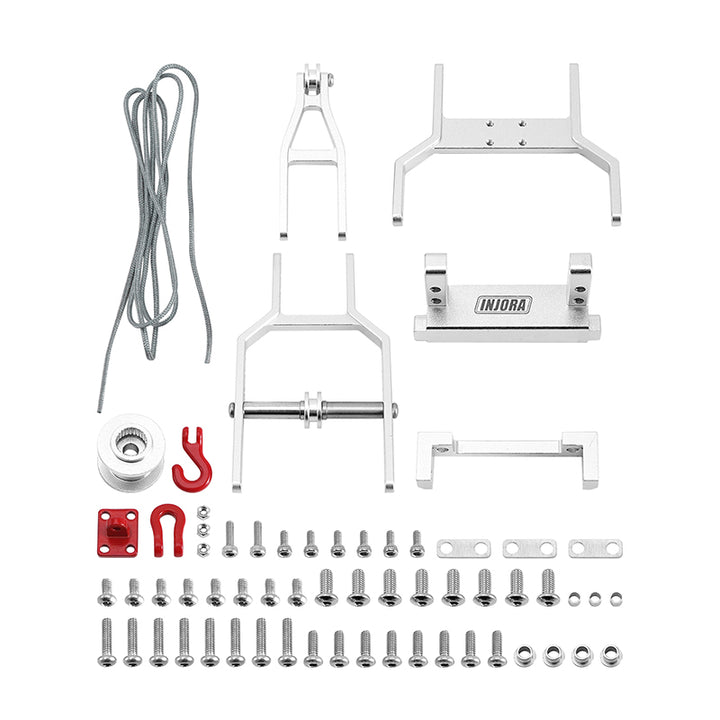

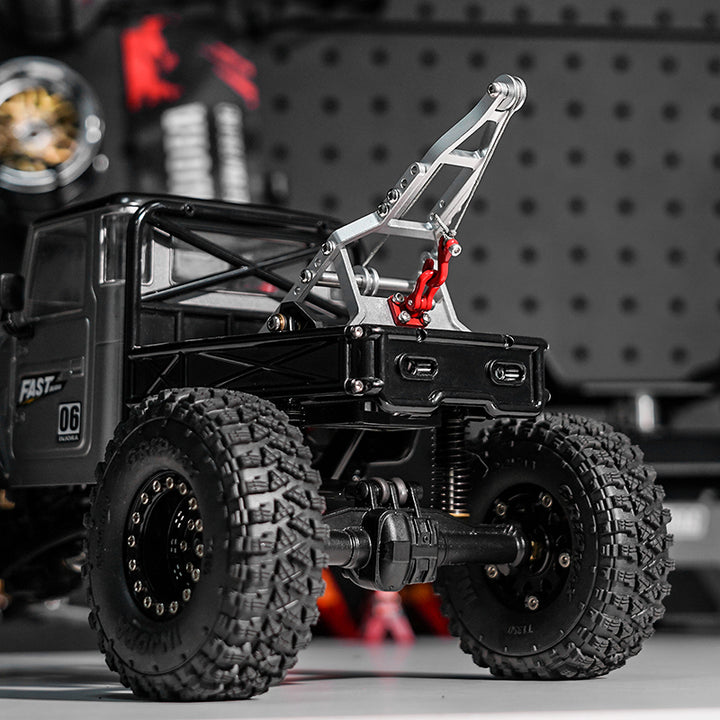

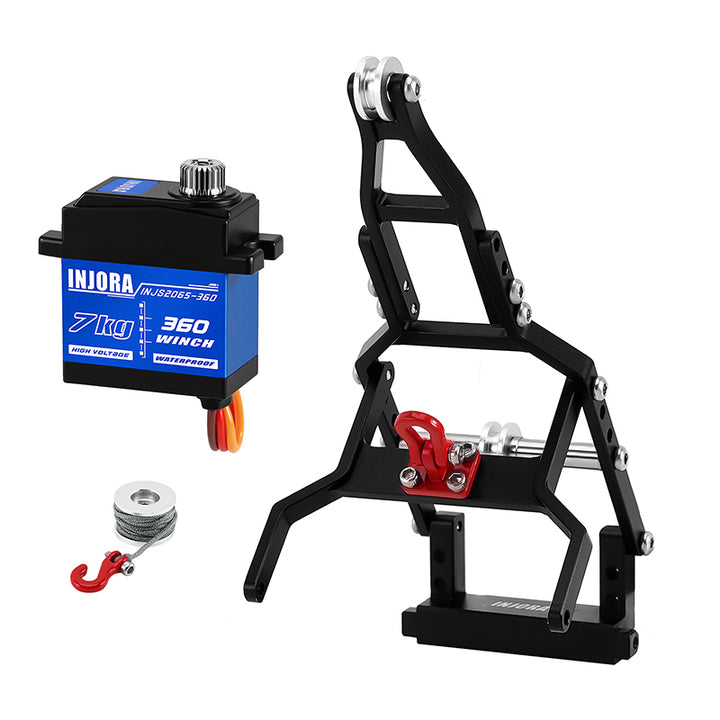

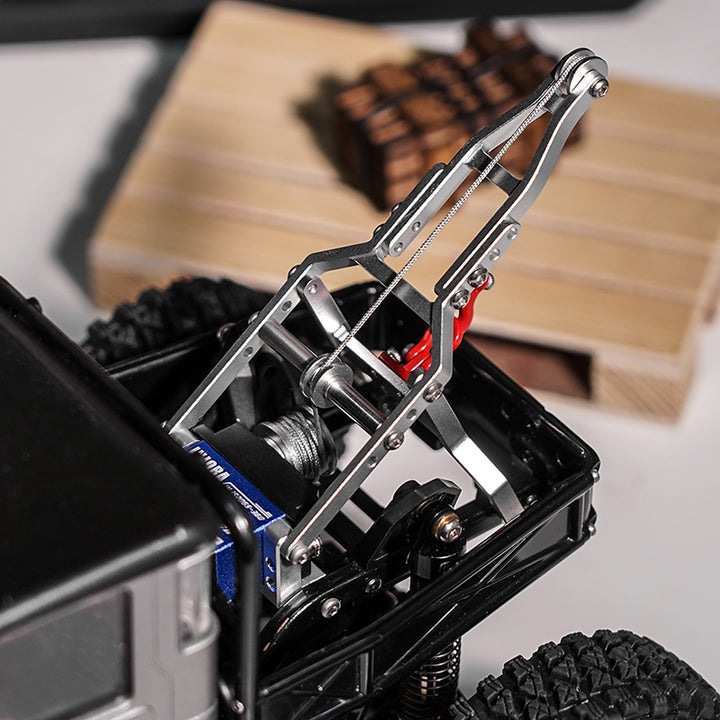

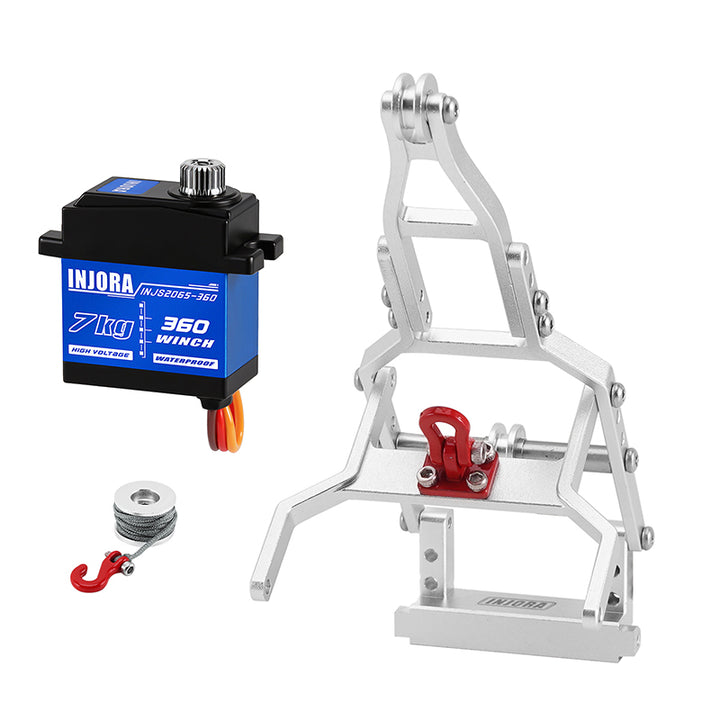

Crane Kit Specifications:
- Part Number: 4M-115
- Material: Aluminum
- Color: Black, Silver
- Weight: 32g

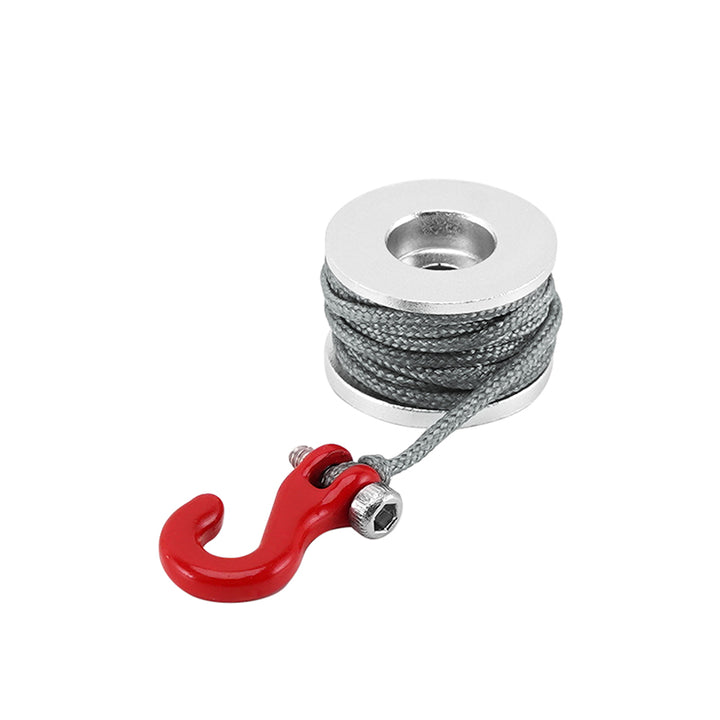

- Winch Spool: 25T
- Rope Length: Approx. 63cm
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.

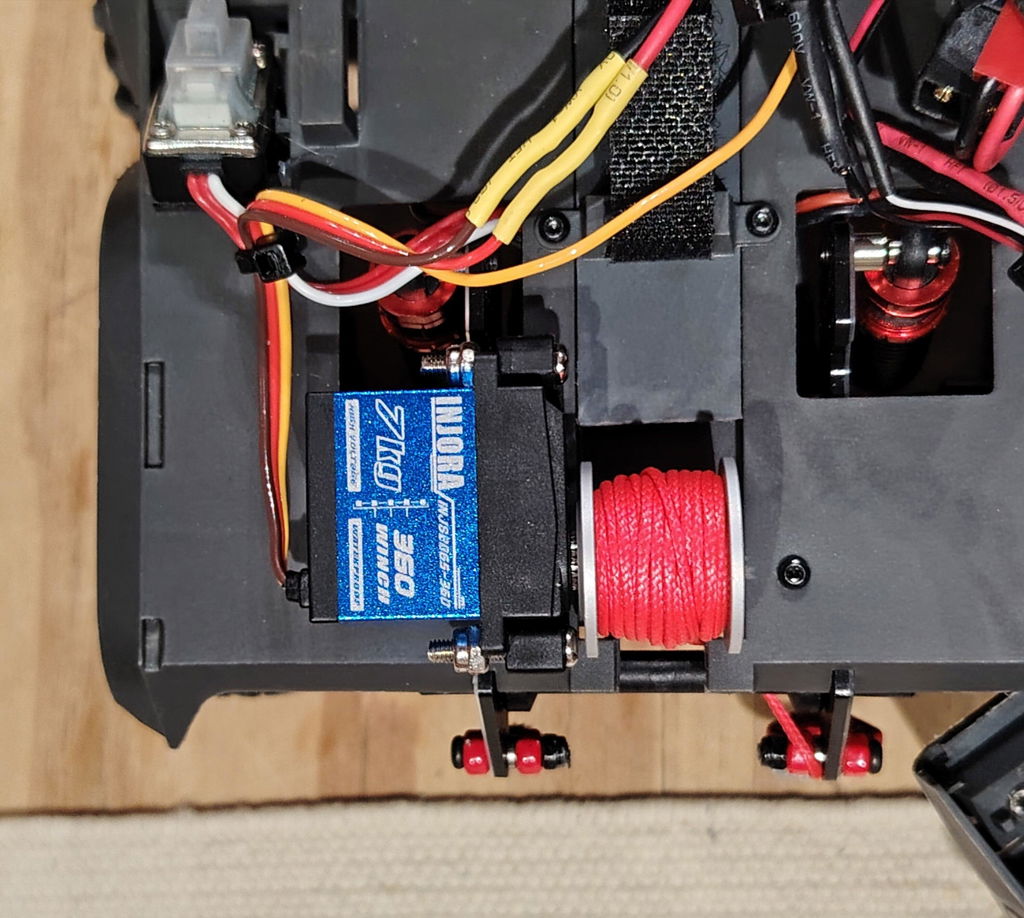

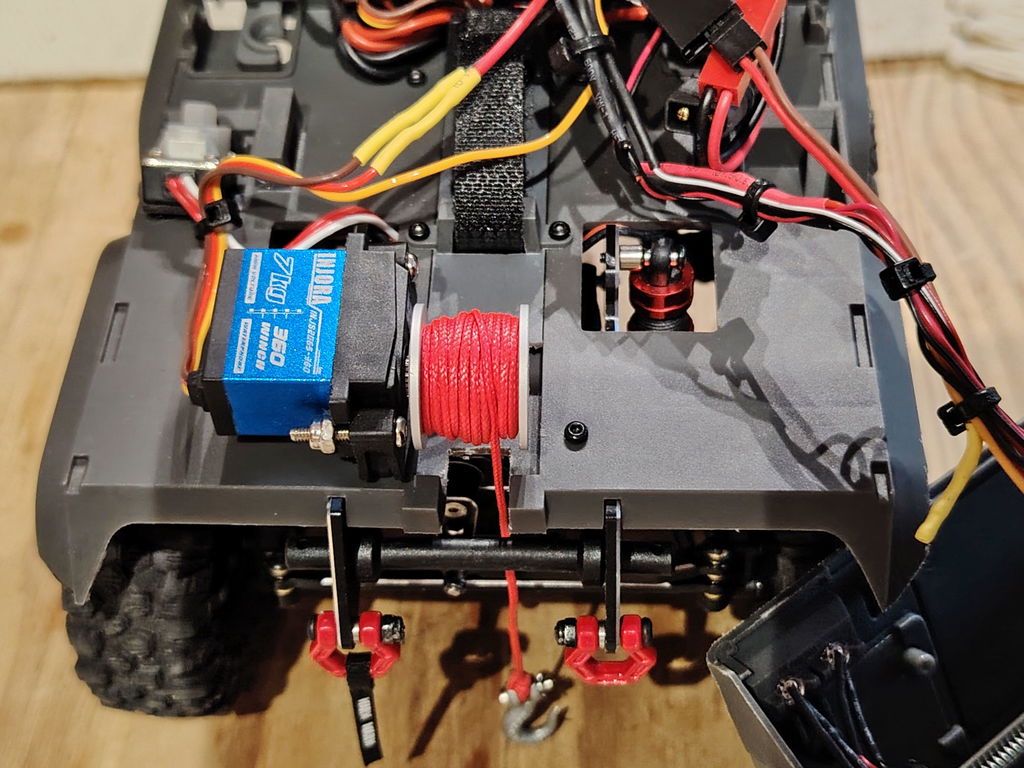

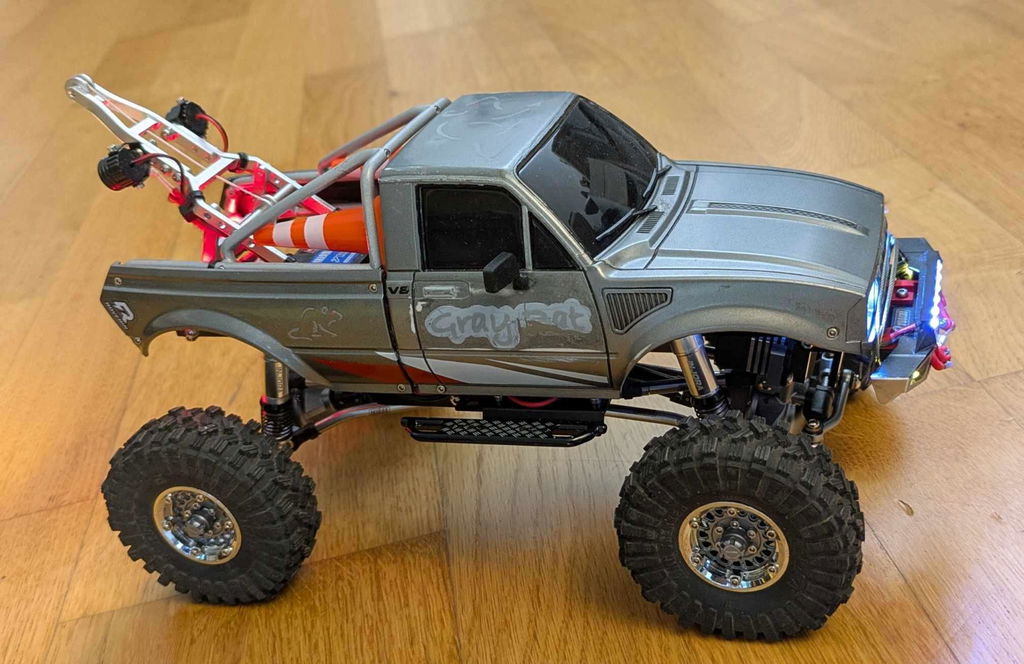

Excellent strength... Had it for about a year now and still going strong. I wired the red and black power wires into a JST and connected it directly to a 2S battery out the back of the ESC's XT30 plug. Super fast and powerful. I use a snatch block to double the strength and half the speed.
Wow I am super impressed by this setup. I used it to pull my 1020 gram rig out of being wedged in rocks. That was no easy task but it handled it.
This crane set is pretty neat! It is very easy to install and it is a blast to use. I also like the pre mapped control function. When turning the nob on the T6, you can control the the speed at which the winch reels in or out.
Works great
I really wanted a wrench on my traxxas 4m defender. But this crane was te next best thing. I like the idea of wrenching a car on the big trailer behind the defender. But it took a while before I got it working. First off you need an extra controller, as there are no free knobs on the standard. Secondly, where to place the crane? As the standard electronics are on the same place where the crane must be mounted. Thirdly using the proposed pick-up body meant I had to remove my bumper incl. hook. I ended up buying the controler and taping the crane onto the trailer. This enabled me to use defender body, without to much adjustments to body or original idea. So A nice crane, but you need the think abput above details.
Can you use the stock frame that comes with the truck
Compatible only with TRX4M stock chassis, INJORA TRX4M Universal Chassis (4M-89 & 4M-111)
Does this crane work with the TRX-4M Chevrolet K10 body? Also what remote is recommended to use with it?
Not compatible. I recommend the INT-T6F https://www.injora.com/products/6ch-2-4ghz-rc-digital-transmitter-with-gyro-receiver-for-1-8-1-10-rc-car
Does the winch only work with a knob to control it or will a switch with 3 positions(forward/stop/reverse) work too?
3 positions(forward/stop/reverse) work too.
will this work with the injora t6m 6ch receiver and transmitter?
Yes.
When will the scx24 truck tow boom be released?
We are working now.
what remote do I use if I'm using this with the servo and for my motor a Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (5300Kv)
You can use our T6 transmitter.
Does it fit the FTX Outback Mini 2.0 X Patriot
I think it is not compatible.
Will it work with the ascent 18 with the IR40 body?
I think it is not compatible.
Are you going to be making this for the 1/10 scale trucks also?
We're currently working on it!!
10th scale please!!!!!???!?
We're currently working on it!!
I would love this for my fms fcx18 k10
Sorry, not compatible.
What controller should I use
Transmitters like the INJORA T6M will work well.
If I cut the bed of the trx4m high trail out and take off the roll bar in the bed of the truck will it fit
Is it
If I cut the bed of the trx4m high trail out and take off the roll bar in the bed of the truck will it fit
Is it
Can you please make the SCX24 version so that the boom can be lowered more.
Thanks
Yes, it will be on sale soon.
