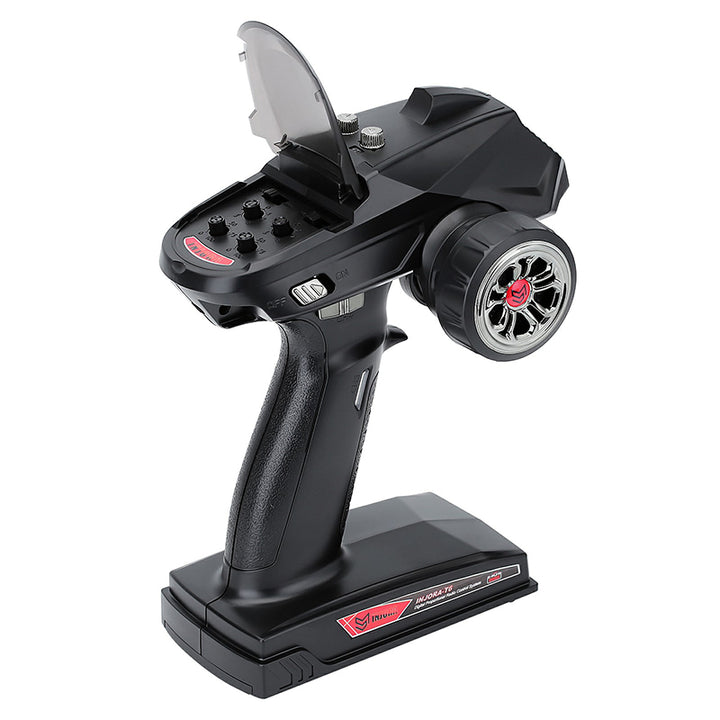

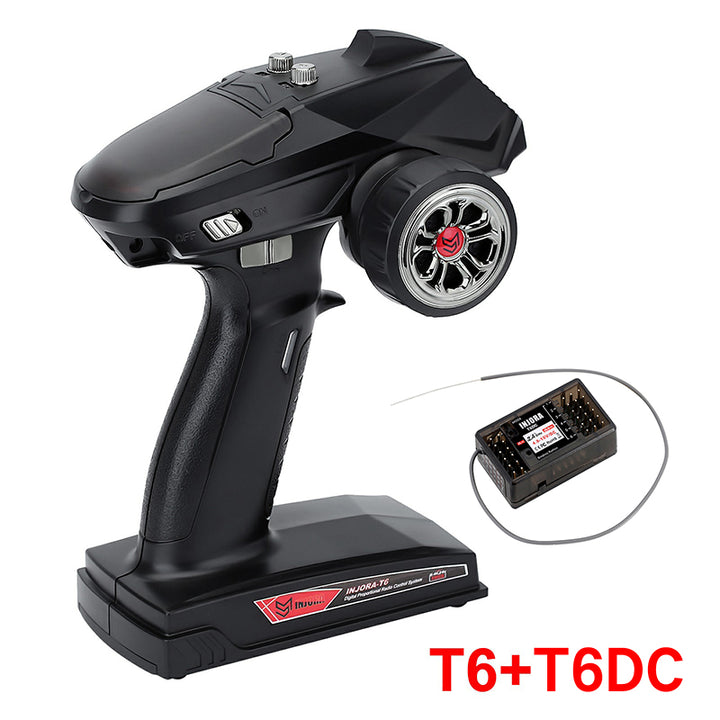

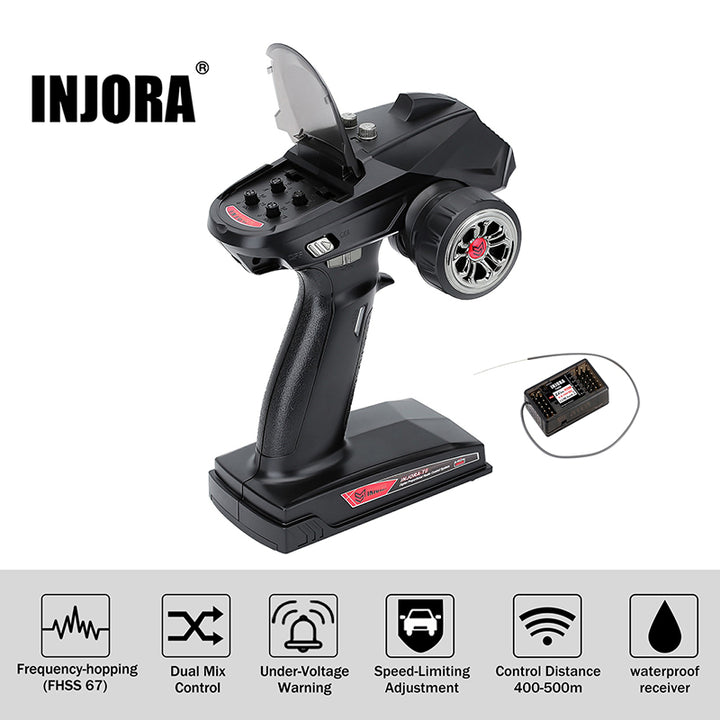

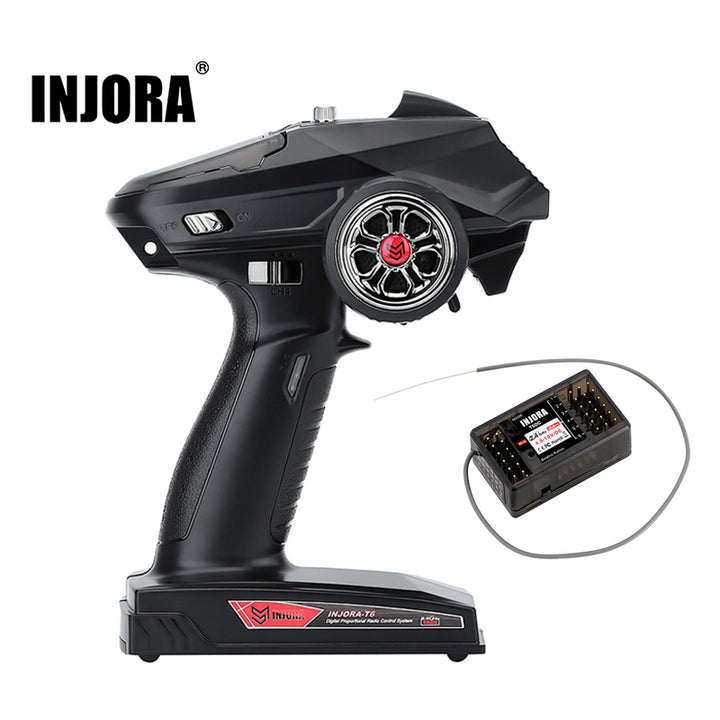

INJORA T6F 6CH 2.4GHz RC Digital Transmitter with Receiver for RC Car Boat Tank

INJORA 6CH 2.4GHz Remote Control Digital Radio Transmitter with Gyro Receiver for 1/8 1/10 RC Car Boat Tank Crawler TRX4 SCX10
Suit for: RC Car/Boat/Tank
Instruction Manual: T6 Transmitter & Receiver Manuals
Features:

• 1. 2.4G technology, FHSS 67 channels frequency-hopping spread spectrum, highly resistant to anti-jamming.
• 2. Receiver response time is 3ms, ensuring a fast response and better control.
• 3. Smooth and highly sensitive to control inputs and stable at distances from 400-500m.
• 4. Compatible with a variety of vehicles, suitable for RC cars, RC boats and RC tanks.
• 5. With brake and fail safe, out of control protection function.

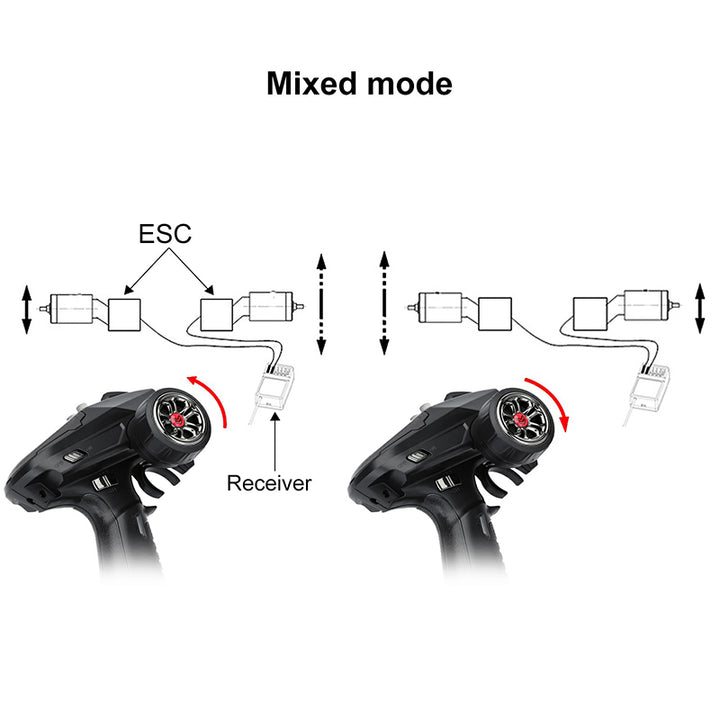

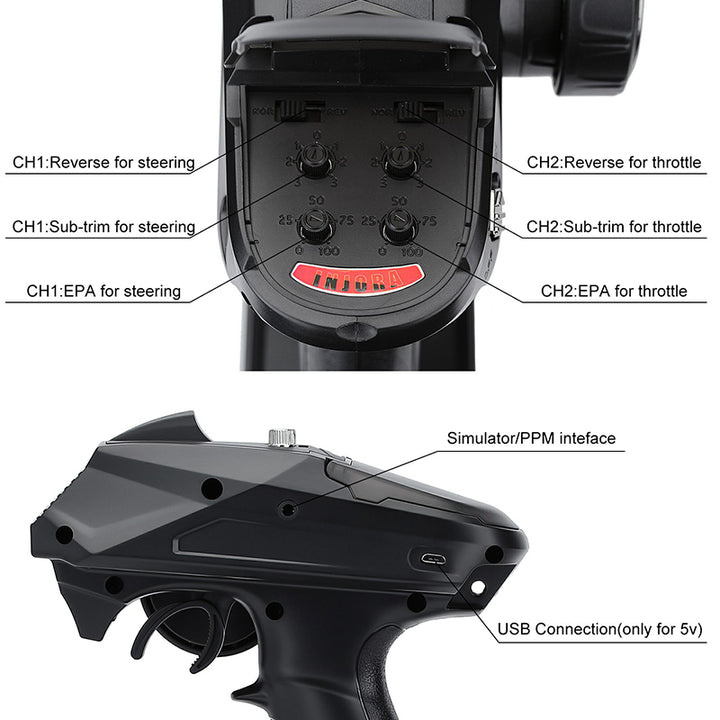

• 6. Each of the 3 channels can be set respectively, supporting mixed control of 1 and 2 channels.
• 7. Voltage range of the transmitter. 4.8V-12V(support 1s-3s), automatic identification of voltage, low voltage warning: 7.4V/4.8V
• 8. Voltage range of the receiver. 3.3V-10V, working current 30mA, supports high voltage servos.

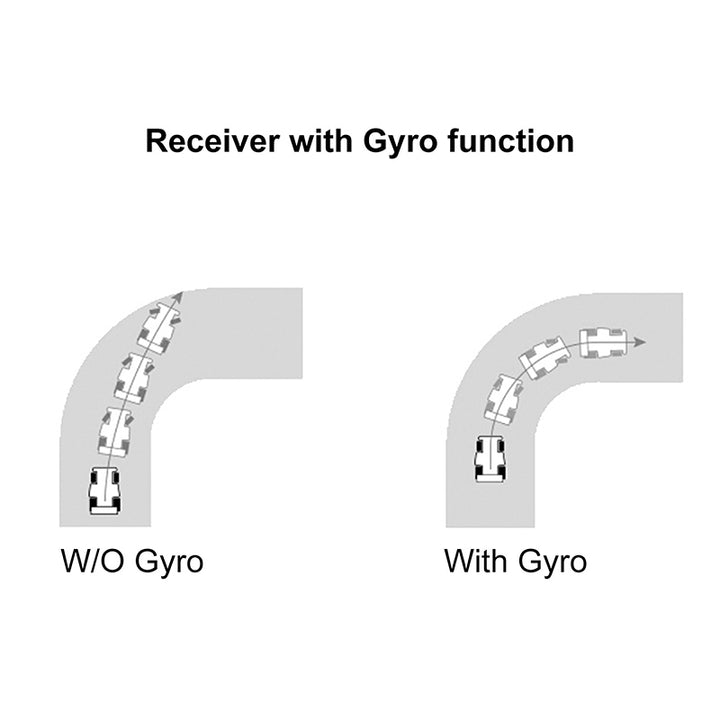

• 9. The receiver's integrated gyro(optional), ensures that the RC vehicles stay in course,preventing measure, drifts and turnovers. Supports gyro sensitivity adjustment.
• 10. The unique throttle speed limit adjustment function, allows beginners to practice at a safe speed.

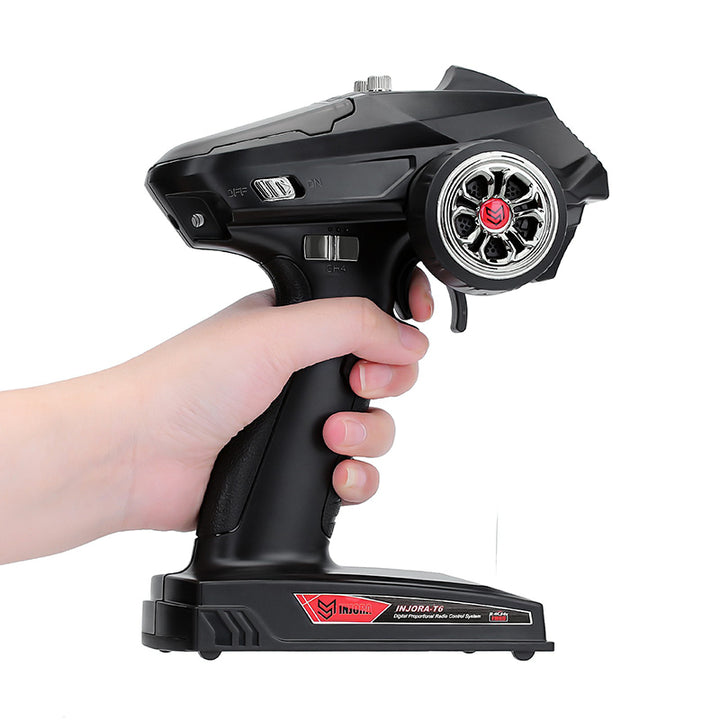

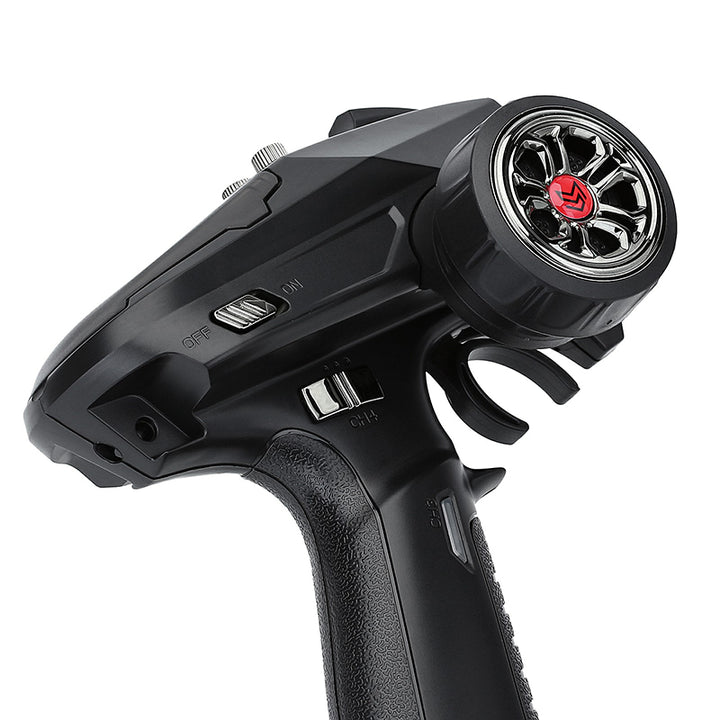

Specifications of Transmitter:

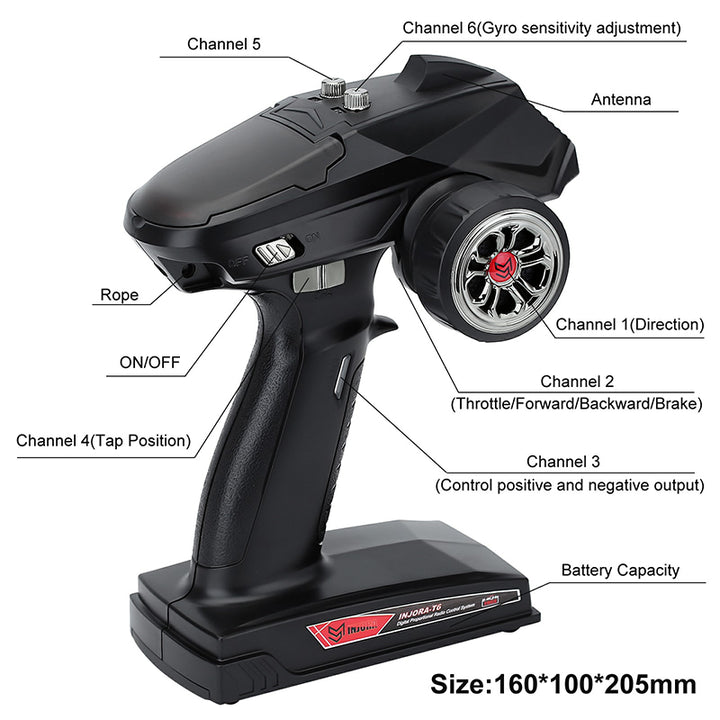

• Channels: 6
• Mode Type: RC Car Boat Tank
• RF Power: Less than 20dbm
• Response Time:10s-12ms
• Control Distance: about 400-500m

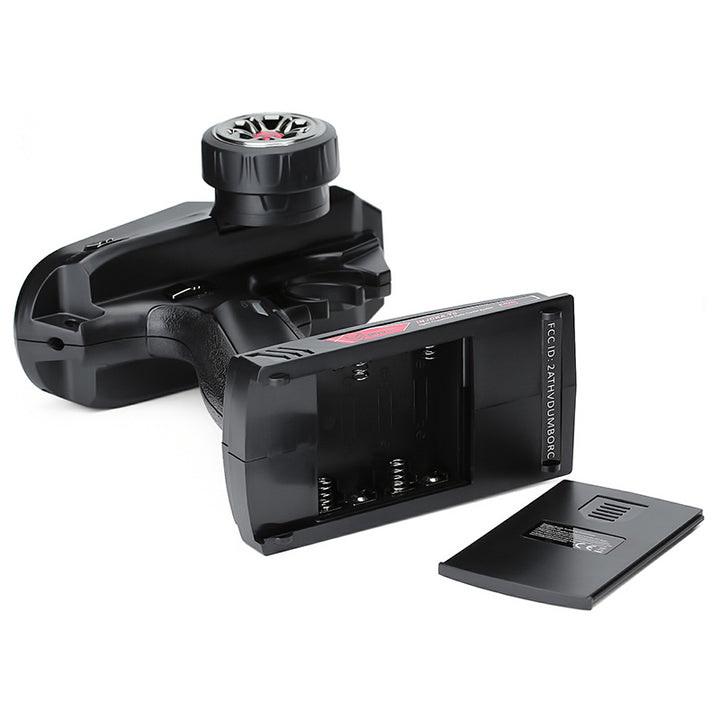

• Voltage Input: 4.8V-12V 2s-3s lipo or 1.5AA*4
• Low Voltage Warning: 7.4V/4.8V
• Net Weight: 300g

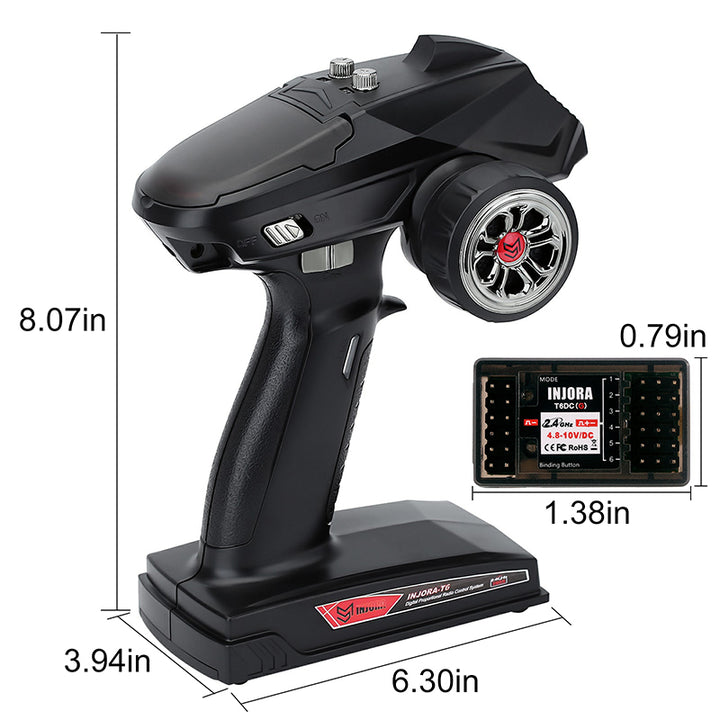

• Size: 160*100*205mm
• Part Number: T6F, T6FG

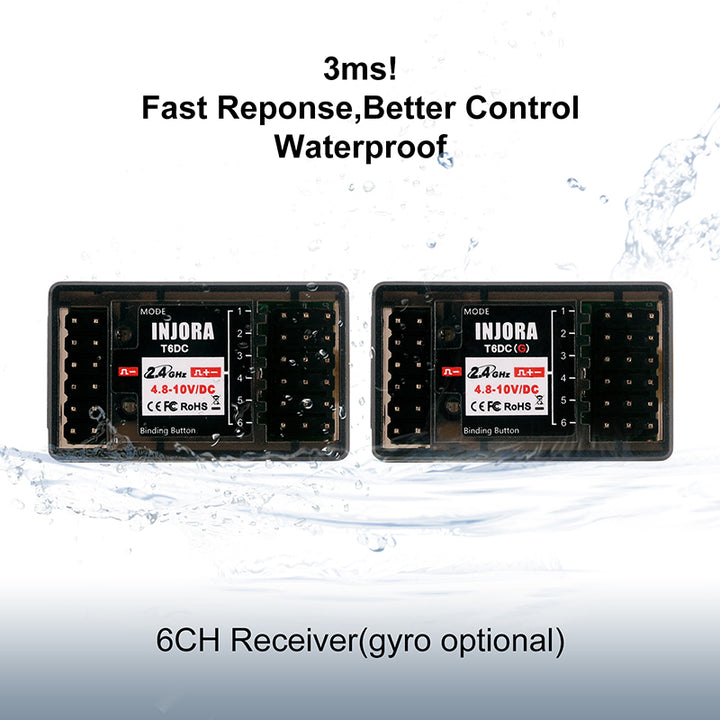

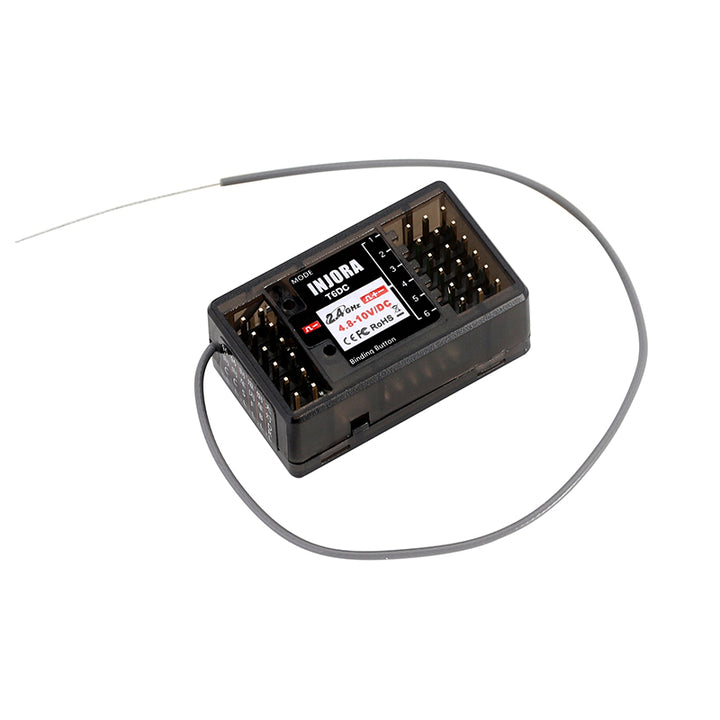

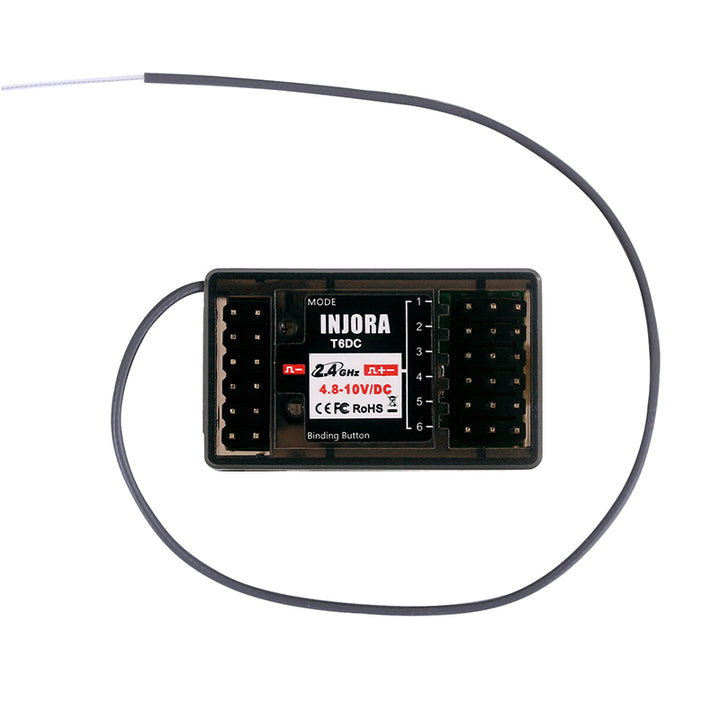

Specifications of Receiver:

• Channels: 6
• Frequency: 2.4GHz
• Type: no gyro / with gyro
• Size: 35*20*13mm

Package List:

• 1* Transmitter
• 1* Receiver
• 1* Manual
