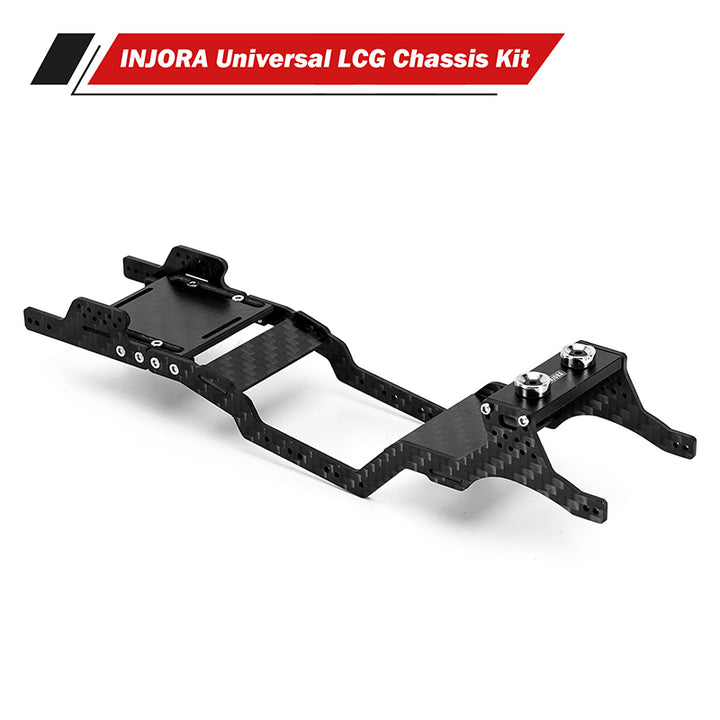

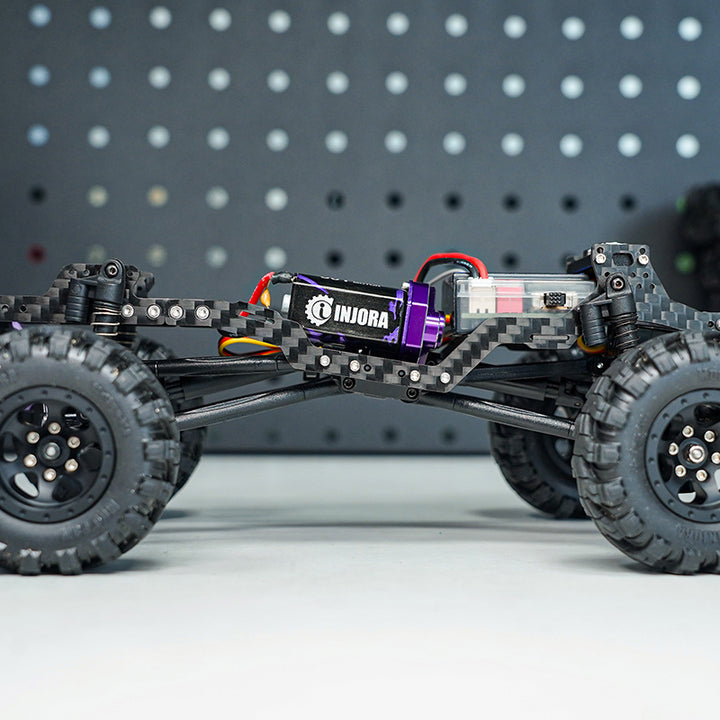

INJORA Universal LCG Carbon Fiber Chassis Kit for 1/24 SCX24
INJORA Universal LCG Carbon Fiber Chassis Frame Kit for 1/24 SCX24 Upgrade
Compatibility:

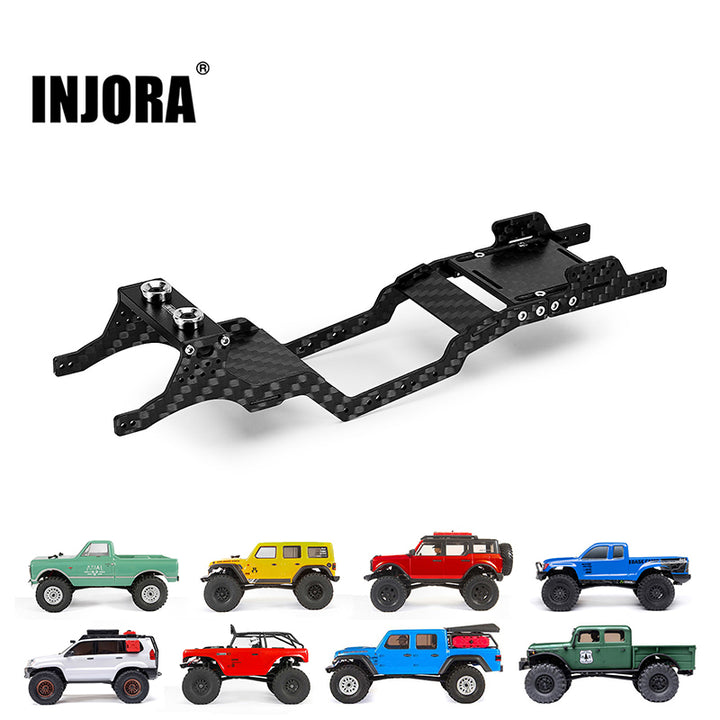

- Vehicle: Compatible with SCX24 C10, Jeep Wrangler, Bronco, Base Camp, 4Runner, Deadbolt, Gladiator, Dodge Power Wagon. Not compatible with GX470
- Body: Compatible with INJORA IR40-24, IR60-24 and BUG24 bodies
- Motor: Compatible with INJORA 050 and 2204 motors. Not compatible with 1721 motors, as the motor may interfere with the front driveshaft.
Features:

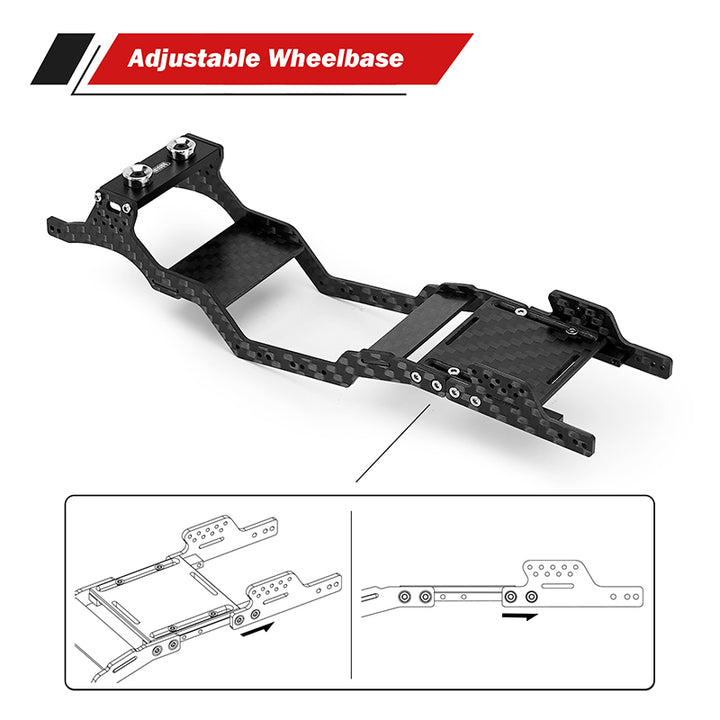

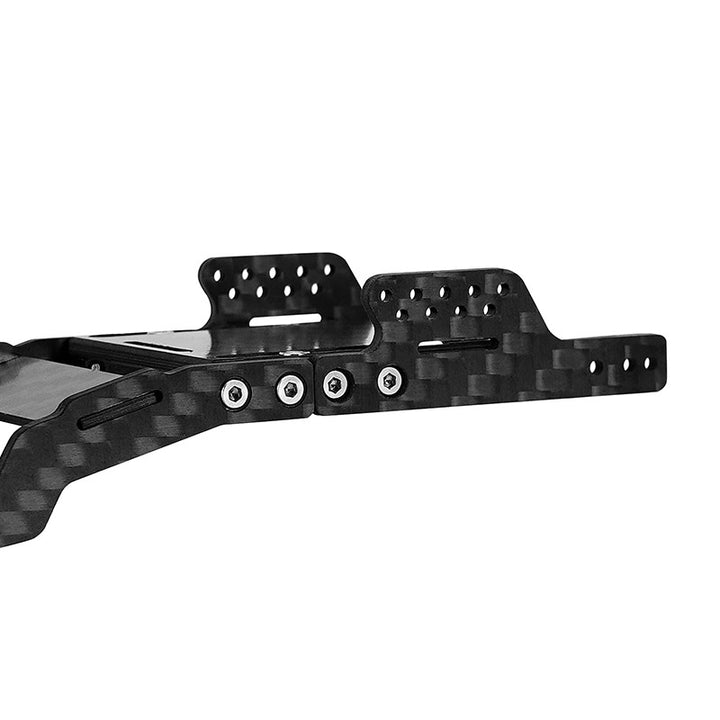

- 2 types of wheelbases are adjustable to fit the different wheelbases of the SXC24s.

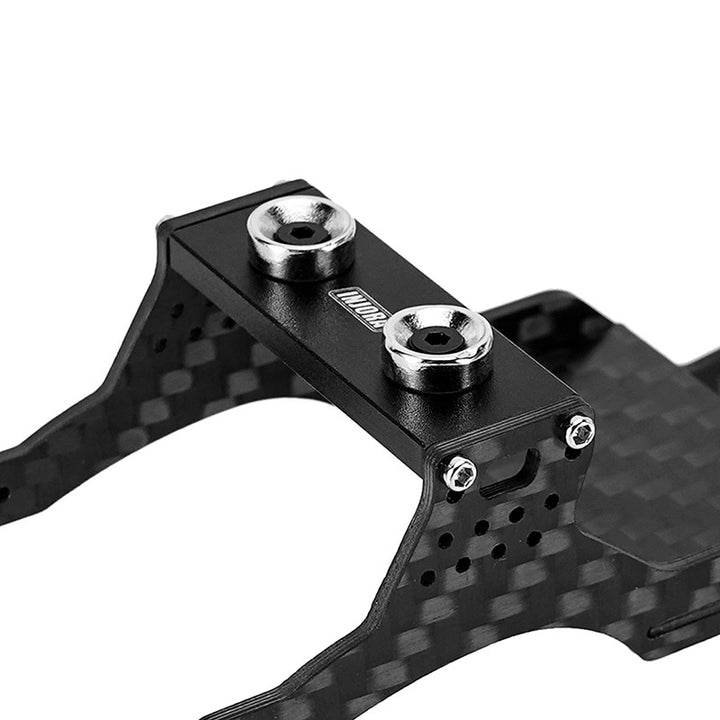

- Come with magnetic body mount to fit various bodies

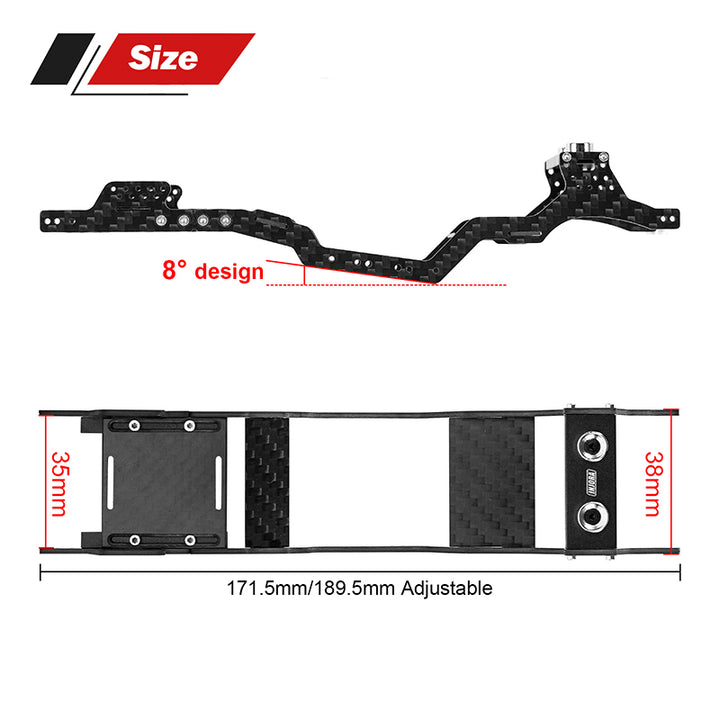

- 8° angled skid design improves climbing stability and breakover performance

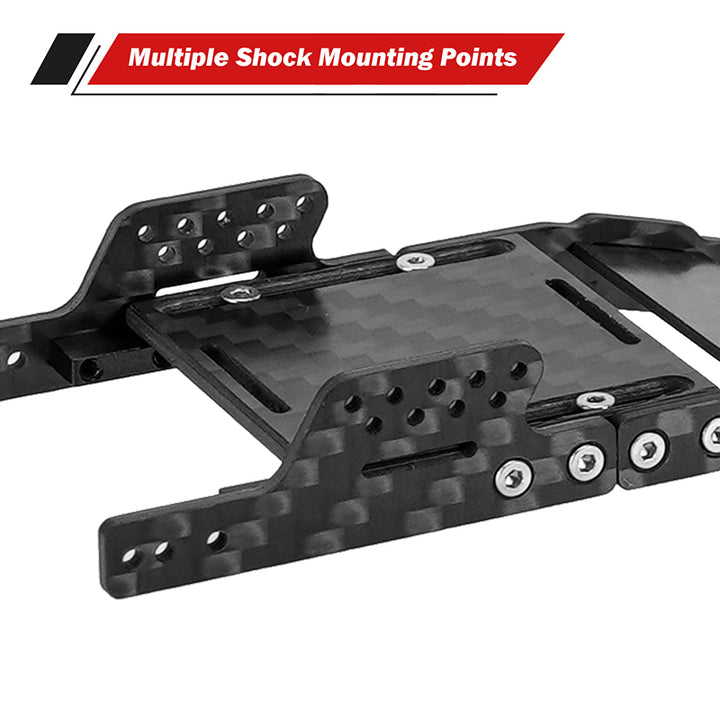

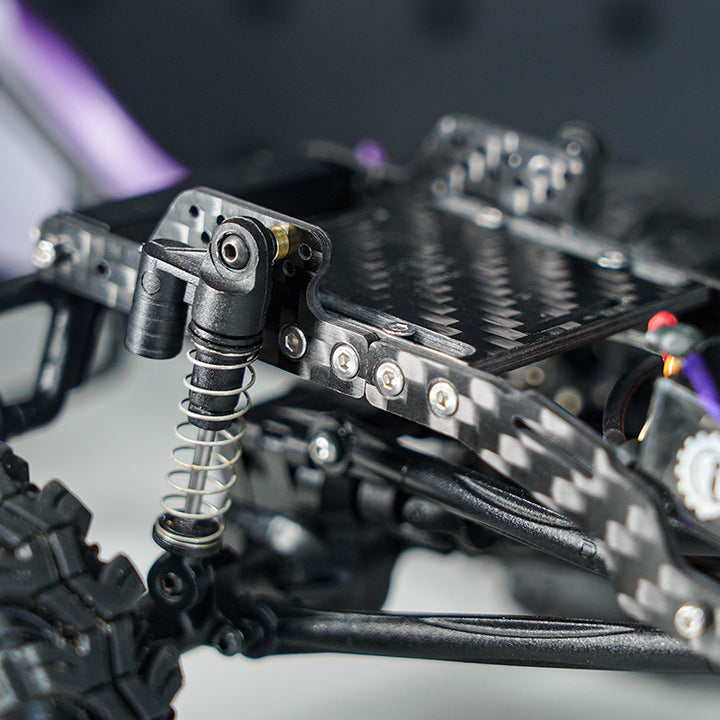

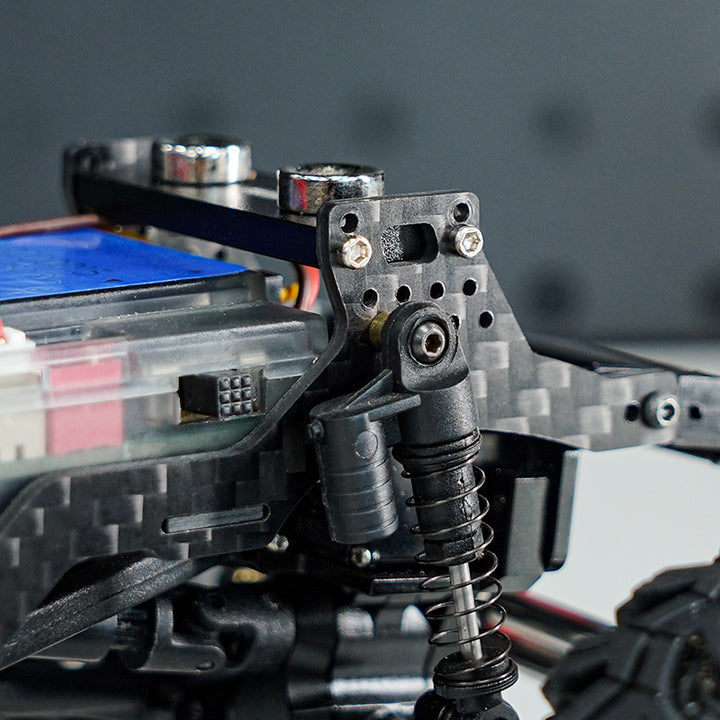

- Multiple-Shock-Mounting-Points design for better suspension tuning

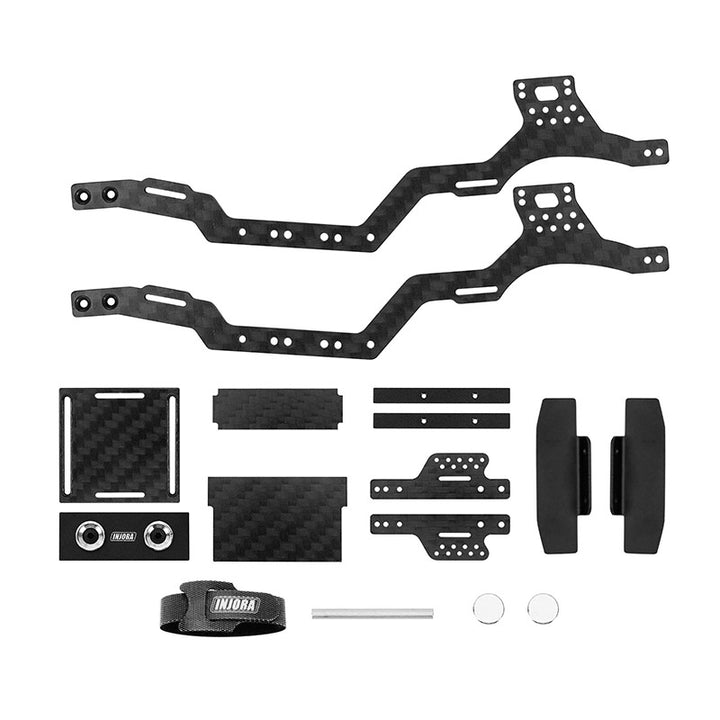

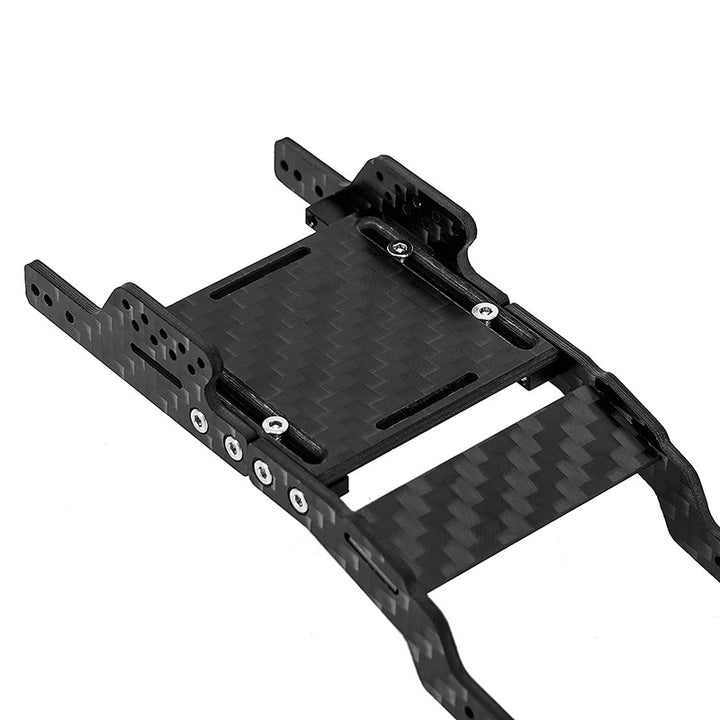

- Come with extra trays and side plates for electronic equipment
Specifications:
- Part Number: SCX24-182
- Material: Carbon Fiber, Aluminum
- Weight: 35g (0.077lb)
- Length: 171.5mm/189.5mm Adjustable
- Width: 38mm
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.
The chassis was amazing quality and everything I hoped for. It provides great low center of gravity, especially when all my weight is shifted to the front. Nothing bad to say about it. Thank you Injora
10/10. Assembly was easy, instructions are clear, and the body is solid and looks great.
I advise not over tightening screws. I saw that some people had broken the screws but i had zero issues. Just tighten them until they're snug as a bug in a rug and you'll be very happy with this chassis.
Riduce i pesi, abbassa il baricentro, piu fori pergli ammortizzatori
Chassis de très bonne qualité. Le réglage de la longueur est très bien pensé. Plus de trous pour les amortisseurs serait génial.
It went alright instructions could be a little bit better
Super prodotto A+++
There is an art involved in engineering something simple and complex! This is a great upgrade to a box stock vehicle, just swap everything over, and you have a very capable rig! if you upgrade nothing but this, you will likely still be very happy.

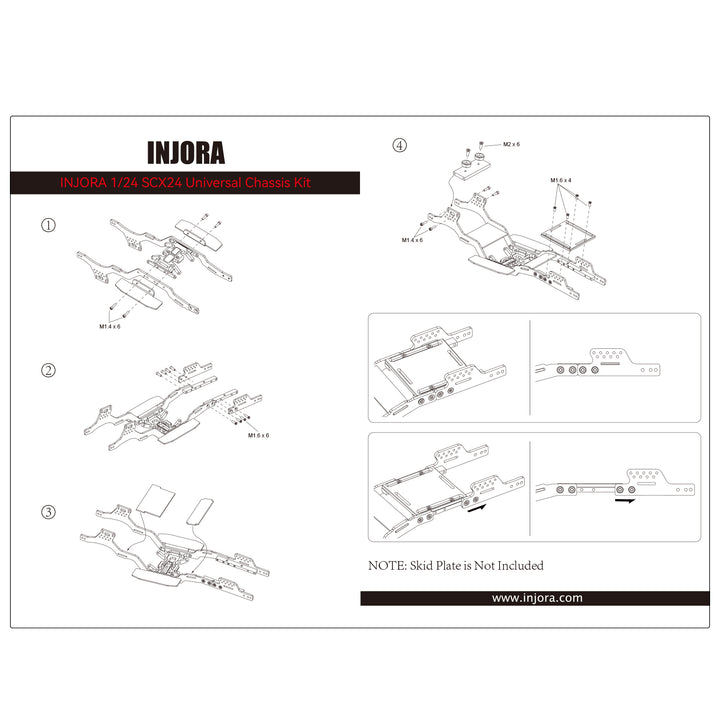

Easy to build, looks great... As far as instructions go, the rear is adjustable, either all the way back on the last two screws or forward to the front 2 screws, it's actually pretty straightforward. Was able to fit everything fine, love the slideable tray. Also fit a light kit from my trick RC, my gladiator is looking fresh AF! I'll definitely buy another frame, just wish there were more shock mounting options. Other than that this is a great option!
I bought this chassis thinking it would be an awesome conversion to shed some weight on my deadbolt and give some better tuneability. The stock skid,links and suspension mount right up and looks awesome once built. However trying to mount the stock body just doesn't work. There aren't any instructions for what wheelbase setting to use for which scx24. The magnet mount is garbage and more trouble than it's worth (imo). The hardware is very soft and can strip and shear during assembly. This would be a great chassis if you don't run a body. It definitely looks cool in the pictures and video. Functionally just stick with the stock rails or maybe carbon replacement stock chassis rails but you'd be better off buying quality wheels,tires shocks and links. Or a new TRX4M.
why doesnt it fit gx470?
Does it work with ir60 body?
Yes, compatible.
Will this chassis work with my D14 1/10 scale suzuki carry truck WPL model
Not compatible.
why doesnt it fit gx470?
Different wheelbases
Will this fit the scx24 lexus gx470?
What links do I use to fully extend the wheel base
Use longer links, but please note that the chassis and body must be compatible with the extended wheelbase.
Can you fit furitek brushless setup on this chassis. If so which setups are compatible?
Yes, Furitek Micro Komodo from Little Guy Racing Parts and pair that with a escape32 ESC from Big Kid Tiny Truck. Nice combo. Super slow crawl and nice and torquey.
Does the scx24 4 runner work with this
Yes, compatible.
is this compatible with the lexus body
is this Jesse compatible with the bug body?
Not compatible with INJORA purple viper 1721 brushless motor, but what about the fat viper?
It fits just fine just take the front try out and boom it first lol
Not compatible with INJORA purple viper 1721 brushless motor, but what about the fat viper?
Peso del chasis?
Is it compatible with the purple viper engine?
sorry, I have my answer
Does this work with Ir60 body
