PRODUCT DETAILS

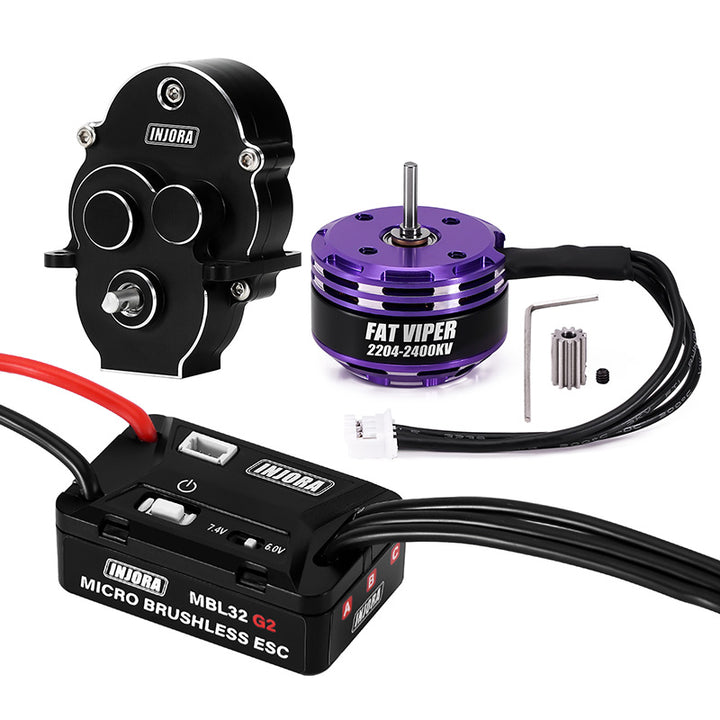

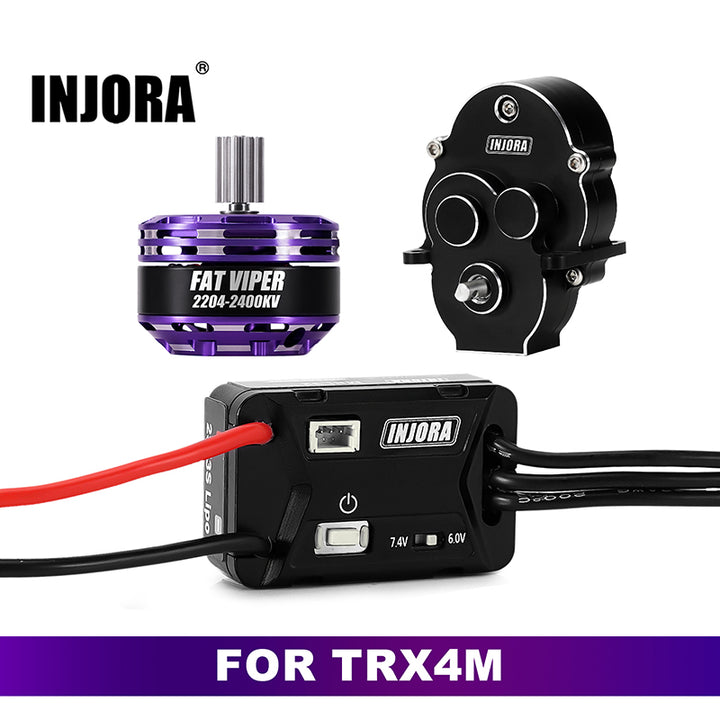

INJORA MBL32 G2 Waterproof Brushless ESC & 2204 Fat Viper Outrunner Motor for 1/18 TRX4M
Features:
- The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
- Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
- MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
- Waterproof Design for all-weather performance.
- Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
- Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.

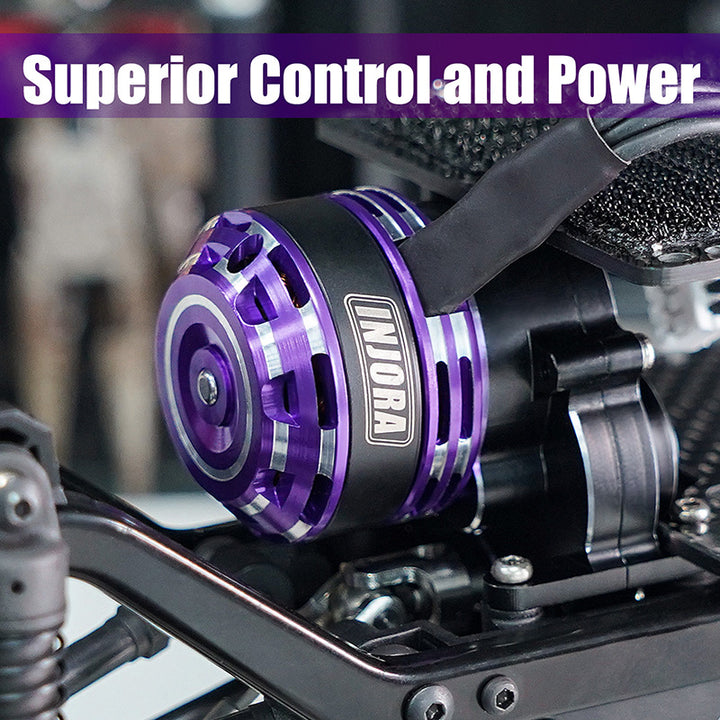

- 2204 Fat Viper Outrunner Motor will give your car a better driving performance.

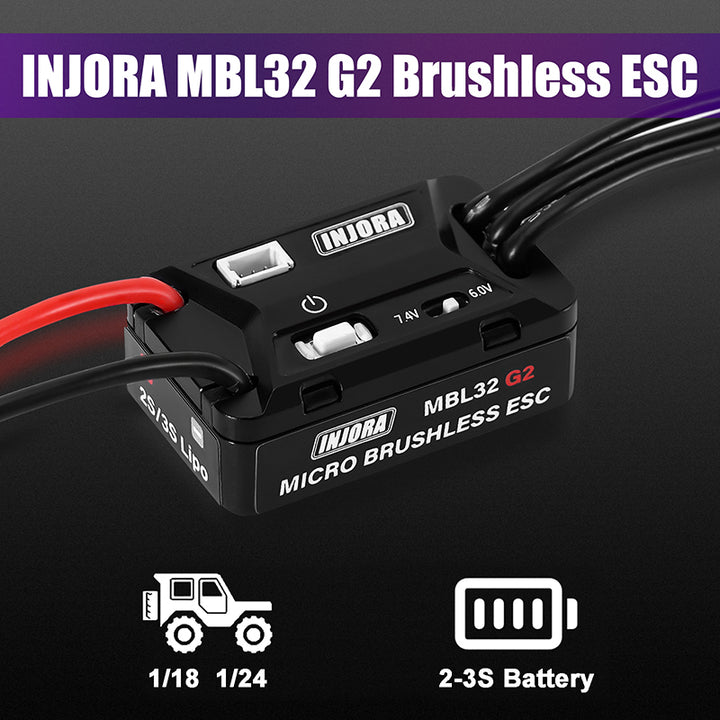

ESC Specifications:
- Part Number: MBL32 G2
- LiPo Cells: 2-3S
- Continuous Current: 25A
- Peak Current: 60A
- BEC Output: 6.0V/7.4V adjustable
- BEC Current: 3A

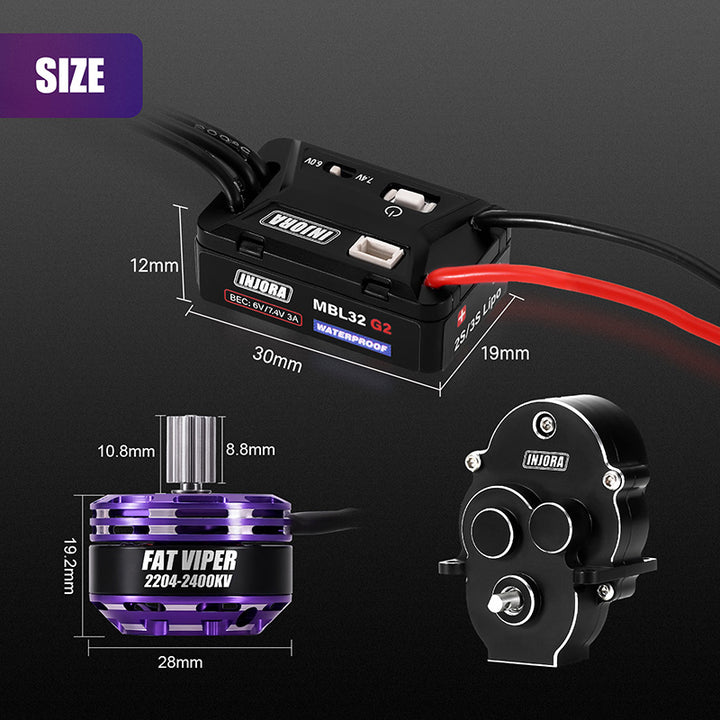

- Dimensions (L*W*H): 30*19*12mm
- Waterproof: Yes
- App Tuning: Not Supported
- Weight: 0.45oz (13g)
Motor Specifications:
- Model Number: 2204
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 2400KV
- Motor Poles: 14
- Sine Mode Power: 7
- Max Power: 2500W
- No-Load Current: 0.7A
- Max Peak Current: 50A
- Motor Connectors: PH2.0 3Pin
- Dimensions: Φ28*19.2mm
- Motor Qutput Shaft: Φ2mm
- Motor Pinion: 0.4mod 11T
- Weight: 28g
Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Stainless Steel
- Internal Gears: 24.4:1 gear set, underdrive 32%

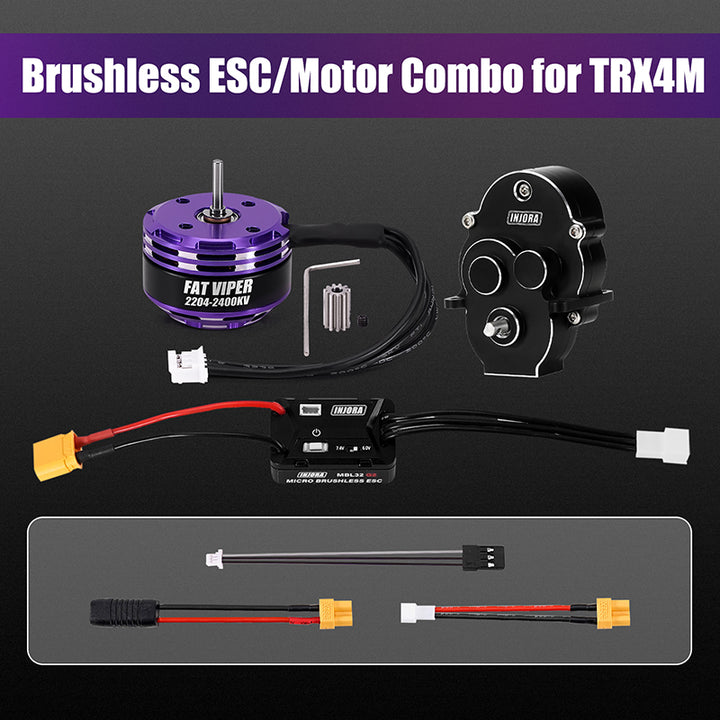

Package List:
1 * Micro Brushless ESC
1 * USB programmer Card
1 * 2204 Fat Viper Motor
1 * 370 Aluminum Transmission

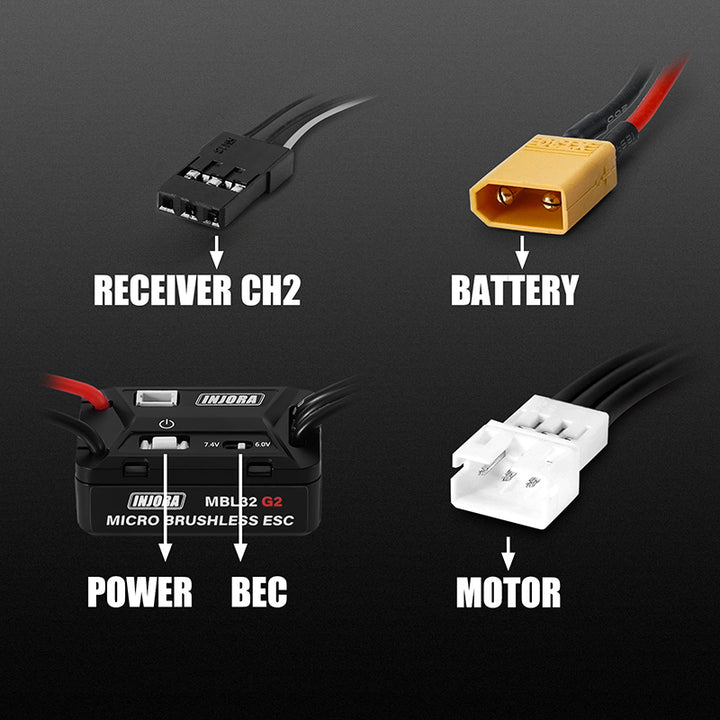

1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual
