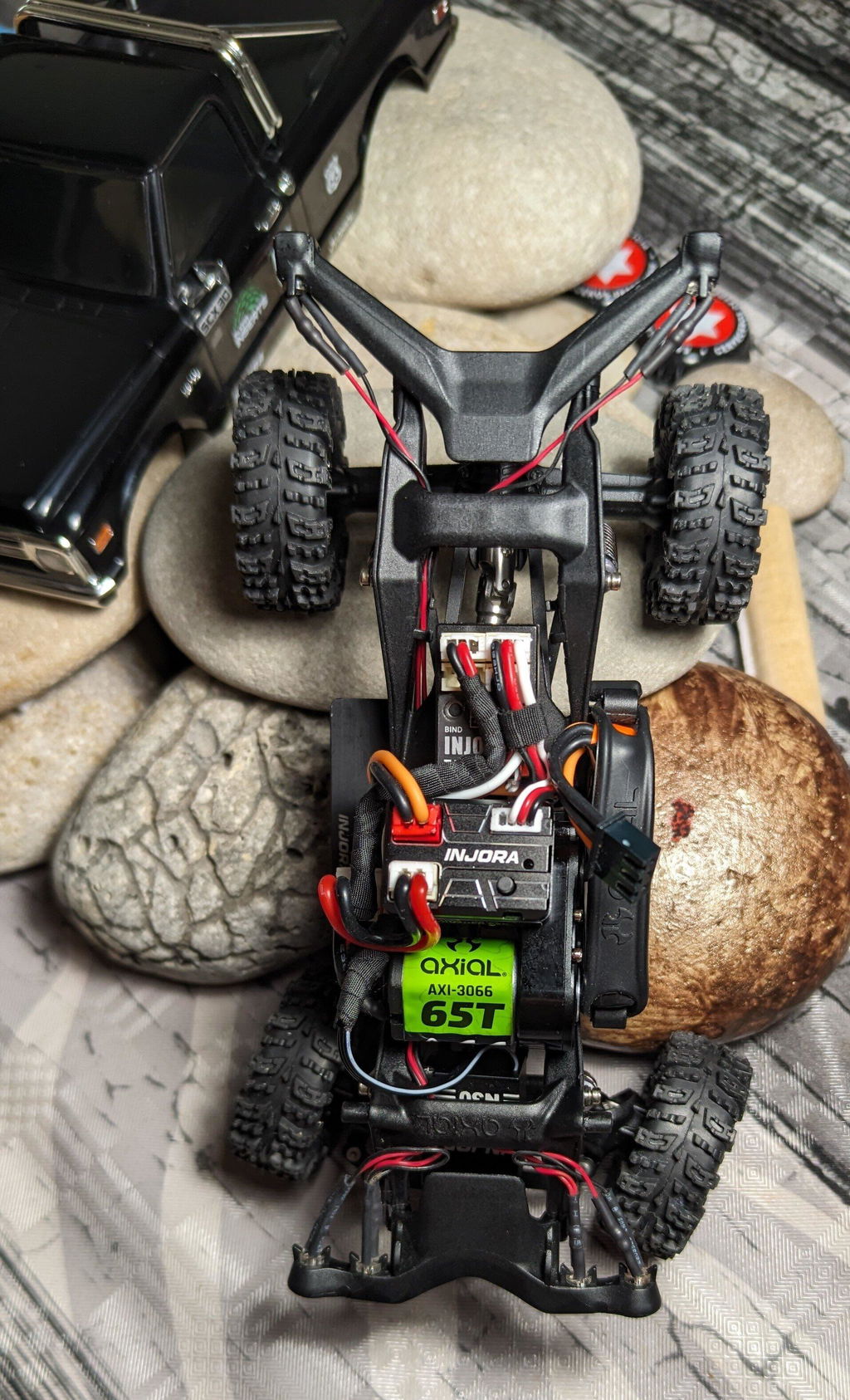

INJORA MB100 NANO Brushed ESC 15A for 1/24 1/30 1/32 RC Crawlers

INJORA MB100 NANO Waterproof Brushed ESC 15A for 1/24 1/30 1/32 RC Crawlers

Note:

• Compatible with SCX24, SCX30, etc.
• Radio system: Not compatible with the stock SCX24 / SCX30 radio systems. Requires a new transmitter and receiver (with CH2).
• No app support. Drag brake can be adjusted via the AUX channel.
• Motor Support: 030/050/130/180 Brushed Motors (PH2.0 Connector), not compatible with 370-size motors.
• Please use 2S LiPo! (Using 3S may trigger the voltage protection function and cause automatic shutdown.)

Features:

• 1. IP67 waterproof design
  Fully waterproof design to adapt to various climate conditions.
• 2. Linear Throttle Control
  An optimized control algorithm ensures consistent linear throttle response.
• 3. AUX Mapping Function
  Drag brake force is adjustable via the AUX channel.The signal range of 1000–2000μs corresponds to 0–100% drag brake force.
  • Plug the AUX wire into CH5. A knob channel is recommended if available.
  • Use the CH5 knob to adjust the Drag brake directly
• 4. Multiple protections:
  • Low Battery / Undervoltage Protection: Issues a warning and limits power output when the battery voltage drops below the set threshold.
  • Overheat Protection: Issues a warning and cuts off power output when the ESC temperature reaches the preset limit.
  • Overvoltage Protection: Issues a warning and significantly limits or cuts off power output when the input voltage exceeds the ESC’s rated voltage range.
  • Throttle Signal Loss Protection: Applies braking immediately when the receiver’s PWM signal continuously deviates from the normal range or is lost, preventing a runaway condition.

Specifications:

• Model: MB100 NANO
• Continuous / Peak Current: 15A / 40A
• Motor Support: 030/050/130/180 Brushed Motors (PH2.0 Connector)
• Main Applicable Scales: 1:32 / 1:30 / 1:24
• Battery Cells: 2S LiPo
• BEC Output: 5.6V / 3A
• Size: 23×16.5×10.3mm
• Weight: 5.2g

Package List:

• 1 × MB100 NANO ESC
• 1 × Receiver Connect Cable (JR Plug)
• 1 × Light Adapter Cable (JR Plug to Male JST-PH 2.0)
• 1 × Instruction Manual
