INJORA 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 TRX4M

SKU: INJS2065-4MBK
Availability: In Stock Pre order Out of stock
$29.99 USD

Option: Servo with mount and horn

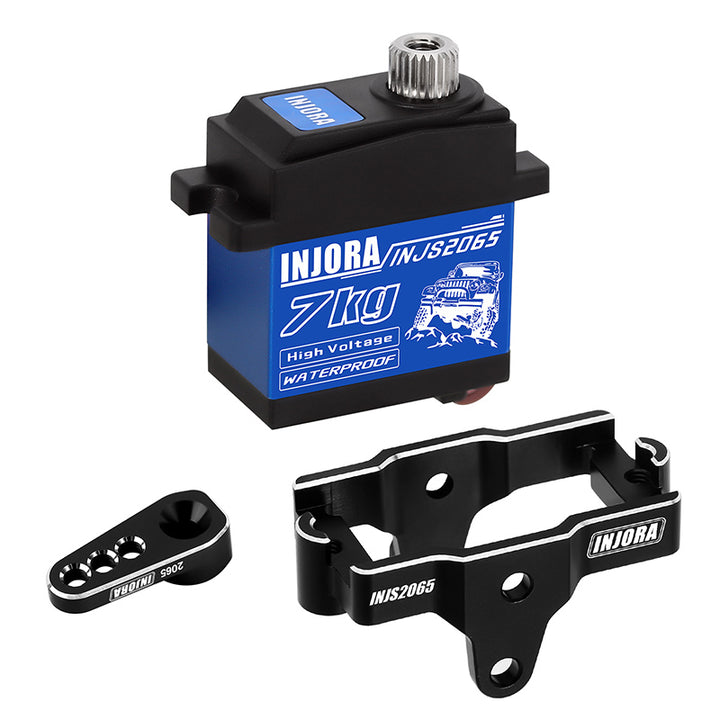

Servo with mount and horn

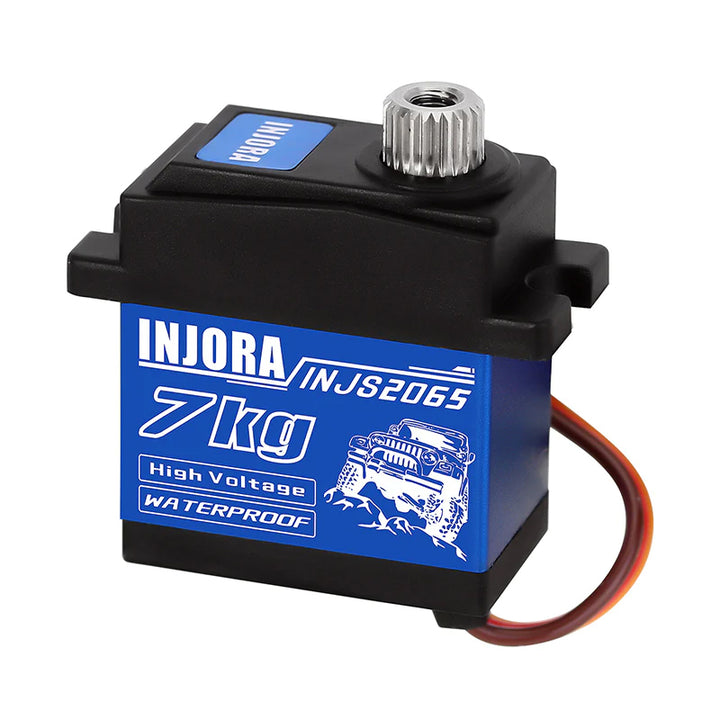

Servo Only

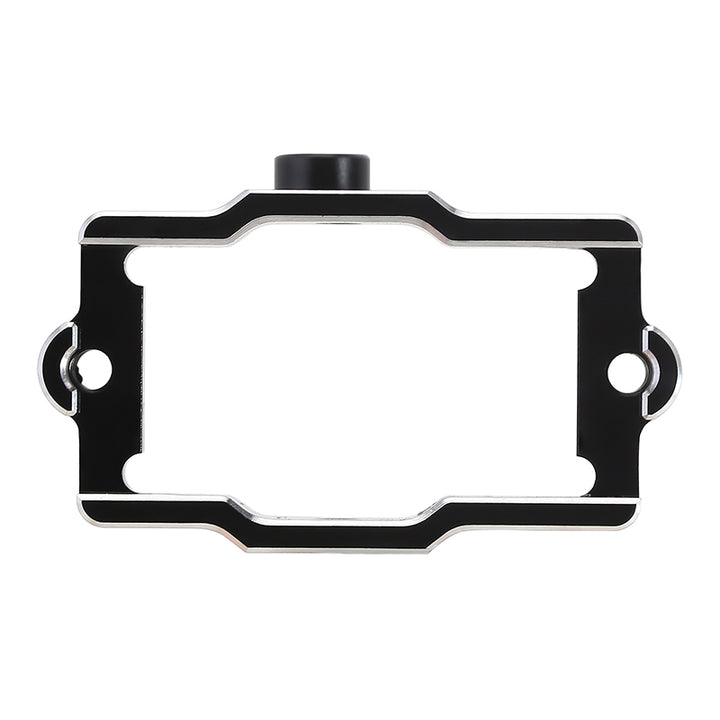

Servo Mount Only

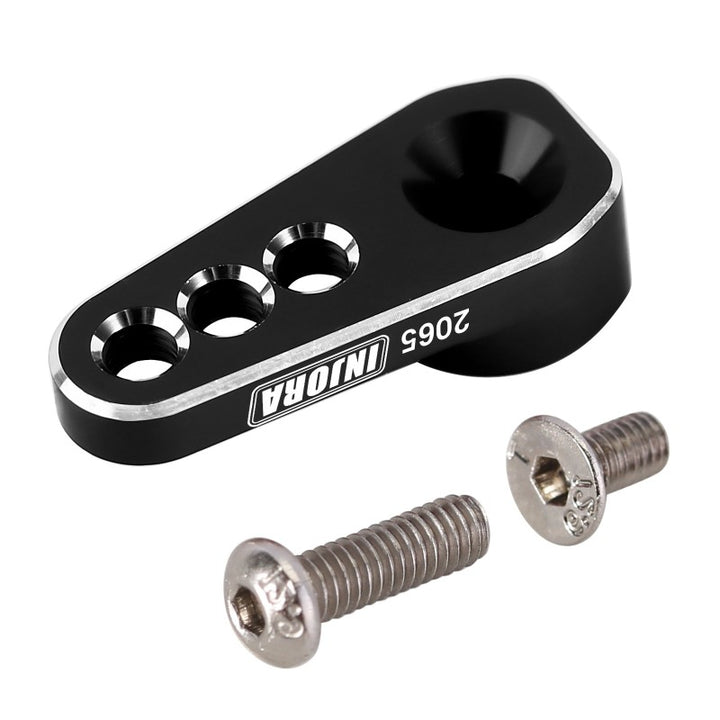

Servo Horn Only

Product Detail

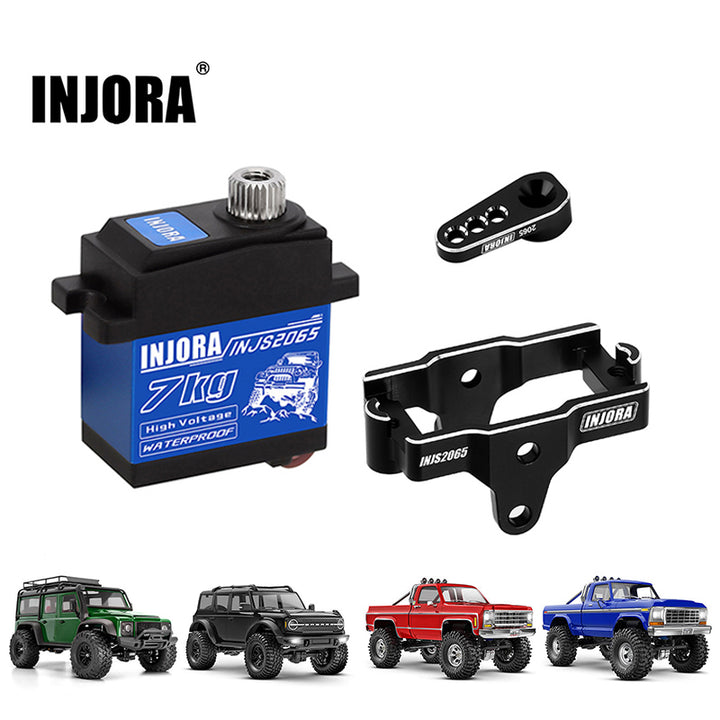

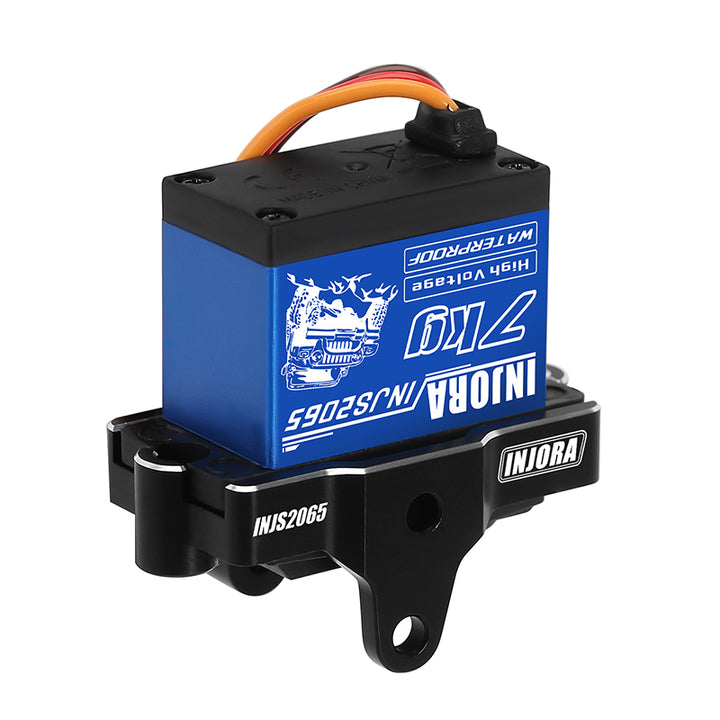

INJORA INJS2065 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 RC Crawler TRX4M Upgrade

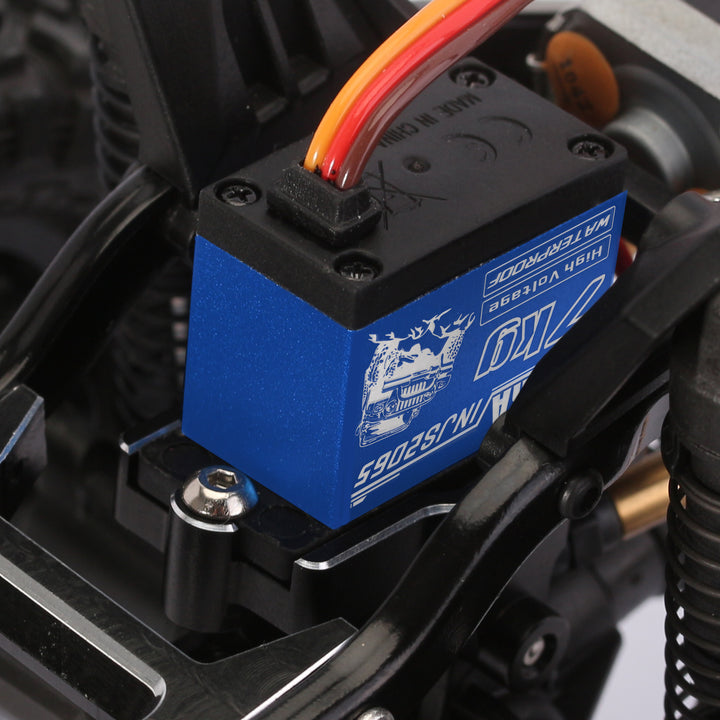

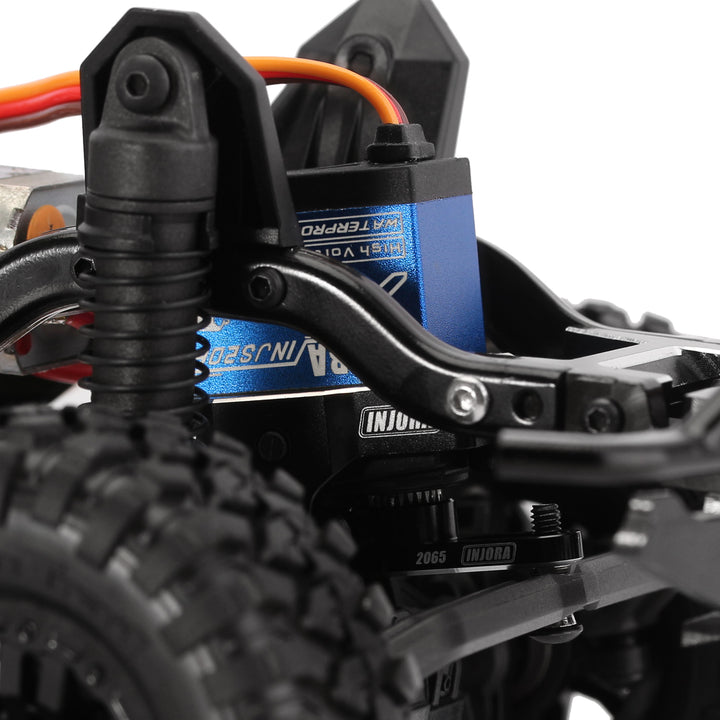

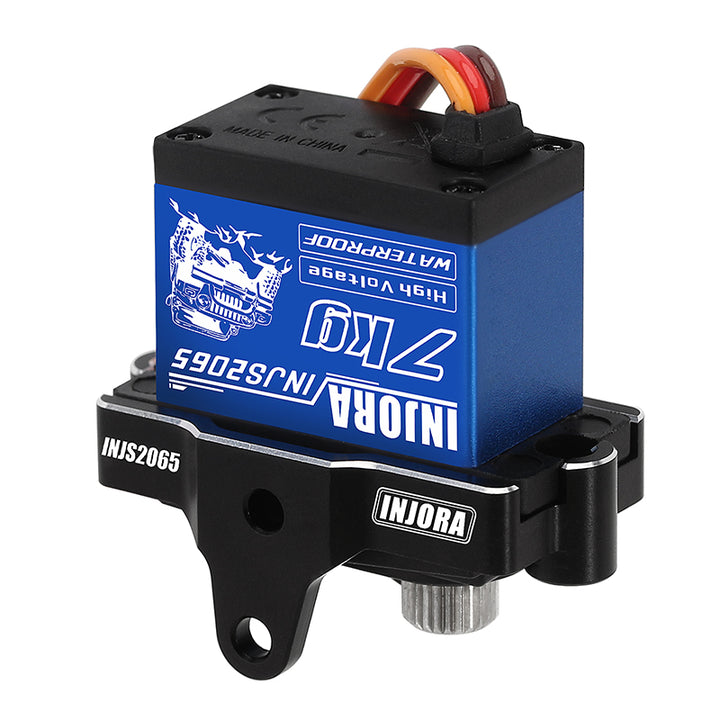

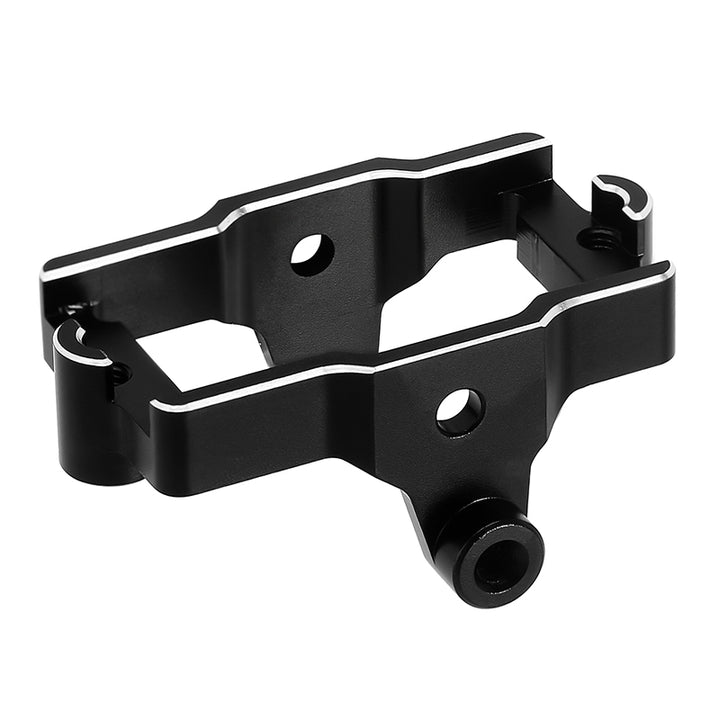

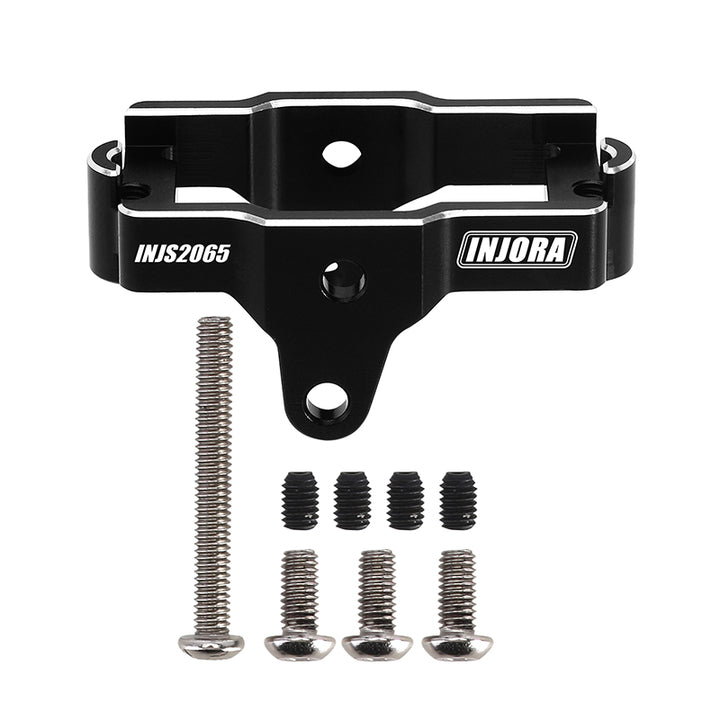

Note: Please use our servo and servo mount together. If you use the stock plastic TRX4M servo mount, you will need to trim the servo mount.

Compatible with:

  • 1/18 TRX4M Defender, Bronco, High Trail K10, F150

Features:

  • IP66 waterproof ratings, you can run it in the rain or underwater!
  • High voltage and digital 2065 servo
  • Stainless steel gears and lower noise

Specifications:

  • Item Name: INJS2065 Servo
  • Dead band: 2μs
  • Neutral Position: 1500μs/330hz
  • Motor: Core Motor
  • Remote Control Angle: 90-120°±2°
  • 500-2500μs Angle: 180°±2°
  • Voltage Range: 4.8V-8.4V
  • Operating Speed(6.0V): 0.09''/60°
  • Operating Speed(8.4V): 0.06''/60°
  • Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
  • Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
  • Dimensions: 23*13*25.8mm
  • Weight: 20g
  • Connector Wire Length: JR 300 mm
  • Bearing: 1BB
  • Packing Weight: 28g
  • Package size: 36X23X38mm
  • Spline: Φ5.9 25T

Required tools:

  • 1* 1.5mm hex screwdriver
  • 1* 2.0mm hex screwdriver
