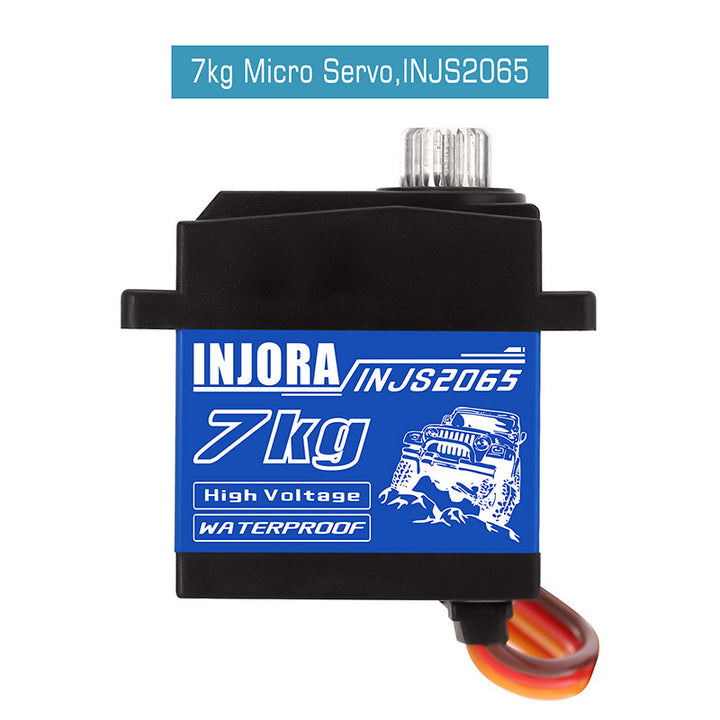

INJORA INJS2065 7KG High Voltage Waterproof Metal Gear 2065 Digital Micro Servo
INJORA INJS2065 7KG High Voltage Waterproof Metal Gear 2065 Digital Micro Servo
Features:

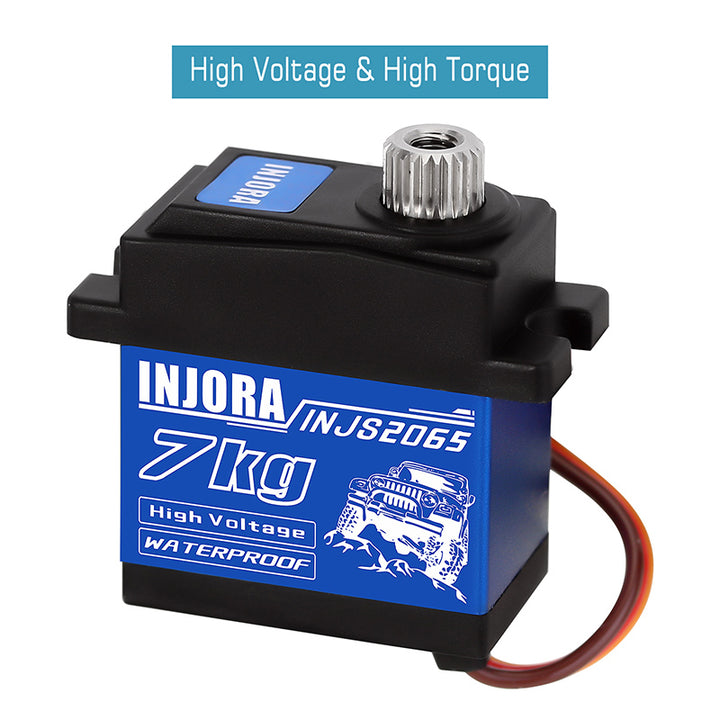

- High-torque digital servo with high-voltage support

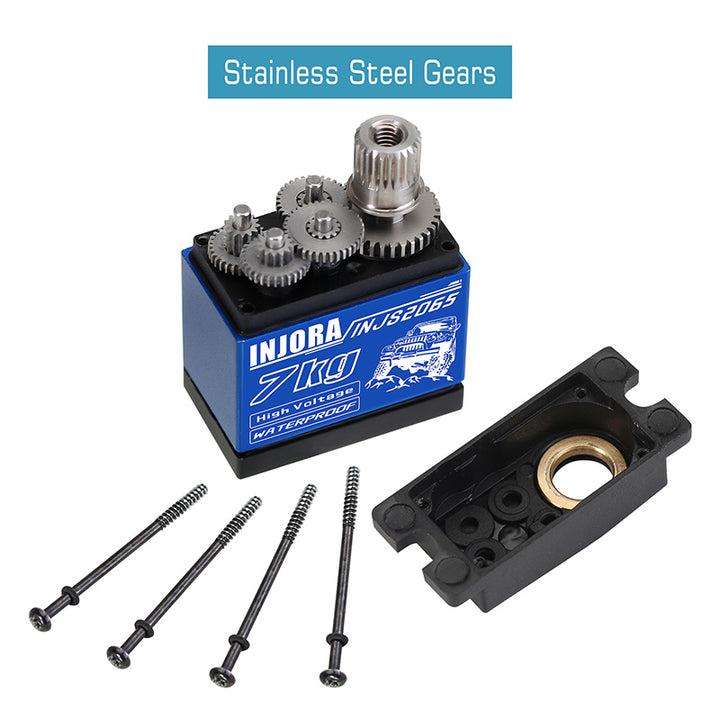

- Stainless steel internal gears enhance strength and durability
- Fast response with low-noise operation

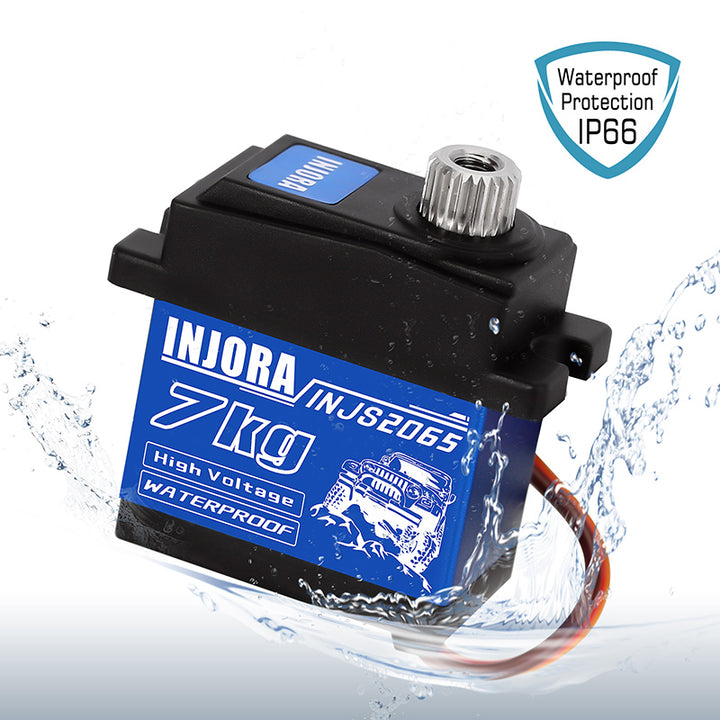

- Waterproof design for reliable performance in wet conditions

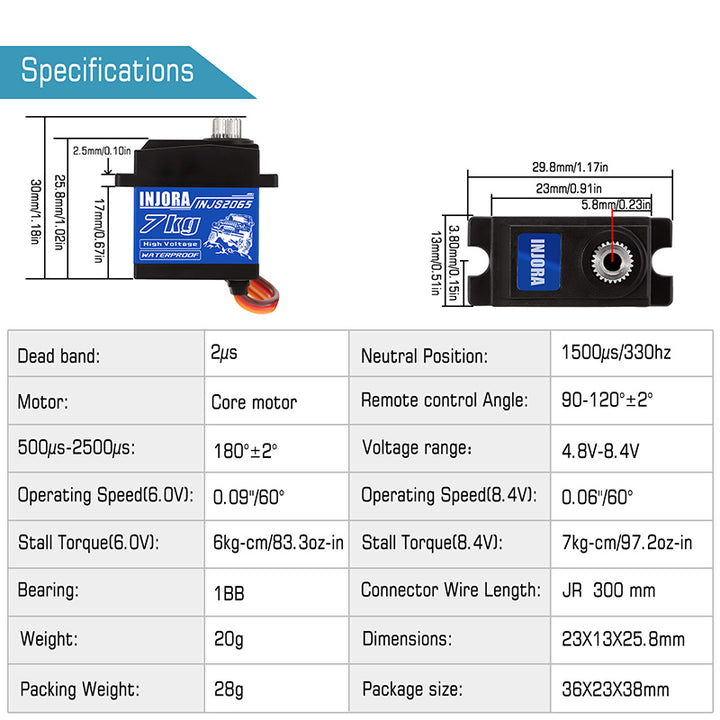

Specifications:
- Part Number: INJS2065
- Dead Band: 2μs
- Neutral Position: 1500μs/330Hz
- Motor: Core Motor
- Remote Control Angle: 90-120°±2°
- 500-2500μs Angle: 180°±2°
- Voltage Range: 4.8V-8.4V
- Operating Speed(6.0V): 0.09''/60°
- Operating Speed(8.4V): 0.06''/60°
- Stall Torque (6.0V): 6.0kg·cm / 83.3oz·in
- Stall Torque (8.4V): 7.0kg·cm / 97.2oz·in
- Bearing: 1BB
- Spline: Φ5.9 25T

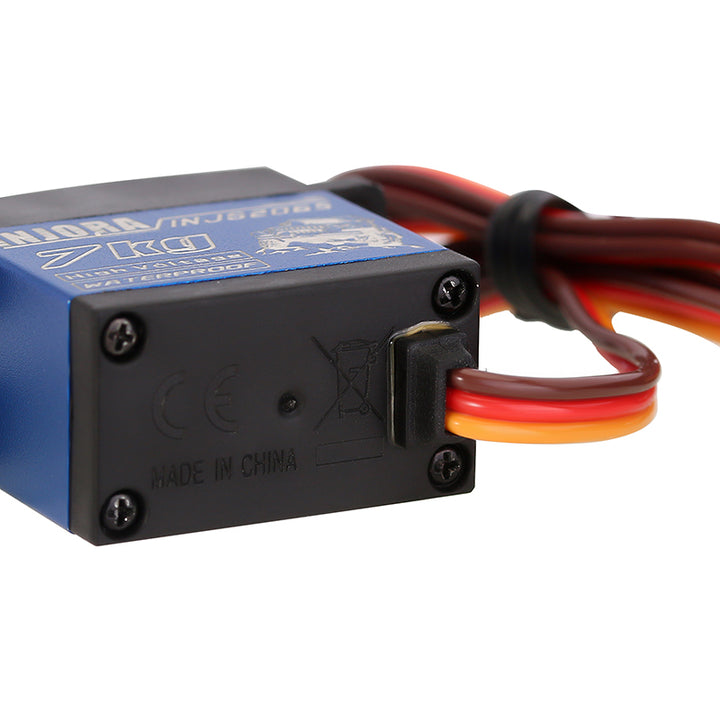

- Wire Length: JR 300mm
- Weight: 20g
- Dimensions: 23×13×25.8mm
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.
Great little high voltage servos at a great price and works great for dig.

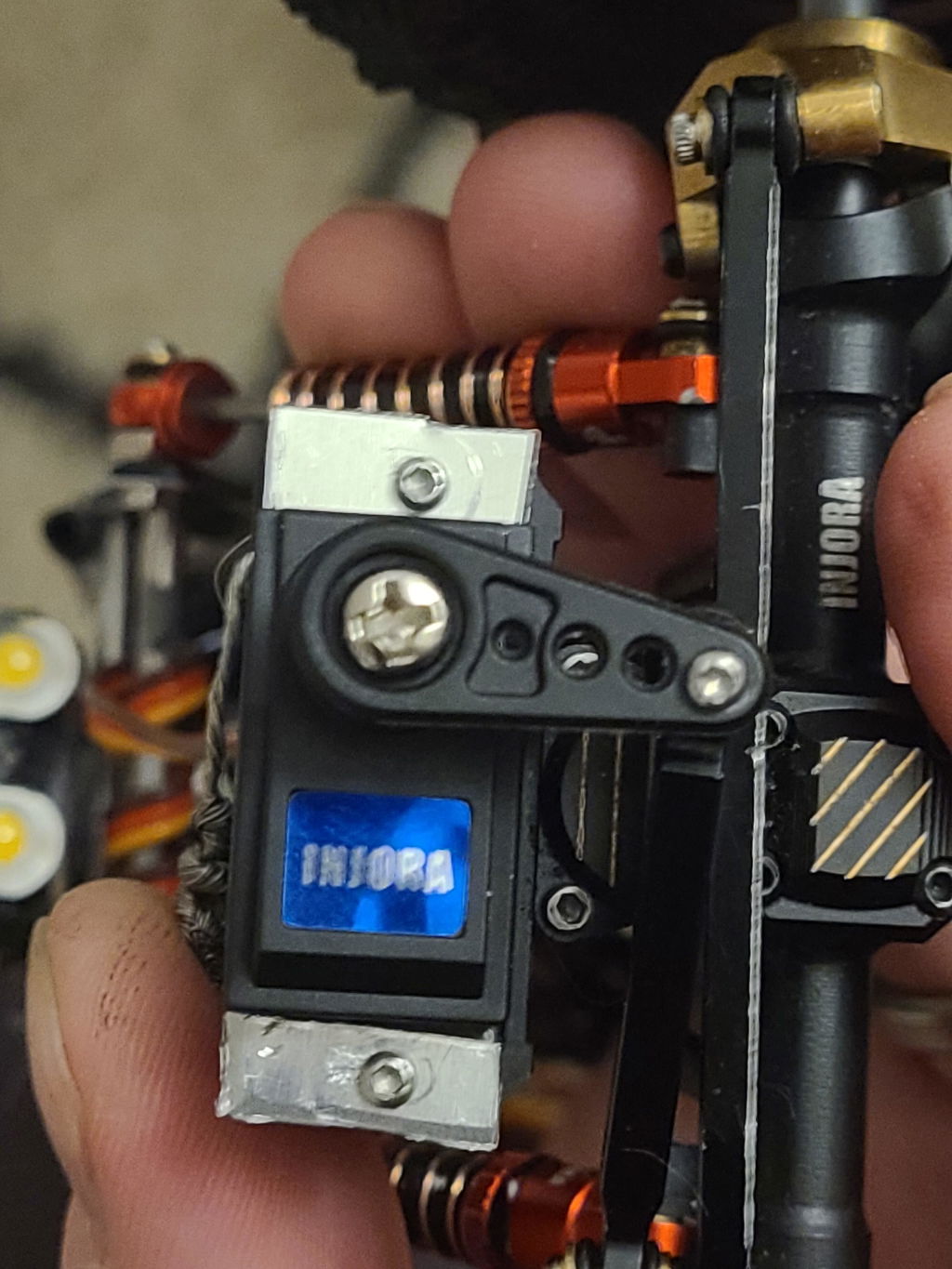

It needed a simple custom made mounting system since the emax mount doesn't line up, but it has fantastic speed and power. Will be buying another for rear steer. So much cheaper than the 99 or other high quality micro servos with similar, or worse, stats.
Works & fit perfectly.
Die Servos sehen von der Qualität und Verarbeitung gut aus habe sie als Ersatz gekauft, habe die Servos noch nicht getestet.

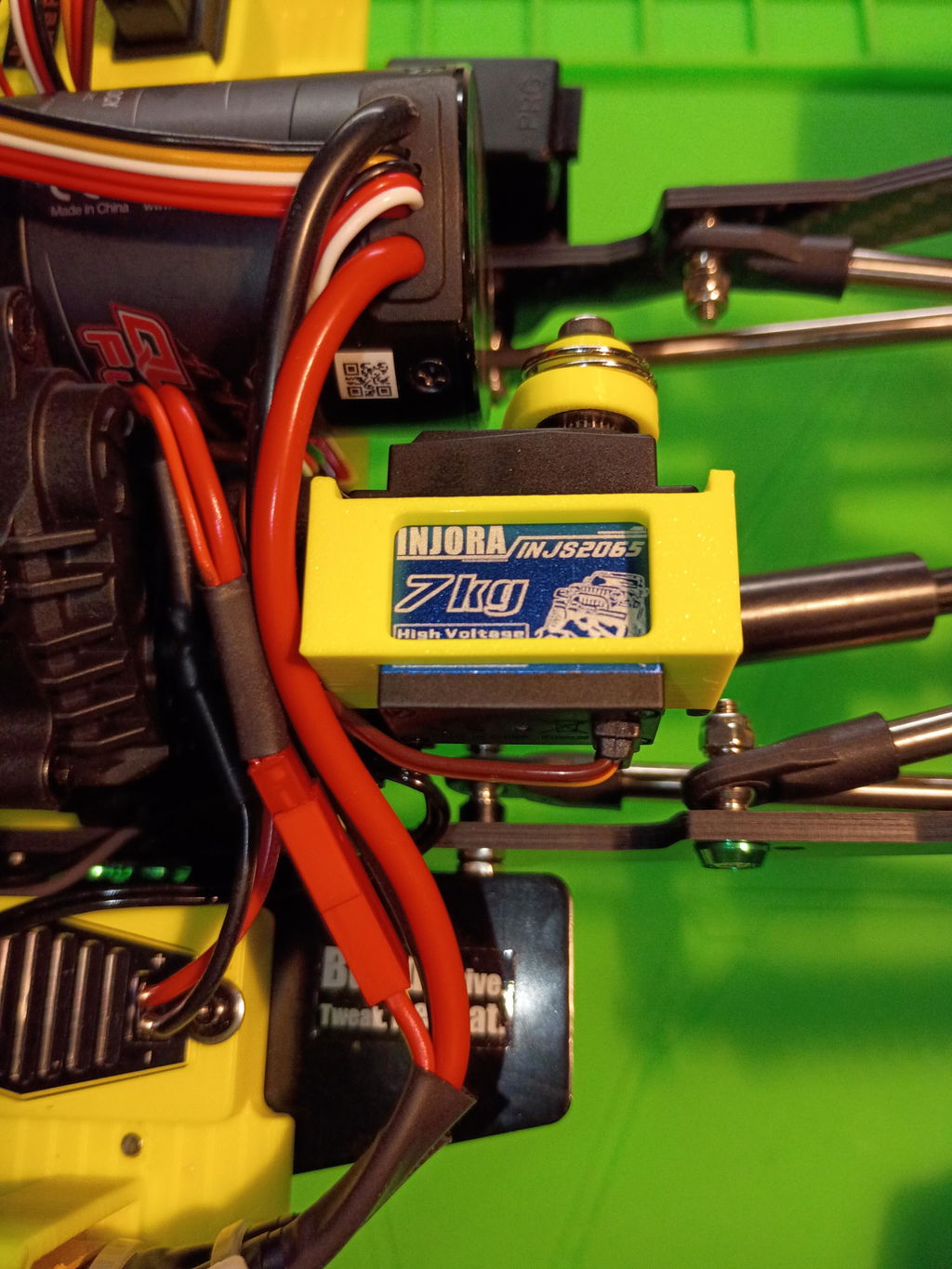

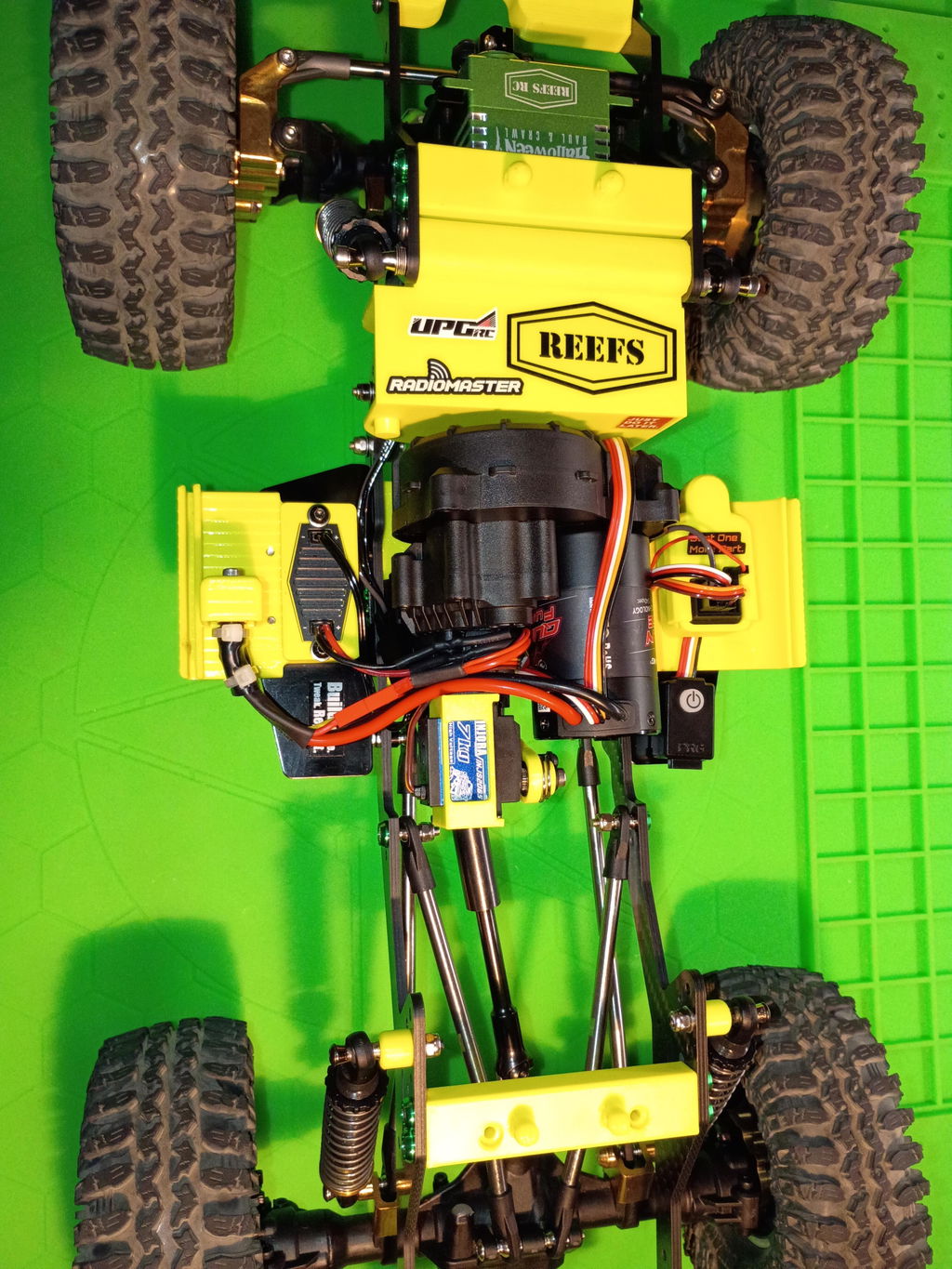

I made some modifications for this servo to fit my Ryft 2 speed transmission and it works great! I had to do some filing on the transmission mount and the plastic rod end but it is well worth doing it for a strong servo at a reasonable price.
I use with trx4m it nice
Does this fit directly onto the hobbyplus cr18p evo pro juice up with no extra upgrades?
Not compatible.
Does the is work for a winch servo
No.
Does this work with the trx-4 diff lockers or just the shifter
Yes, with diff lockers.
does it come with a horn

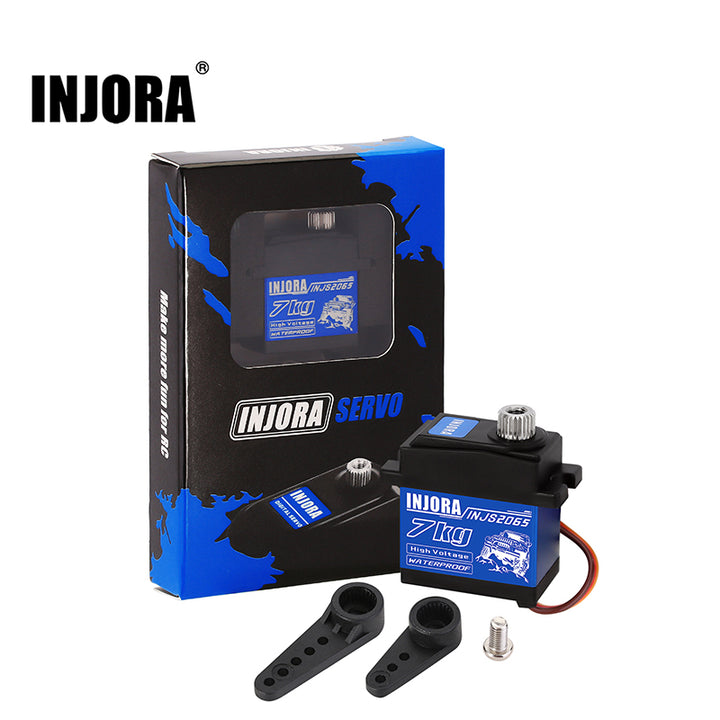

Each servo comes with 2 black plastic servo horns
Does it fits on fcx18
No
Can I run 3s/ 11.1volts with this servo?
It depends on your ESC and not the servo
Do you make a alloy servo horn that fits the 7kg servo
Yes, just search INJS2065 on our website.
Do you provide a gear replacement kit? As some of my servos are already grinding...
Thank you!
No, if your servo is defective, you can contact the store to send you a replacemeny
Will This work for my steering servo replacement on my TRX4m ??
Yes, but you must also purchase the injora servo mount too or it won’t fit
Dear Sir or Madam!
I would like to know if the INJS2065 servo motor is able to hold its position in off state? If it is not, could you suggest an other type off servo which it compatible with the INJS2065 servo motor?
Thank you in advance!
Best regards: Zsolt Kovács
Does this work for the diff locks on the trx-4 as well or just shifter
Dear Sir or Madam!
I would like to know if the INJS2065 servo motor is able to hold its position in off state? If it is not, could you suggest an other type off servo which it compatible with the INJS2065 servo motor?
Thank you in advance!
Best regards: Zsolt Kovács
No. I don't know of any micro servos that do this.
