PRODUCT DETAILS

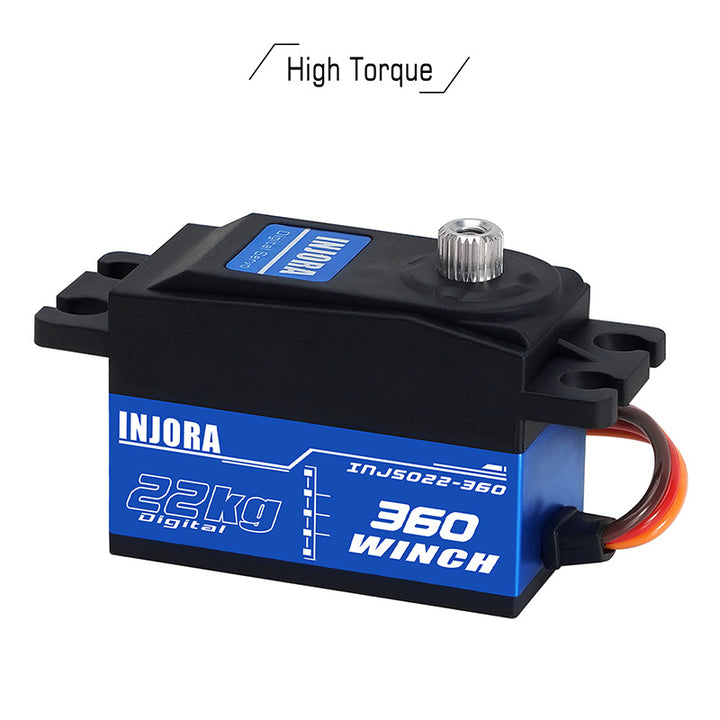

INJORA INJS022-360 22KG 360° Rotation Digital Servo Winch Spool for RC Crawler Car Boat Model
Suit for RC Car Robot Model
Features:
- 360 degree continuous rotation
- High performance digital standard

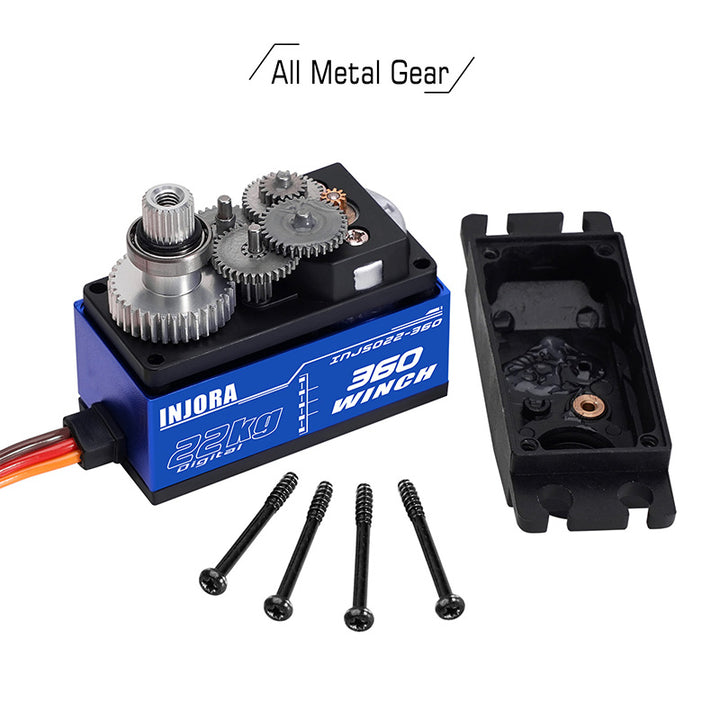

- Reinforced metal gears and lower noise

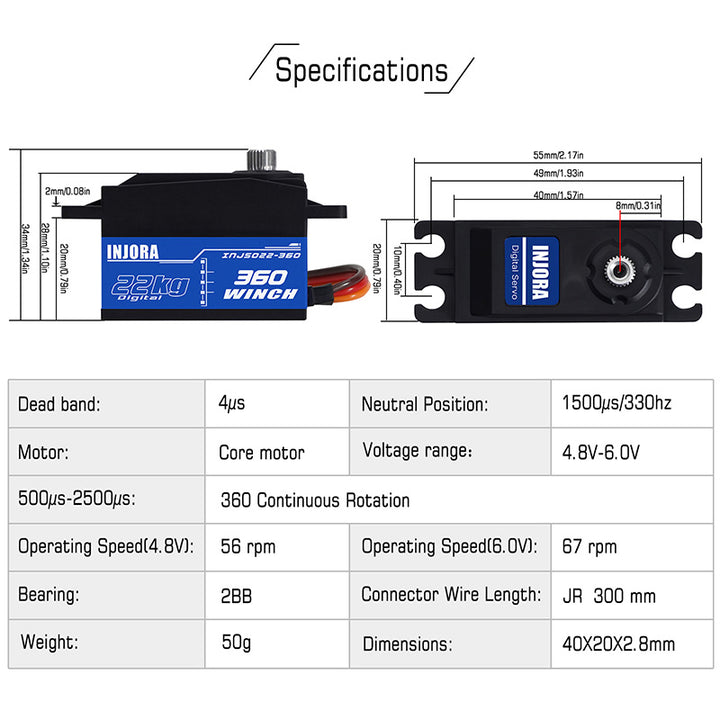

INJS022-360 Servo Specifications:
- Waterproof: No
- Dead Band: 4μs
- Neutral Position: 1500μs/50hz
- Motor: Core motor
- 500-2500μs: 360 Continuous Rotation
- Voltage Range: 4.8V-6.0V
- Operating Speed(4.8V): 56rpm
- Operating Speed(6.0V): 67rpm
- Stall Torque(4.8V): 17.6kg.cm
- Stall Torque(6.0V): 22kg.cm
- Dimensions: 40X20X28.8mm
- Weight: 50g
- Connector Wire Length: JR 300 mm
- Bearing: 2BB

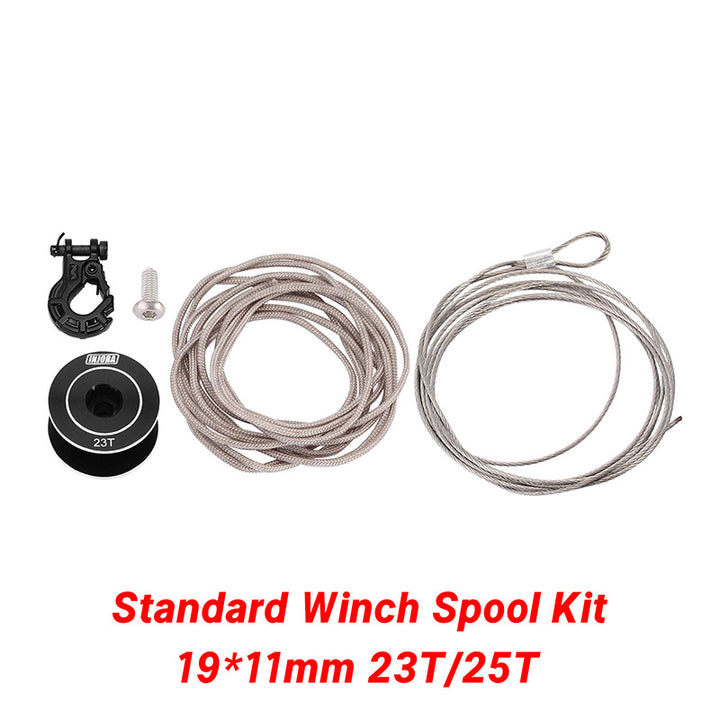

Winch Spool Specifications:
- Materials: Aluminium

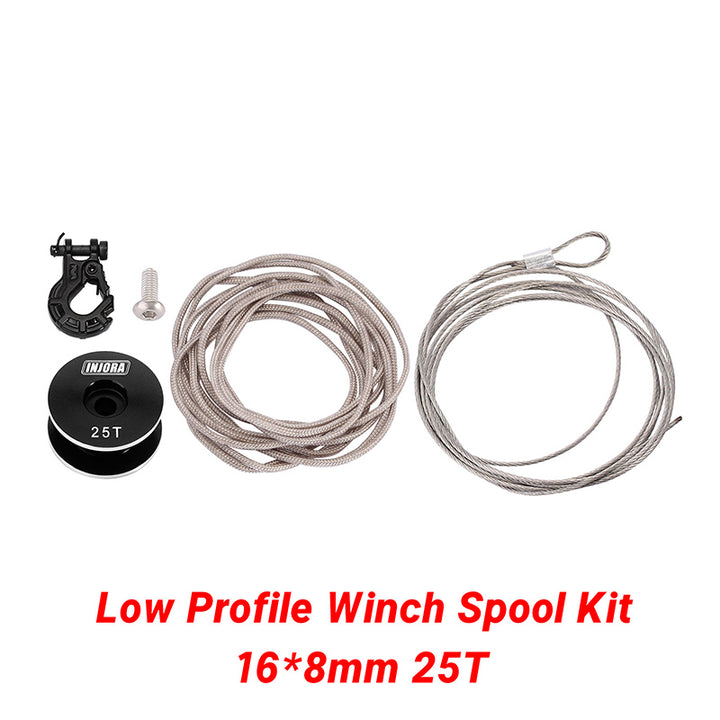

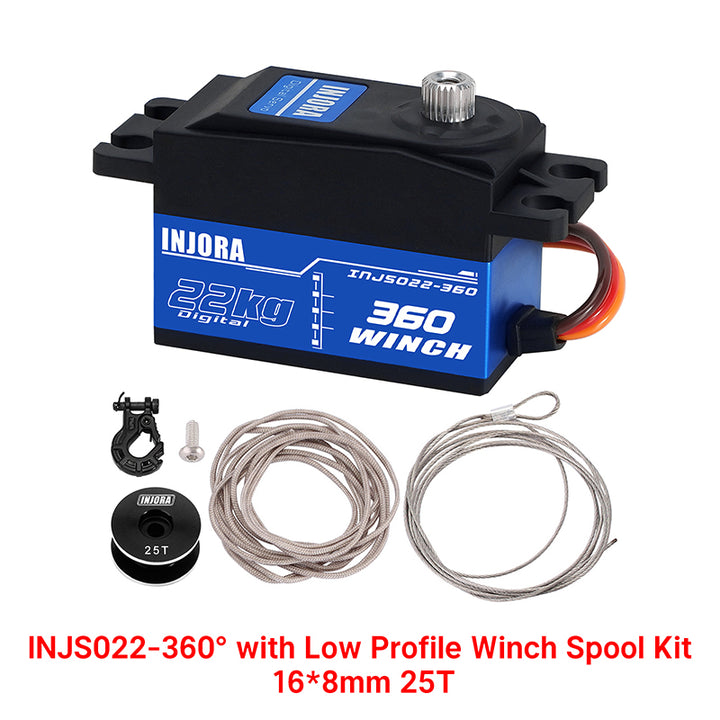

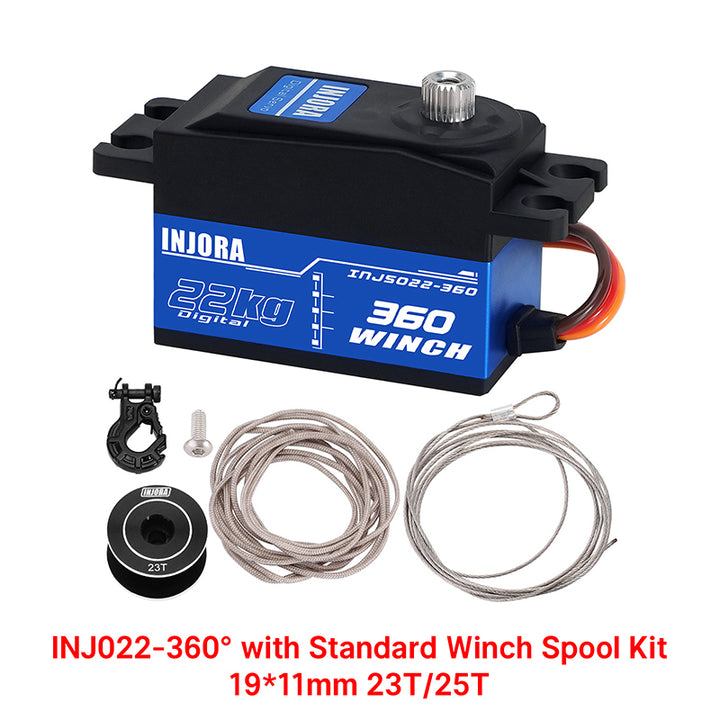

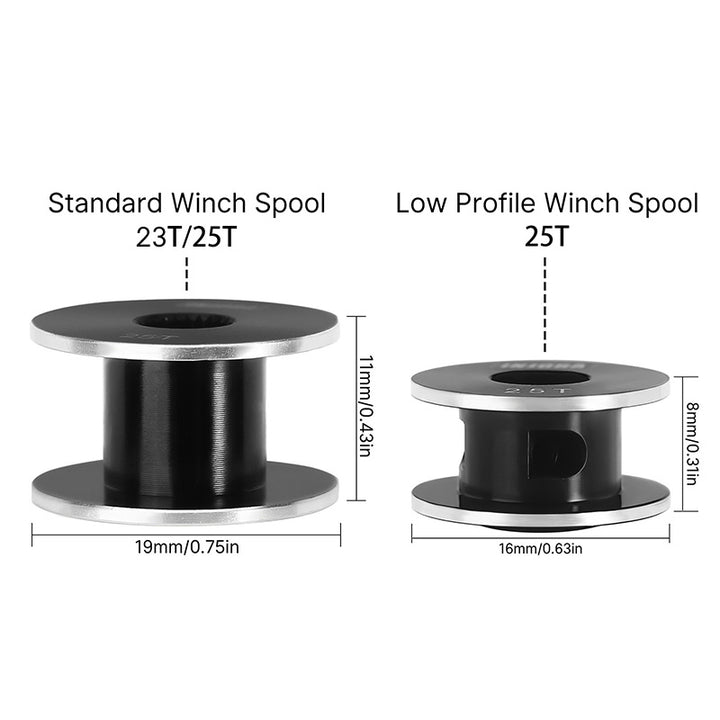

- Kind: Standard (19*11mm), Low Profile(16*8mm)
- Standard Winch Spool Teeth: 23T/25T
- Low Profile Winch Spool Teeth: 25T
- Mounting Screw: M3
- Nylon Rope Length: 116cm (45.67in)
- Steel Rope Length: 96cm (37.80in)
