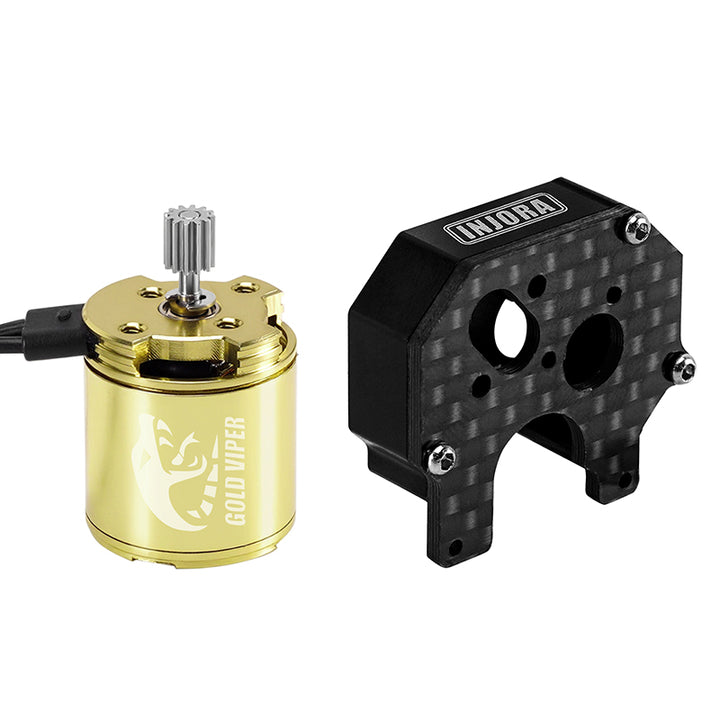

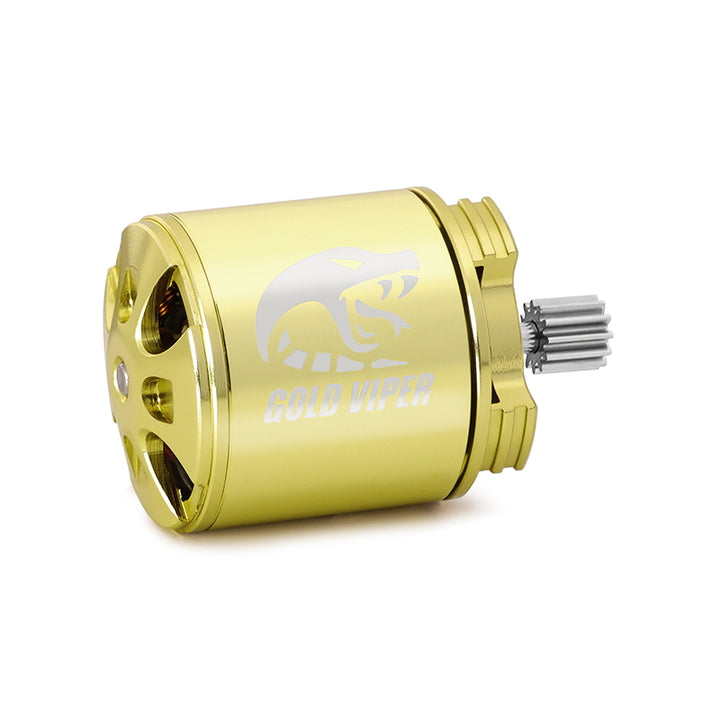

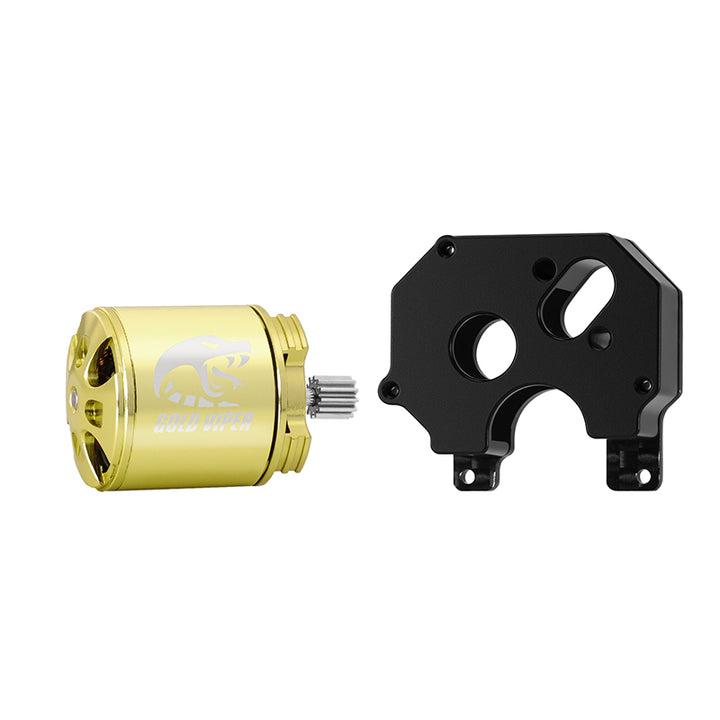

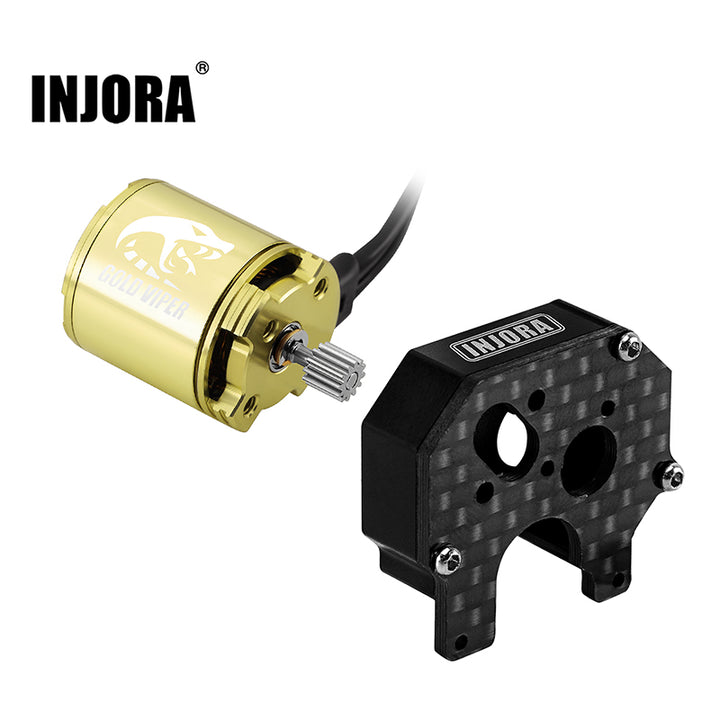

INJORA Gold Viper 1721 Brushless Motor 2800KV for 1/24 SCX24

INJORA Gold Viper 1721 Brushless Motor 2800KV for 1/24 SCX24

Compatibility:

• ESC: Compatible with INJORA MBL32 ESC, OR30 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!

• Transmission: Compatible with stock SCX24 transmission and INJORA transmissions SCX24-130 & WG24

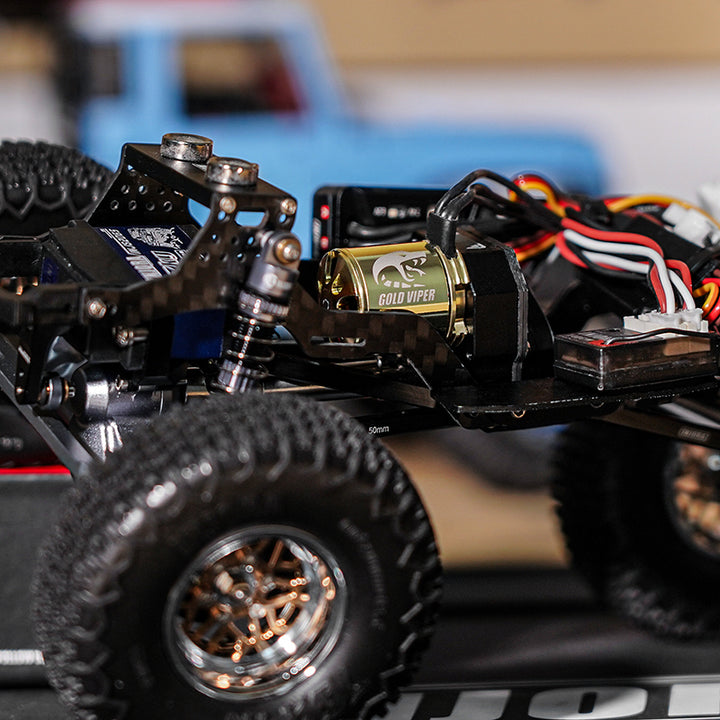

• Chassis: Not compatible with carbon fiber chassis with angled skid plate. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
• Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.

Note:

• Some noise at mid-throttle is normal for the 1721 motor due to its high-speed, open-rotor design. This does not indicate a defect.
• The 1721 Gold Viper is best for rigs under 700g. For heavier rigs, we recommend the 2204 Fat Viper for stronger drag brake performance.

Features:

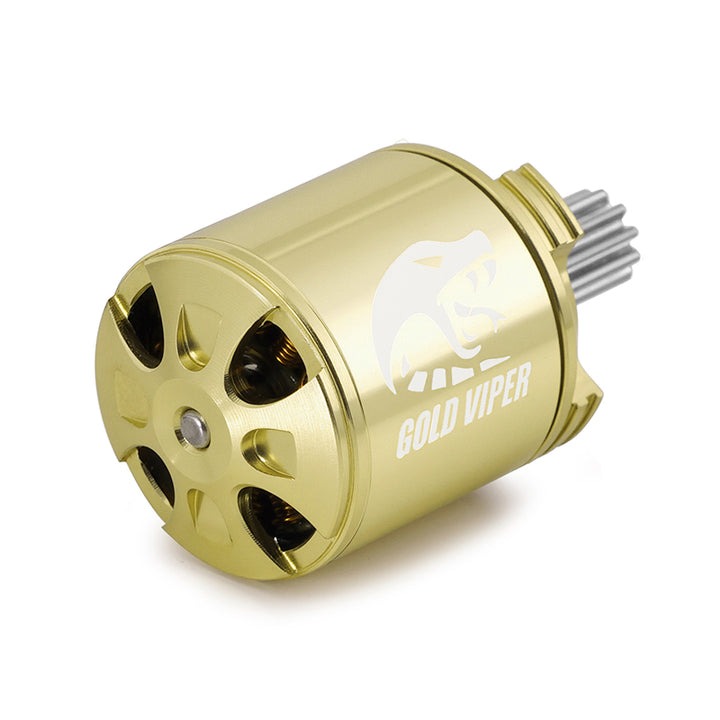

• New gold finish for a more eye-catching appearance
• Reduces mid-range noise with slightly improved torque output
• Includes a protective sleeve at the wire outlet for enhanced durability
• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds

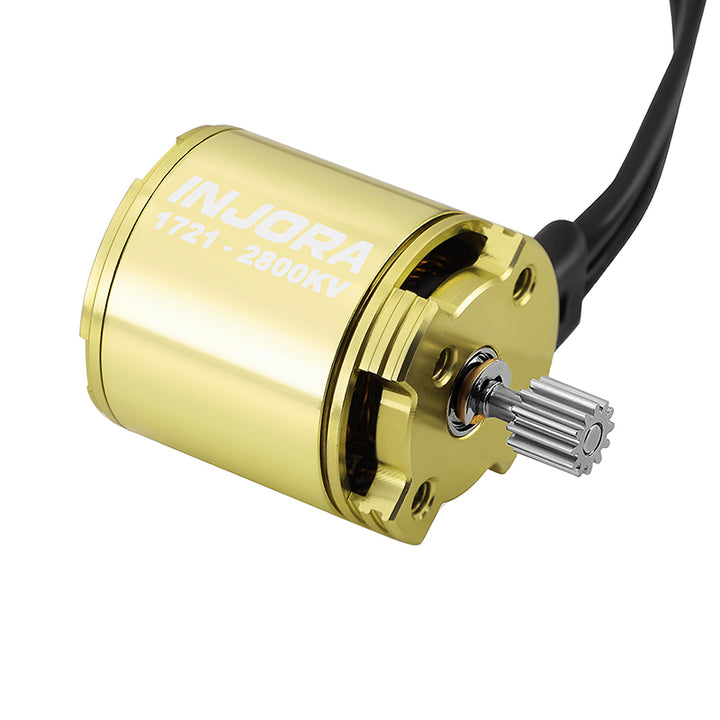

Motor Specifications:

• Model Number: 1721
• Waterproof: Yes
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2800KV
• Motor Poles: 14
• Motor Slots: 12
• No-Load Current (11.1V): 0.7A
• Max Current: 20A
• Motor Connectors: PH2.0 3-Pin

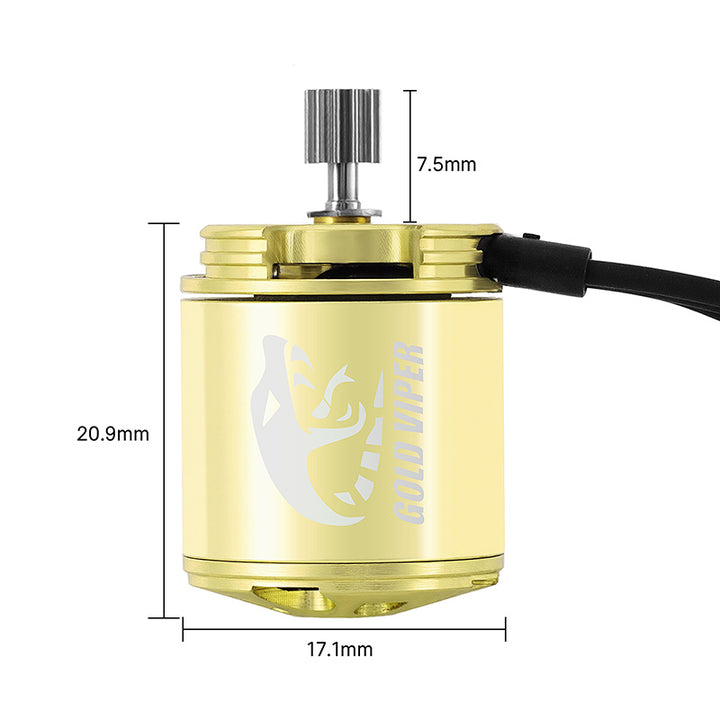

• Dimensions: Φ17.1*20.9mm
• Output Shaft: Φ1.7mm
• Motor Pinion: 0.3Mod 12T
• Weight: 18.5g

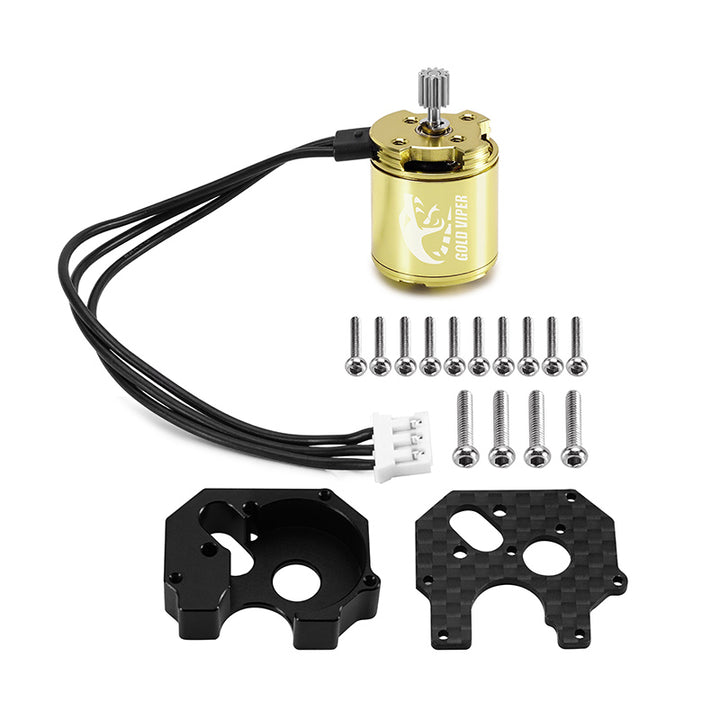

Package List:
1×1721 Brushless Motor with Pinion
1×Motor Mount
