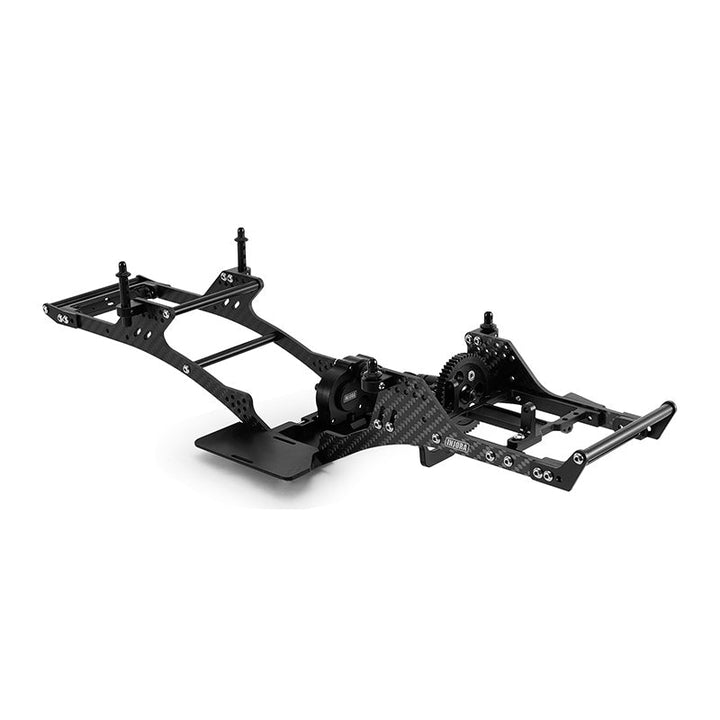

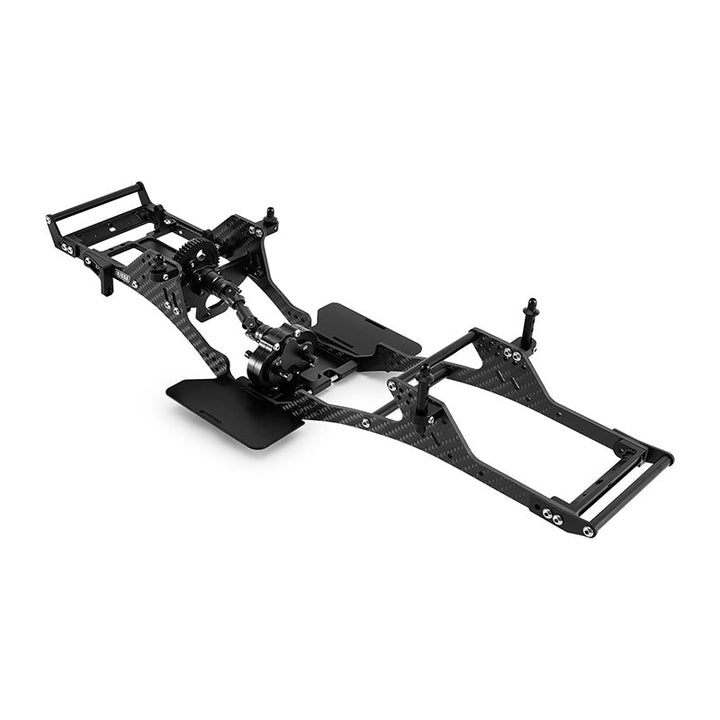

INJORA Front Mounted Transmission LCG Carbon Fiber Chassis Kit for 1/10 RC Crawlers (INC-10F)
Note: Servo Mounting Method: CMS (Chassis Mounted Servo)
Features:
- Premium Carbon Fiber Construction: High-strength, lightweight carbon fiber ensures durability without adding weight
- Low Center of Gravity Design: Optimized chassis layout enhances stability and improves crawling performance

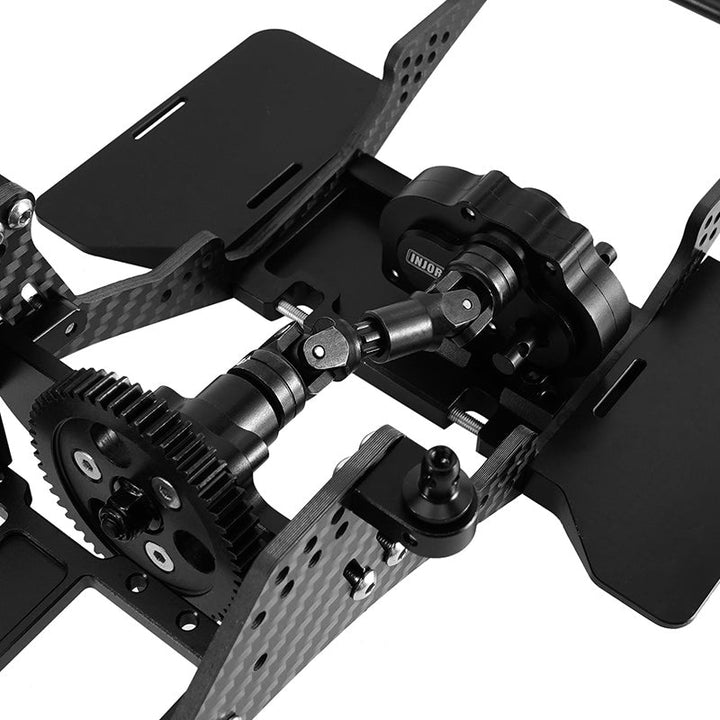

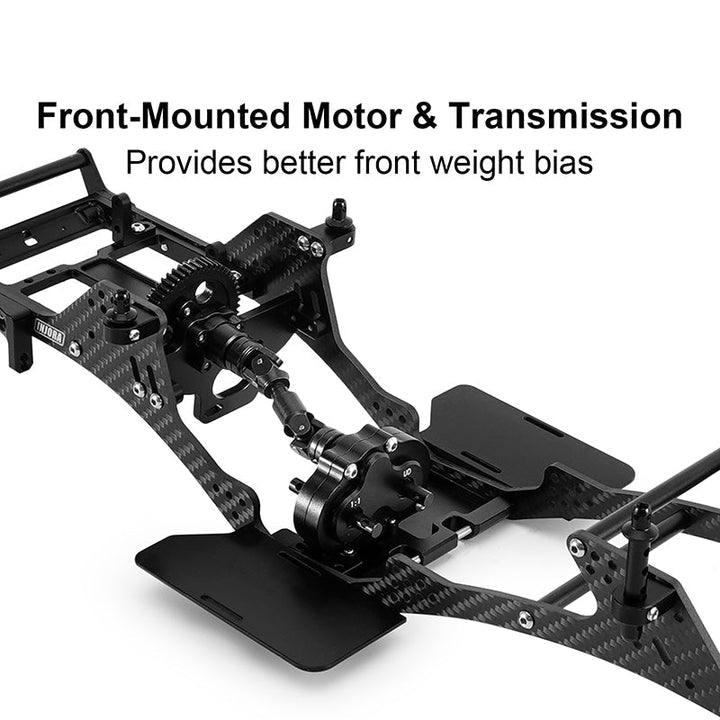

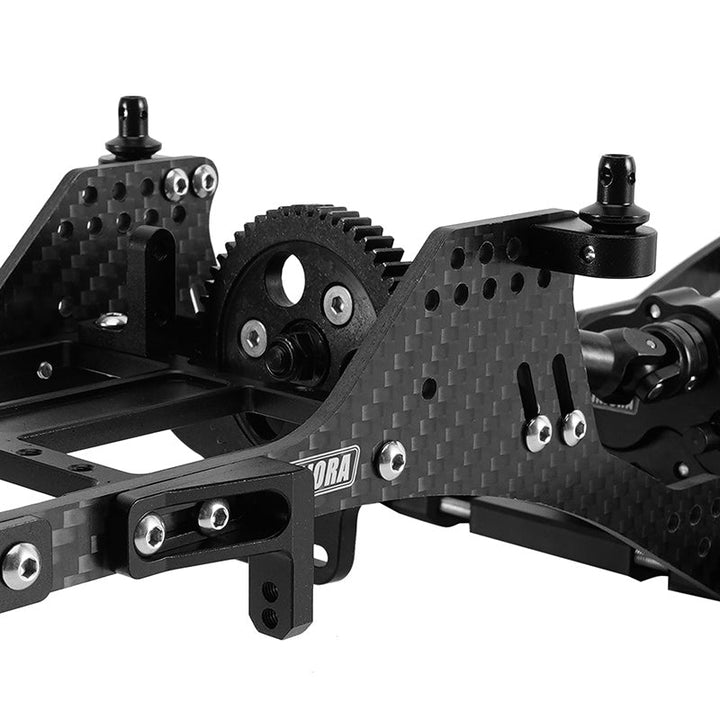

- Front-Mounted Motor & Transmission: Forward-positioned motor and transmission setup provides better front weight bias

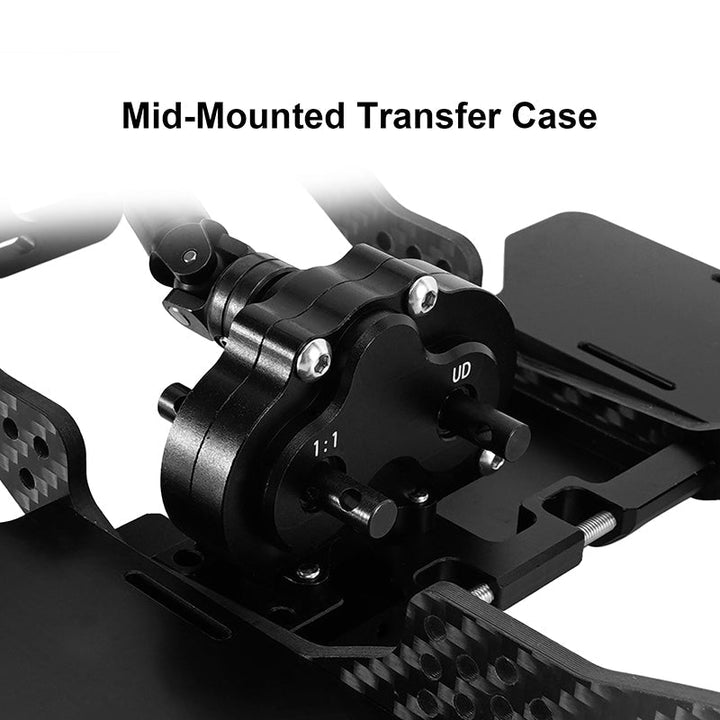

- Selectable Transfer Case Output: Central transfer case offers 1:1 and 16.7% front overdrive options to improve crawling performance
- Designed to fit TRX4, VP F9, SCX10 III AR45, and other axles—perfect for DIY builds

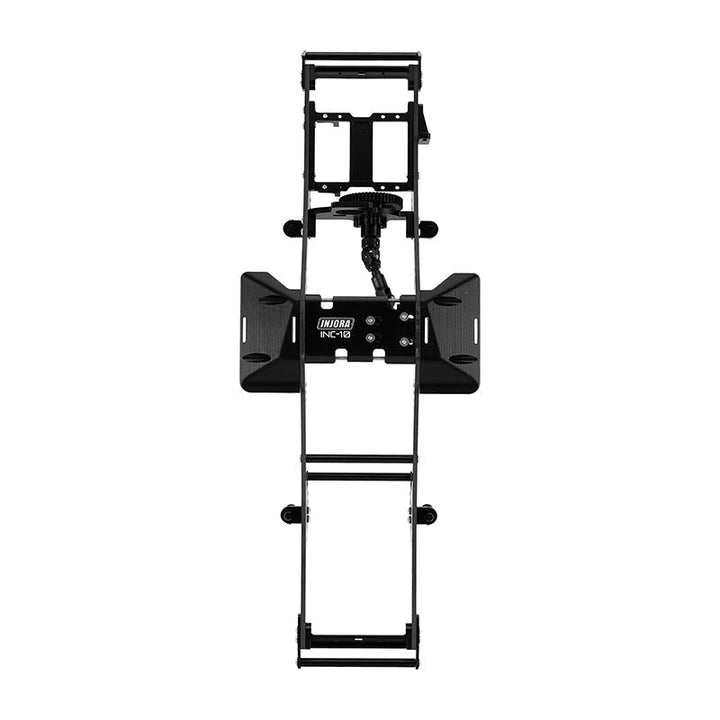

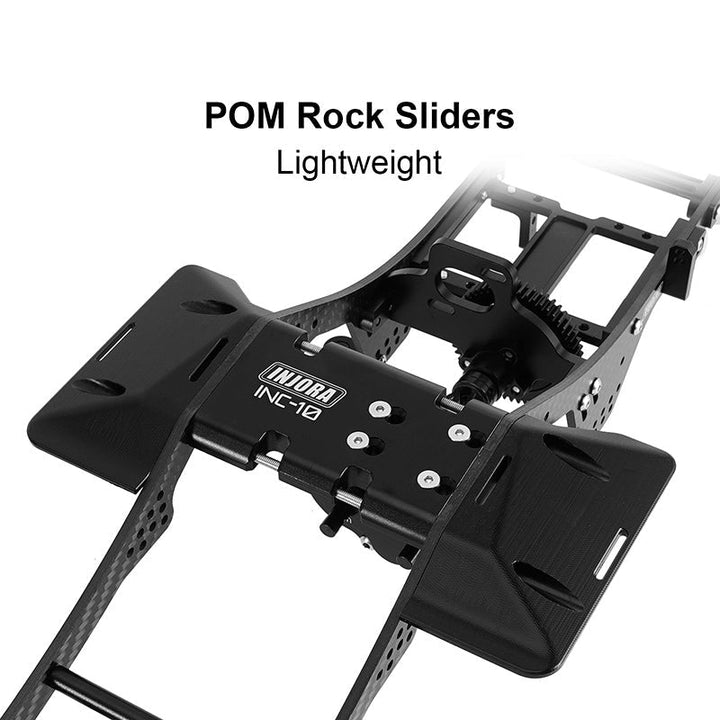

- Durable POM Rock Sliders: Lightweight POM rock sliders protect the chassis sides and provide convenient mounting space for ESC, receiver

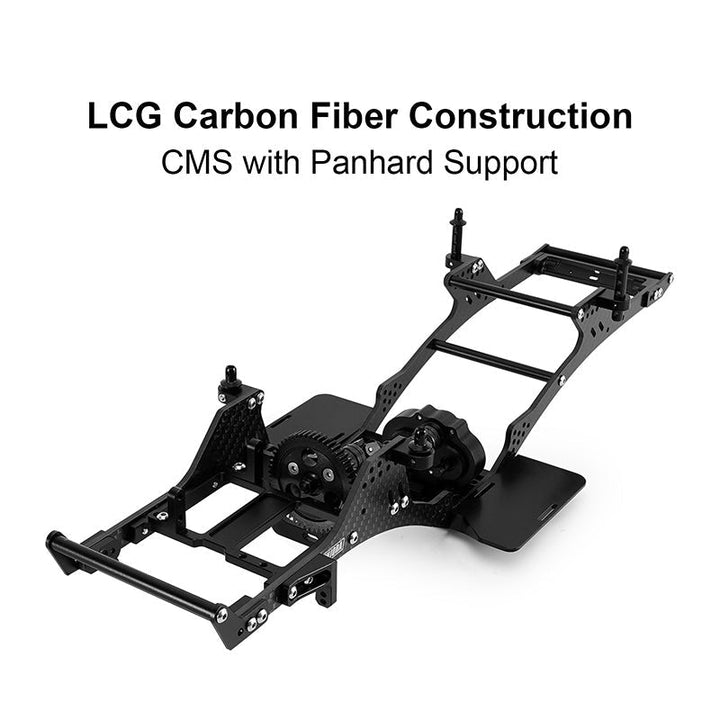

- CMS with Panhard Support: Supports chassis-mounted servo (CMS) setups with Panhard bar compatibility
- Servo Winch Ready: Designed to accommodate standard-size servo winches for enhanced recovery capabilities
Chassis Specifications:
- Part Number: INC-10F

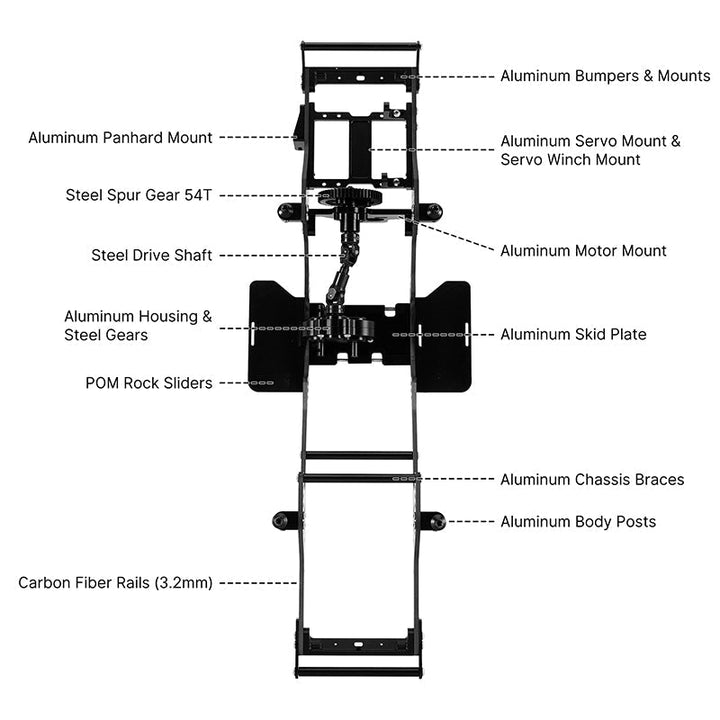

- Material: Carbon Fiber, Aluminum (see pictures for details)

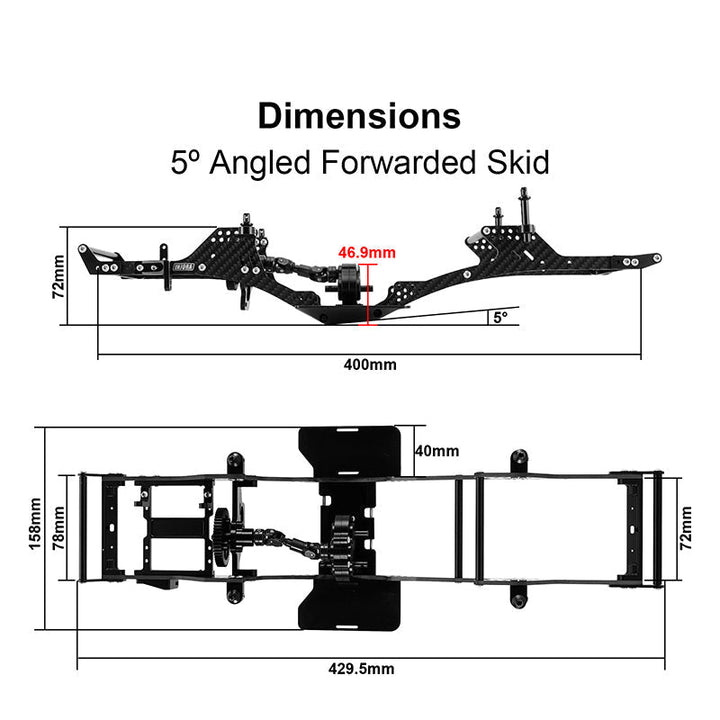

- Skid Angle: 5°
- Rails Thickness: 3.2mm
- Dimensions: 429.5*78mm
- Total Weight: Approx.463g

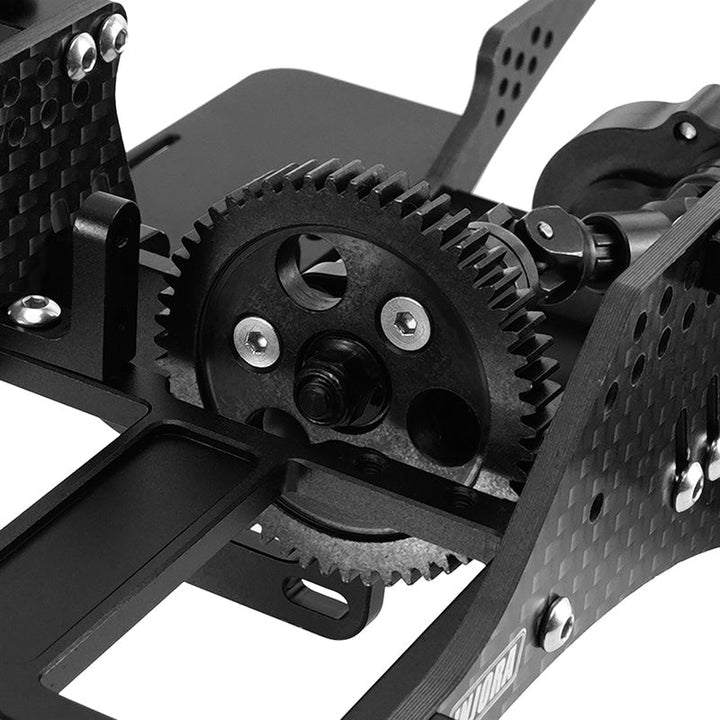

- Spur Gear: 0.8mod 54T (Hardened Steel)
- Motor Pinion: 0.8mod 11T (Fit 3.17mm shaft motors)

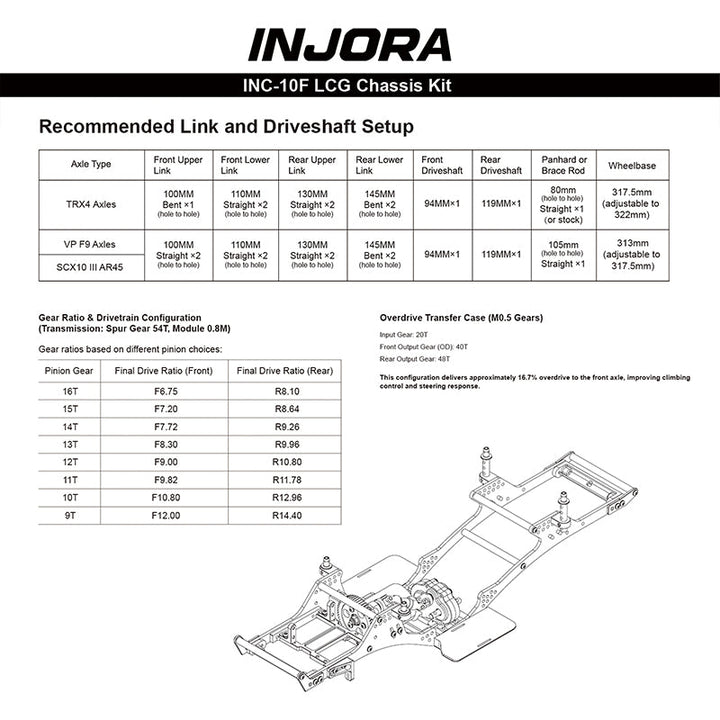

Transfer Case Specifications:
- Housing Material: Aluminum
- Gears Material: Hardened Steel
- Input Gear: 20T
- Front Output Gear (OD): 40T
- Rear Output Gear: 48T

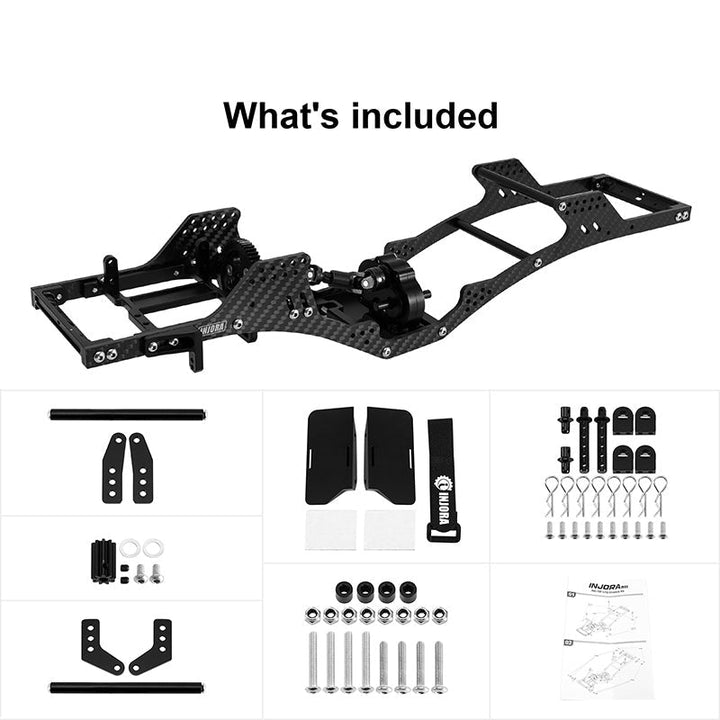

Pacakge List

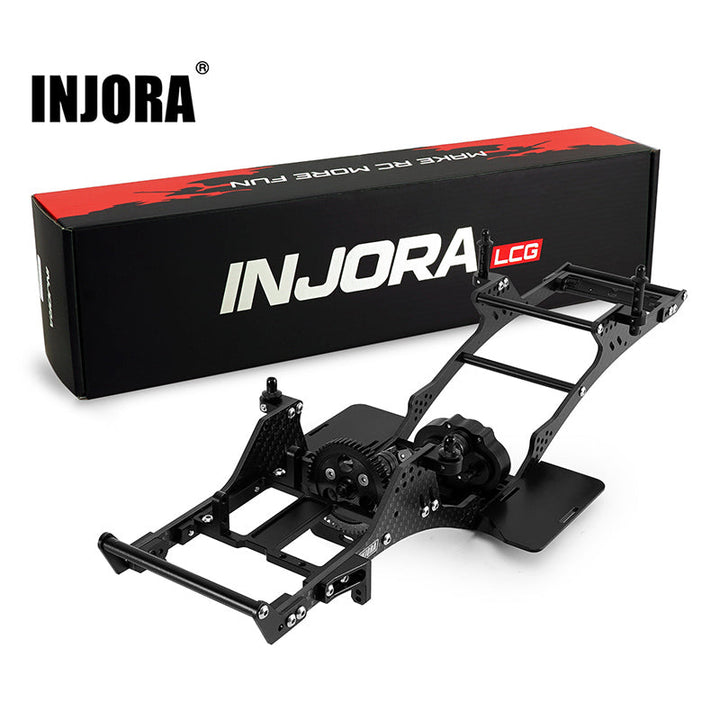

1 * Set INC-10F Chassis Kit
