PRODUCT DETAILS

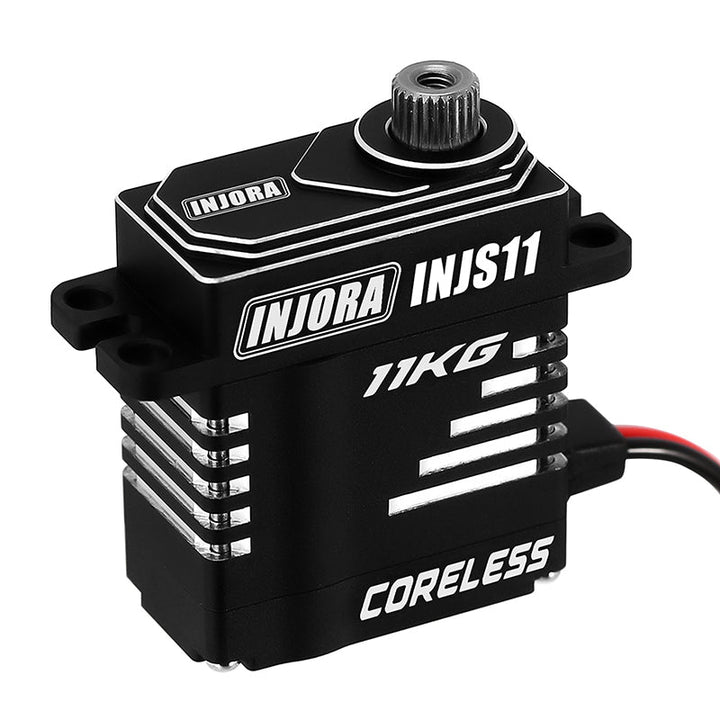

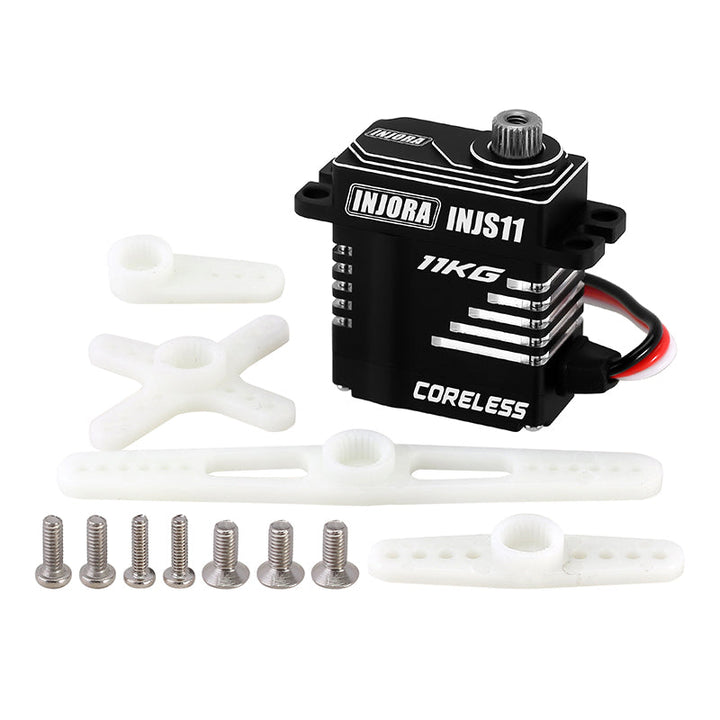

INJORA Coreless Metal Gear High Torque Digital Micro Servo for 1/24 SCX24 (INJS11)(High Voltage)
Note:

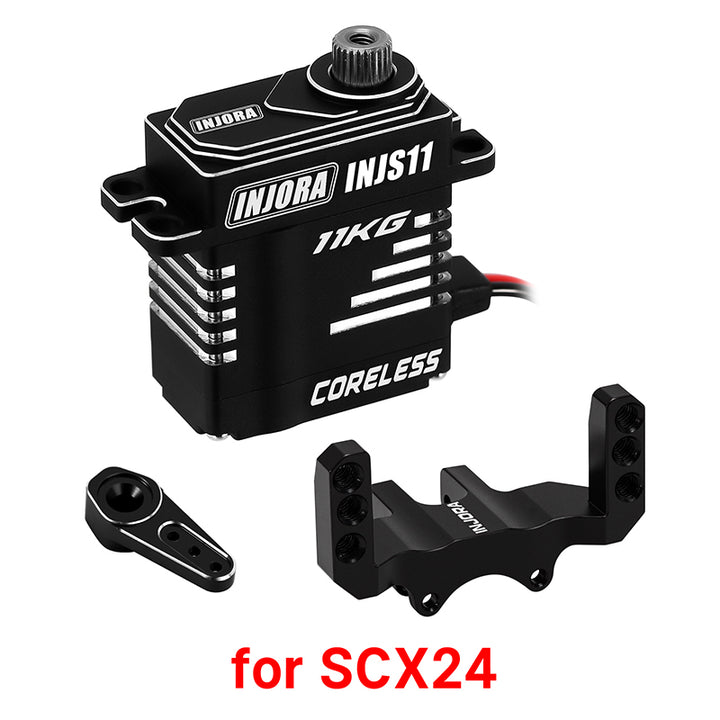

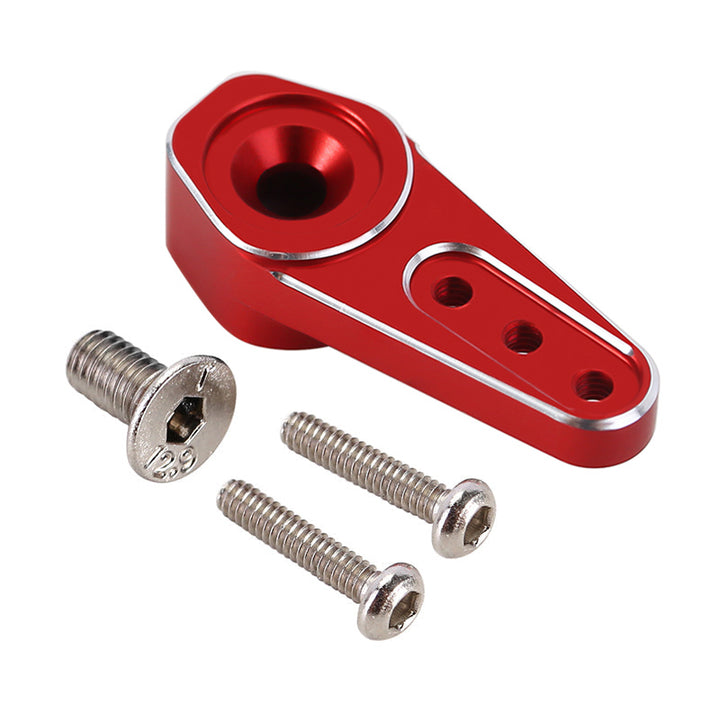

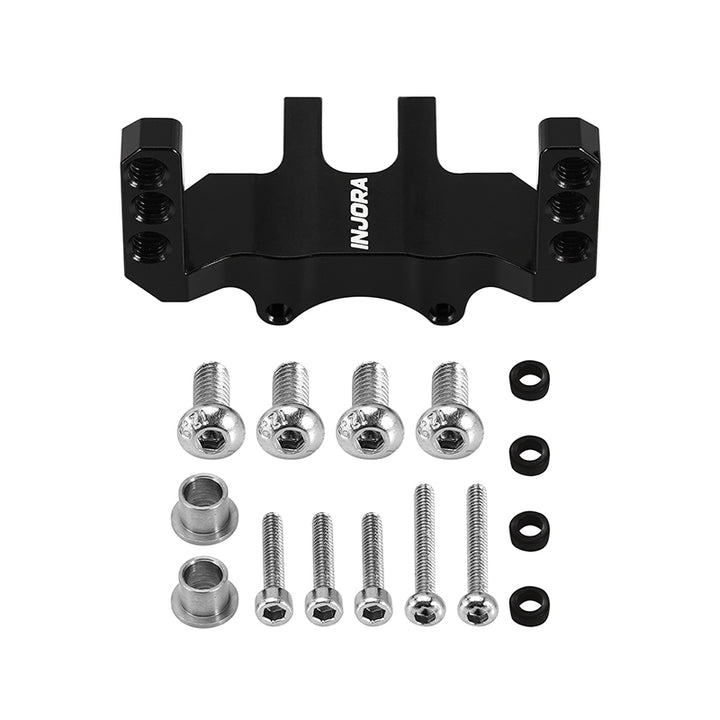

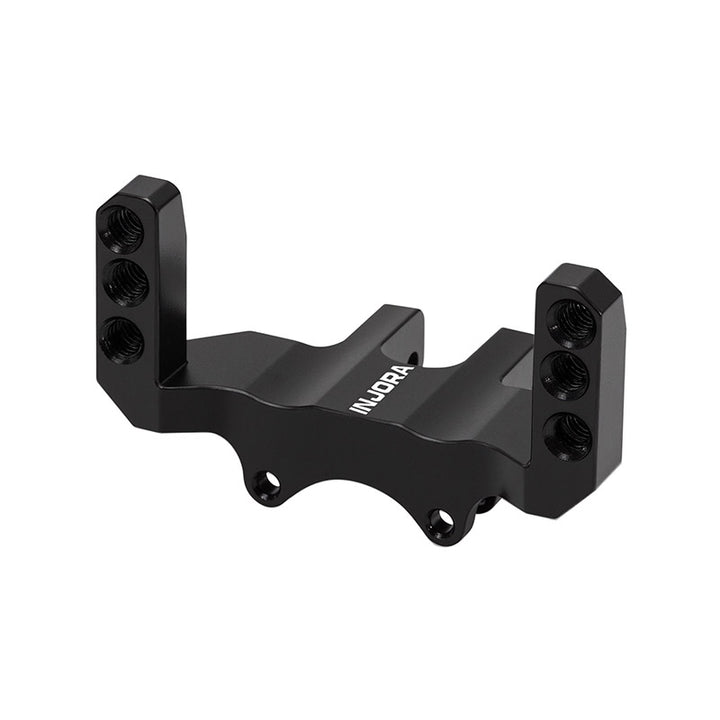

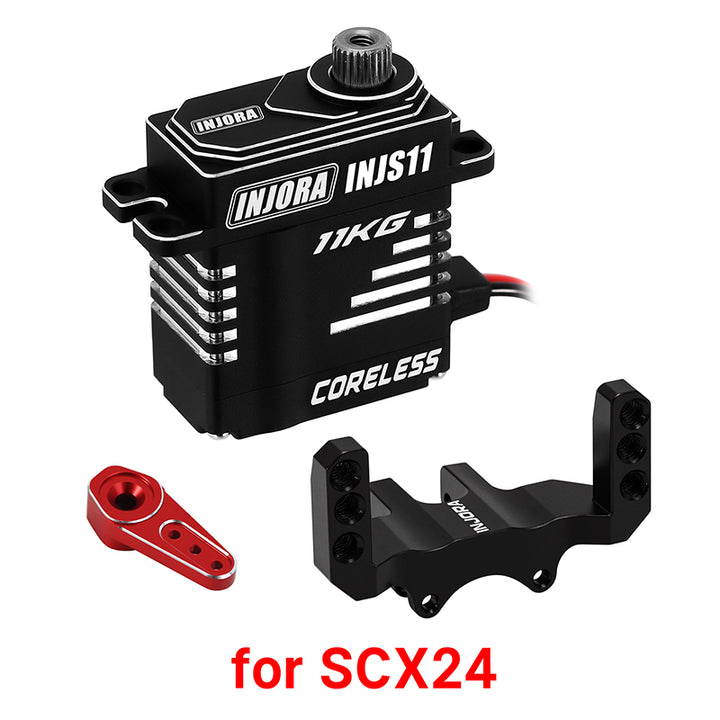

- Not compatible with stock servo tray and horn. This servo requires a special servo tray and horn!
- Not waterproof, do not drive in the rain or underwater!

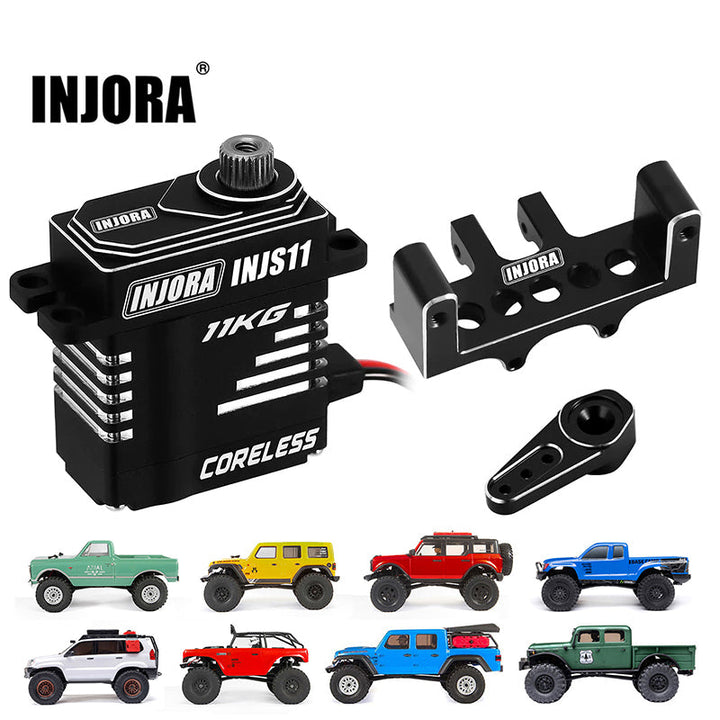

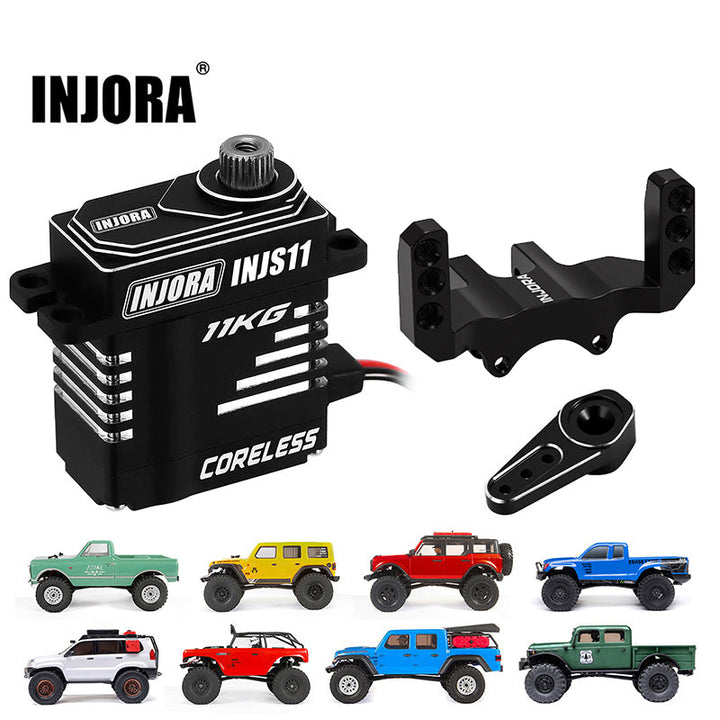

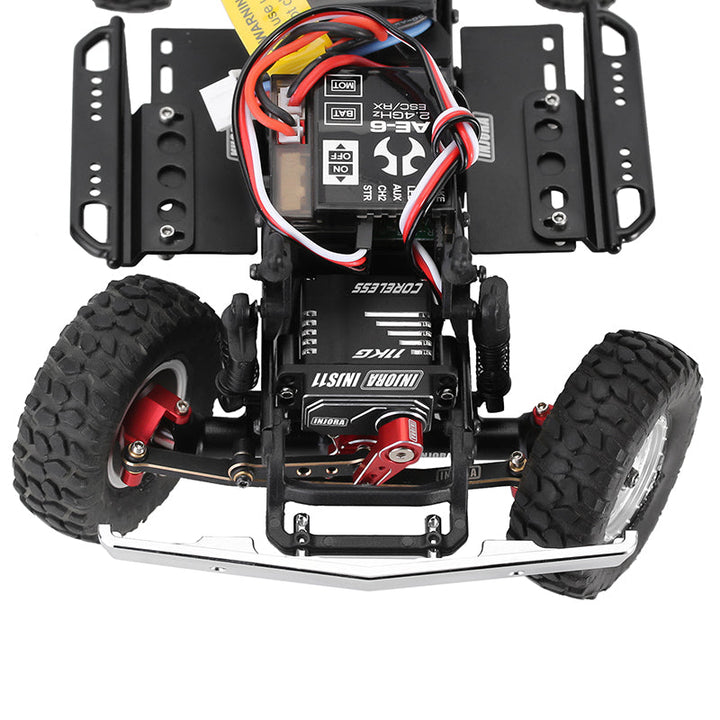

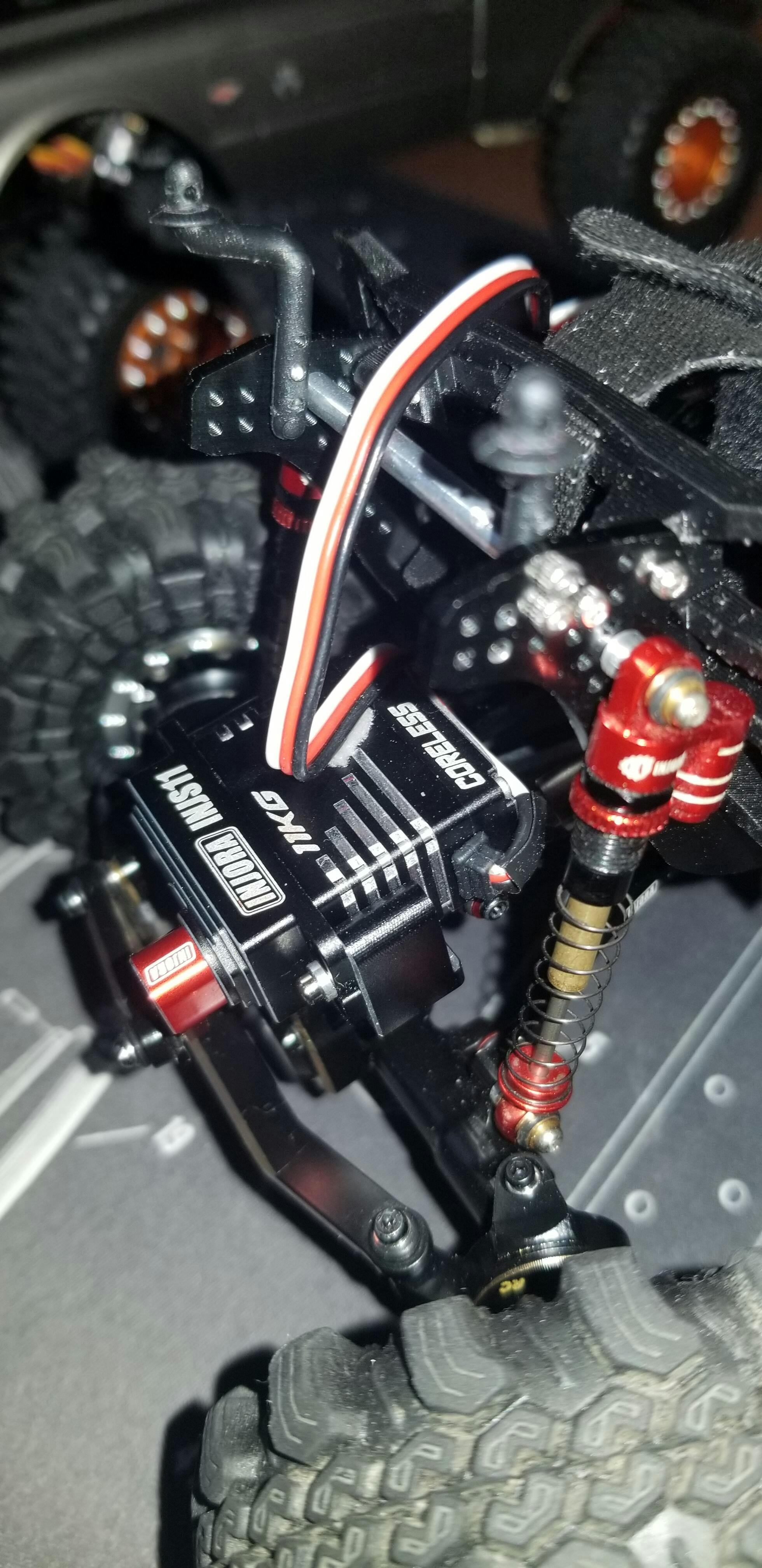

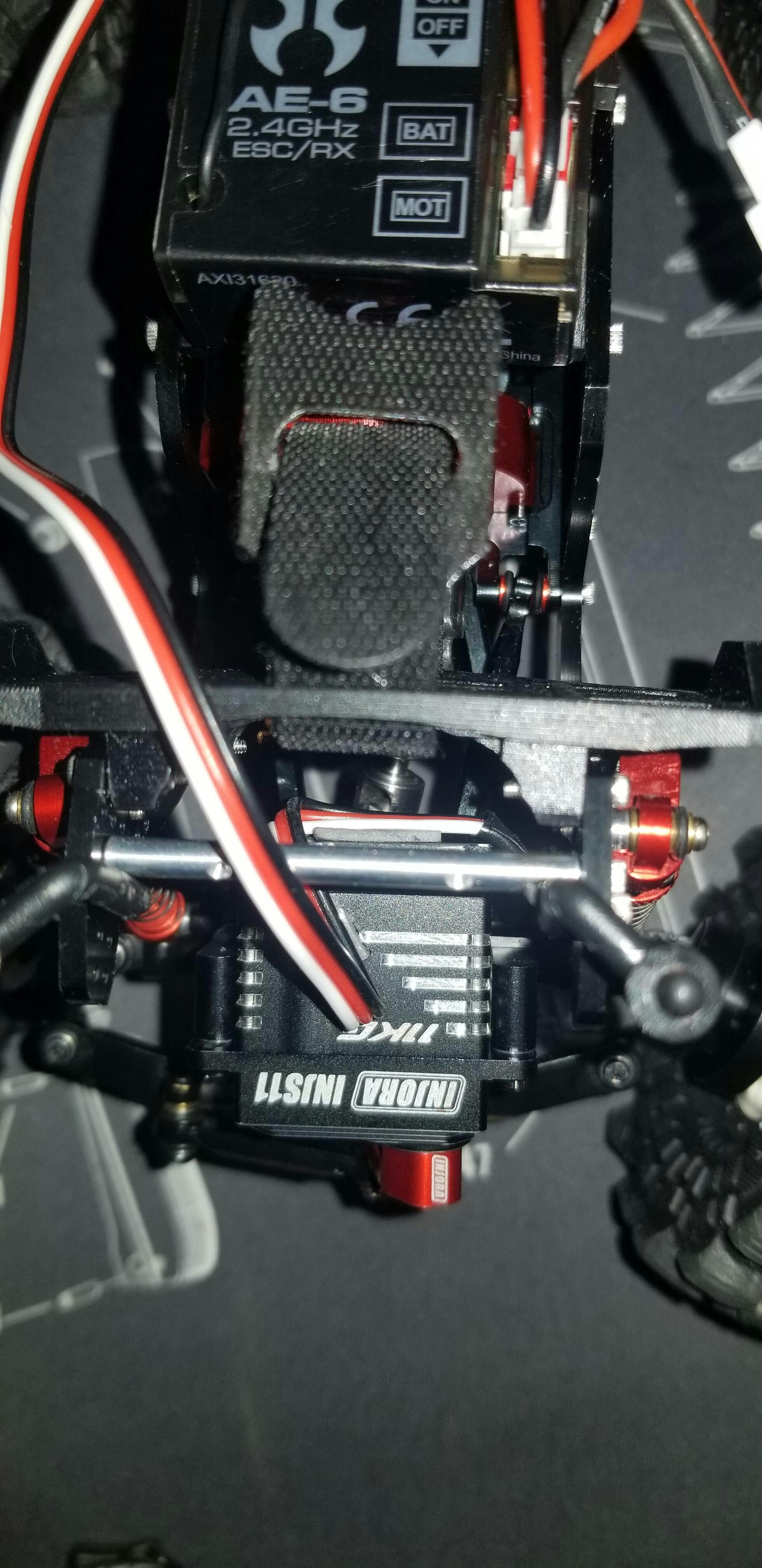

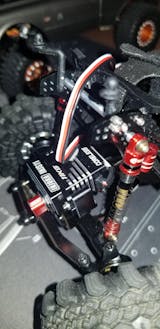

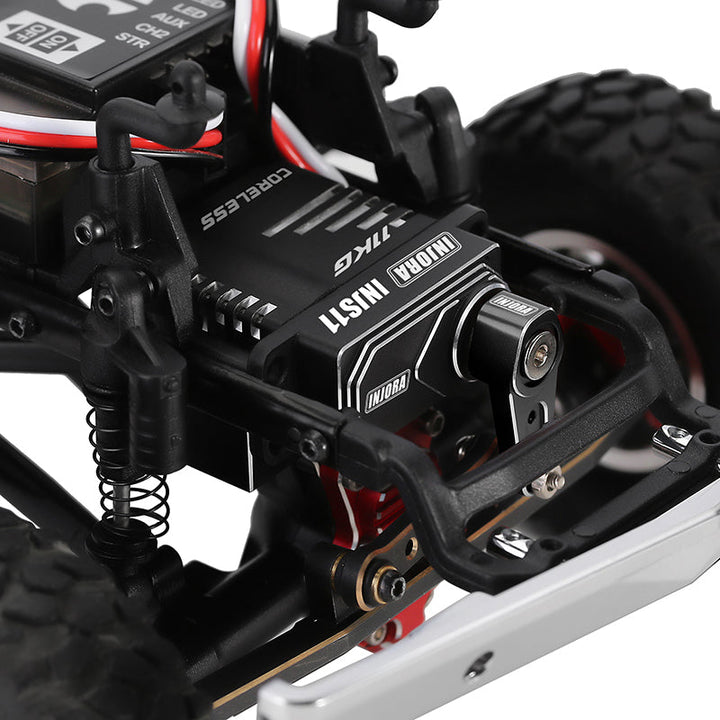

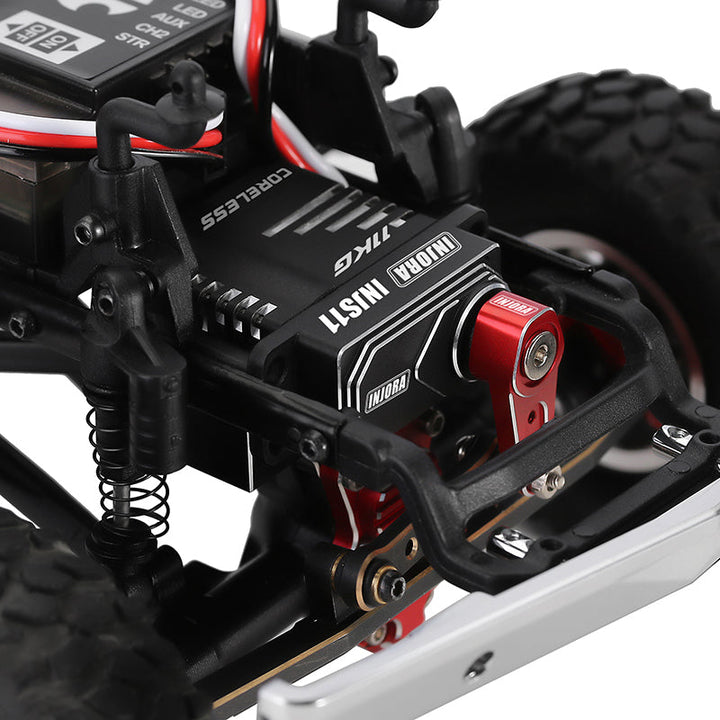

Compatible with: 1/24 RC crawler Axial SCX24 and Axial AX24
Features:
- Coreless and quick response
- High torque, incredible efficiency
- CNC machined aluminium case

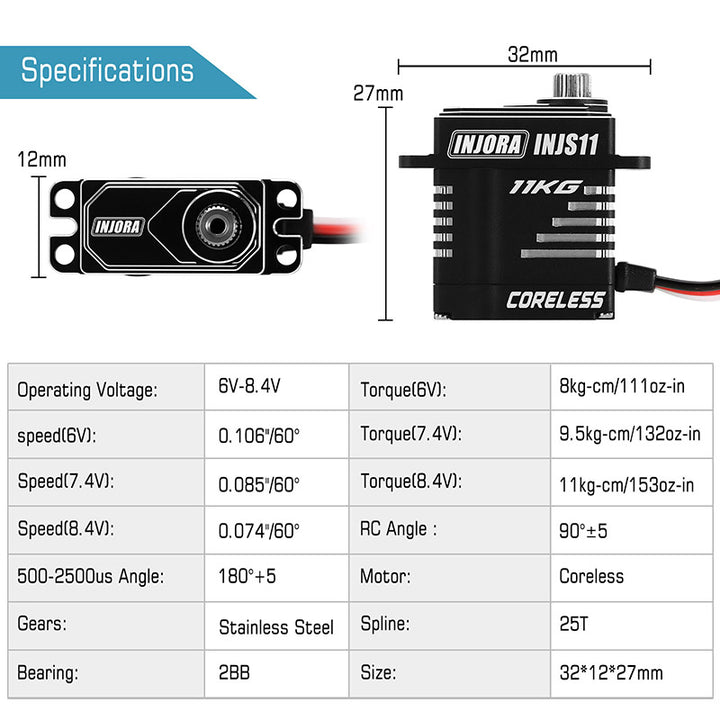

Servo Specifications:
- Part Number: INJS11
- Operating Voltage: 6V-8.4V
- Torque(6V): 8kg-cm/111oz-in
- Speed(6V): 0.106"/60°
- Torque(7.4V): 9.5kg-cm/132oz-in
- Speed(7.4V): 0.085"/60°
- Torque(8.4V): 11kg-cm/153oz-in
- Speed(8.4V): 0.074"/60°
- RC Angle: 90°±5°
- 500-2500μs Angle: 180°± 5°
- Motor: Coreless
- Gears: Stainless Steel
- Spline: 25T
- Bearing: 2BB
- Size: 23*12*26.5mm
- Weight: 21g/0.74oz
