INJORA 11KG Coreless High Torque Micro Servo for 1/18 TRX4M Upgrade (INJS11)

SKU: INJS11-4MRD
Availability: In Stock Pre order Out of stock
$49.99 USD

Option: Servo with mount & red horn

Servo with mount & black horn
Servo with mount & red horn
Servo Only
Servo Mount
Black Servo Horn
Red Servo Horn
BEC
Ask a Question
Product Detail

INJORA Coreless Metal Gear High Torque Digital Micro Servo for 1/18 TRX4M Upgrade (INJS11)(High Voltage)

Note:
  • Not compatible with stock servo mount and horn. This servo requires a special servo mount and horn!
  • Not waterproof, do not drive in the rain or underwater!
Compatible with:
  • 1/18 TRX4M Defender, Bronco, High Trail K10, High Trail F150

Details of Bec: INJORA Micro BEC for 1/18 TRX4M

Features:

  • Coreless and quick response
  • High torque, incredible efficiency
  • CNC machined aluminium case

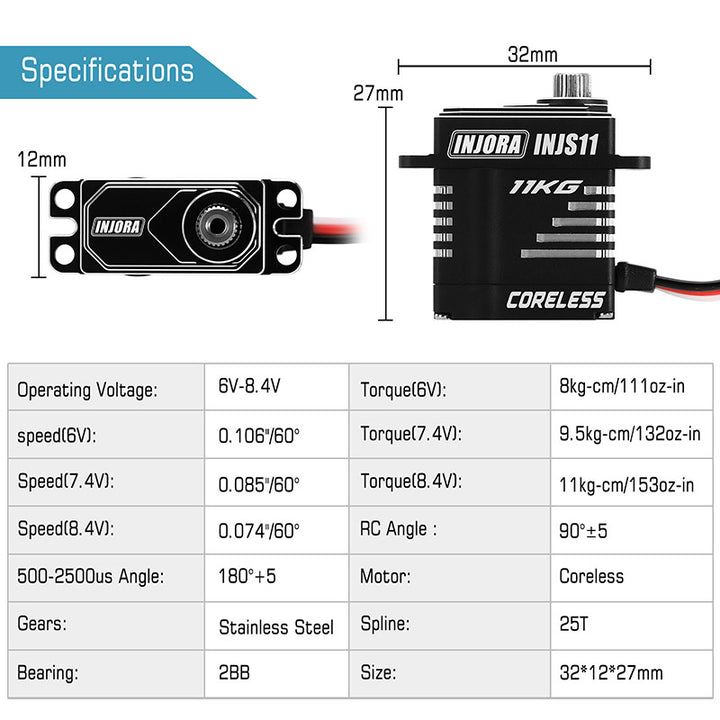

Servo Specifications:

  • Part Number: INJS11
  • Operating Voltage: 6V-8.4V
  • Torque(6V): 8kg-cm/111oz-in
  • Speed(6V): 0.106"/60°
  • Torque(7.4V): 9.5kg-cm/132oz-in
  • Speed(7.4V): 0.085"/60°
  • Torque(8.4V): 11kg-cm/153oz-in
  • Speed(8.4V): 0.074"/60°
  • RC Angle: 90°±5°
  • 500-2500μs Angle: 180°± 5°
  • Motor: Coreless
  • Gears: Stainless Steel
  • Spline: Φ4.9 Mini 25T
  • Bearing: 2BB
  • Size: 32*12*27mm
  • Weight: 21g/0.74oz

Tools required:

  • 1* 0.05"(or 1.27mm) hex screwdriver
  • 1* 1.5mm hex screwdriver
