Product Detail

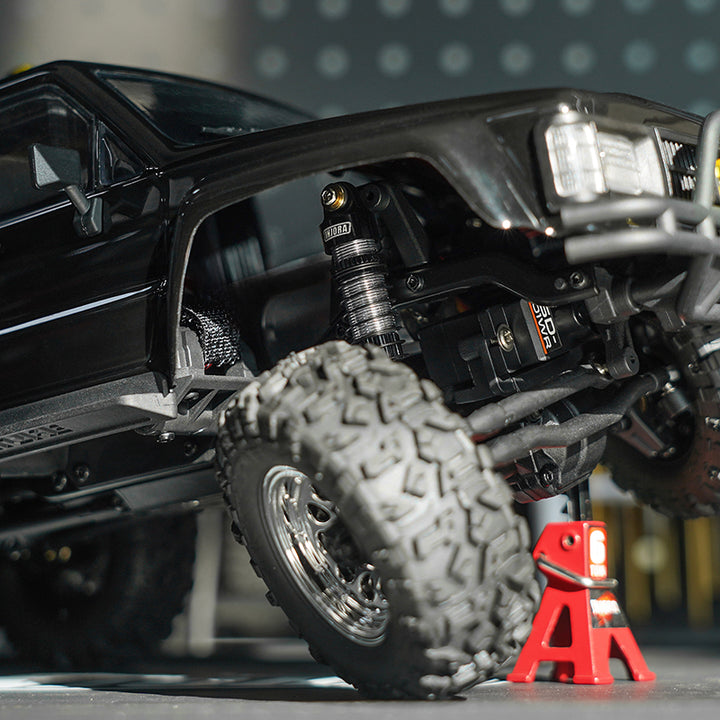

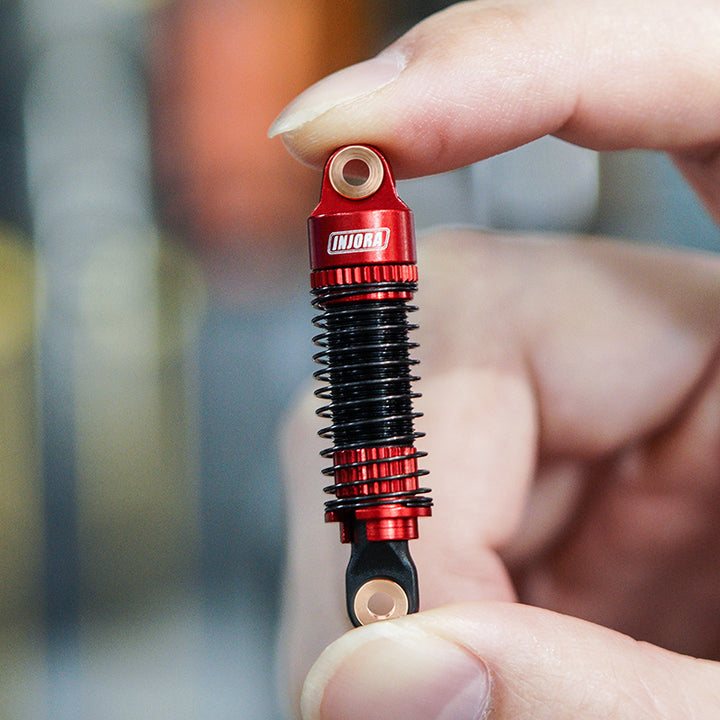

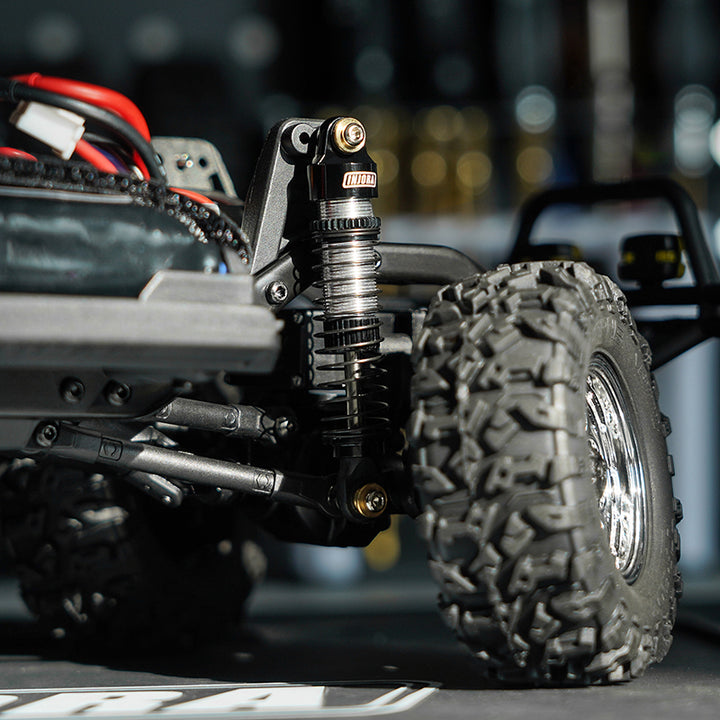

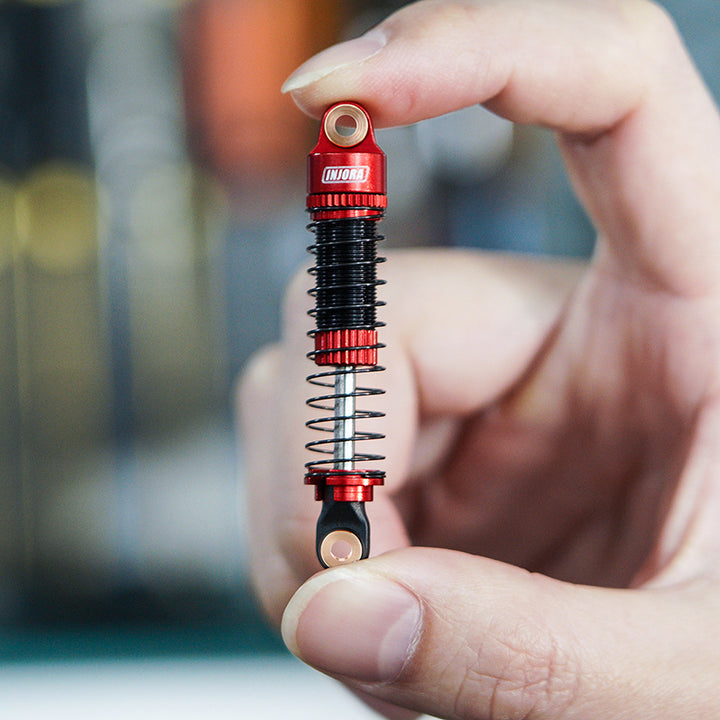

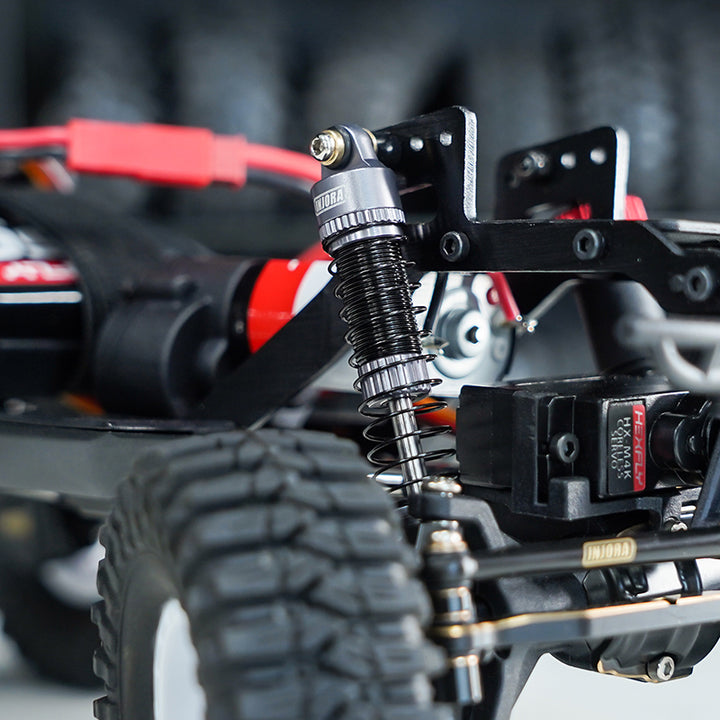

INJORA 53MM Threaded Shock Absorber Oil Damper for 1/18 RC Crawler Redcat Ascent18 HPI Venture18
Note:
- The shock oil is not included!
- Please install the double flange bushings on the aluminium ends and the single flange bushings on the plastic ends.
Compatible with:
- 1/18 RC Crawler Redcat Ascent18
- 1/18 RC Crawler HPI Venture18
Features:
- Two spring rates included (0.45 0.5mm)

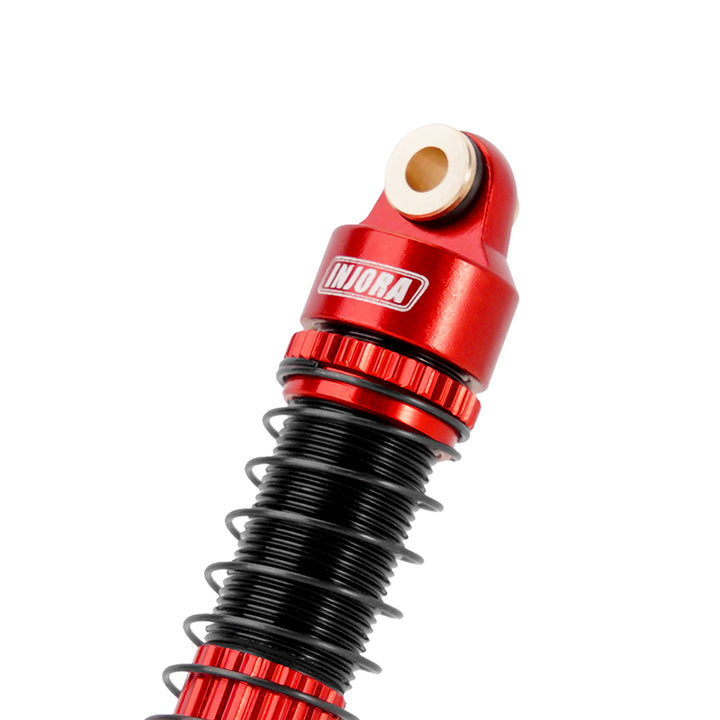

- CNC machined Aluminum shock bodies
- Nylon Bottom Rod End
- Telescopic design for maximum travel
- Threaded shock bodies for quick pre-load adjustments
53mm Shock Specifications:
- Part Number: ASC18-09

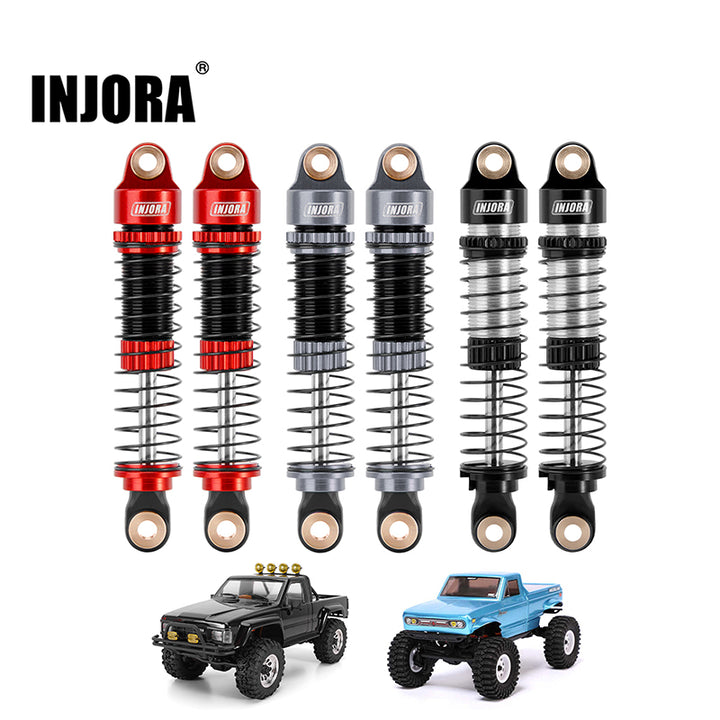

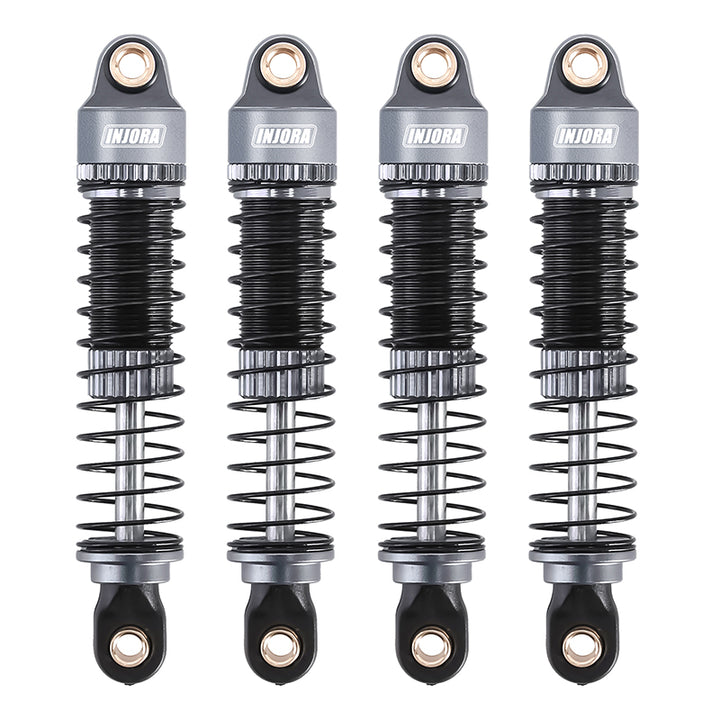

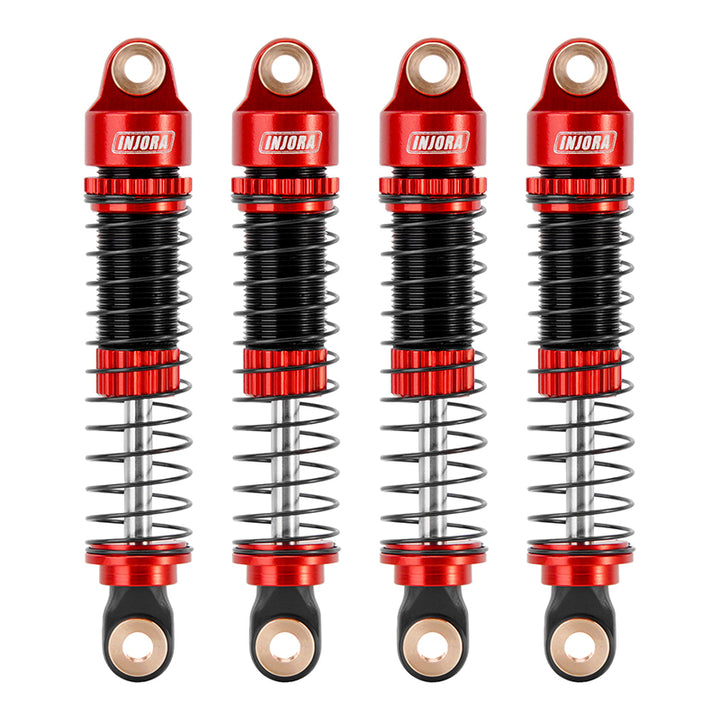

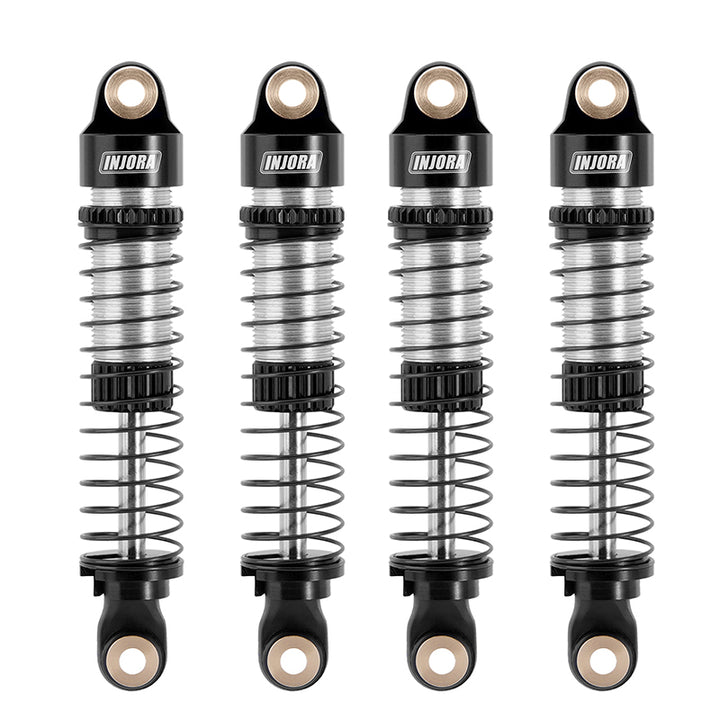

- Color: Black, Red, Grey

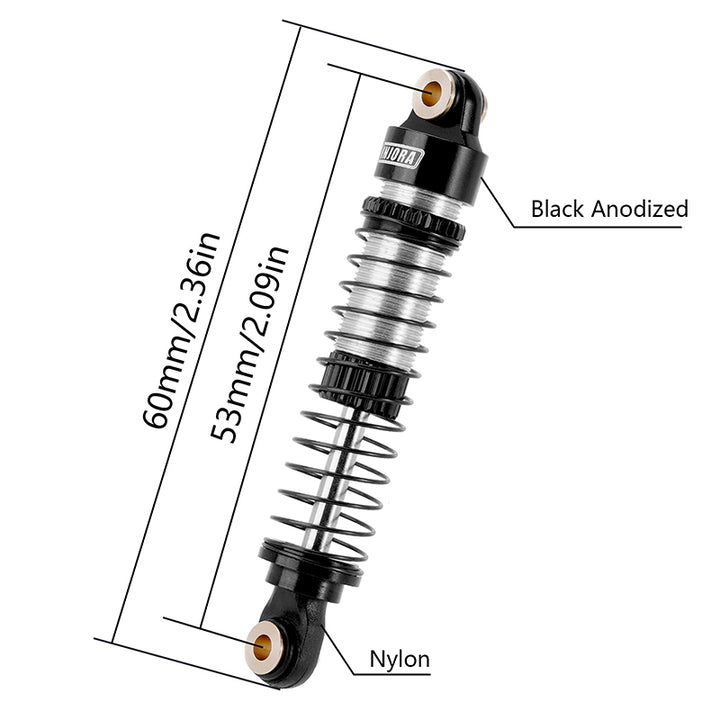

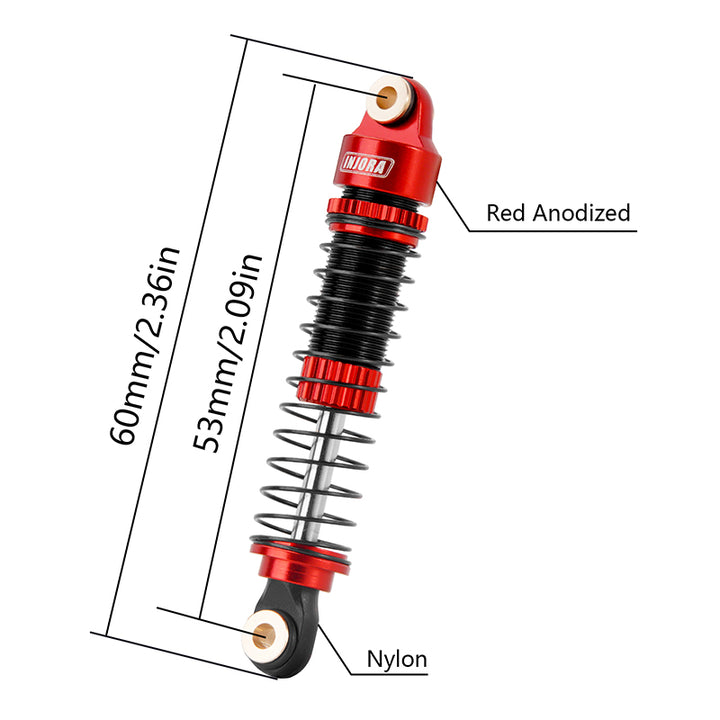

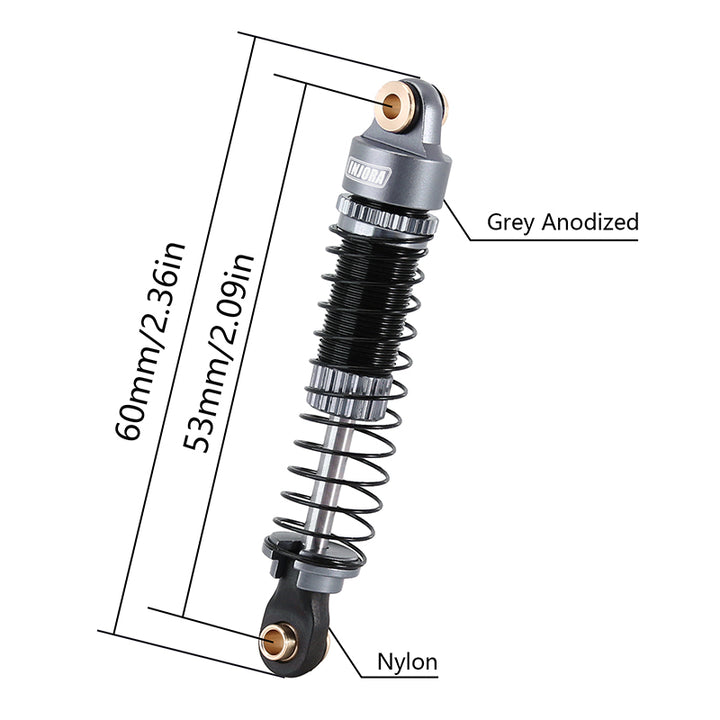

- Full Length: 60mm (2.36in)
- Extended Length (eye to eye): 53mm (2.09in)
- Compressed Size (eye to eye): 39mm (1.54in)
- Maximum Travel: 14mm (0.55in)
- Spring Length: 43mm(1.69in)
- Spring Thickness: 0.45mm 0.5mm
- Each Weight: 6g (0.21oz)

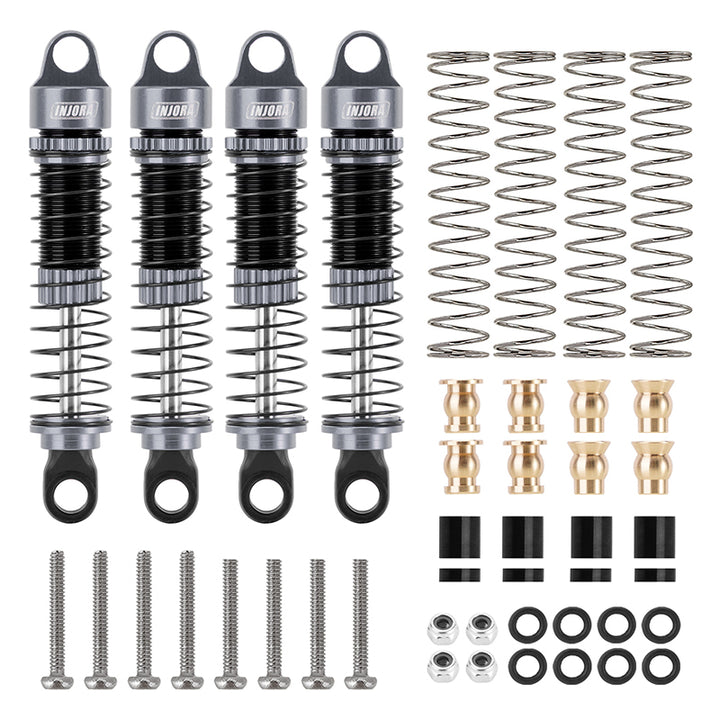

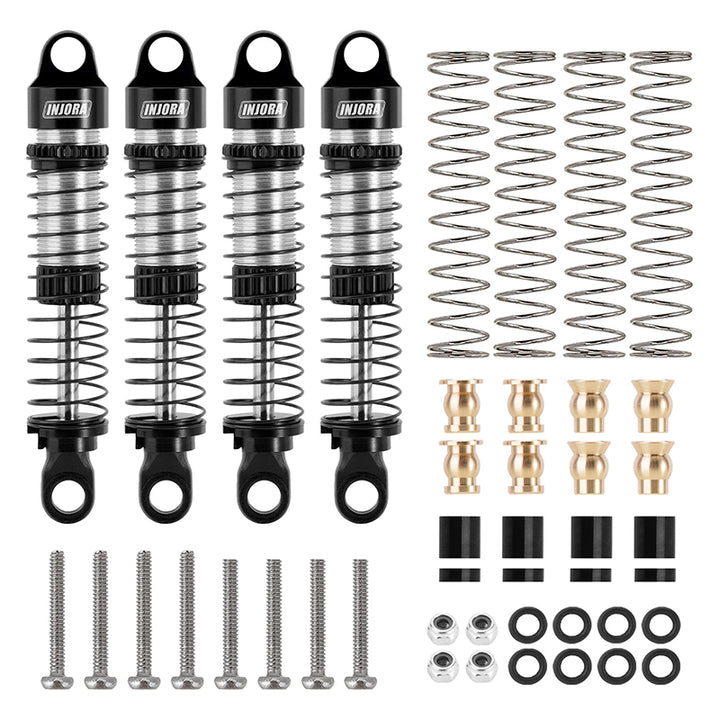

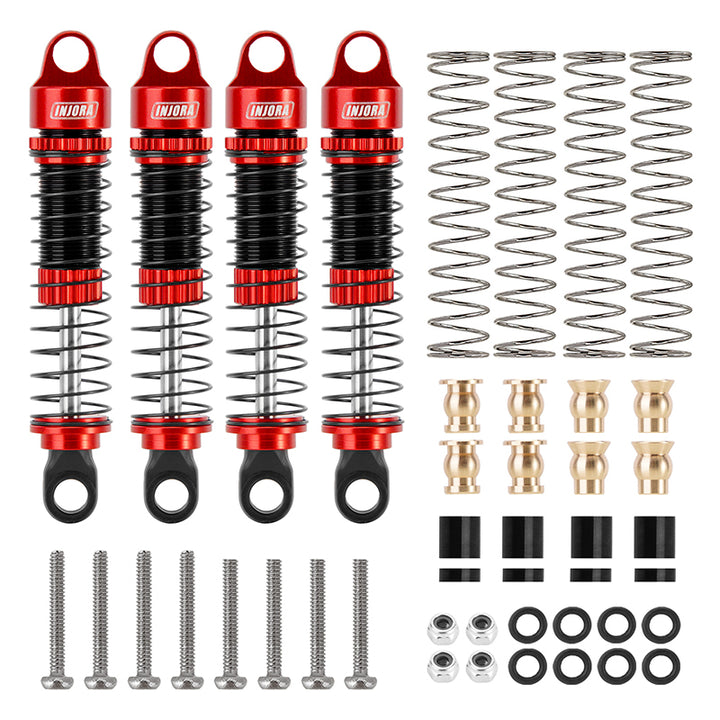

Package List:
4* Shock Absorbers
