PRODUCT DETAILS

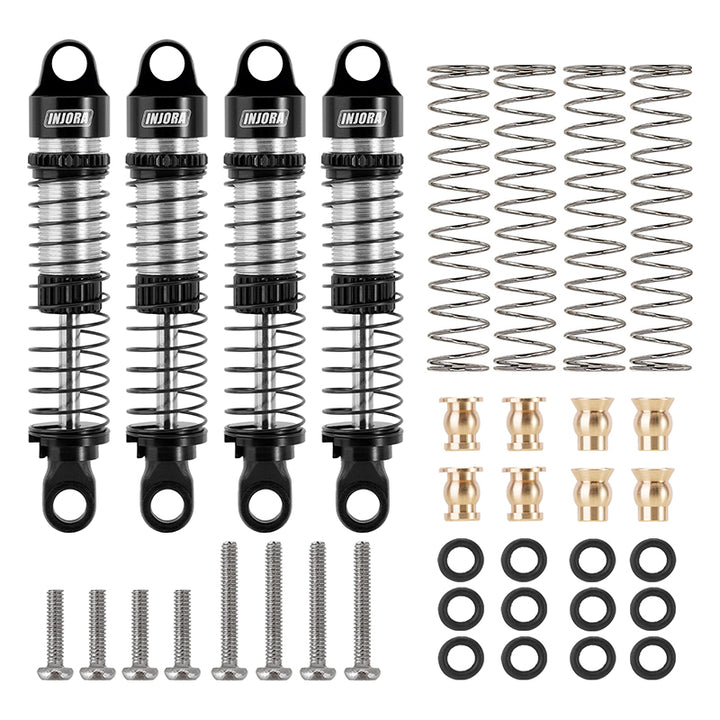

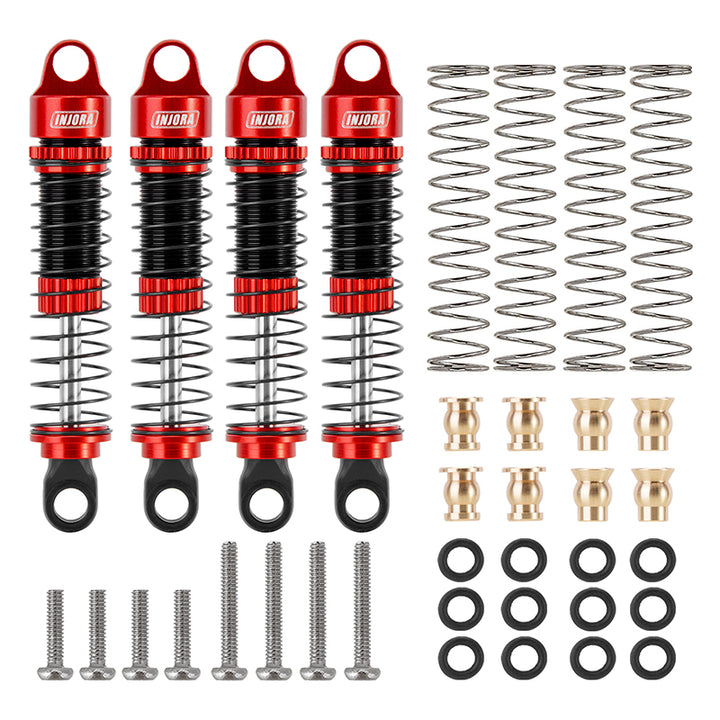

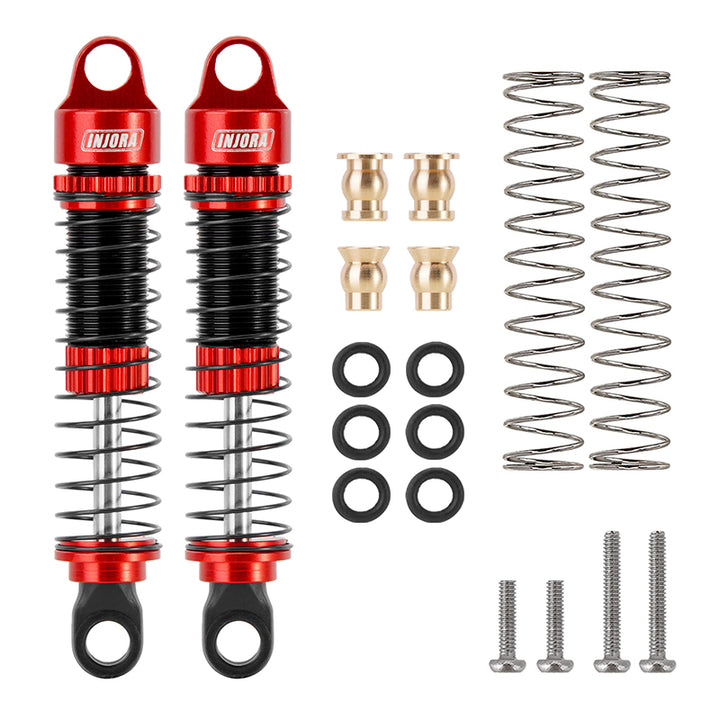

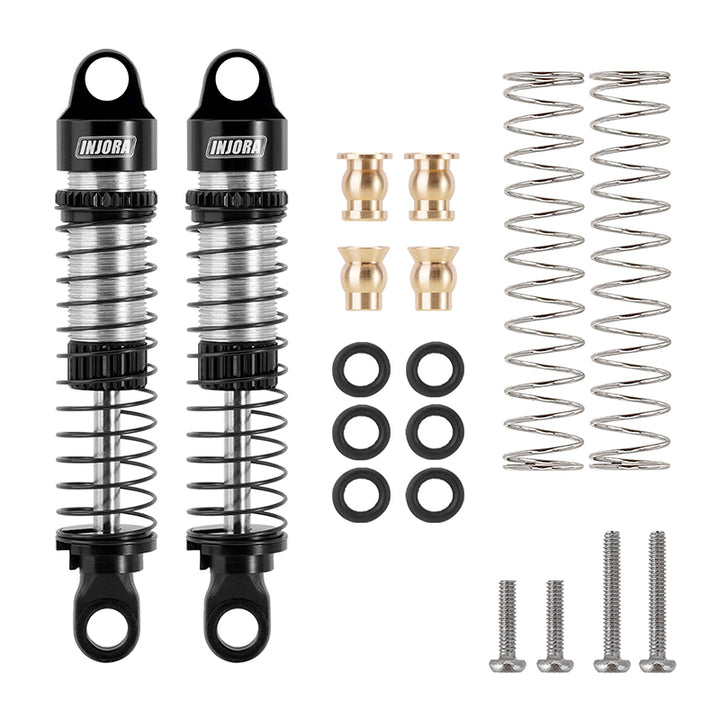

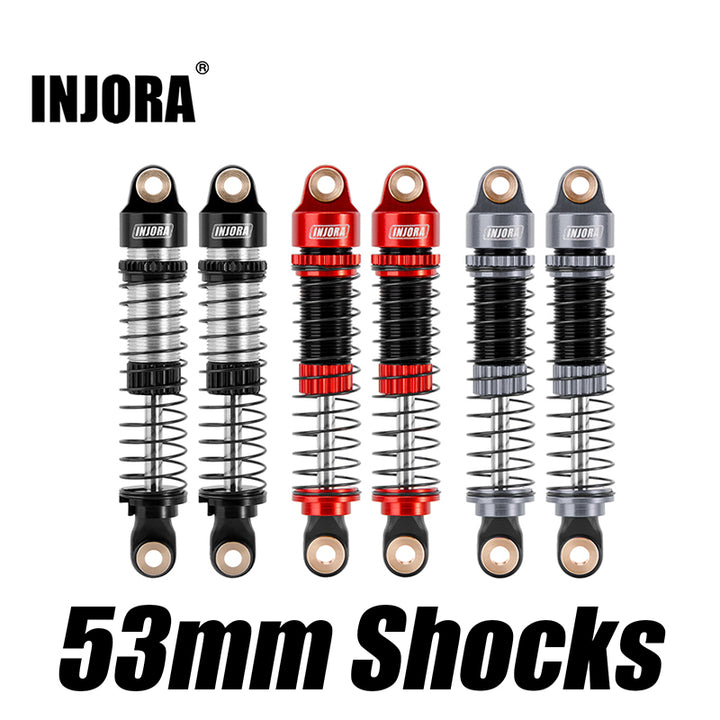

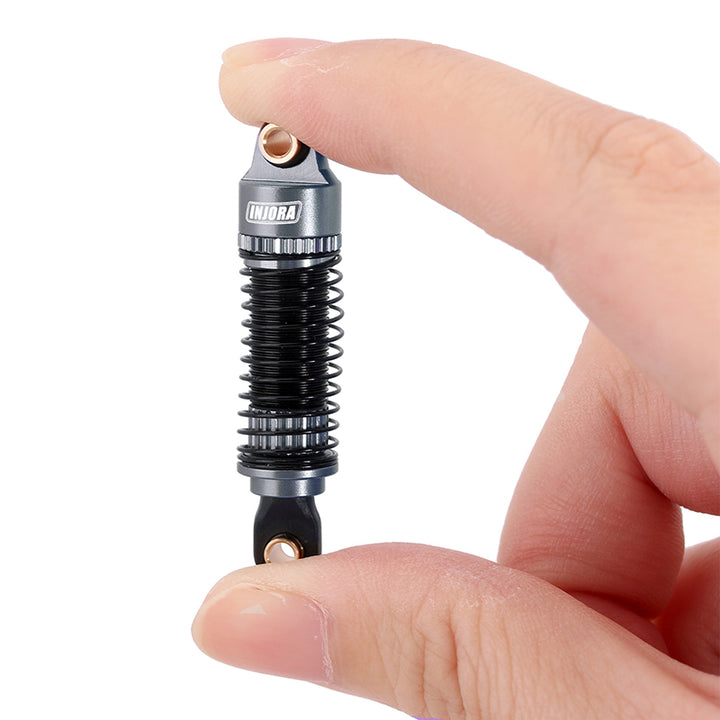

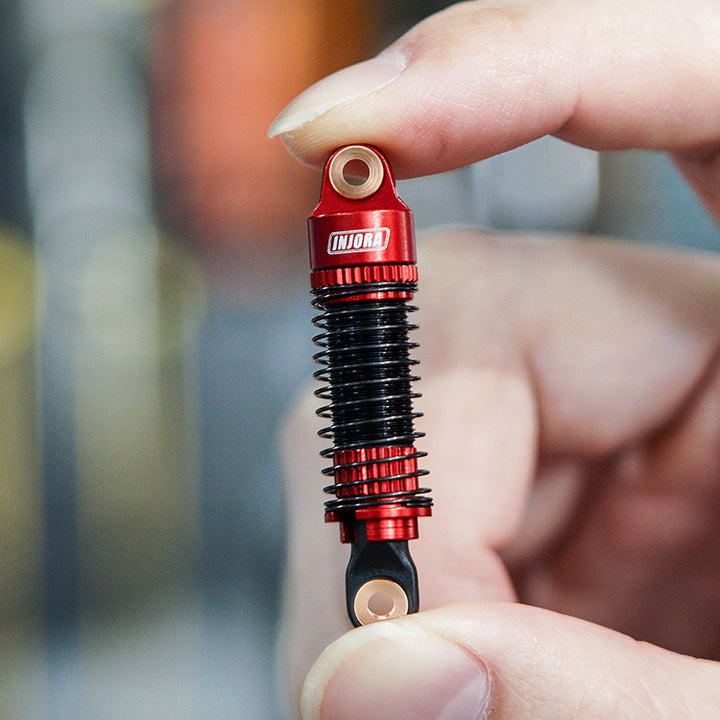

INJORA 53MM Threaded Shock Absorber Oil Damper for 1/18 RC Crawler TRX4M Upgrade

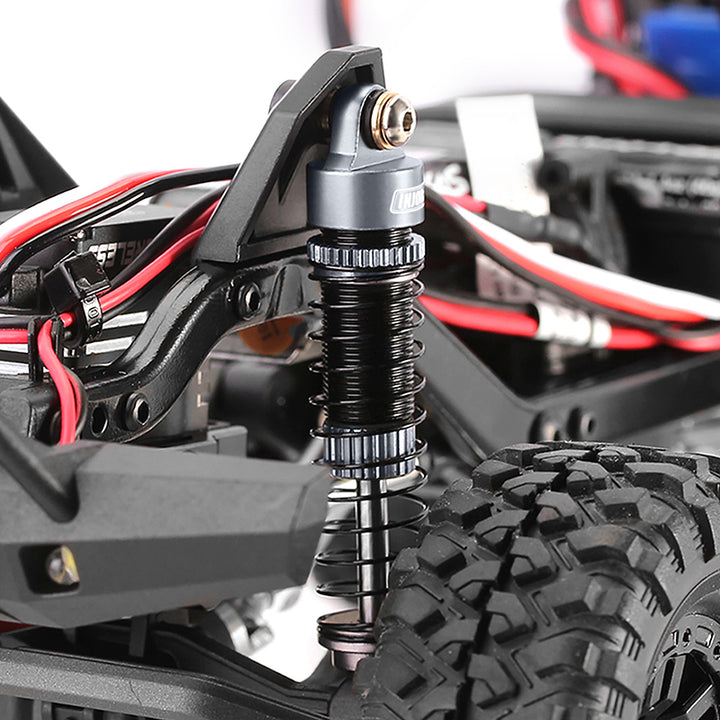

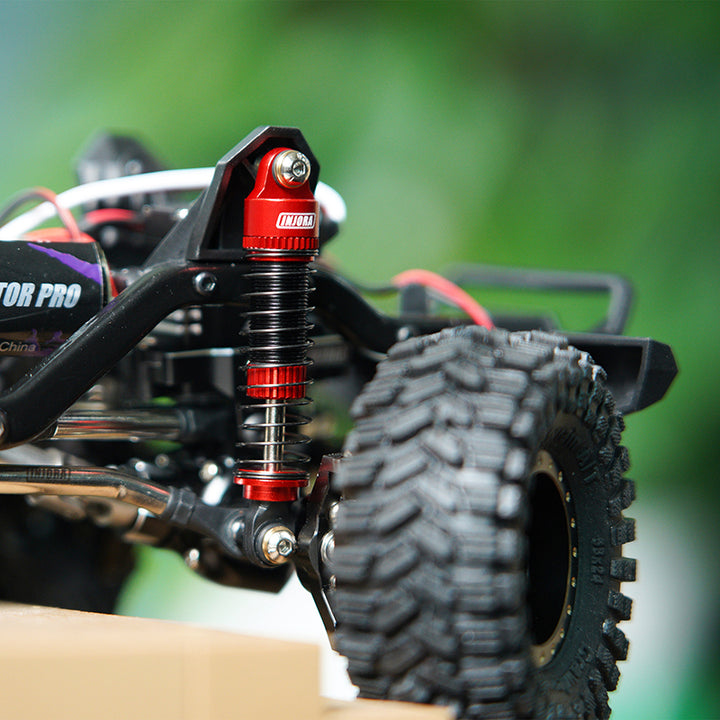

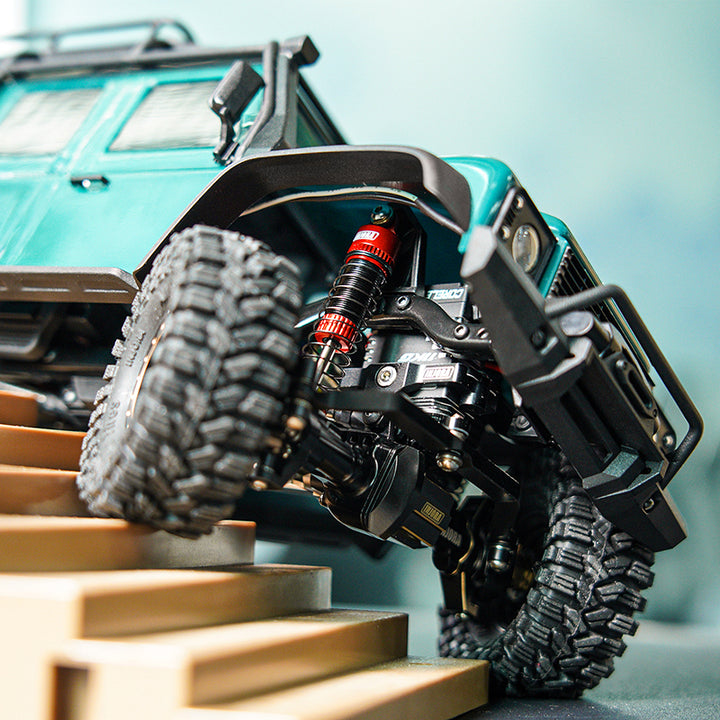

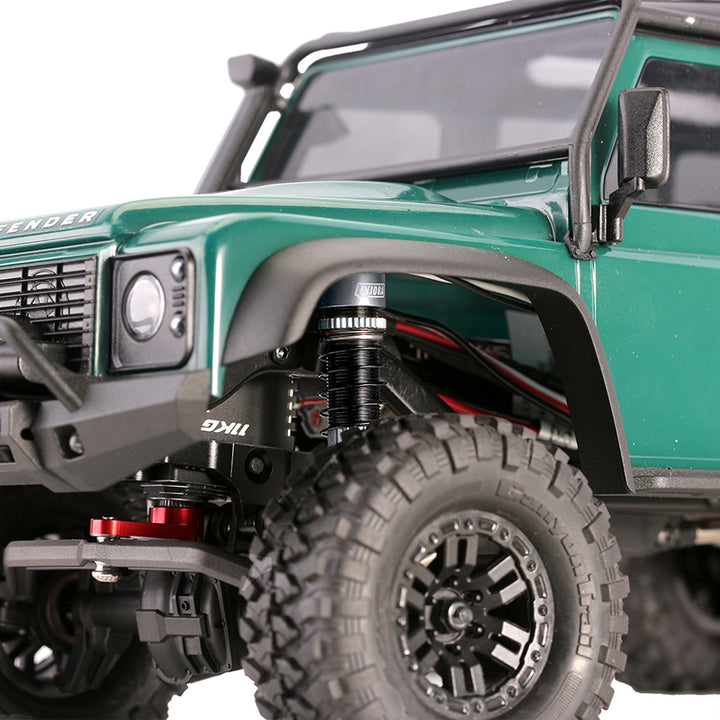

Compatible with: 1/18 RC crawler TRX4M

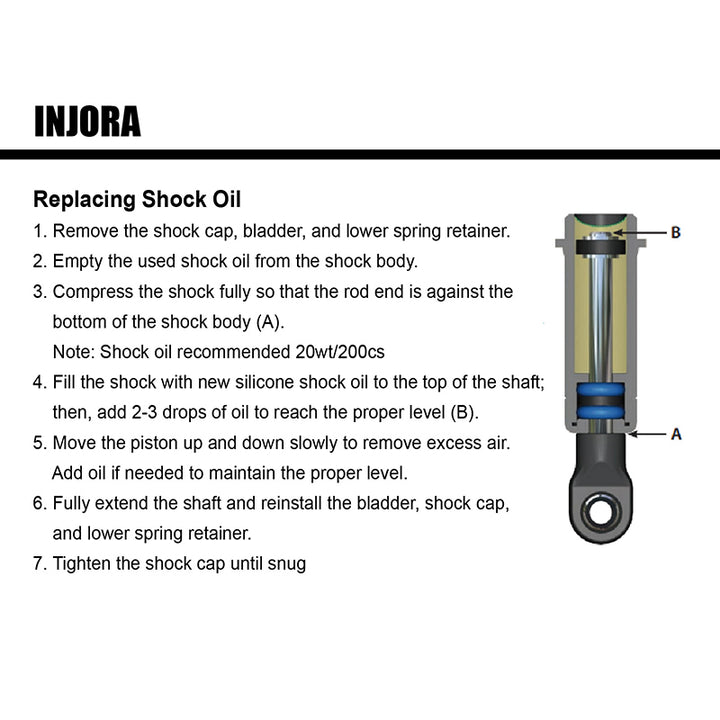

Recommended shock oil weight: 20-40wt
Note:
- The shock oil is not included!
- Adjusting the nut ring to shorten the spring gives better rebound capability.
Features:

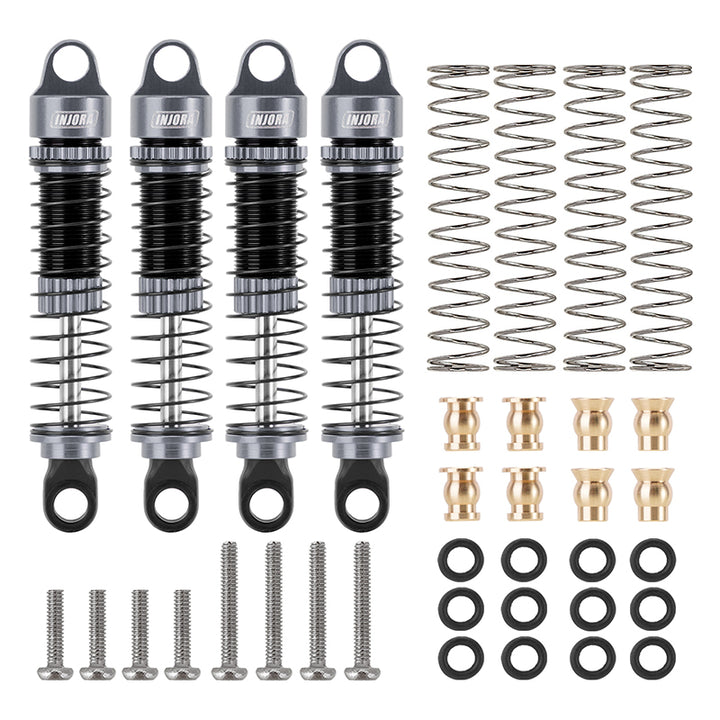

- Two spring rates included (0.45 0.5mm)
- CNC machined Aluminum shock bodies

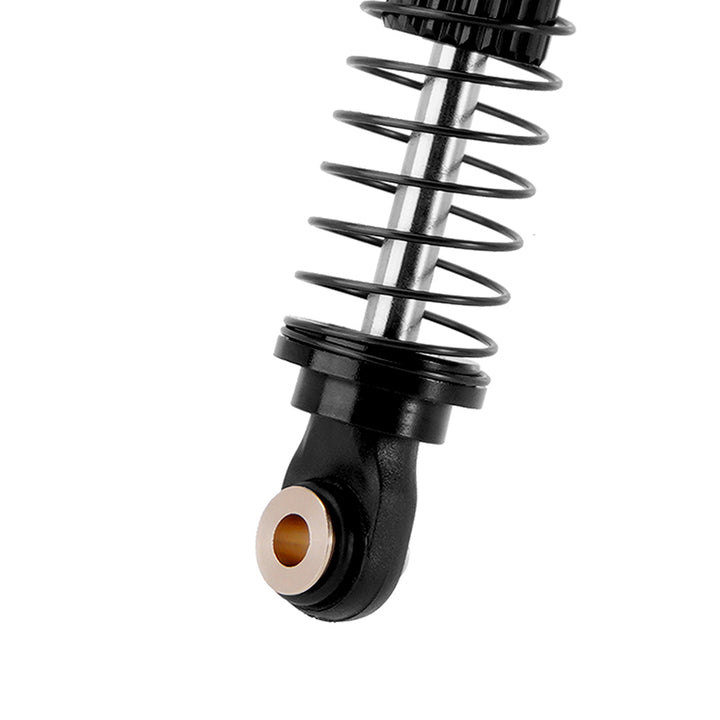

- Nylon Bottom Rod End
- Telescopic design for maximum travel

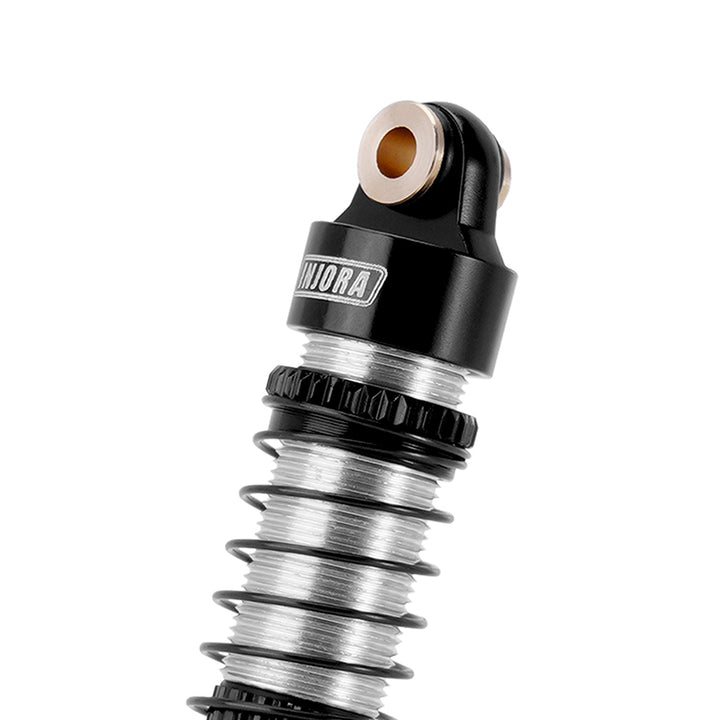

- Threaded shock bodies for quick pre-load adjustments

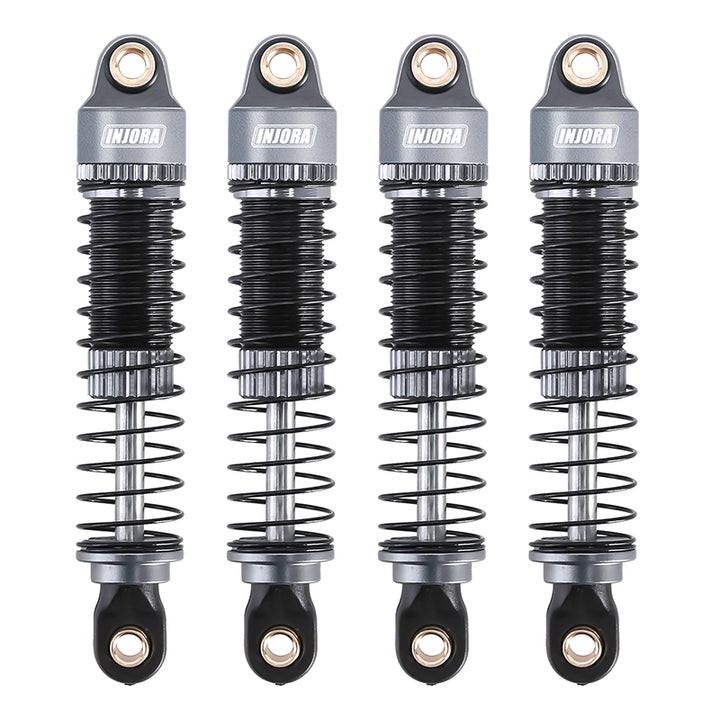

Specifications:
- Part Number: 4M-24

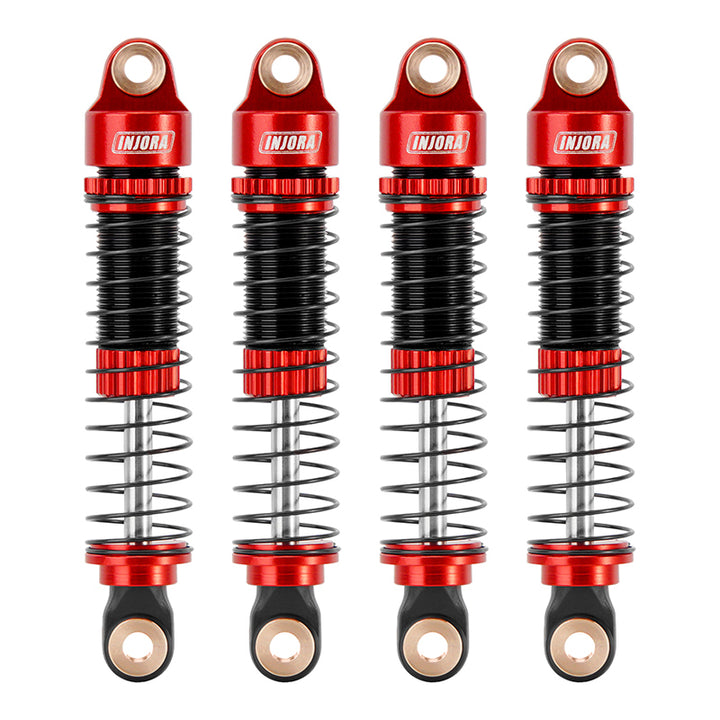

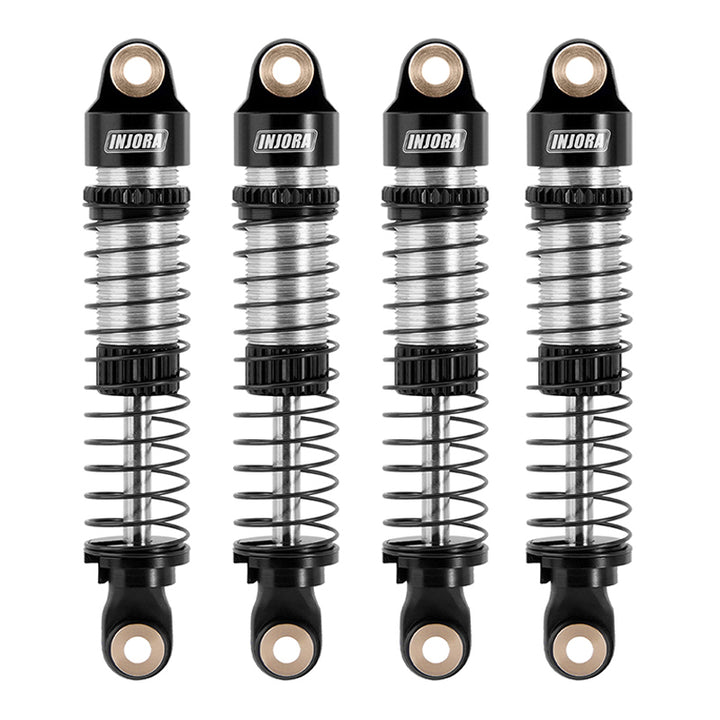

- Color: Black, Red, Grey

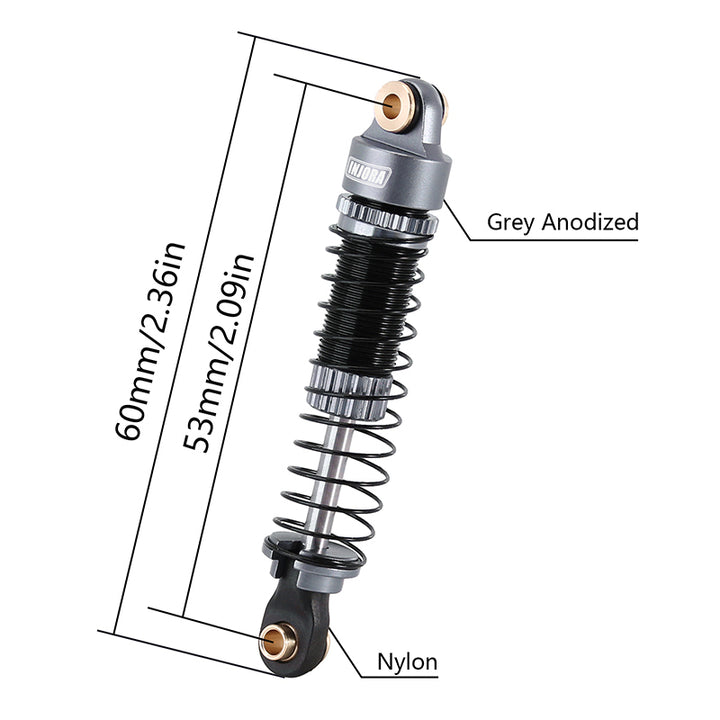

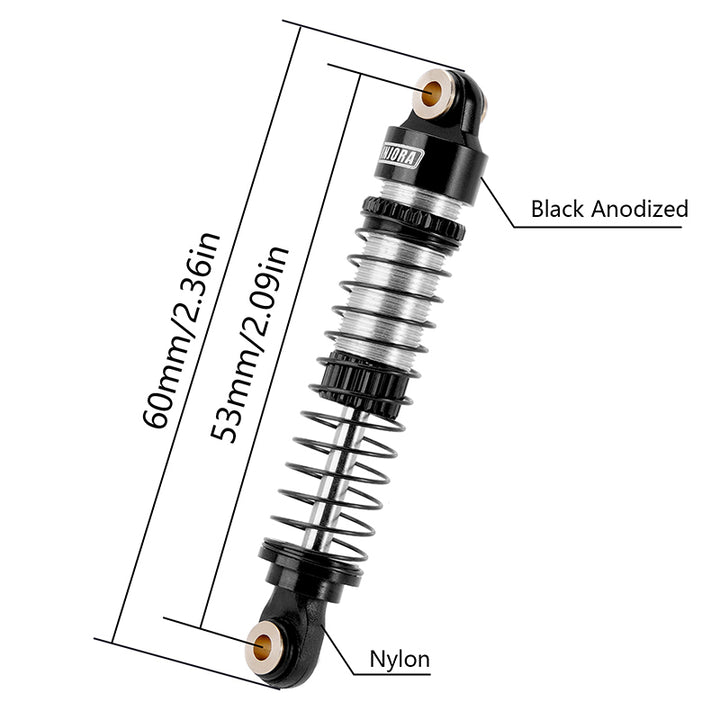

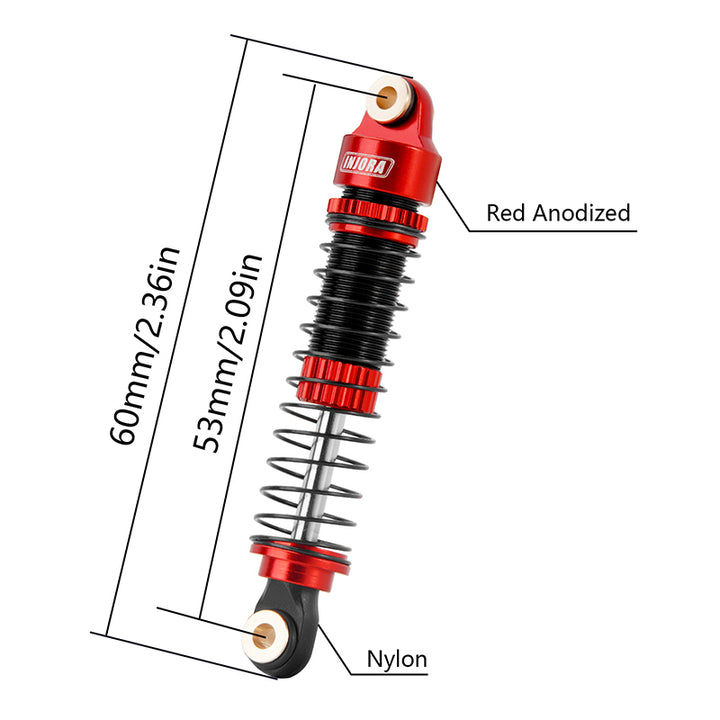

- Full Length: 60mm (2.36in)
- Extended Length (eye to eye): 53mm (2.09in)
- Compressed Size (eye to eye): 39mm (1.54in)
- Maximum Travel: 14mm (0.55in)
- Spring Length: 43mm(1.69in)
- Each Weight: 6g (0.21oz)
Springs:
- Softer: Black, Wire diameter: 0.45mm
- Stiffer: Silver, Wire diameter: 0.5mm
