PRODUCT DETAILS

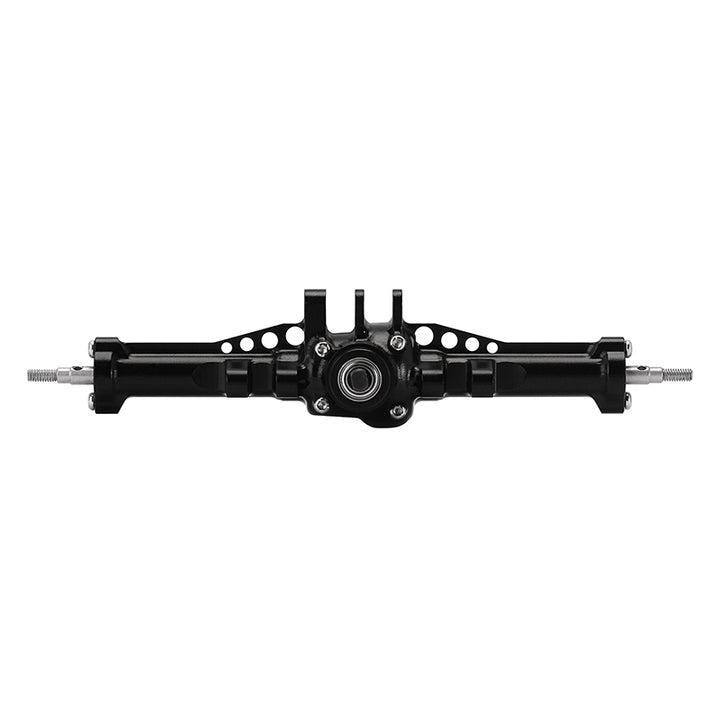

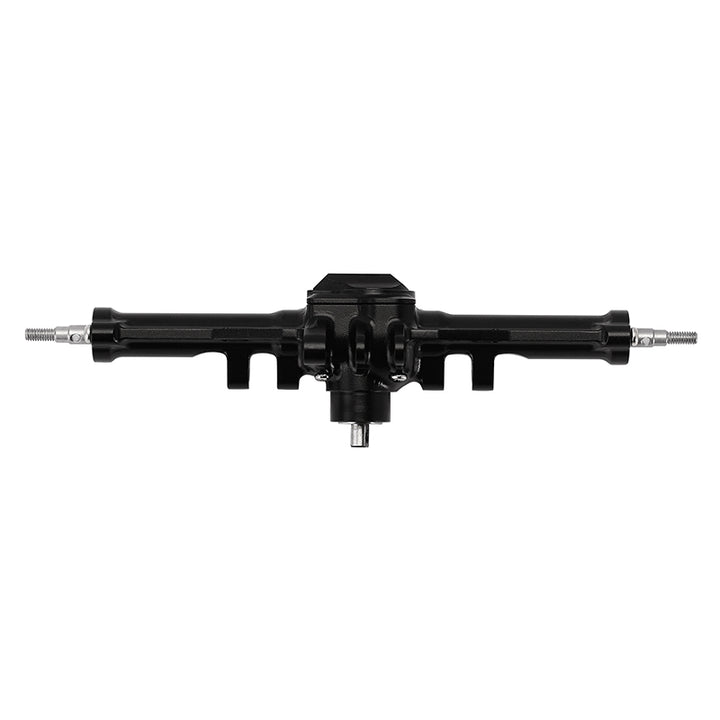

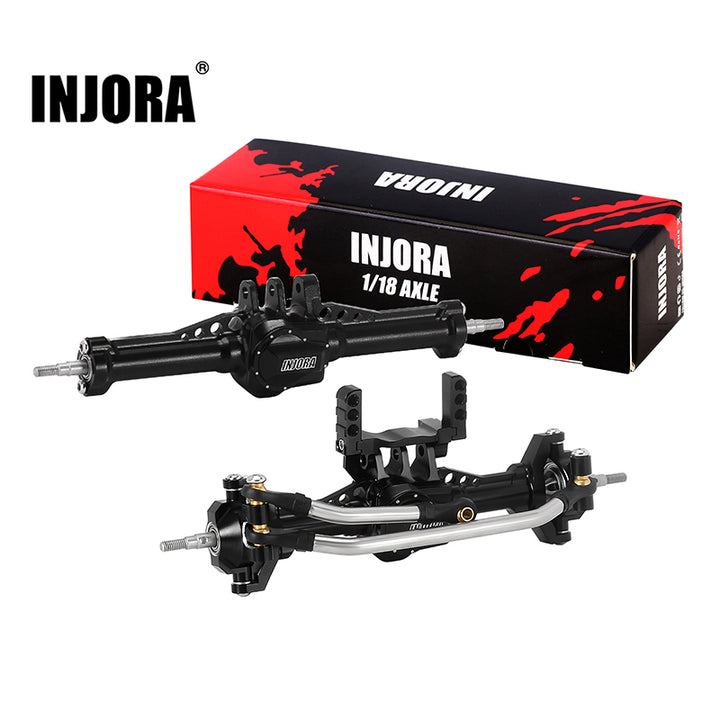

NJORA +4mm Aluminum Axles with Lay Down Servo Mount & Links for 1/18 TRX4M TRX4MT
Compatible with: 1/18 RC crawler TRX4M, TRX4MT
Note:
- Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock.
- Not compatible with original TRX4M size steering links and dogbone shafts as the axle housings are 4mm extended per side.
- Compatible with both INJORA and stock TRX4M upgrade parts: gears, C hubs, steering knuckles, chassis links, drive shafts.

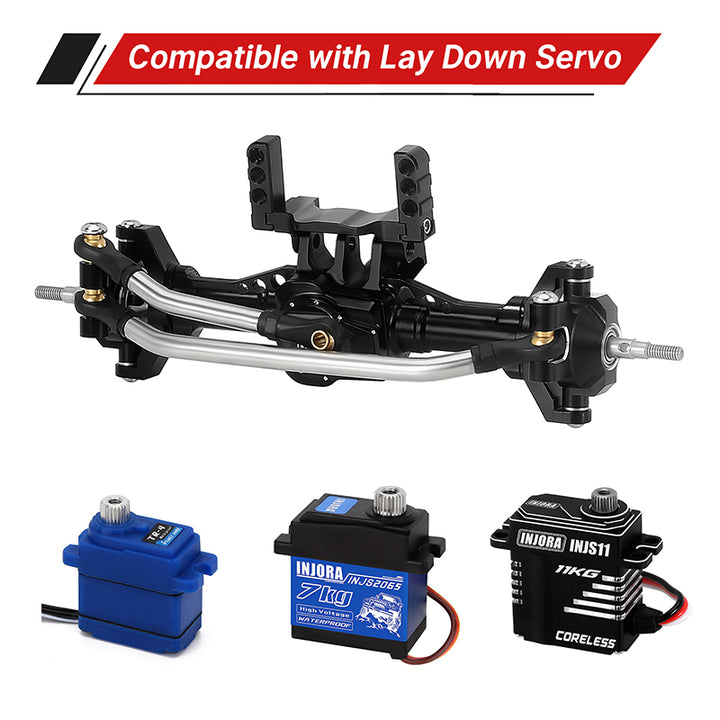

- Compatible with these servos: stock TRX4M servo, injora 7kg servo INJS2065, injora 11kg servo INJS11
- After laying down the servo, you may need to reverse the steering: How do you reverse the servo on your TRX4m Transmitter?
Features:

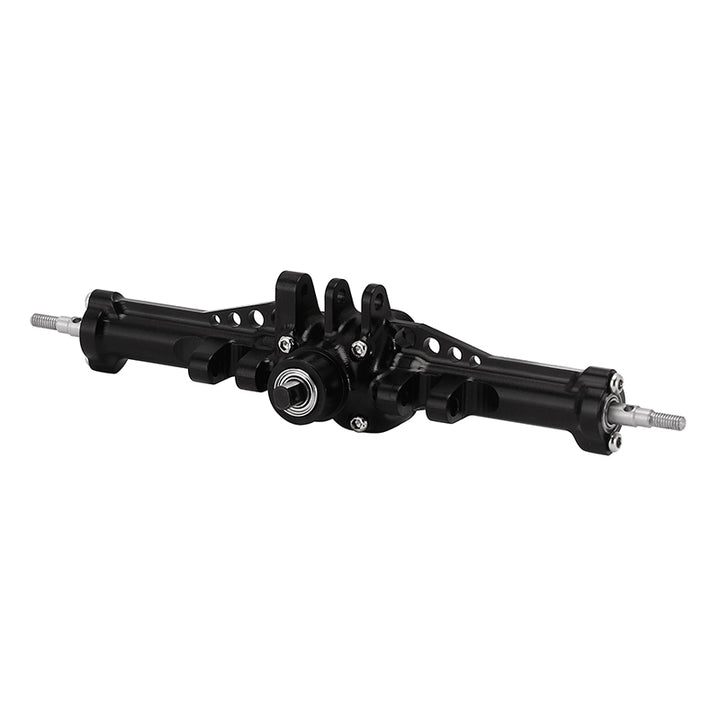

- Pre-assembled complete axles. Please grease the axles before installation.

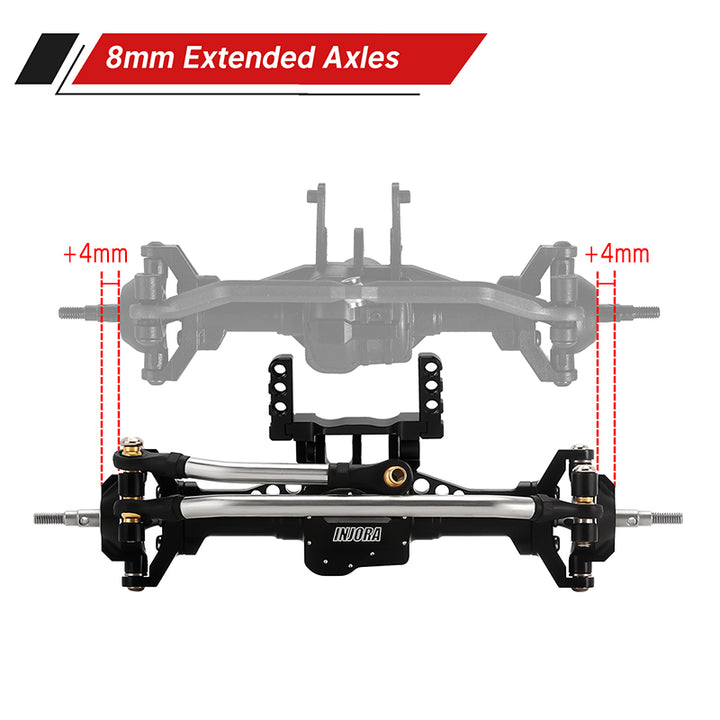

- +4mm axles increase the width of each side by 4mm, increase total length by 8 mm
- The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
- 4mm extended desgin provides better stability and climbing performance

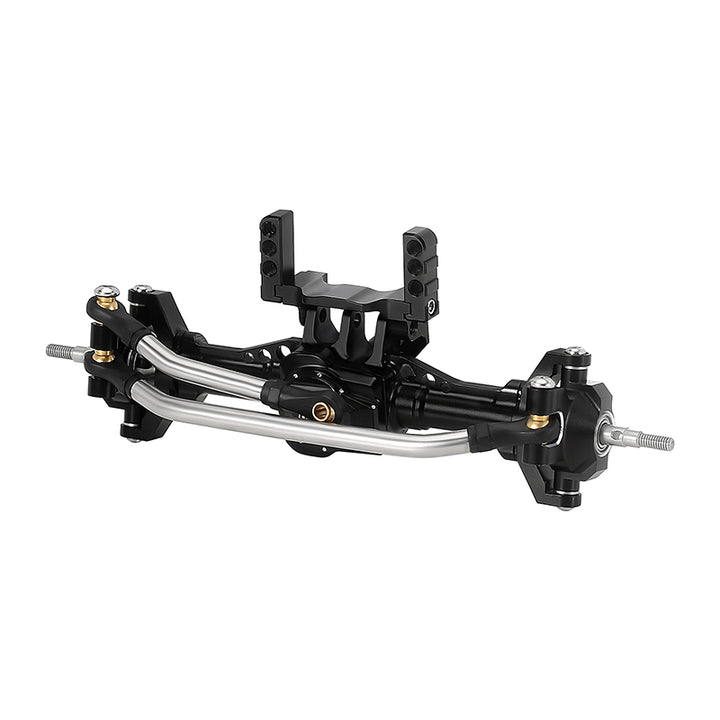

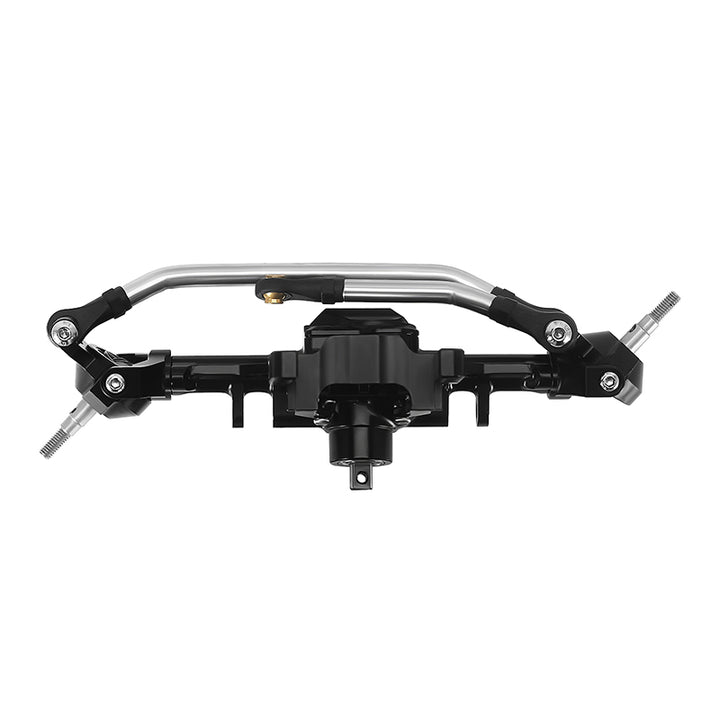

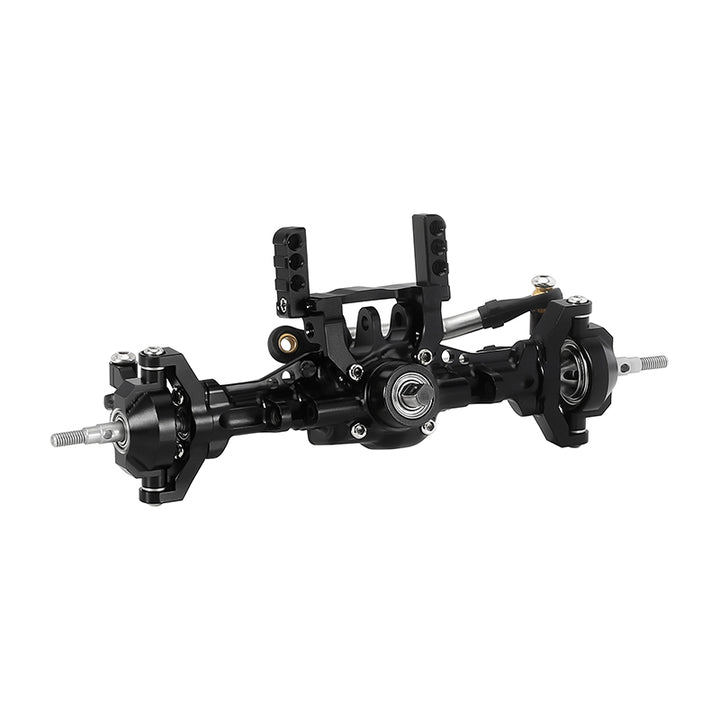

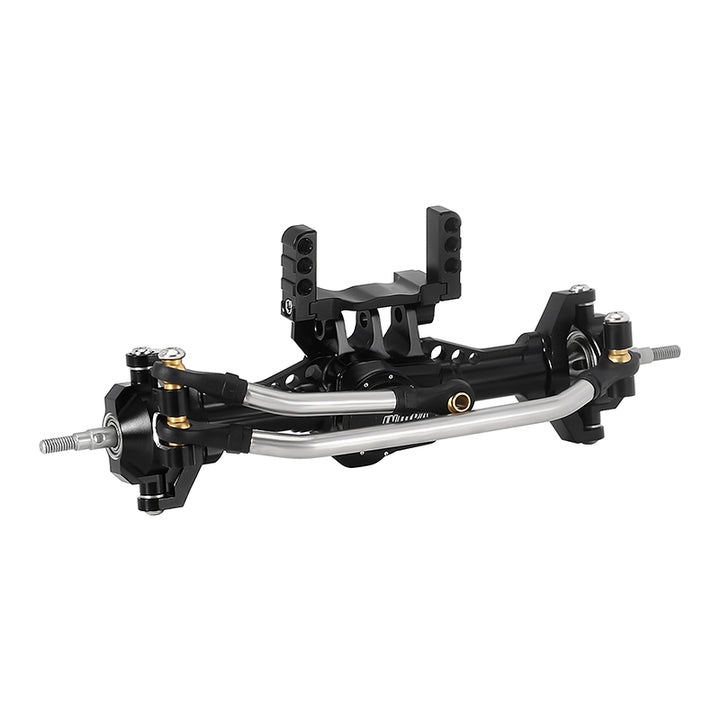

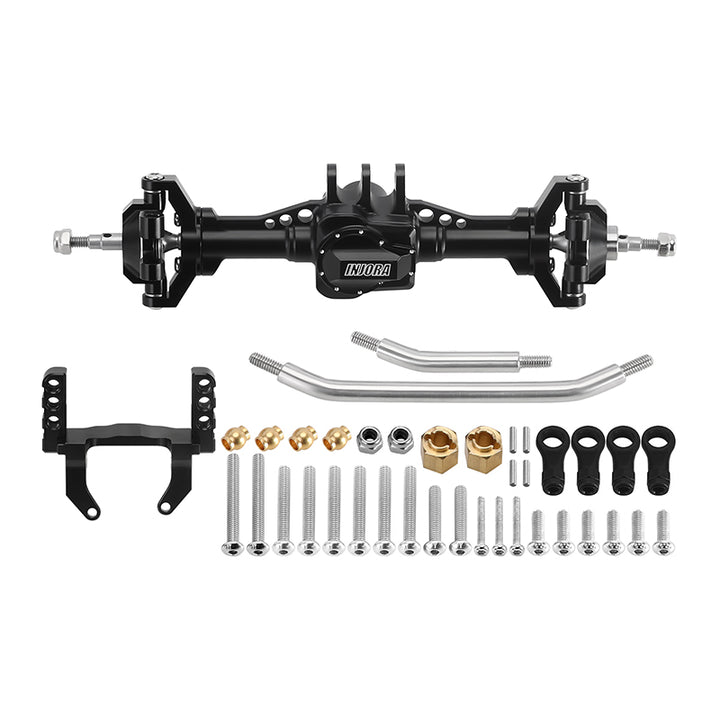

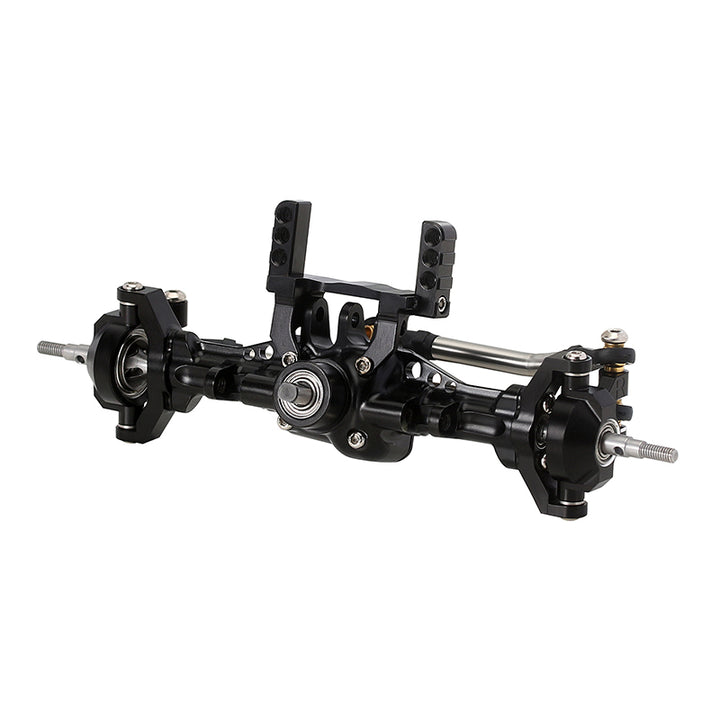

- Come with lay down servo mount and stainless steel steering links set.

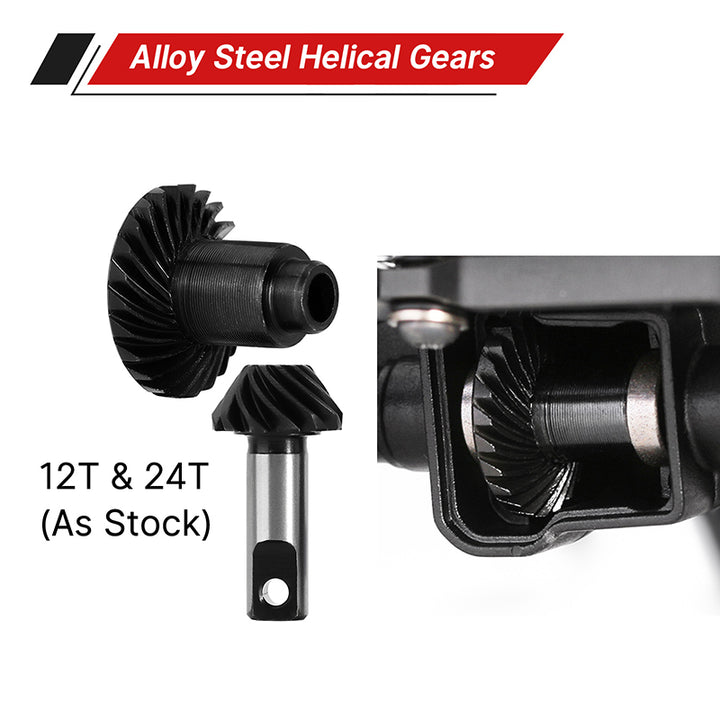

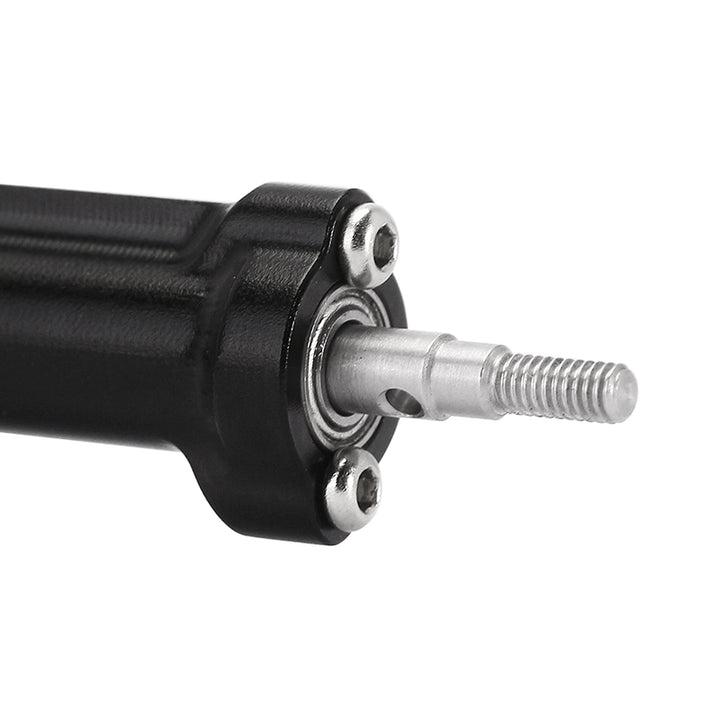

- Hardened CVD shafts and steel 12/24T gears.

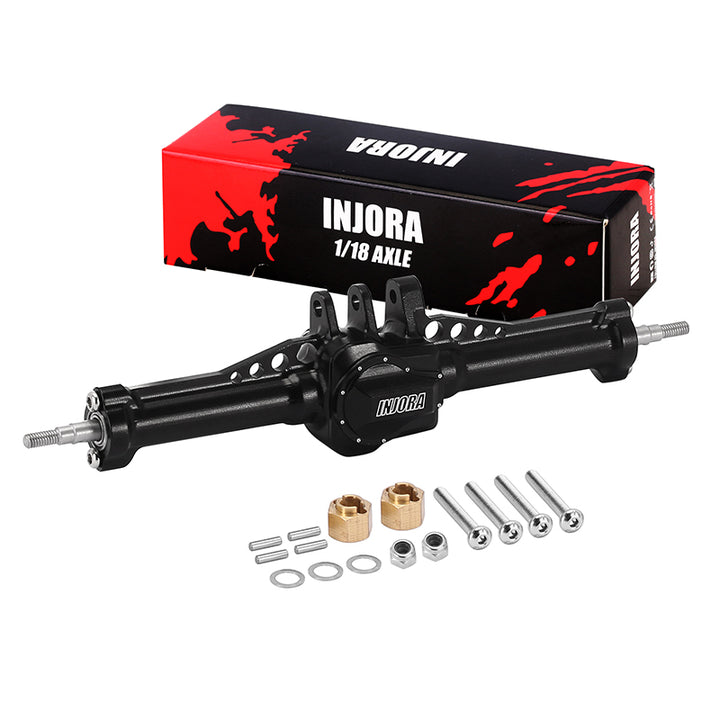

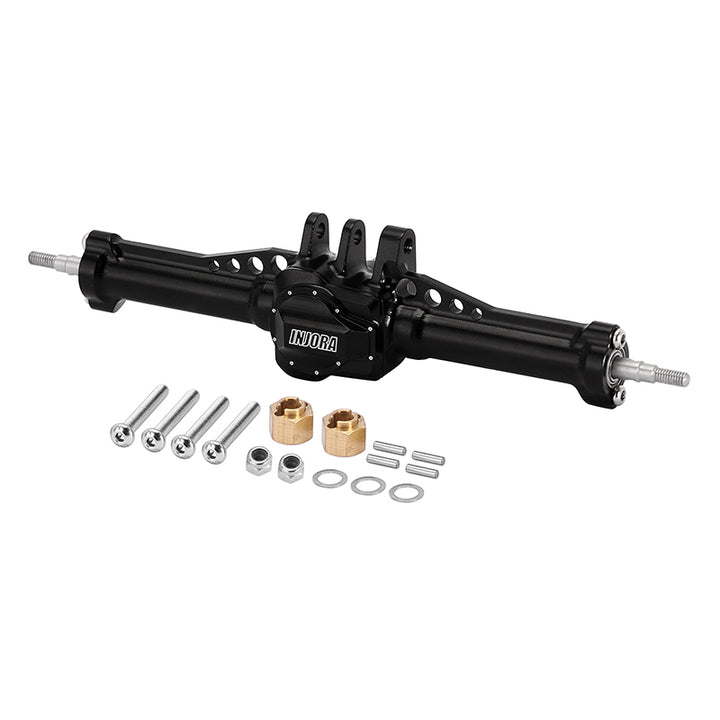

- Come with 5mm(+1mm) brass wheel hexes and nuts.

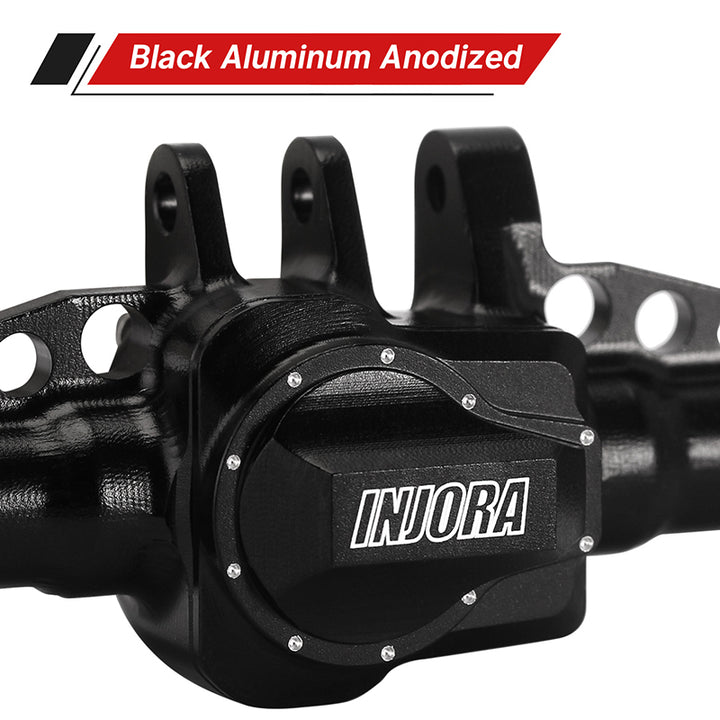

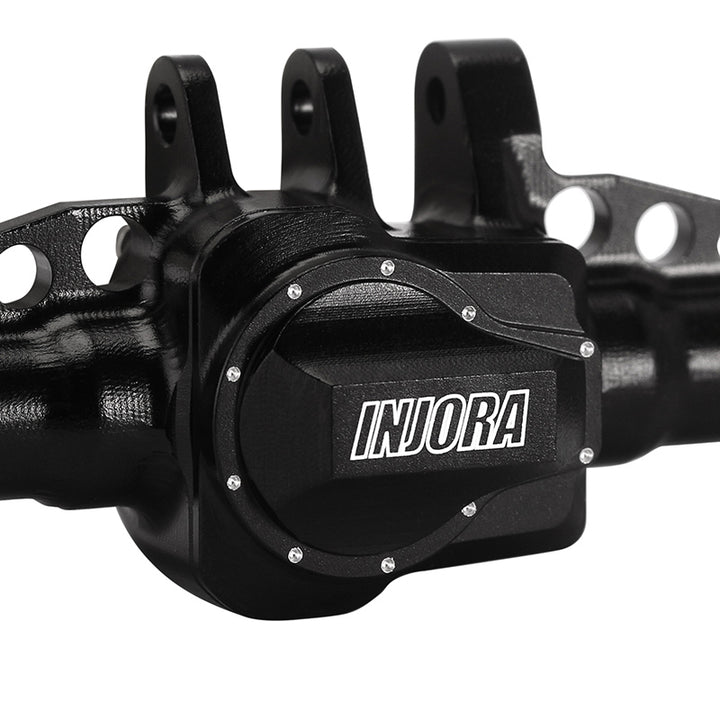

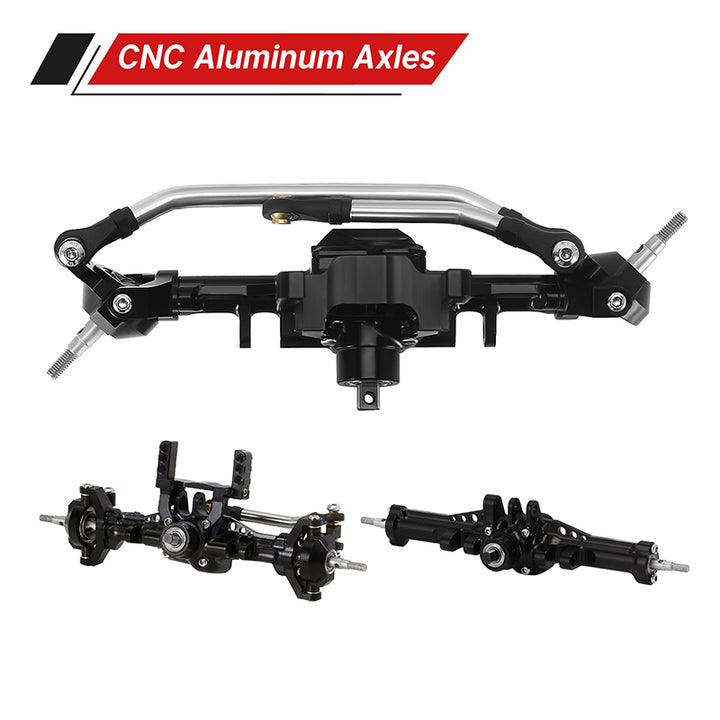

- CNC machined, black anodized
Specifications:
- Housing Material: Aluminum
- Gear Material: 20CrMo Alloy Steel
- CVD Shaft Material: Hardened Steel
- Gear Ratio: 24/12=2:1 (Same as Stock)

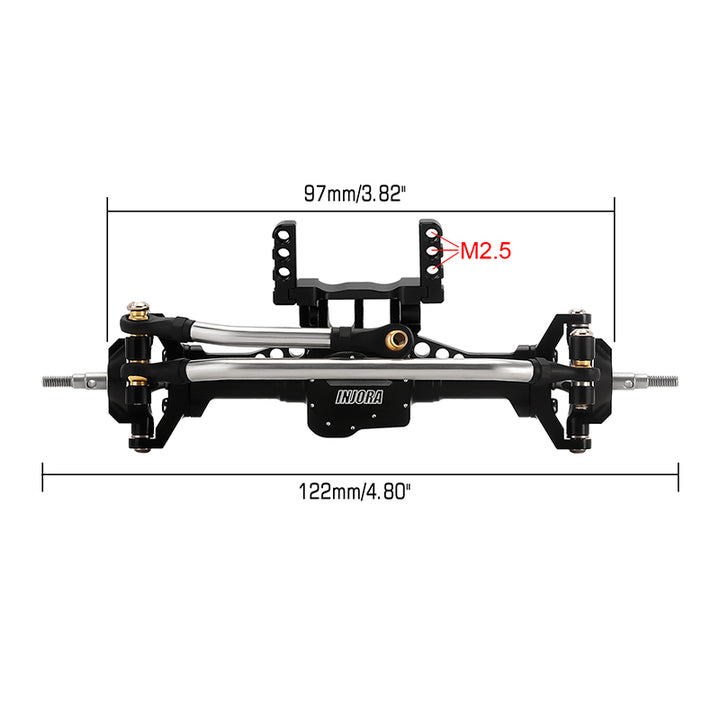

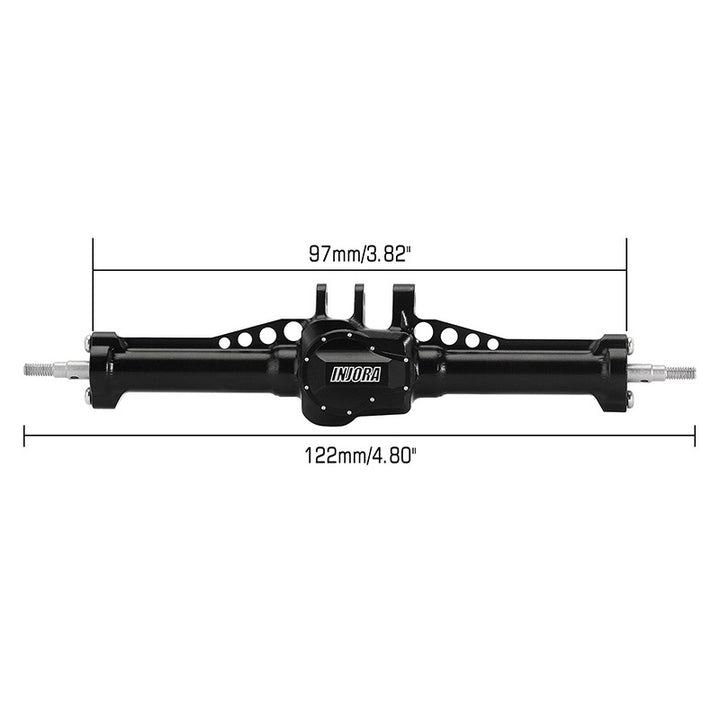

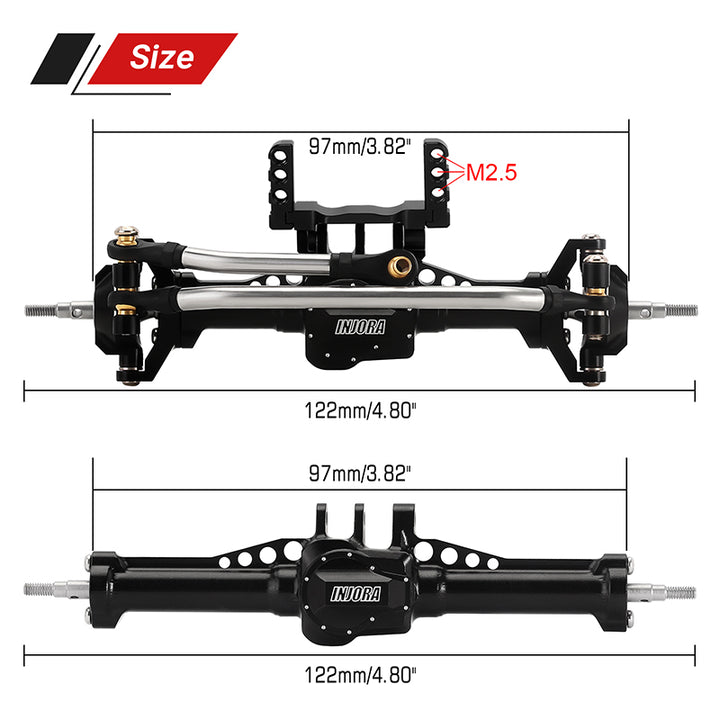

- Total Length: 122mm (4.80in)
- Front Axle Weight: 92g (3.24oz)
- Rear Axle Weight: 42g (1.48oz)
