PRODUCT DETAILS

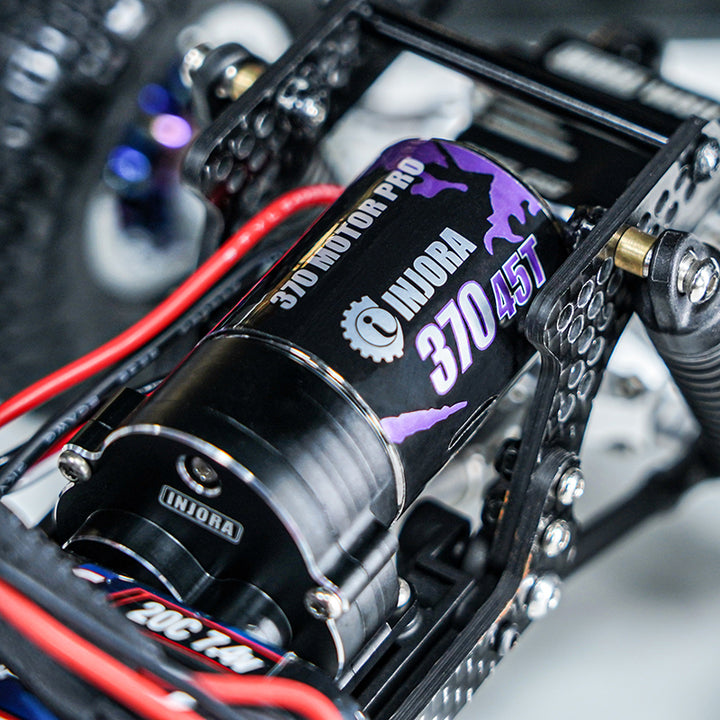

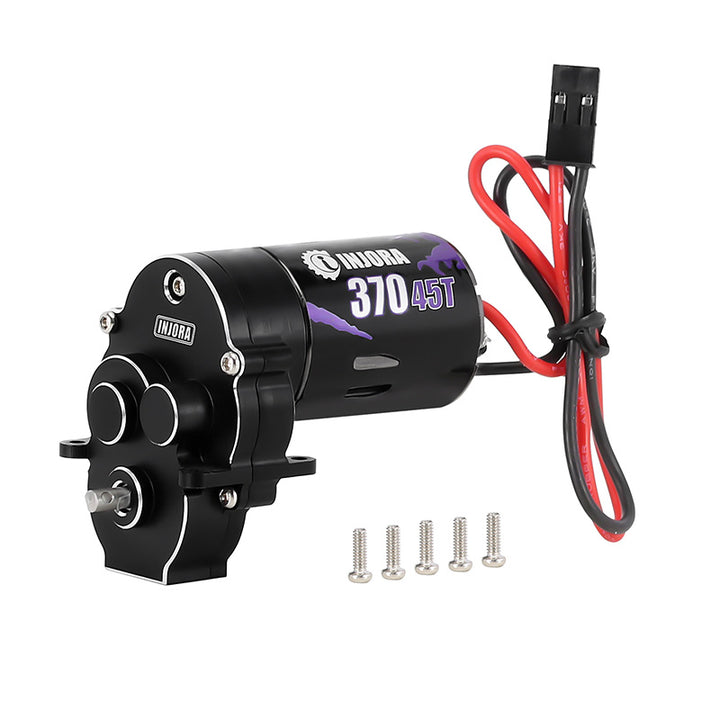

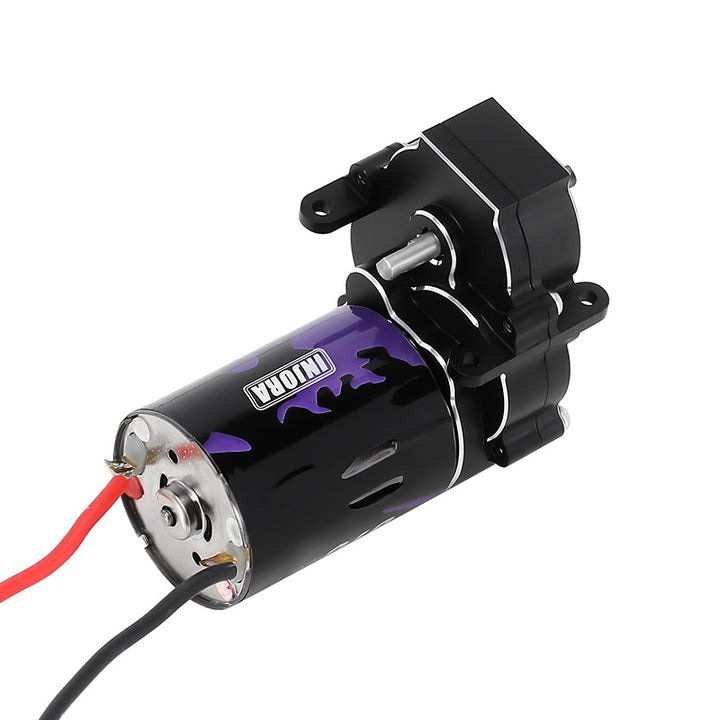

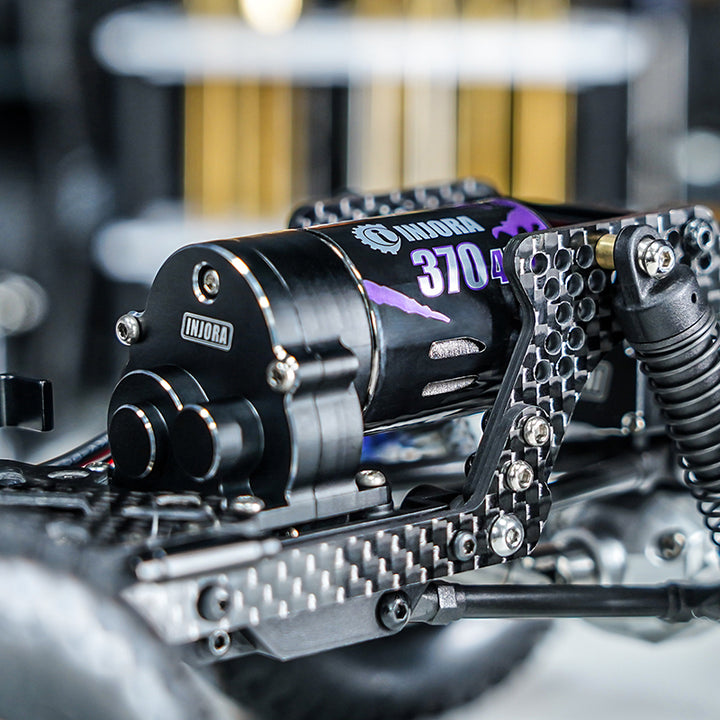

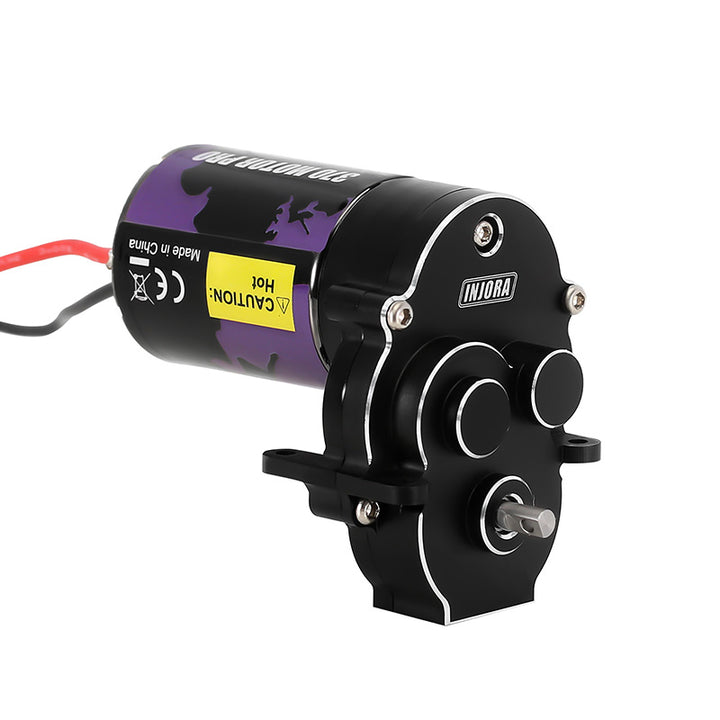

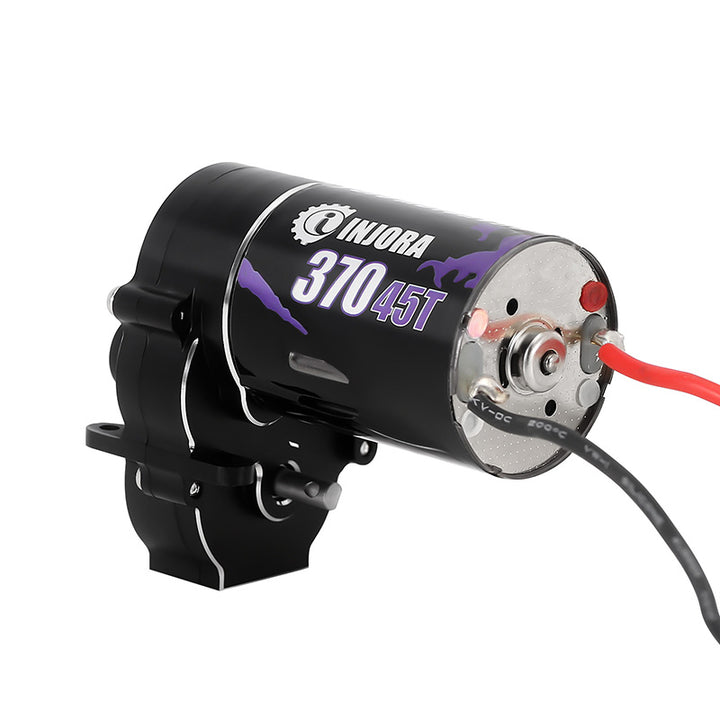

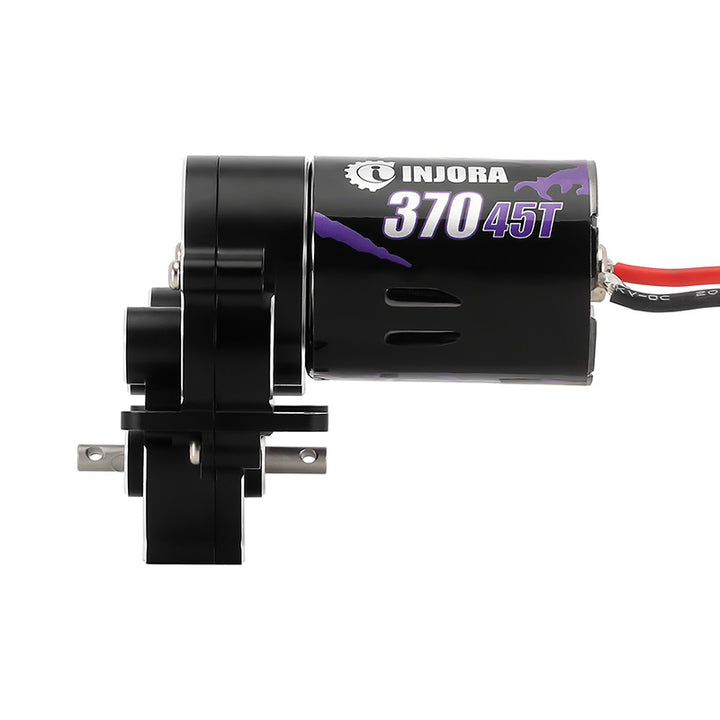

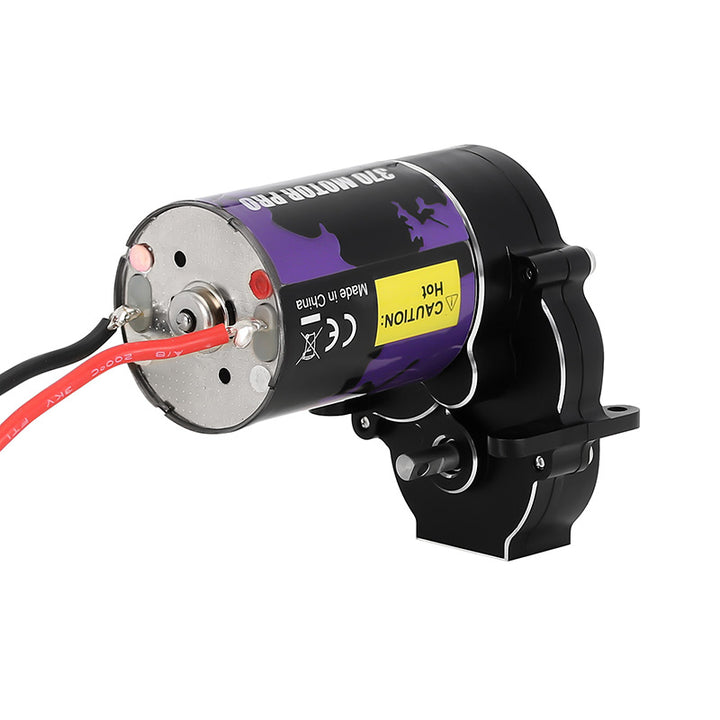

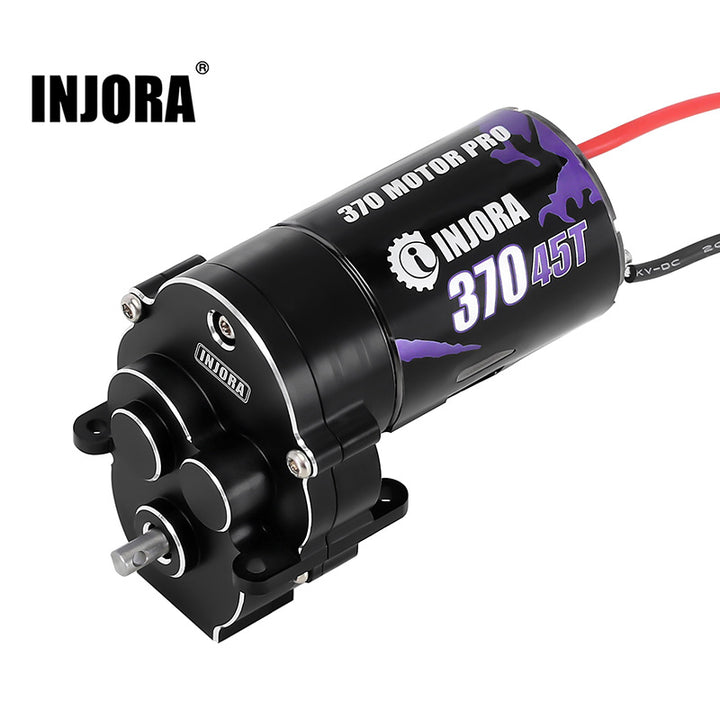

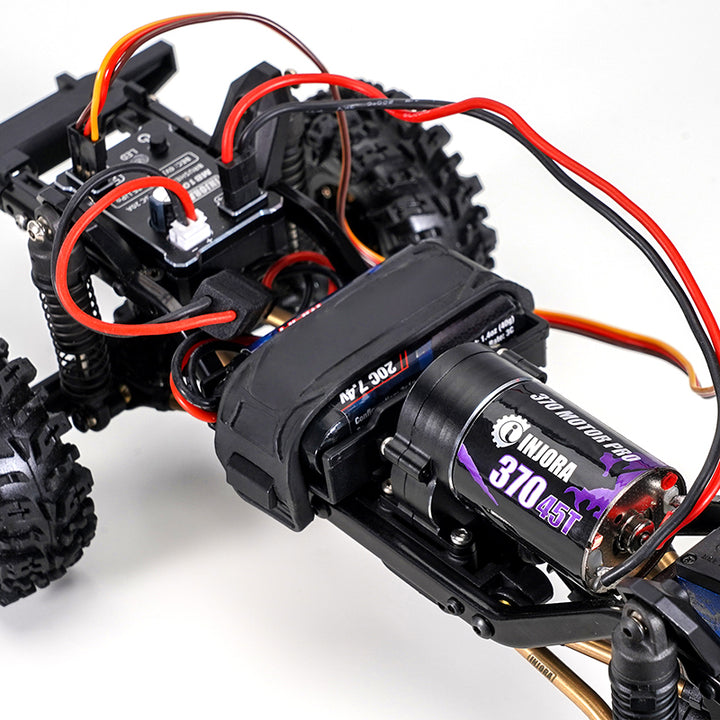

INJORA CNC Aluminum Complete Transmission with 370 Brushed Motor 45T for 1/18 RC Crawler TRX4M Upgrade
Note:

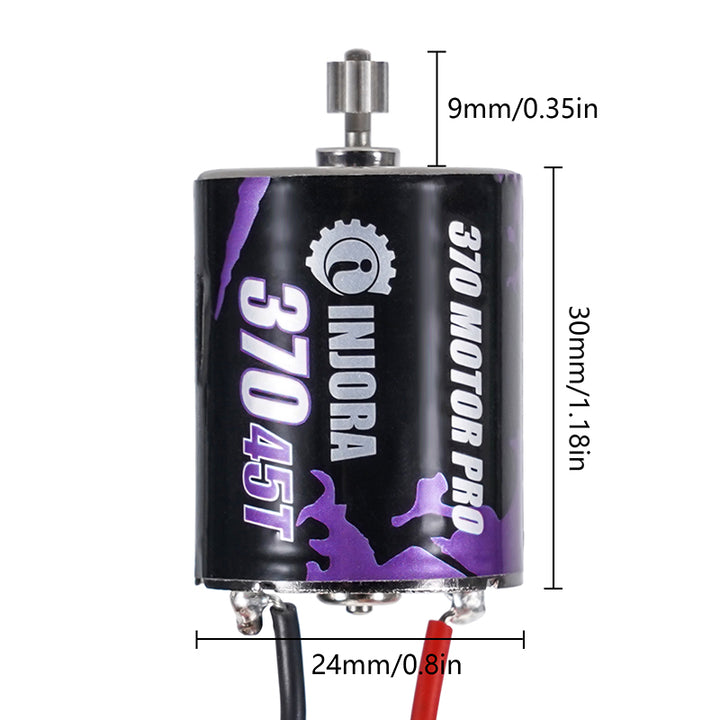

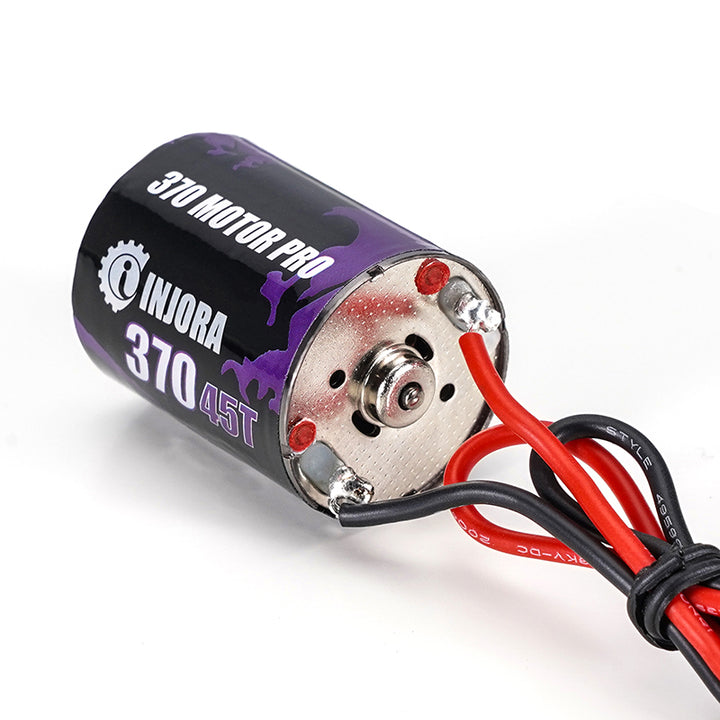

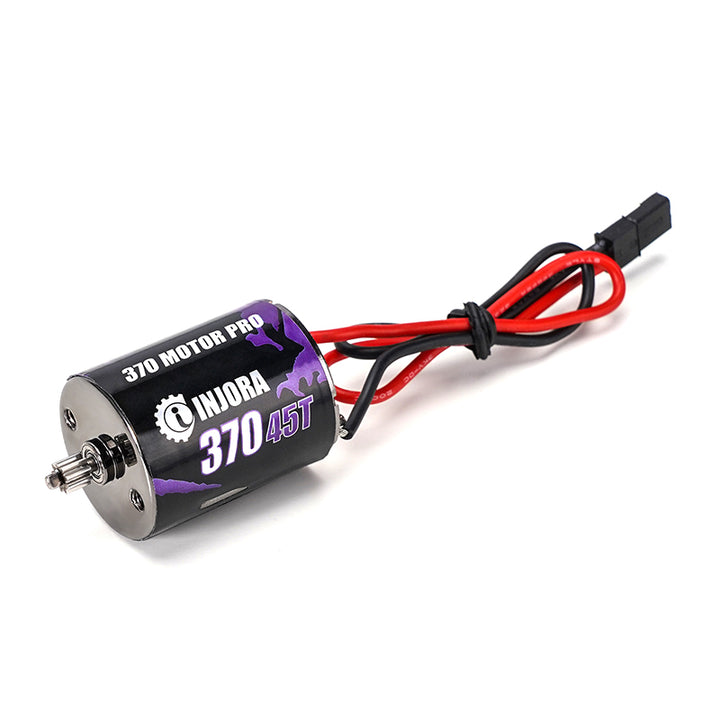

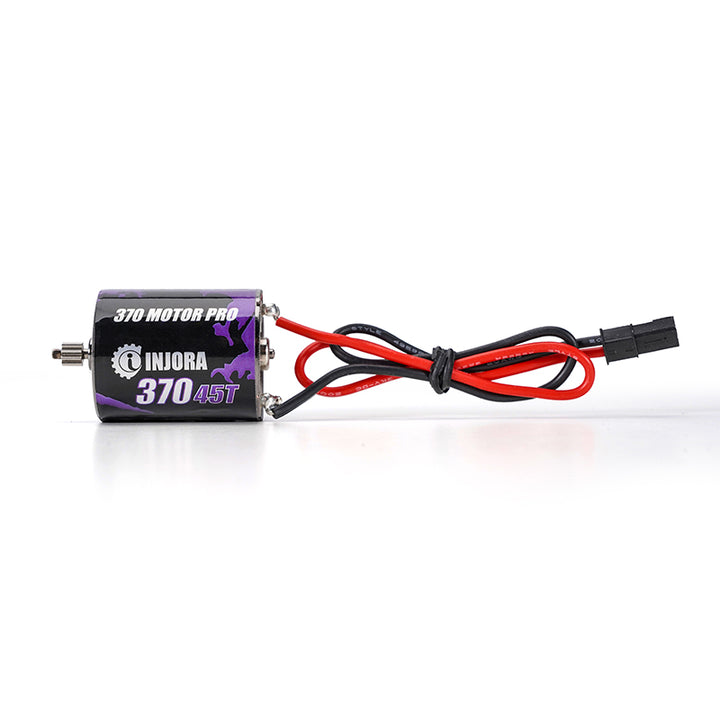

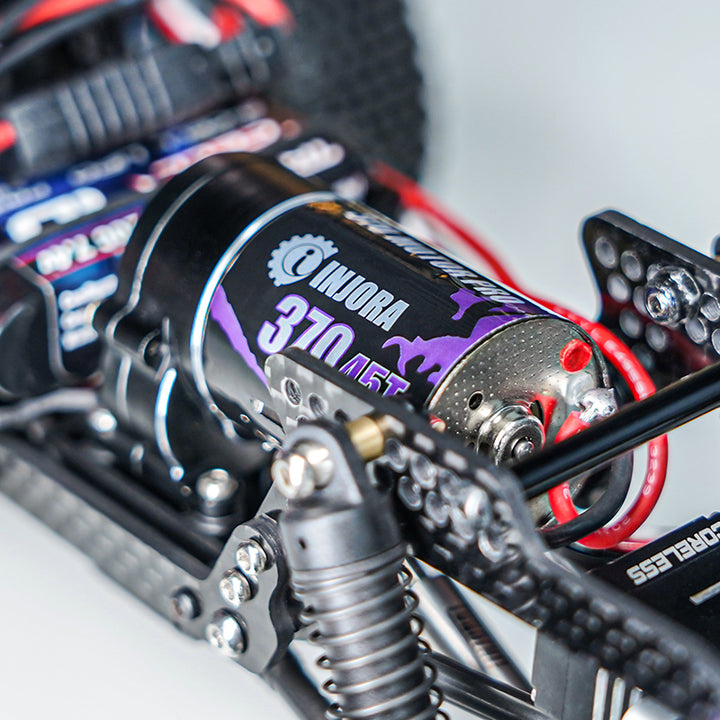

370 Motor Specifications:
Note:
- Not compatible with the stock TRX4M ESC as it is too weak! The 370 motor requires more power than the stock ESC can administer.
- Compatible with INJORA MB100 ESC.
Features:
- Motor waterproof rating: IPX6 (It can run in the rain, or run underwater for a while.)
- Extremely high-strength neodymium magnets for excellent torque
- Stronger drag brake and torque delivery than stock motors
- Taller Transmission to fit 370 motors

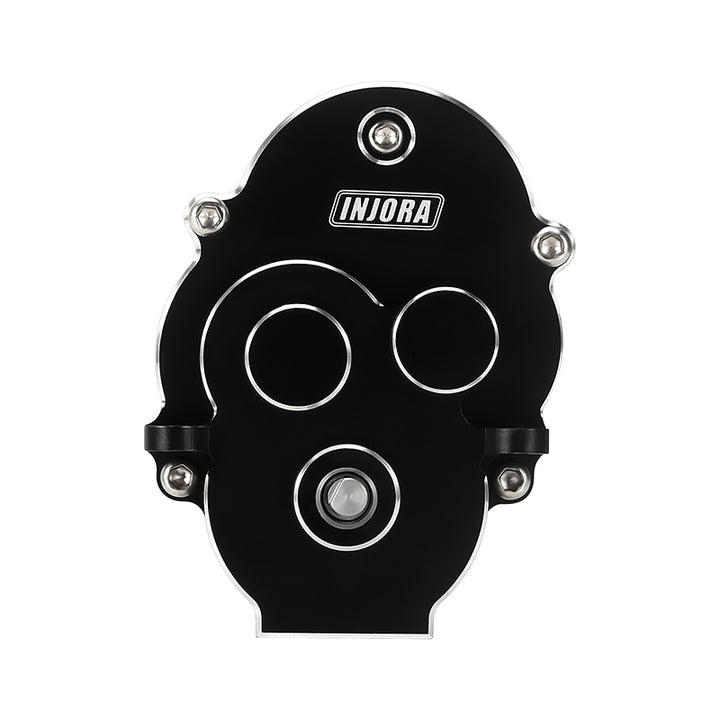

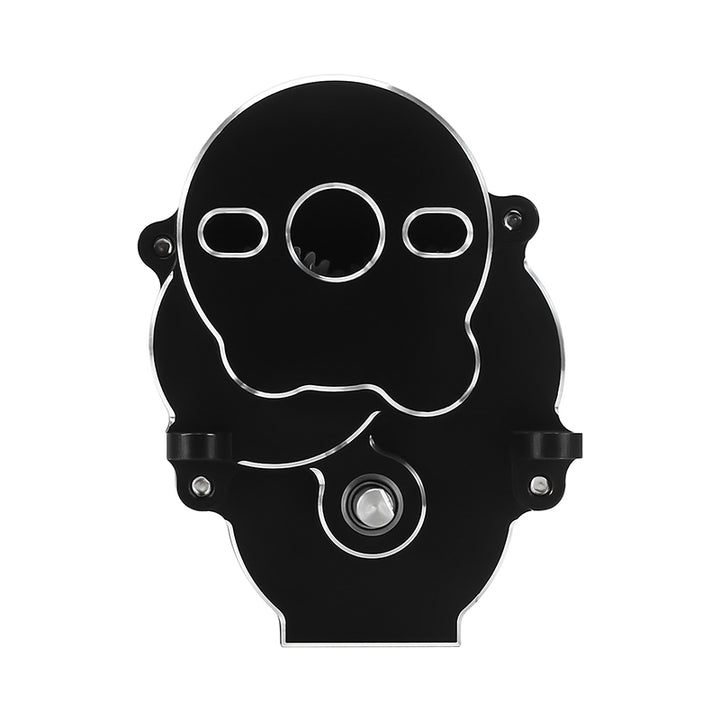

- CNC aluminum machined transmission housing
- Includes ball bearings
- Come with 24.4:1 stainless steel gears (Underdrive 32%), also compatible with the transmission gears of TRX4M
- Turn: 45T
- Rated Voltage: 7.4V
- Total Length: 42.7mm (1.68in)
- Motor Diameter: 24.4mm (0.96in)
- Motor Magnets: Neodymium magnets (Higher Torque)
- Pinion Material: Stainless Steel
- Pinion: 9T 0.4mod (Stock TRX4M: 11T)
- Weight: g (oz)
- At No Load Speed: 20000±10％rpm
- No Load Current: ≤650mA

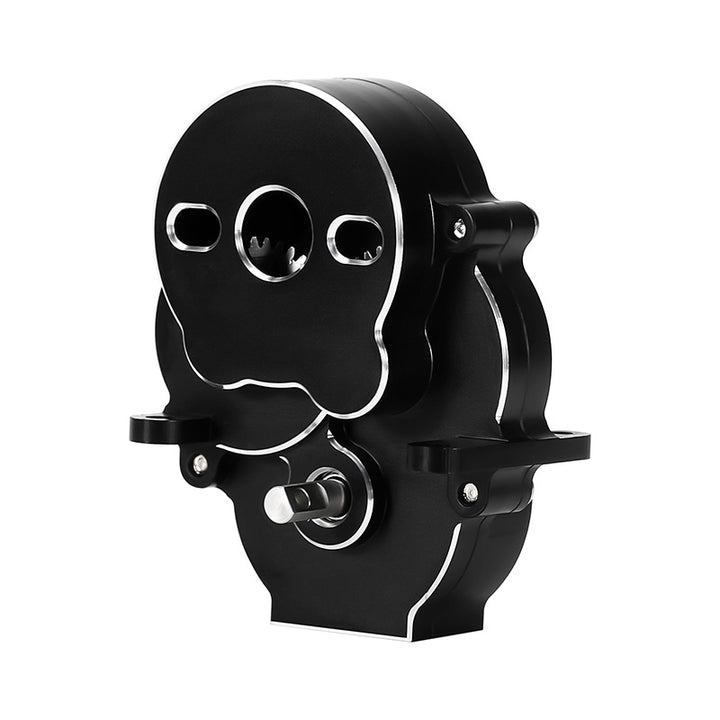

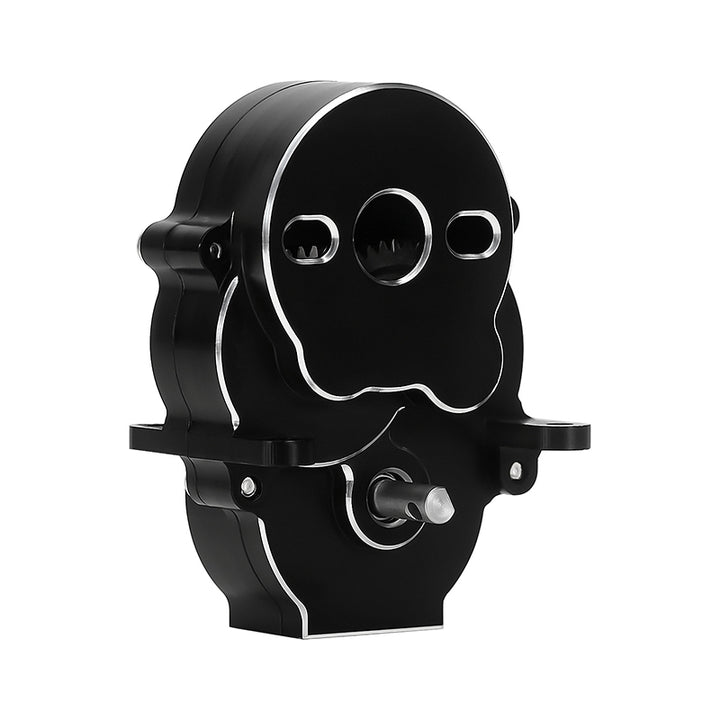

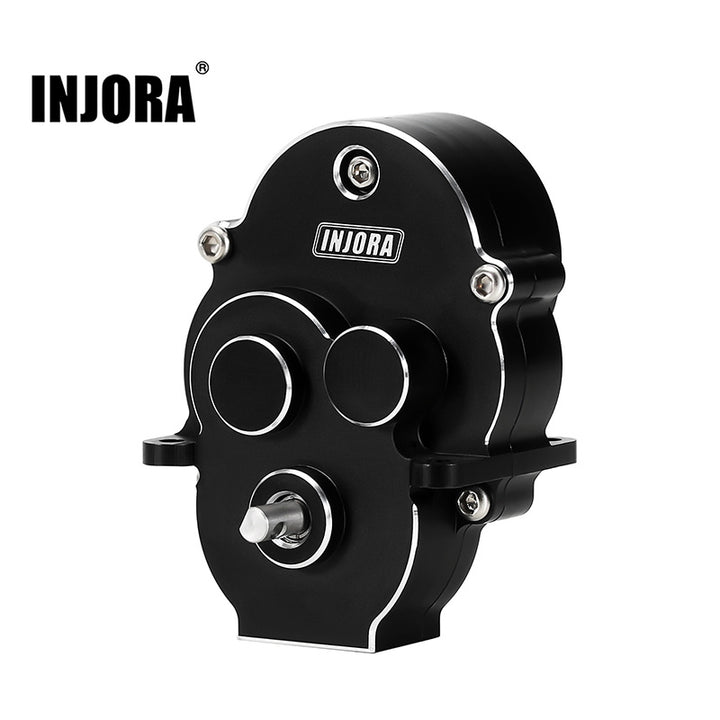

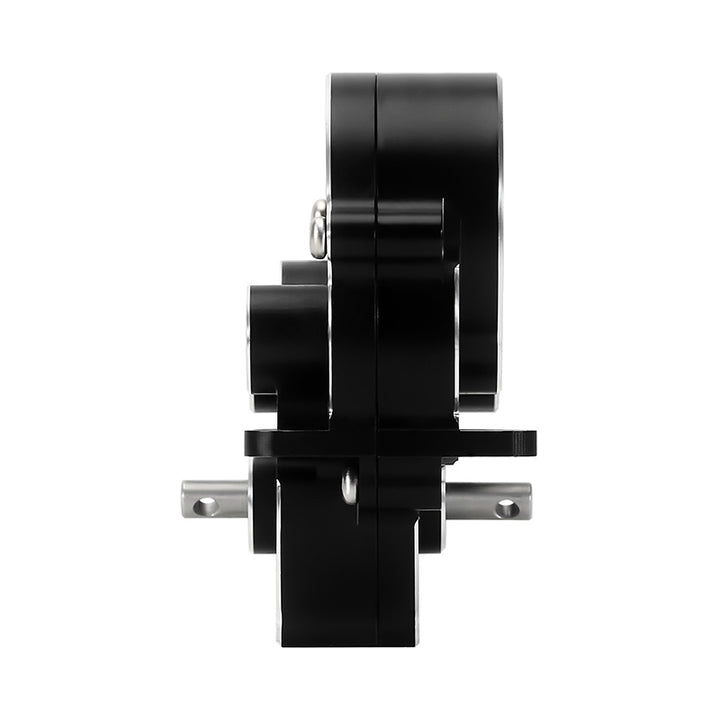

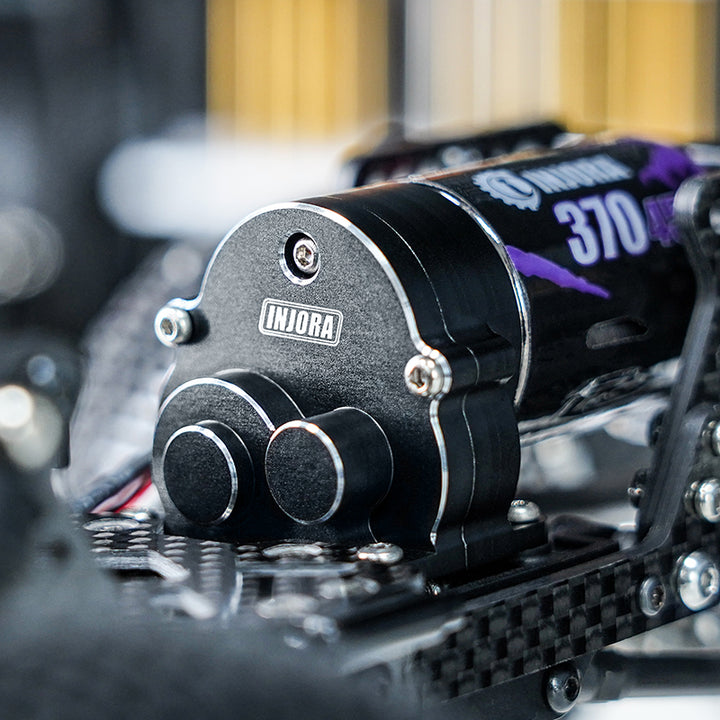

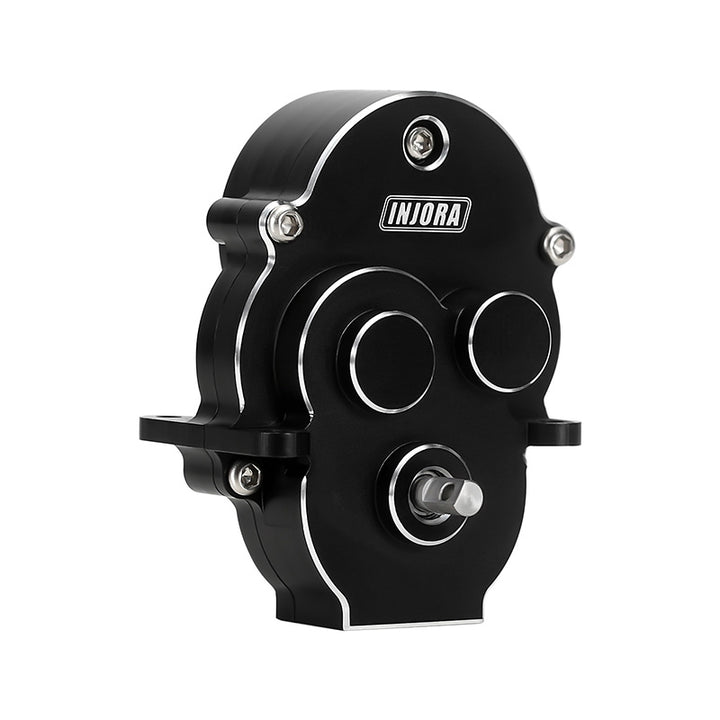

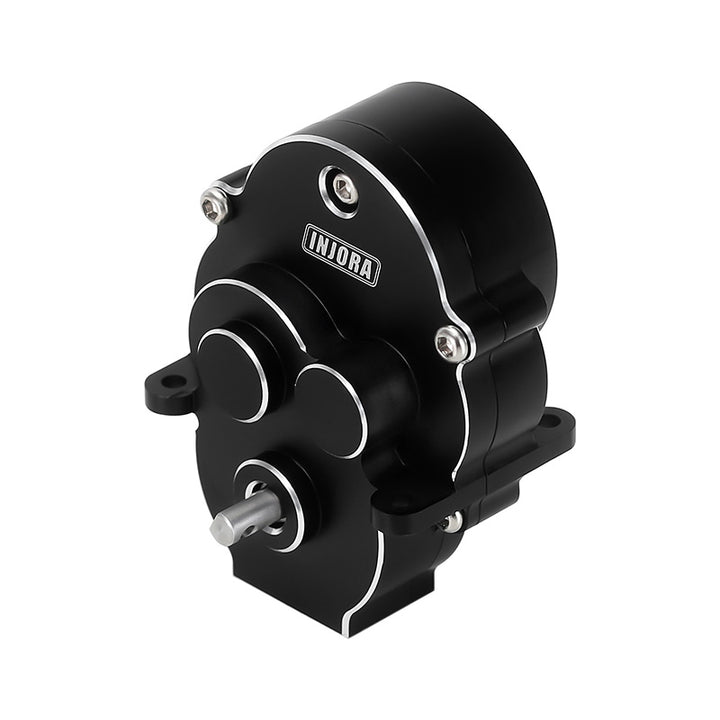

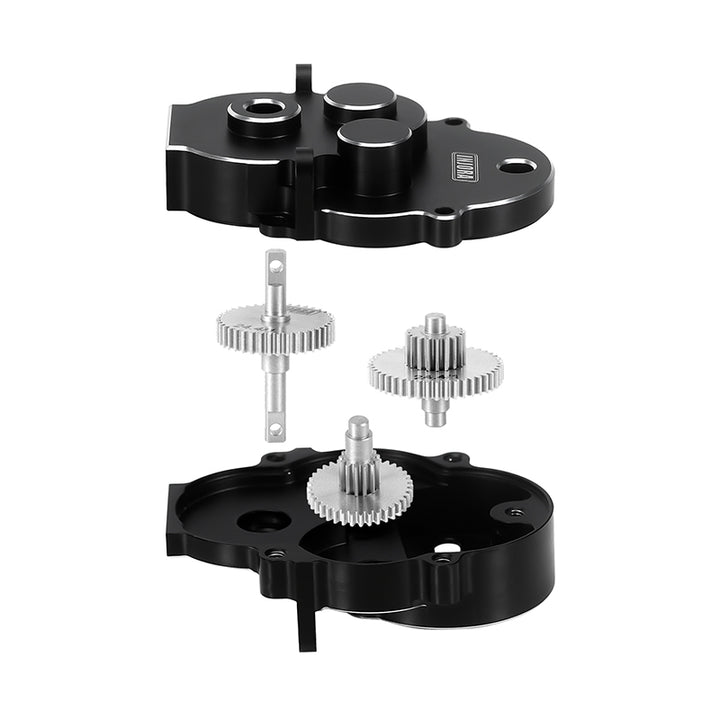

Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Stainless Steel
- Color: Black
- Weight: g (oz)
- Internal Gears: 24.4:1 gear set, underdrive 32%
1 * 370 Brushed Motor
1 * Complete Transmission
