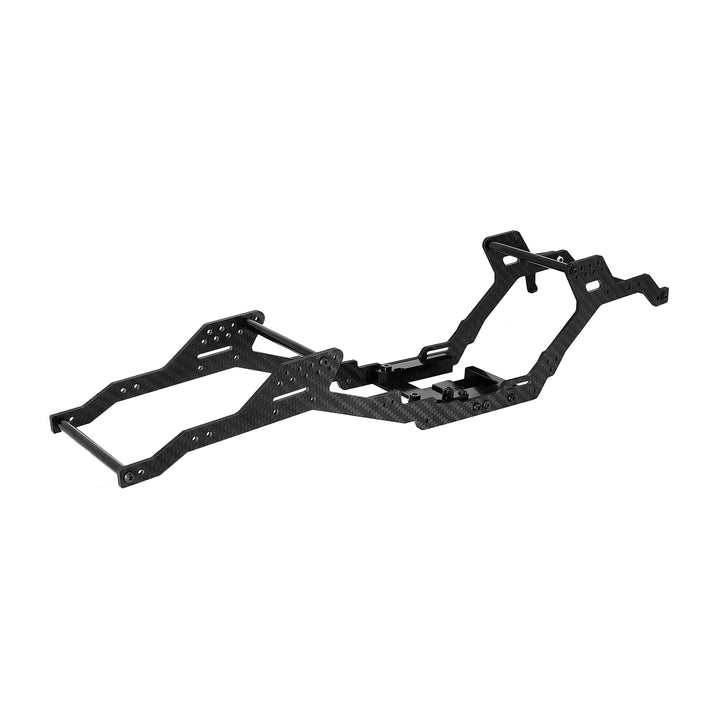

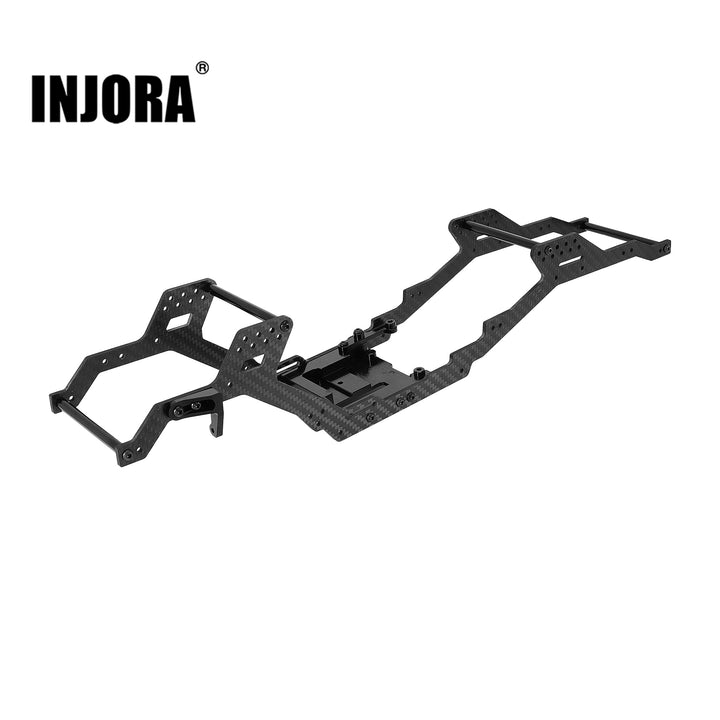

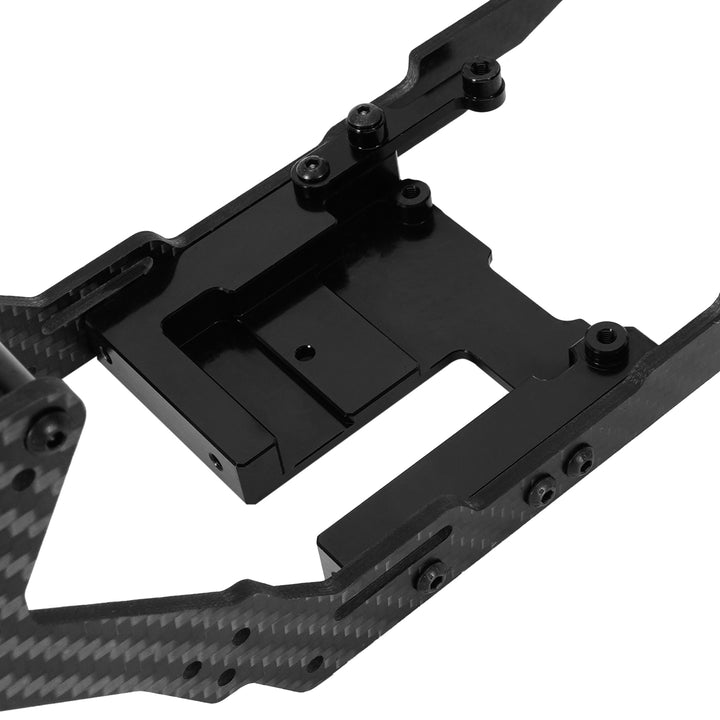

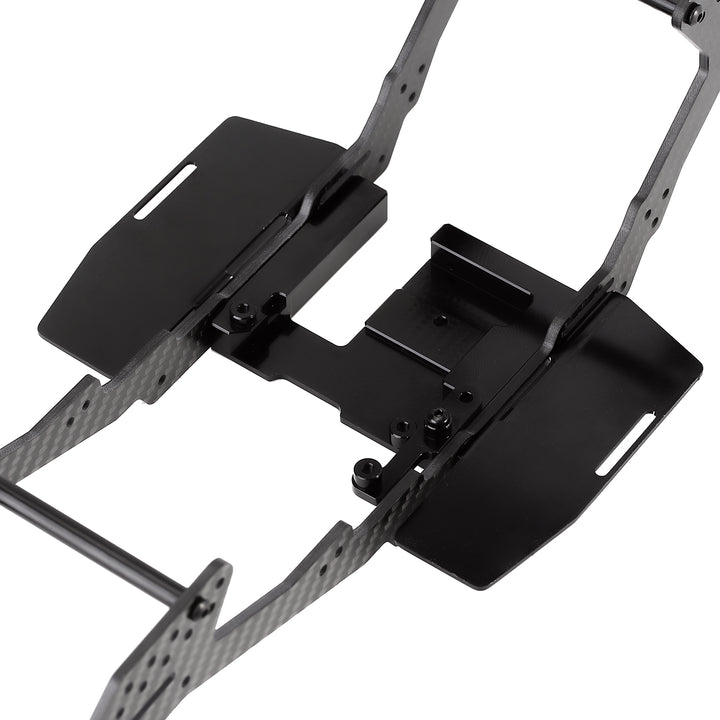

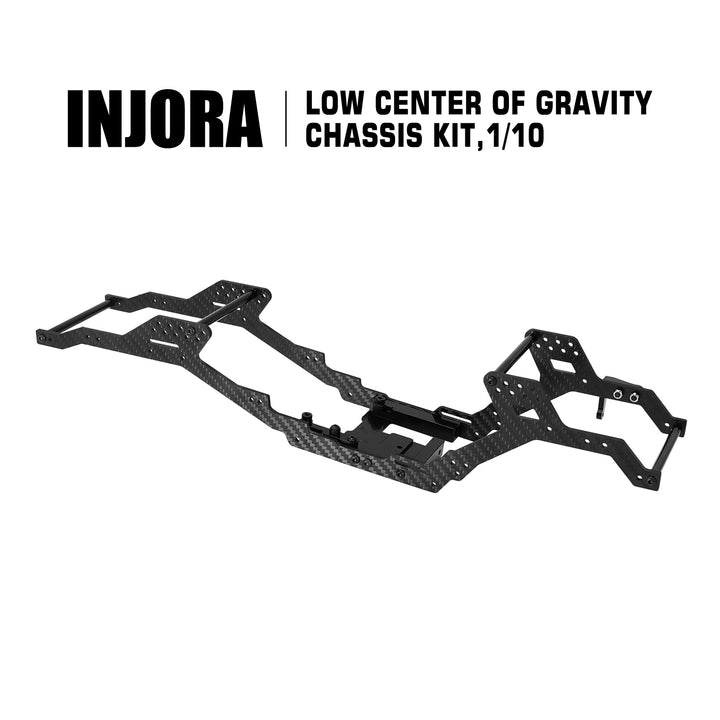

INJORA 313/324mm LCG Carbon Fiber Chassis Kit for TRX4
INJORA 313/324mm Wheelbase LCG Carbon Fiber Chassis Kit Frame Girder for 1/10 RC Crawler TRX4 Upgrade Parts
Suit for 1/10 Scale RC Crawler TRX4
Features:
- Rails are made of high-quality carbon fiber.

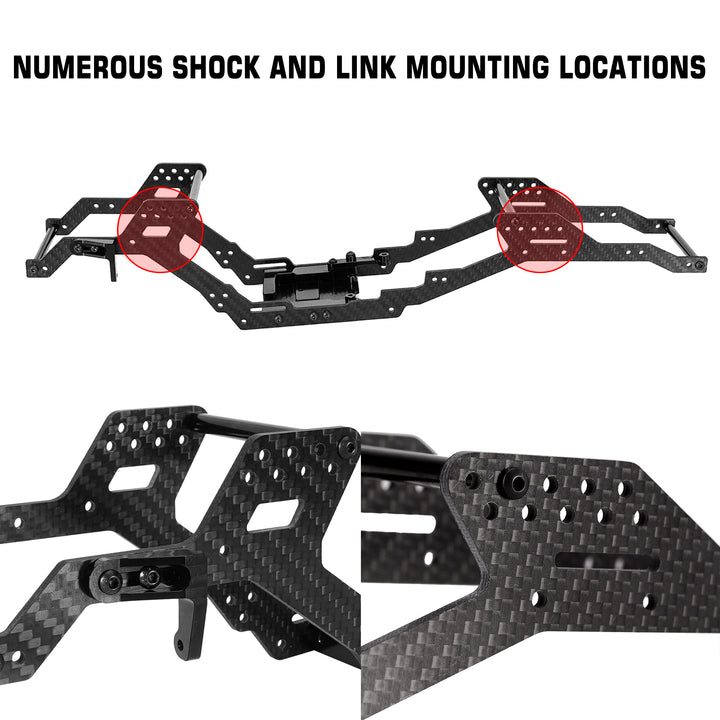

- It adds many shock mounting points for better suspension tuning.

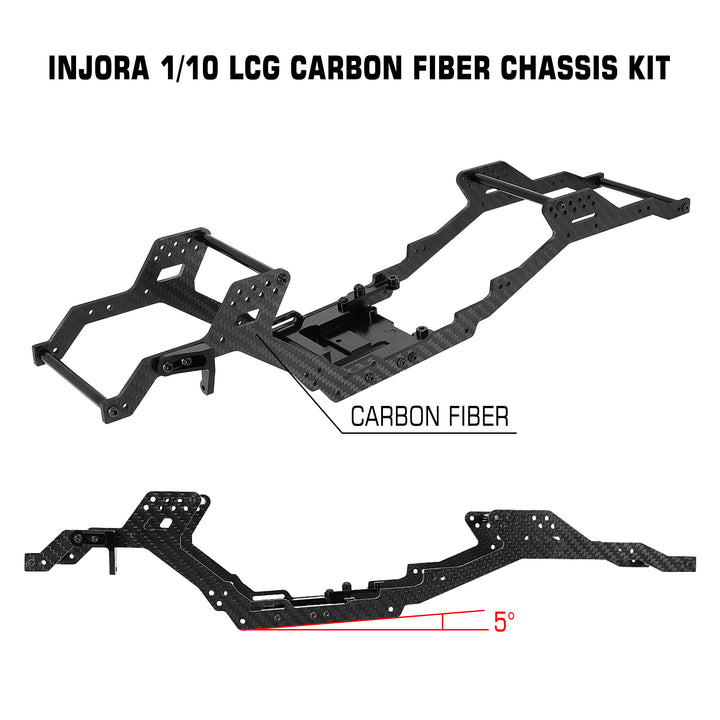

- The 5° design allows for a lower center of gravity.

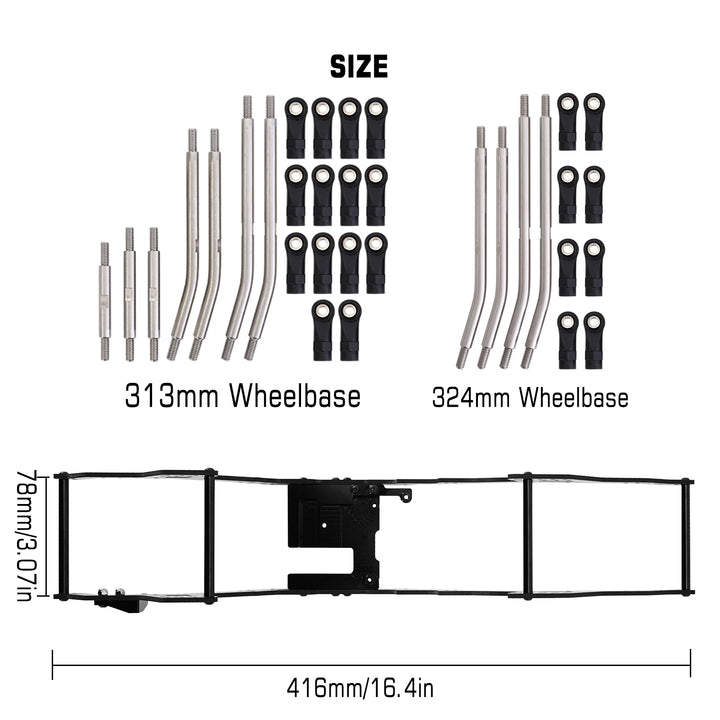

- Comes with 313mm and 324mm wheelbase links for easy DIY and assembly
- Compatible with TRX4 stock Axles, Transmission, Drive Shafts, Shocks
- Change the layout of the car, create stronger climbing abilit
Specifications:
- Girder Material: Carbon Fiber
- Links Material: Stainless Steel
- Total Weight: approx 490g (14.28oz)
- Length: 416mm (16.38in)
- Width: 78mm (3.07in）

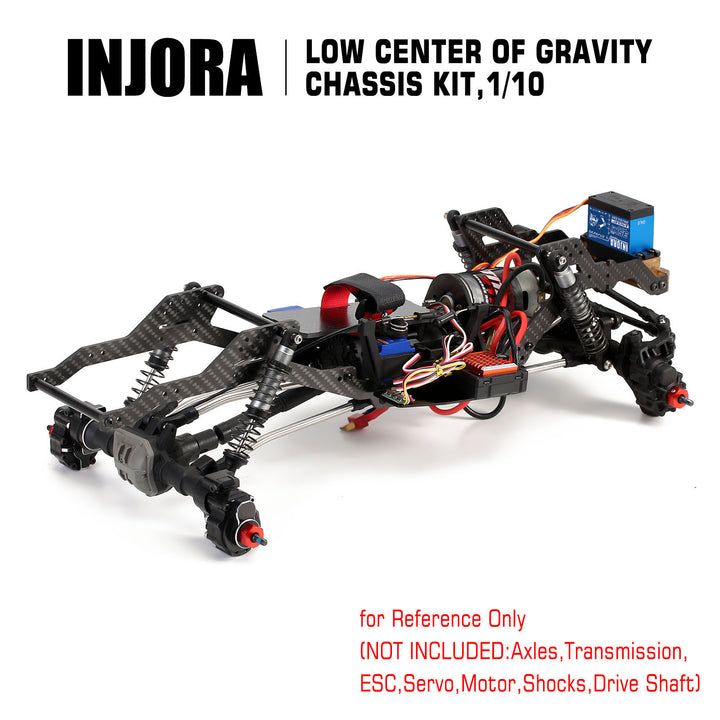

EQUIPMENT NEEDED (not included):
ESC, Servo, Motor, Radio Control, Battery, Axles, Shock, Transmission, Drive Shaft

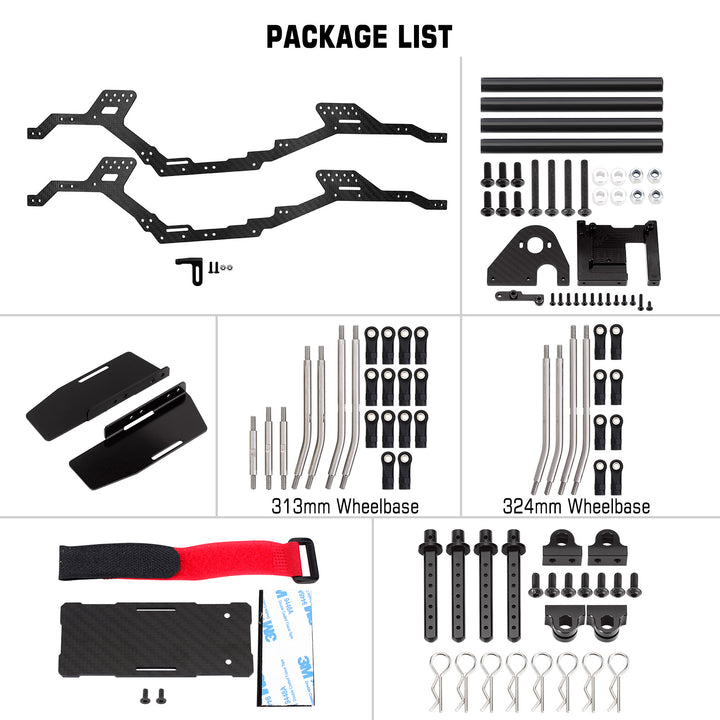

Package List:
1 * Set 1/10 RC Crawler LCG Chassis Kit
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.
c'est mon troisième et ces châssis sont excellents

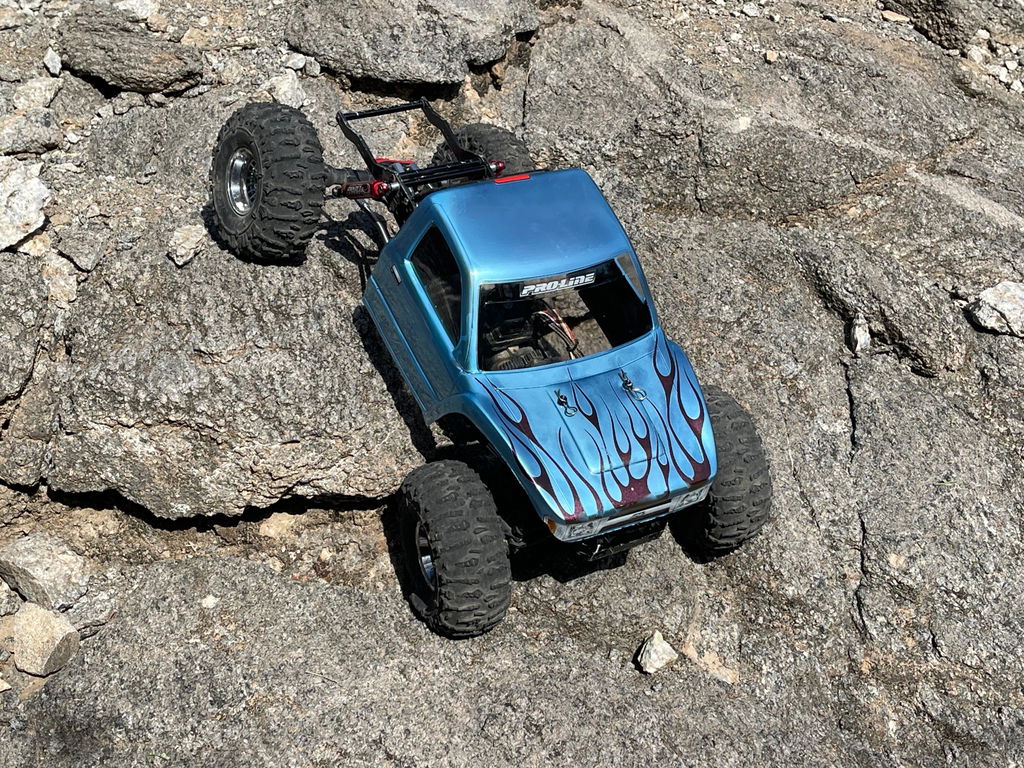

Wasn’t very hard to assemble and out performs many friends rigs that cost far more. Very happy with this truck!

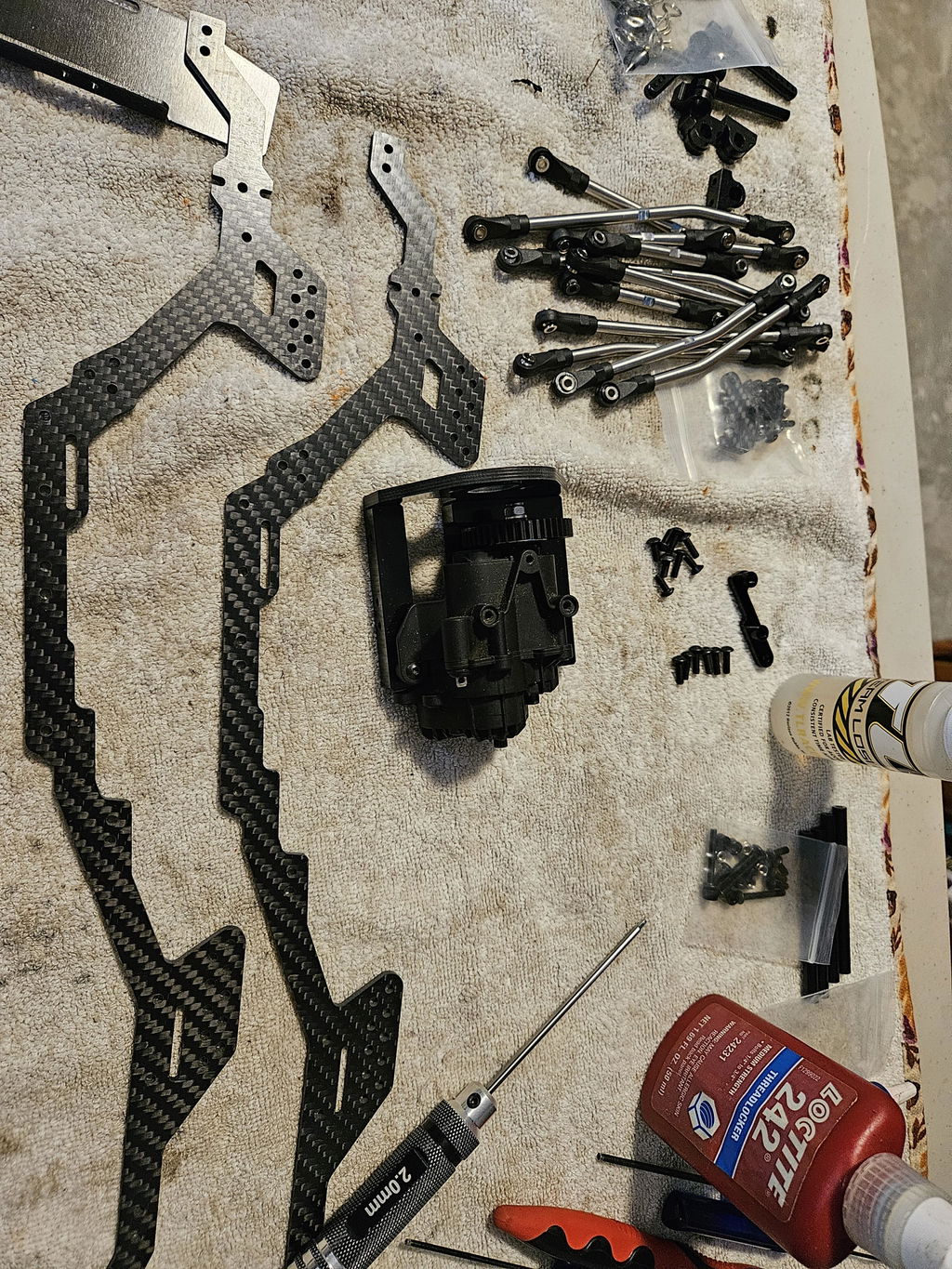

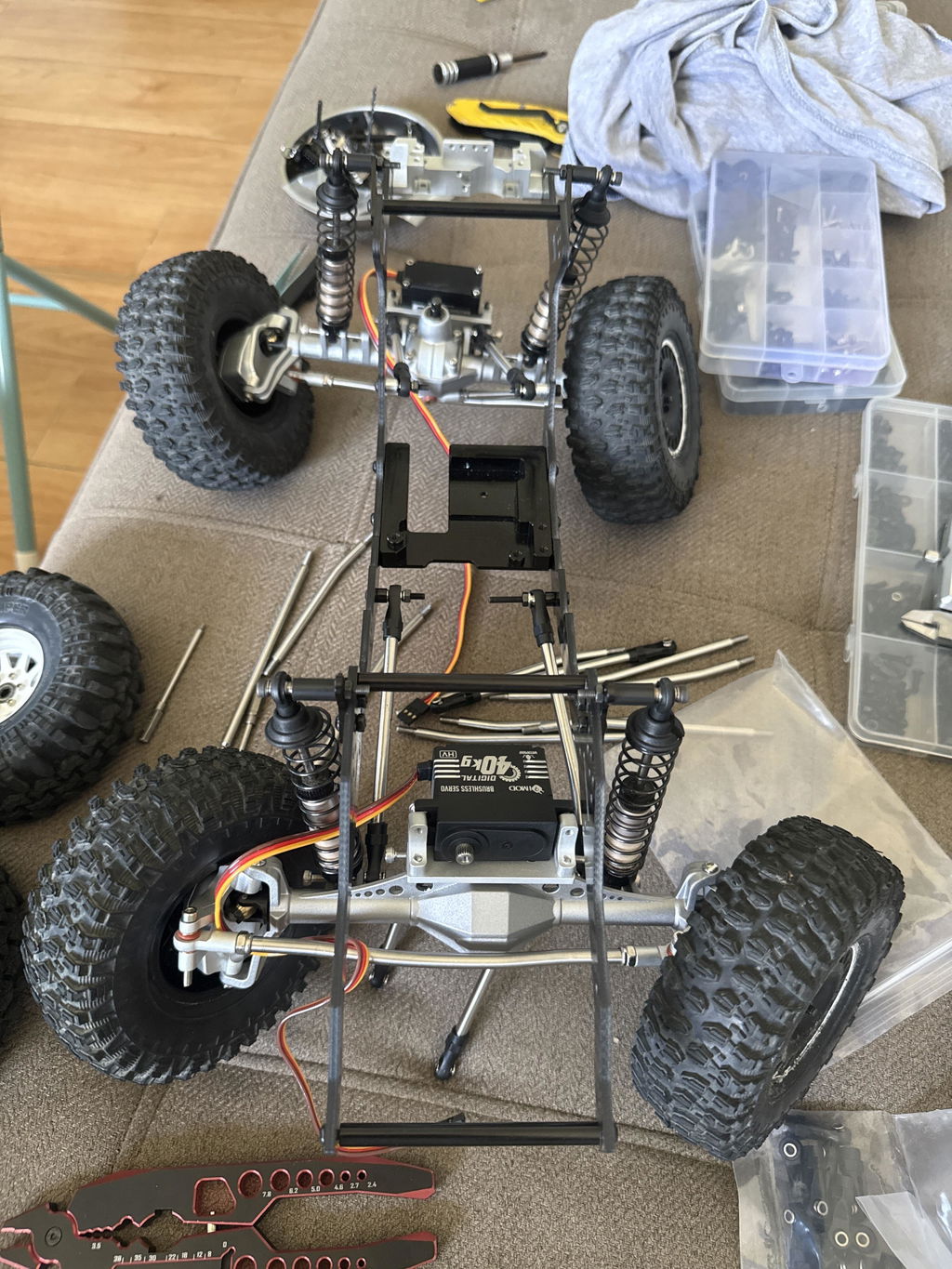

You have to remember that this is a scratch build, similar to if you were to buy lcg rails from anywhere, so no instructions adds to the custom nature of the process. Had to find a few M3 lock nuts out of my parts bin to complete the bult but loving the rig now. I'd recommend this to anyone looking for a fun build
Missing pieces but the worst was no instructions. Was a gift but had I known there was no instructions I wouldn't have bought 4 more.could have been 5 stars if they had instructions
I’m using a 35T motor and my input shaft it’s coming up short is there another option for a motor mount allowing for short shaft drive on some motors to work
Hard to get any of the axles to flex correctly without axle role as currently the track bars are too short and do not meet up far enough towards center of chassis
Everything that you need to upgrade performance
Was well built but missing m3 nuts needed for completion. Also needs to have 4th link pr 2nd user link in kit in case you run servo on axel set up. Not seeing a size anywhere on this tiny link and not seeing one available for purchase. No instructions. Pan hard mount location is causing a bump steering issue not horrible but still. Stock does not have that issue.
Shipping took to long, and it didn’t say where it would ship from and when it would be delivered
I'm impressed with the Machinery and the looks of the Parts. Highly recommend the Products
Fantastic for the money, instructions would be nice!
Is there any type of warranty on these? I was in a comp today and my chassis snapped
Please email us. Thanks.
Does this work for the high trail models?
No, they have different wheelbases
Which transmission is compatible with this chassis that I can buy of the website?
Unfortunately, we don't have TRX4 Transmission
Which transmission is compatible with this chassis that I can buy of the website?
Ya pero que transmisión se le pone.
bonjour, quelle boite de vitesse compatible vendez vous?, je trouve pour axial, mais pas pour TRX...?
We don't have TRX-4 transmissions
Where can I find instructions on how to put it together?
If you look on you tube there's a few builds using this kit
will this work for a axial scx10 ii?
No
does it include the transmission or do i need to buy seperatly
You need to buy it seperatly
Can i fit the TRX lcg kit with my scx10 iii basecamp builders kit? The injora 10 ii lcg kit doesn’t work because missing panhard mount.
I guess they're not compatible.
Can I buy just the frame rails
Yes, please email us
Does the INJORA 313/324mm Wheelbase LCG Carbon Fiber Chassis Kit work for the high trail k10 models?
high trail has a 336mm wb. Maybe with the factory links and lift kit. I know its been 2 mo since you asked, wondering if you tried it?
