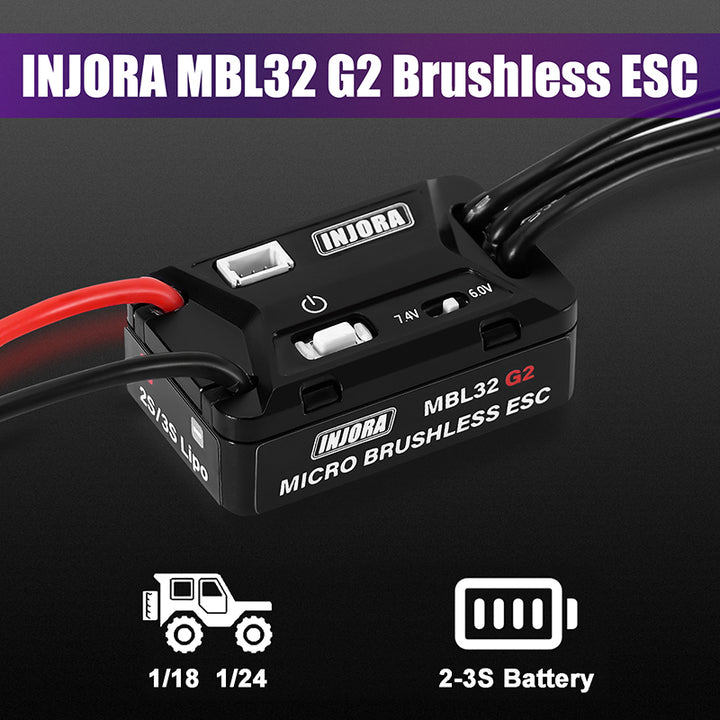

INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/18 TRX4M Ascent18 1/24
INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/24 1/18 RC Crawlers TRX4M Ascent18 SCX24
Compatibility:
- Radio system: Not compatible with the stock TRX4M / Ascent18 / SCX24 radio systems. A transmitter and receiver with a CH2 port are required.
- Motor: Compatible with INJORA 1721 Purple Viper motors and 2204 Fat Viper motors
Features:
- The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.

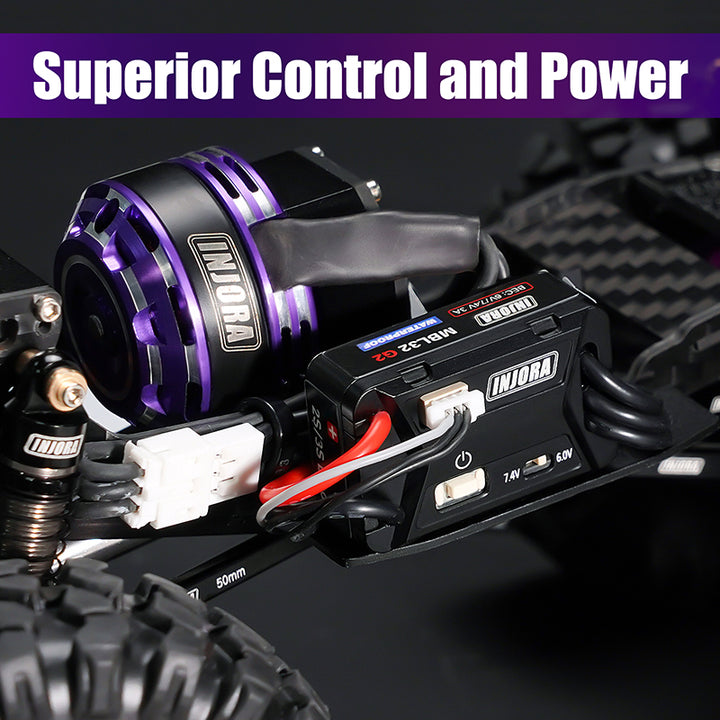

- Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise
- MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
- Waterproof Design for all-weather performance

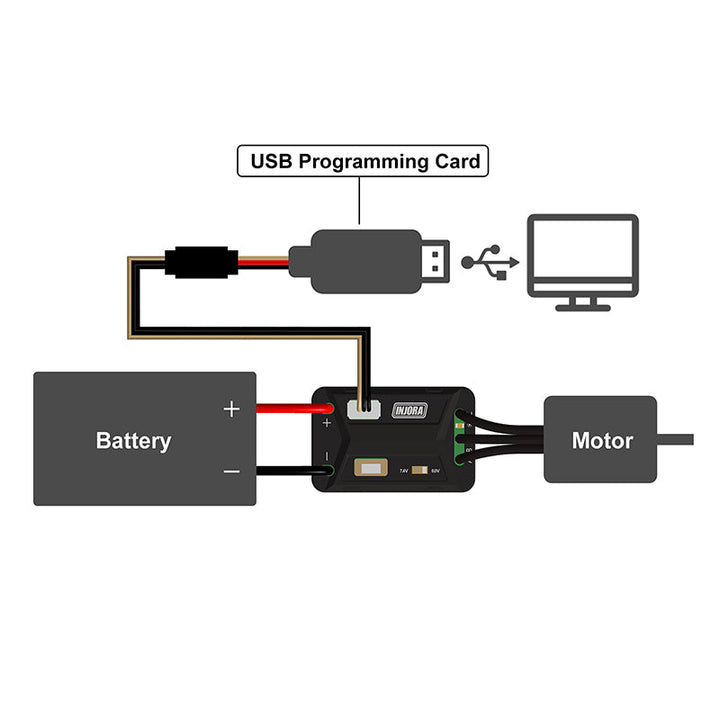

- Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
- Multiple Protections: Low-voltage, fail-safe, and rotor lock protection
Specifications:
- Part Number: MBL32 G2
- LiPo Cells: 2-3S
- Continuous Current: 25A
- Peak Current: 60A
- BEC Output: 6.0V/7.4V adjustable
- BEC Current: 3A

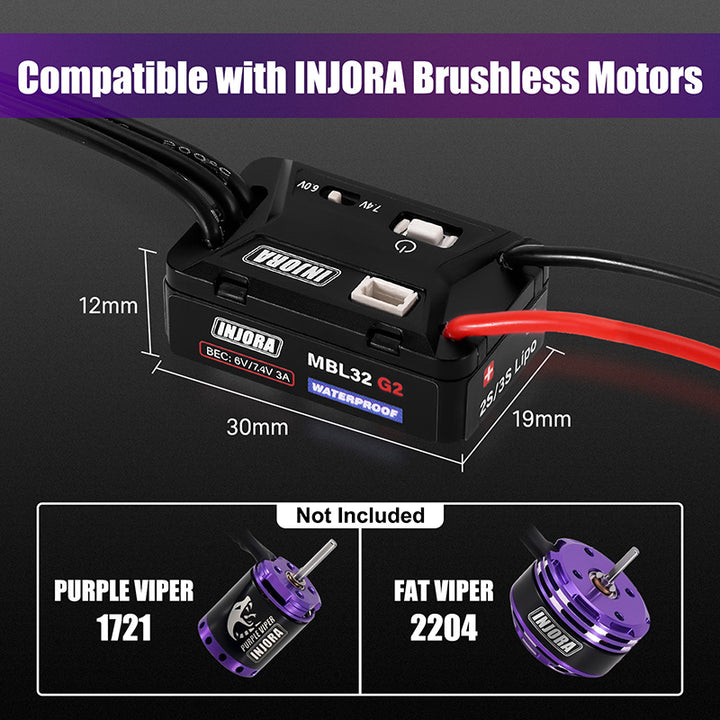

- Dimensions (L*W*H): 30*19*12mm
- Waterproof: Yes
- App Tuning: Not Supported
- Weight: 0.45oz (13g)

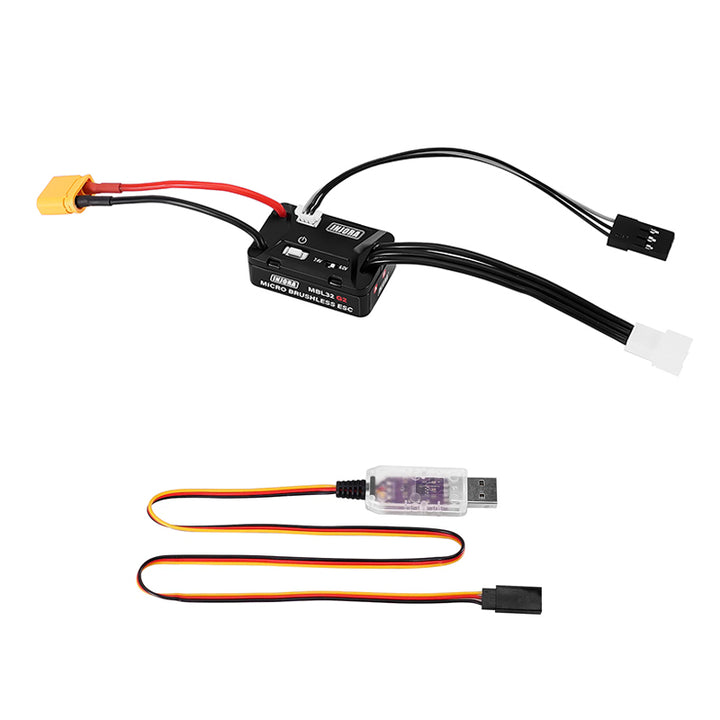

Package List:
- 1 * Micro Brushless ESC

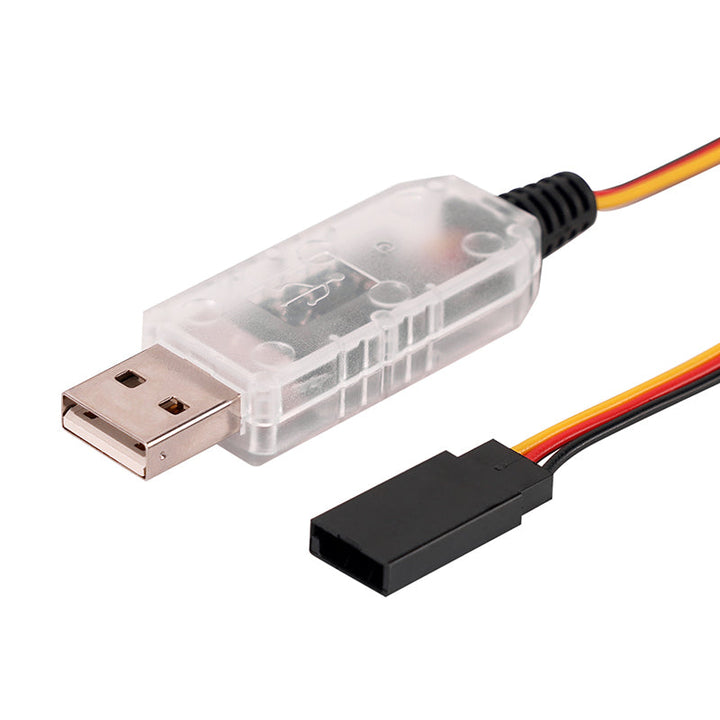

- 1 * USB programmer Card
- 1 * Receiver Connector Cable

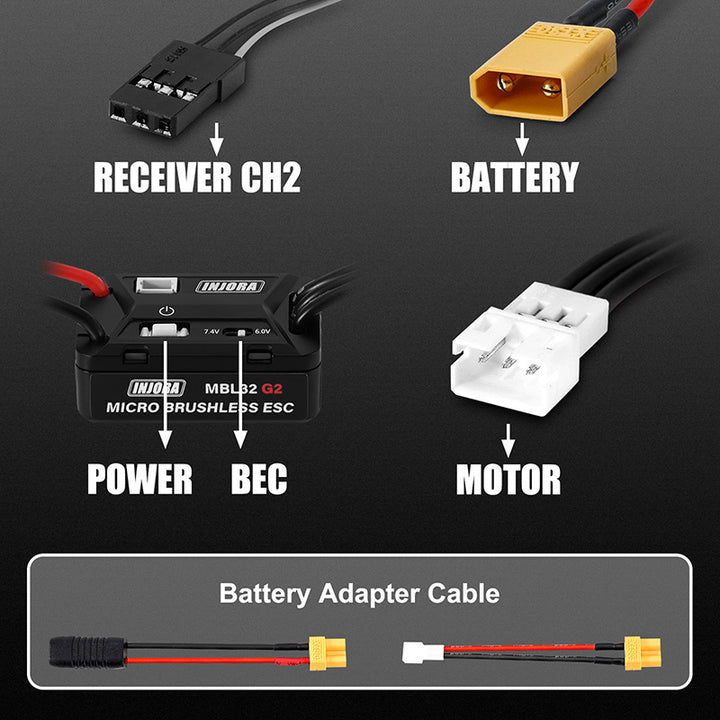

- 1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
- 1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
- 1 * Instruction Manual
Setup & Programming:
- Programming Tutorial
- Please do not flash or modify the firmware by yourself. Any damage caused by unauthorized firmware flashing or modification is not covered under INJORA warranty.
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.

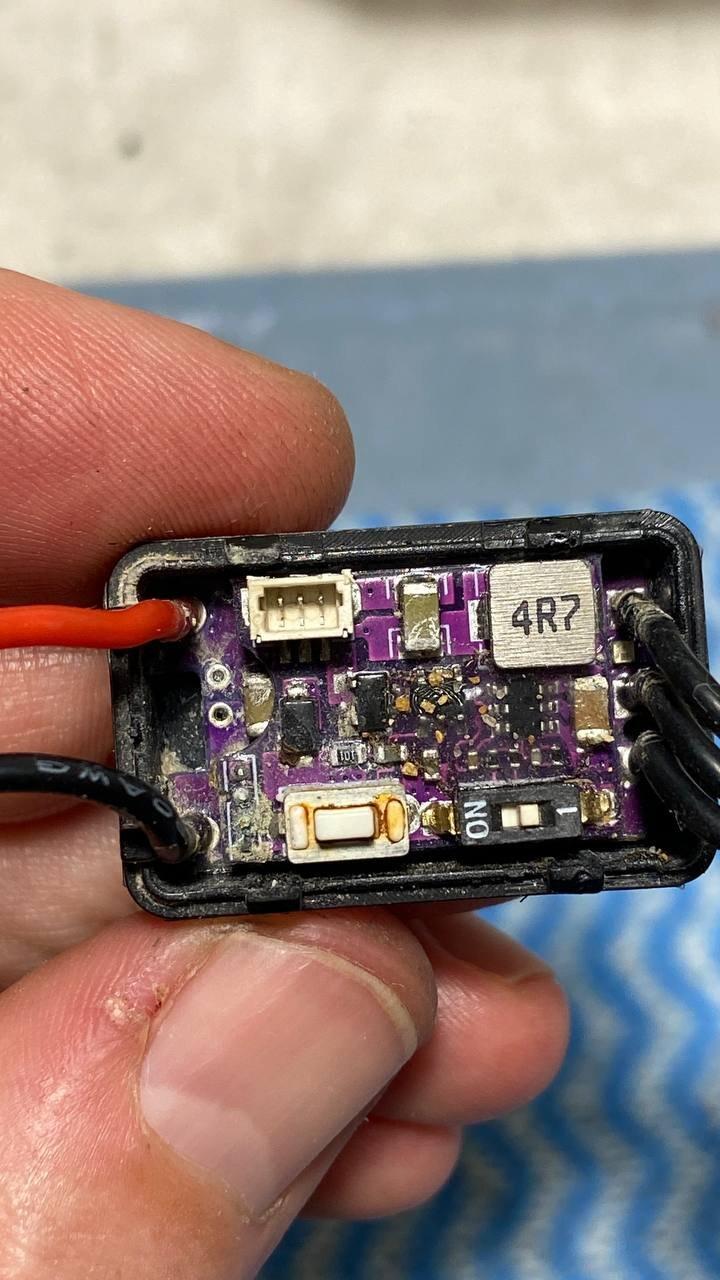

My ESC failed after driving through a deep puddle with my LC80. Despite the waterproof rating, water got in and damaged it. But I'll buy the new one
Good productworks well
The esc it’s self is great but if you could speed up the delivery of the package it’s self would be even better
I really like this motor and esc set up but im unable to program it. Out the box everything is backwards. My forward is reverse and im unable to get the program software to download. I bought a separate esc hoping it was programmed correctly but no its the same way. Any suggestions? Would give 5 stars but thats issues wont allow me.
Once again Injora killed it.
Install this in my k10 trx4m and it's super smooth, quiet, and it's waterproof.
Yes you can use your old programming cards from the other ESC they have the non water proof model. Had to reverse my throttle input it wasn't working right by changing it on the controller alone.
Other than that it was all plug and play
Hello I have this esc and I damaged the cable that goes to the receiver from the esc. Can I purchase this cable separately?
I have contacted you. Please check your email.
Hello I have this esc and I damaged the cable that goes to the receiver from the esc. Can I purchase this cable separately?
I have contacted you. Please check your email.
I don't know how to recalibrate the forward, neutral and reverse? I set my throttle trim set to 0 and ESC will not connect.
I have contacted you. Please check your email.
I don't know how to recalibrate the forward, neutral and reverse? I set my throttle trim set to 0 and ESC will not connect.
I have contacted you. Please check your email.
what battery I need to run this ESC
We recommend using 3s batteries.
Anyone knows how to recalibrate the forward, neutral and reverse? If I have my thottle trim set to 0, ESC will not connect. In order for it to work, I have to crank the trim all the way up which doesn't seems right
I have contacted you. Please check your email.
Anyone knows how to recalibrate the forward, neutral and reverse? If I have my thottle trim set to 0, ESC will not connect. In order for it to work, I have to crank the trim all the way up which doesn't seems right
This problem i have also
What Injora receiver and transmitter is this compatible with? Would this work for the scx30 green viper brushless motor and mb32 esc?
SKU: INT-T6F
Hello is the firmware by any chance open source? Is there a way to obtain it?
Thank you so much for your time,
Matt
Just email us.
Do I need to program it for my purple viper or can I just run it
Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
Alguien tiene el firmware para volver a instalar el mbl32?
I've contacted you, please check the email.
Everything works as it should but I don’t have reverse at all. I’m using a spectrum dx6c and I can’t find a was to enable reverse
Please contact us. We will help you solve the problems.
do anyone have the firmware to put back on the mbl32
Please email us.
What transmitter can I use? Does it have to be a specific one or can I use my old axial scx24 transmitter?
Only need the receiver with CH2. I recommend our T6.
Where can I find the software to program the ESC?
Have tried to download off of third party websites but it will not work. Seems like this software is no longer available through your website as the product mentioned.
Need to swap the motors rotation and dial in some parameters.
Please email us. Thanks.
