PRODUCT DETAILS

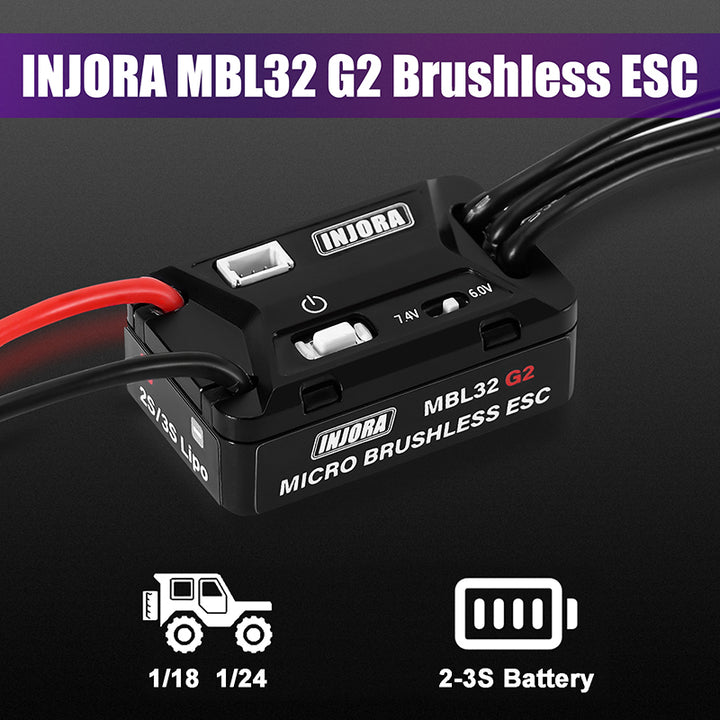

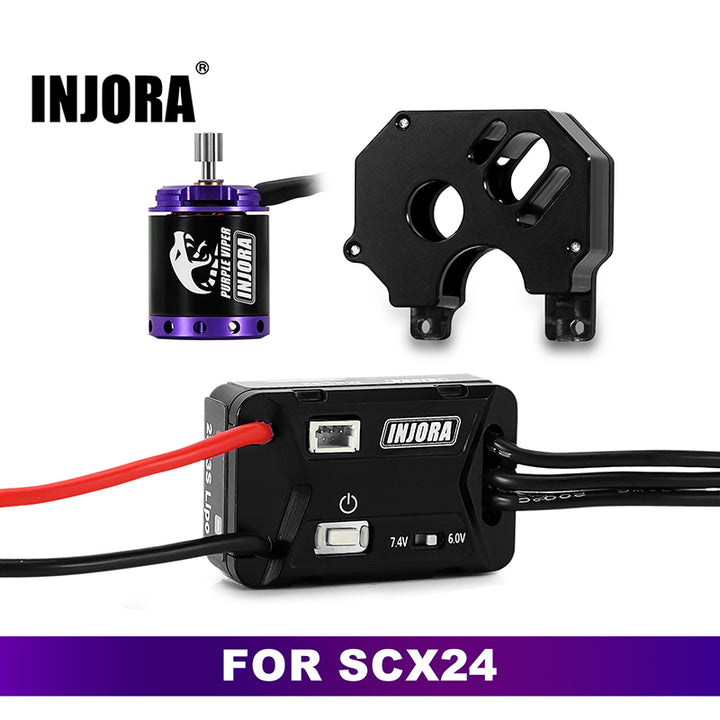

INJORA MBL32 G2 Waterproof Brushless ESC & 1721 Purple Viper Outrunner Motor for 1/24 Axial SCX24
Compatibility Notice:
- Transmission: Only compatible with stock SCX24 transmission and INJORA metal transmission
- Chassis: Not compatible with carbon fiber chassis with angled skid plate. For stock SCX24 chassis, the ESC tray must be trimmed to fit the motor.
Features:
- The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
- Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
- MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
- Waterproof Design for all-weather performance.
- Supports PC Programming via USB programmer card (Not Included). Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
- Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.

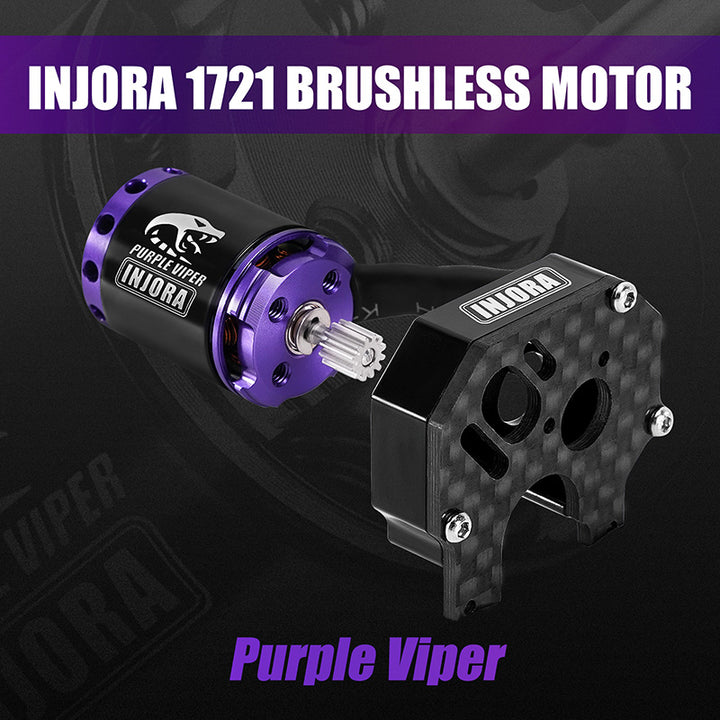

- 1721 Purple Viper outrunner motor, equipped with a mounting plate to install on SCX24.
ESC Specifications:
- Part Number: MBL32 G2
- LiPo Cells: 2-3S
- Continuous Current: 25A
- Peak Current: 60A
- BEC Output: 6.0V/7.4V adjustable
- BEC Current: 3A

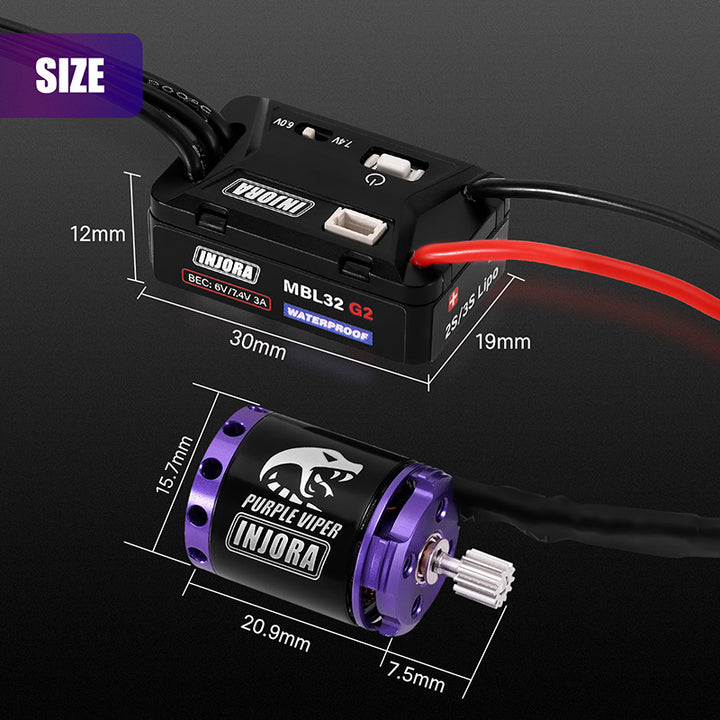

- Dimensions (L*W*H): 30*19*12mm
- Waterproof: Yes
- App Tuning: Not Supported
- Weight: 0.45oz (13g)
Motor Specifications:
- Model Number: 1721
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 2800KV
- Motor Poles: 14
- Sine Mode Power: 7
- No-Load Current (11.1V): 0.7A
- Max Peak Current: 30A
- Motor Connectors: PH2.0 3Pin
- Dimensions: Φ16.7*20.9mm
- Motor Qutput Shaft: Φ1.7mm
- Motor Pinion: 0.3mod 12T
- Weight: 19g
- Waterproof: Yes

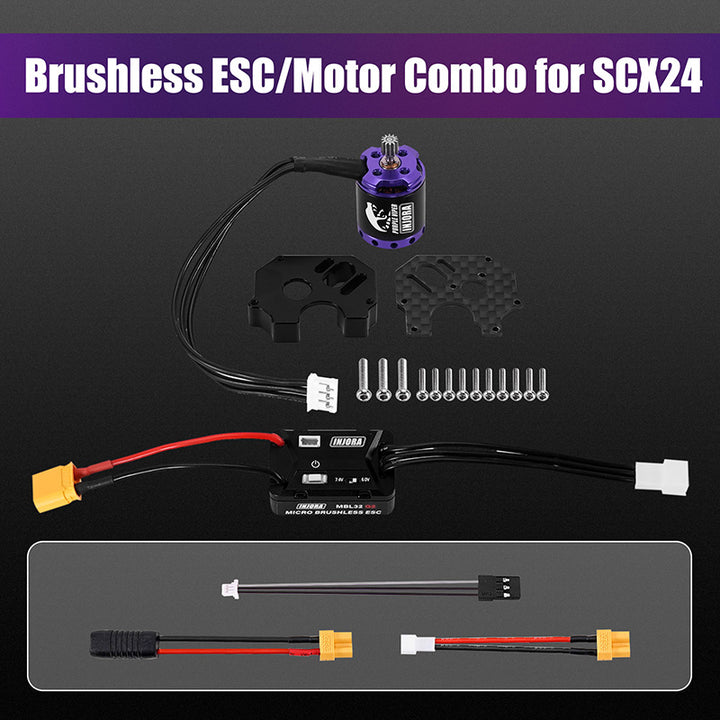

Package List:
1 * Micro Brushless ESC
1 * 1721 Purple Viper Motor
1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual
