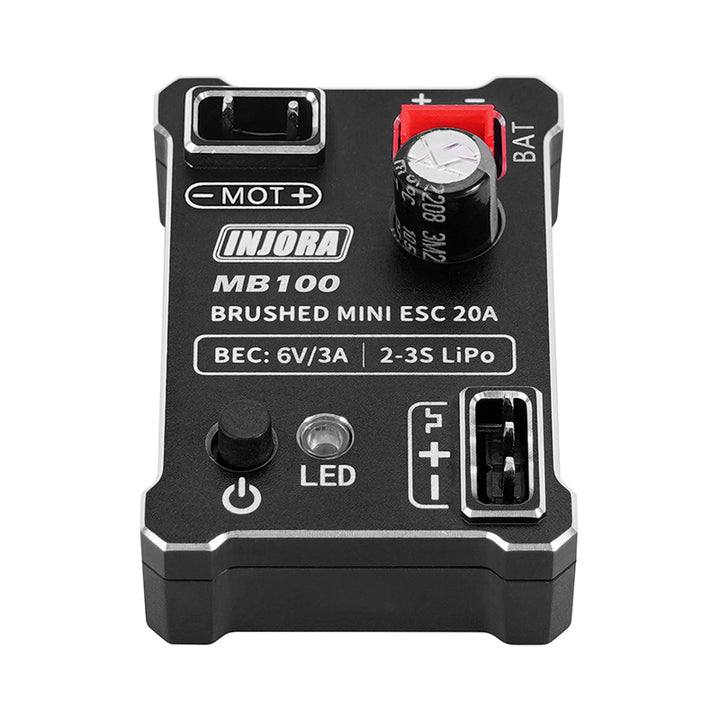

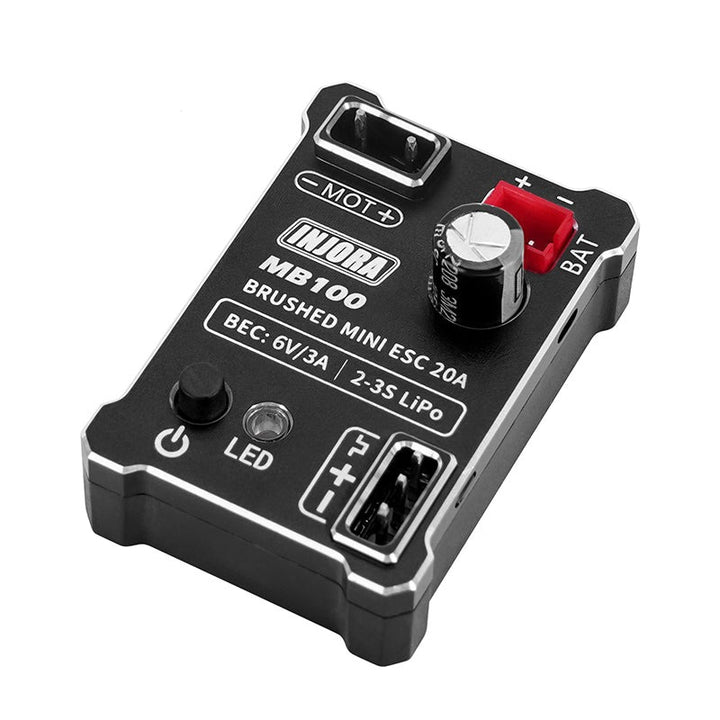

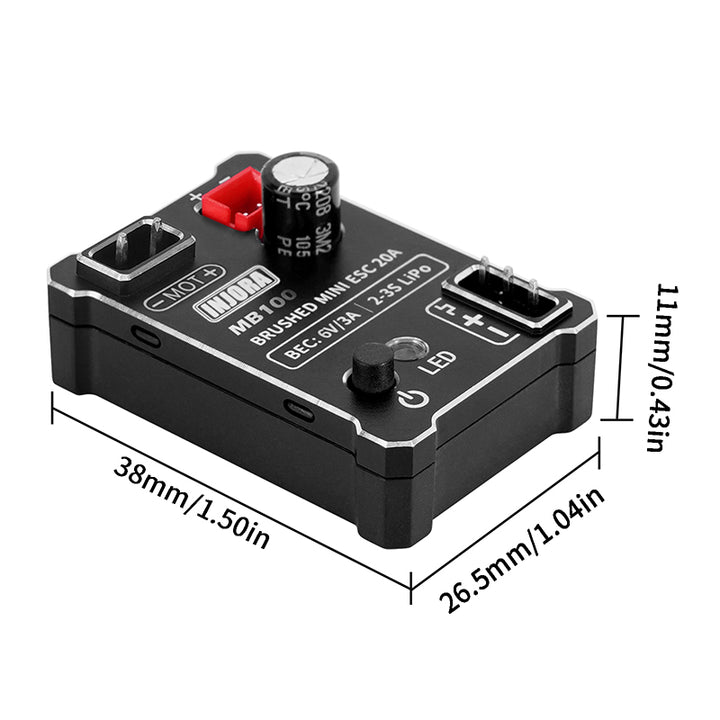

INJORA MB100 G2 Waterproof Brushed ESC 40A for 1/24 1/18 RC Crawler SCX24 AX24 TRX4M
Note:
- Compatible with 1/24 1/18 RC crawlers such as SCX24 AX24 TRX4M
- Not compatible with stock TRX4M ECM
What's New in G2?
- IP67 Waterproof Rating – Upgraded sealing for reliable performance in wet conditions
- More Compact Design – Smaller footprint for easier installation
- App-Based Tuning – Adjust parameters via mobile app for a more customizable setup
Features:

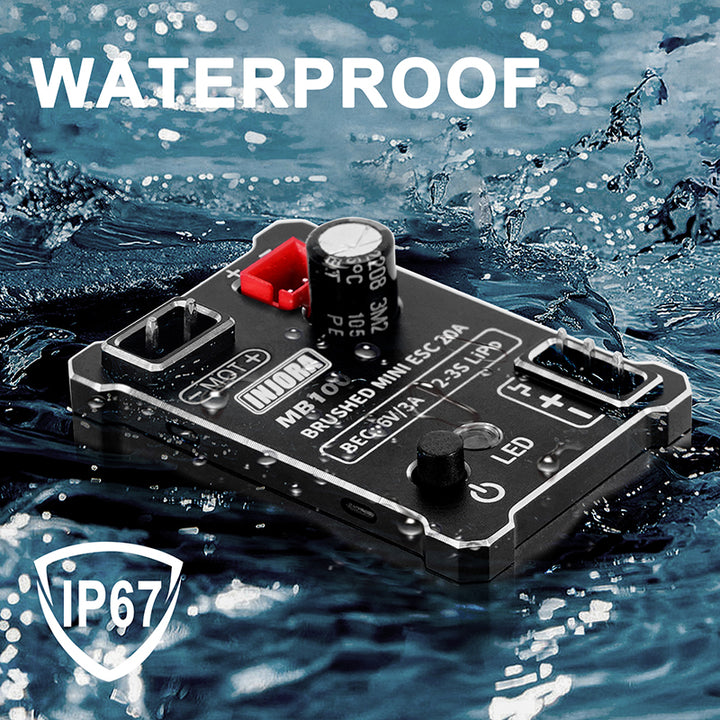

- 1. IP67 waterproof design
Fully waterproof design to adapt to various climate conditions. Note: After immersion, promptly clean and dry the ESC to prevent connector oxidation.
- 2. Wireless Bluetooth & Smart App Tuning
Built-in Bluetooth for easy adjustments—no extra devices needed! Enjoy real-time tuning, data logging, and firmware updates via the INJORA Link app. (iOS: Download from the App Store; Android: Get it on Google Play.) - 3. Supports AUX parameter adjustment
Features AUX parameter adjustment via the auxiliary channel, allowing parameters to be mapped and adjusted in the app.
- 4. Multiple protections
Low Battery/Undervoltage Protection: Issues a warning and limits power output when the battery voltage drops below the set threshold.
Overheat Protection: Issues a warning and cuts off power output when the ESC temperature reaches the preset limit.
Overvoltage Protection: Issues a warning and significantly limits or cuts off power output when the input voltage exceeds the ESC's rated voltage range.
Throttle Signal Loss Protection: Applies braking immediately when the receiver’s PWM signal continuously deviates from the normal range or is lost, preventing a runaway condition.
Specifications:
- Model: MB100 G2
- Waterproof: Yes
- Continuous / Peak Current: 40A / 100A

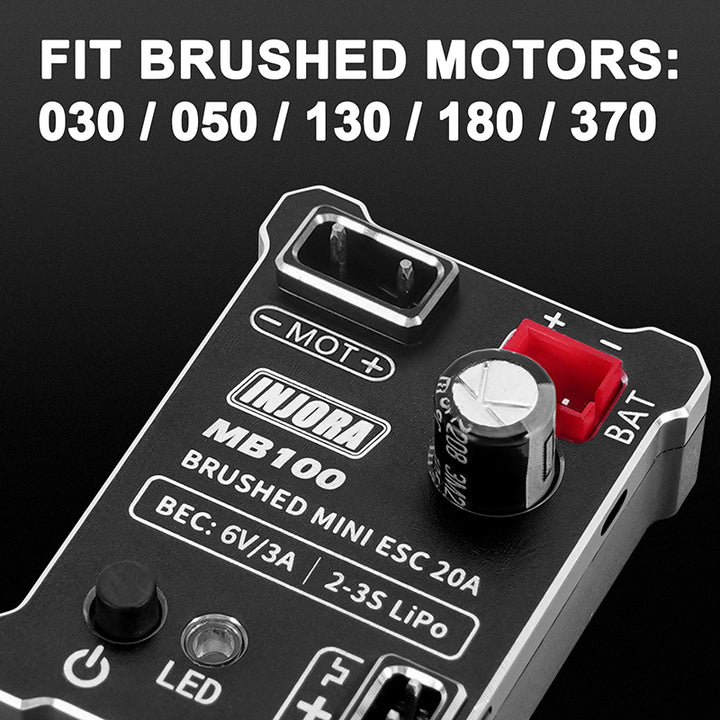

- Motor Type Support: Brushed Motor (030 / 050 / 130 / 180 / 370)

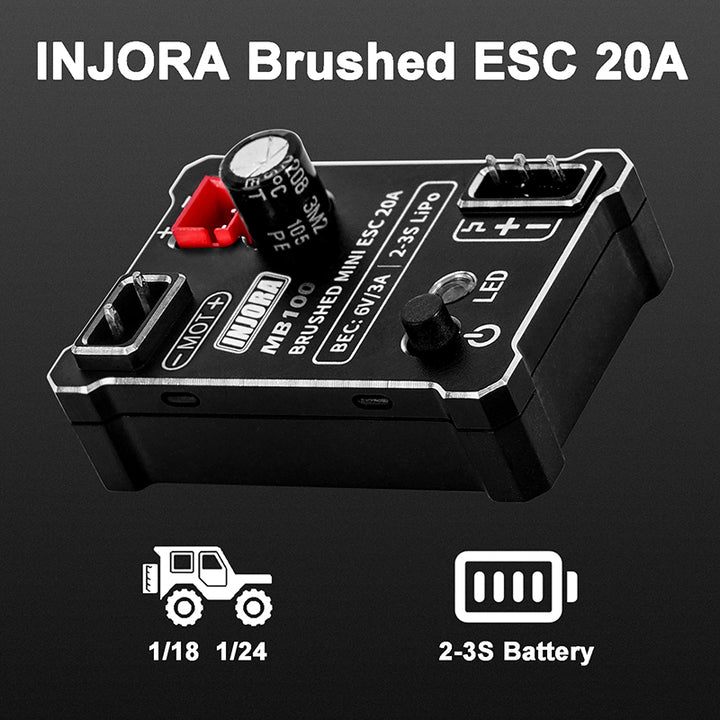

- Main Applicable Scales: 1:18 / 1:24
- Battery Cells: 2–3S LiPo
- BEC Output: 3.0–8.4V, Continuous 3A / Peak 6A
- Size: 25.2×18.3×14.0mm
- Weight: 10g

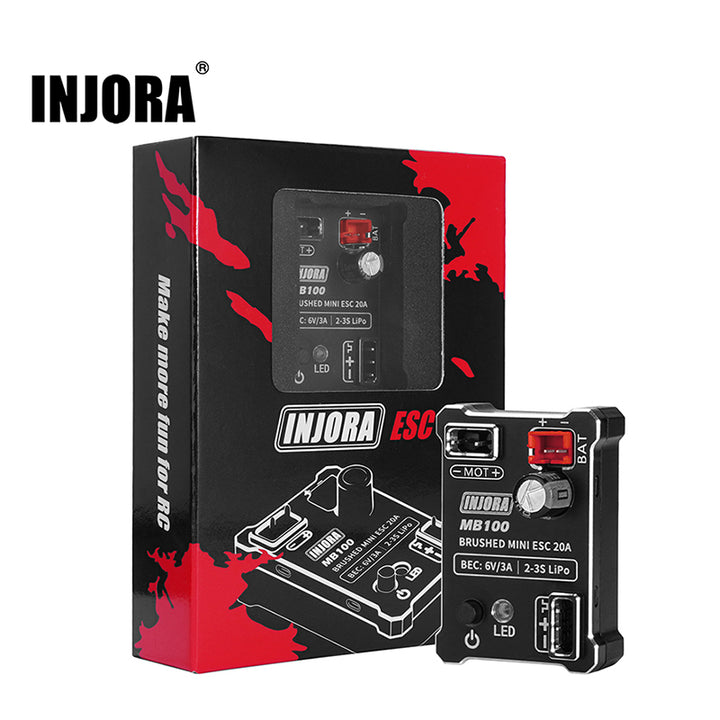

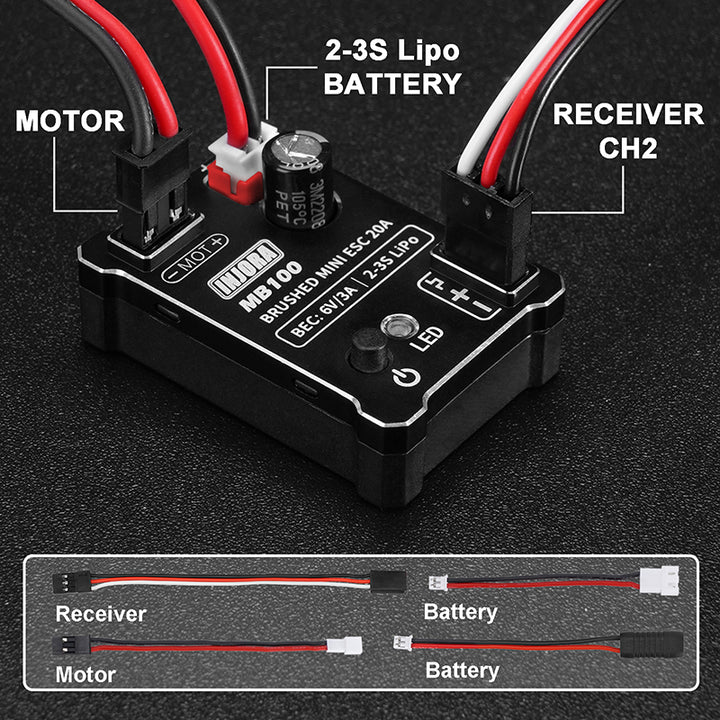

Package List:
- 1 × MB100 G2 ESC
- 1 × Receiver Connect Cable (JR Plug)
- 1 × Motor Adapter Cable (Female TRX4M to Male JST-PH 2.0)
- 1 × Battery Adapter Cable (Female JST-PH 2.0 to Male TRX-4M)
- 1 × Instruction Manual
