INJORA EMax ES08MA II Analog Metal Gear Servo for 1/24 SCX24

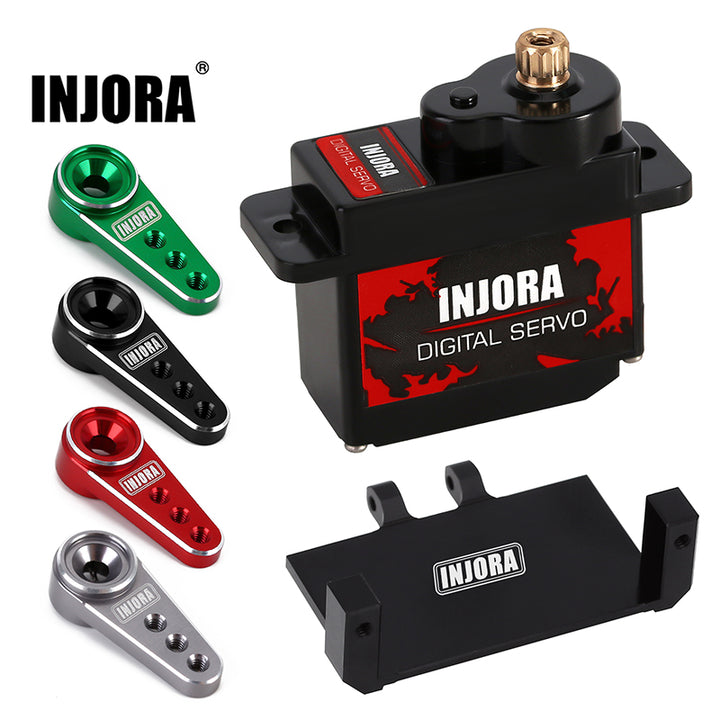

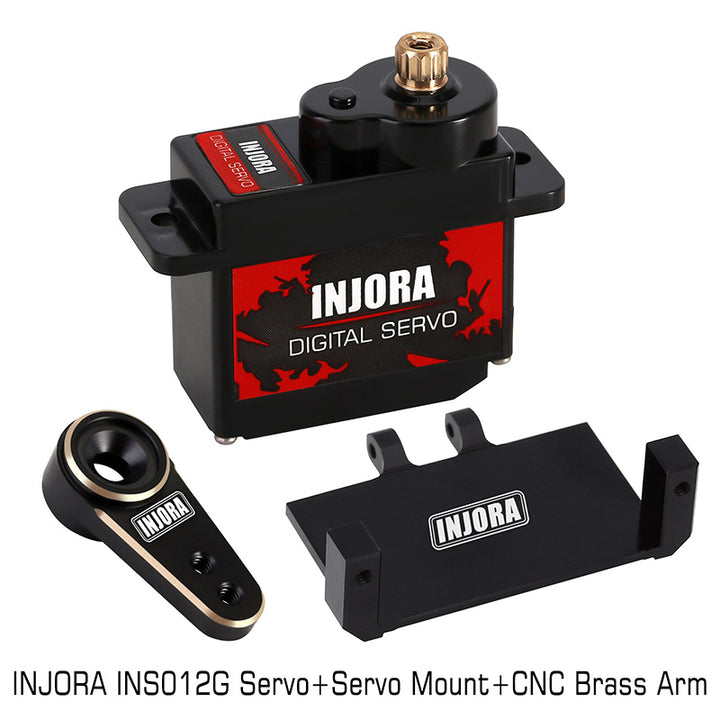

INJORA EMax ES08MA II 12g Analog Metal Gear Servo with Mount & Horn for RC Car Model Parts Axial SCX24 Upgrade Parts
Note:
- Some new scx24 cars & AX24 cars use coarse deep thread screws on the steering links, which is not compatible with our servo horn. So I suggest you use the steering links that with normal threaded M1.4 screws.
- Compatible with scx24 stock plastic axles and INJORA scx24 axles
- Compatible with both Y link and front 4 links
- Please use both this servo and the INJORA servo mount
- Please set the endpoints correctly to avoid burning the servo!!!
- Plug it into channel 1 and check that the yellow wire is at the top, don't make it upside down.
Suit for: 1/24 rc rock crawler Axial SCX24 AX24

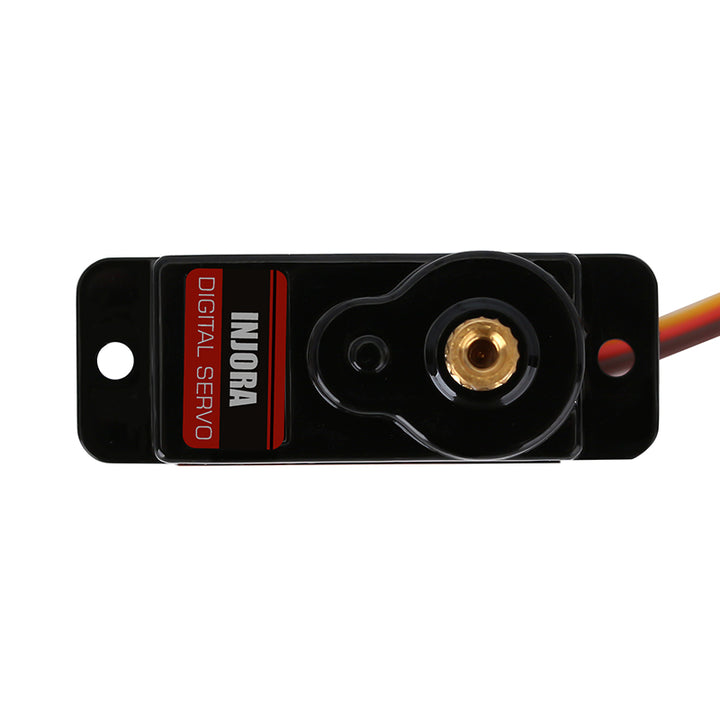

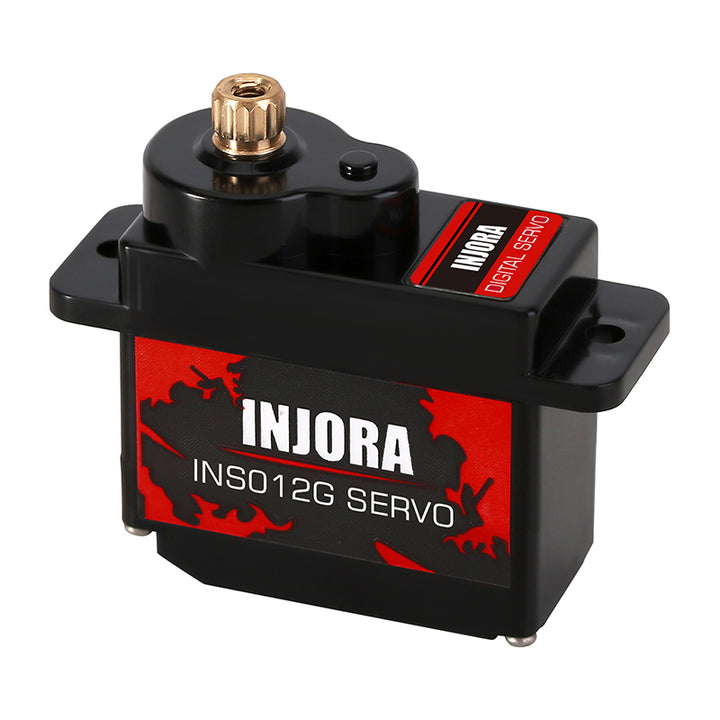

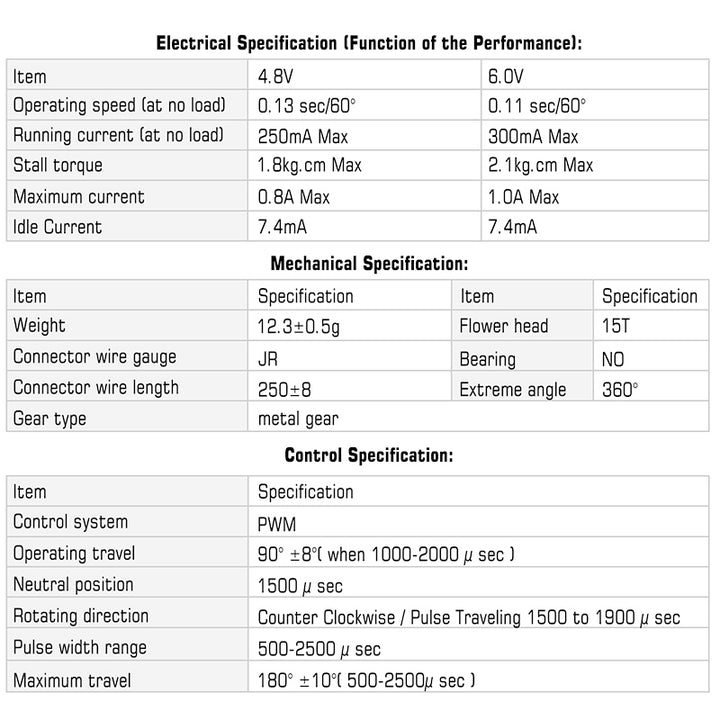

Servo Specifications:
- Item: ES08MA II Servo
- Voltage Input: 4.8-6V
- Standard Direction: Counter Clockwise
- Stall Torque: 4.8V: 21 oz/in , 6.0V: 25.2 oz/in
- Operating Speed: 4.8V: 0.12 Sec/60° , 6.0V: 0.10 Sec/60°

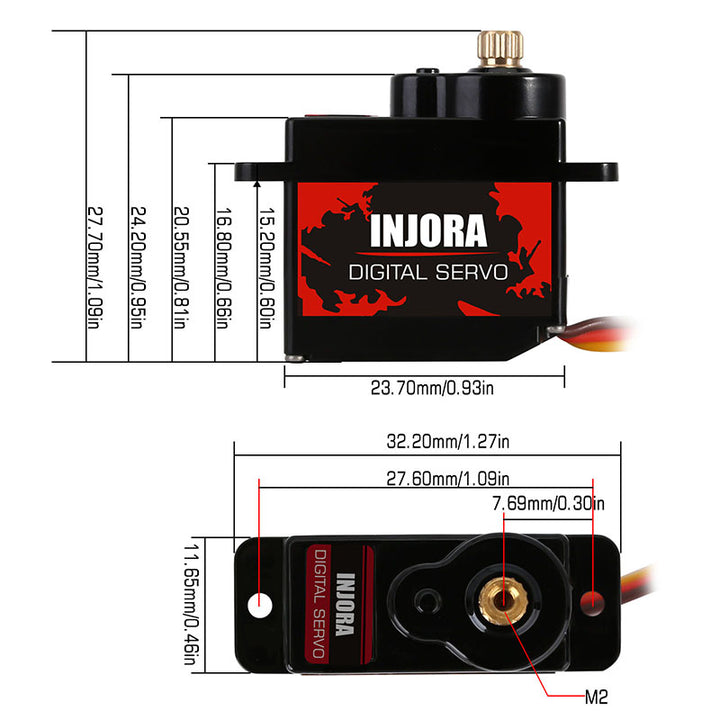

- Dimensions: 23x11.5x24mm (LxWxH)
- Weight: 12g
- Gear Train: Metal
- Servo Type: Analog
-

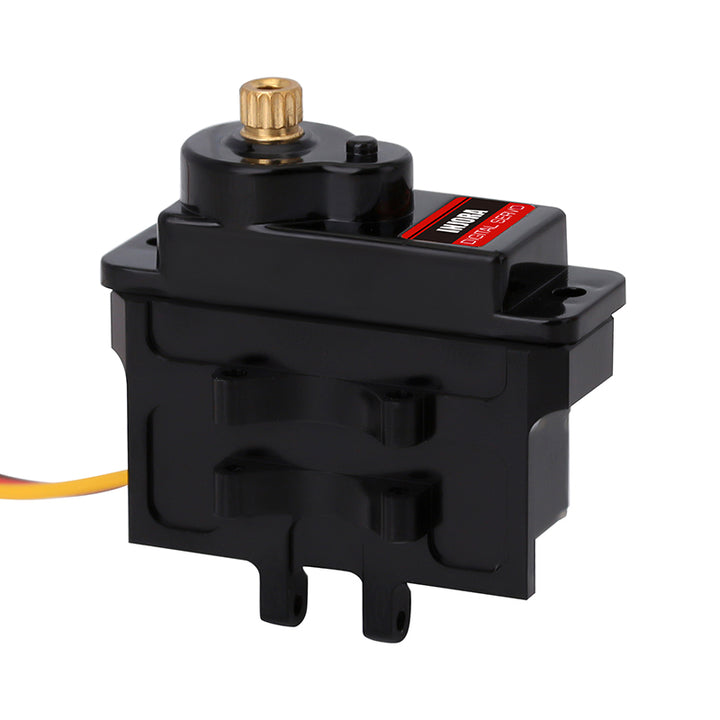

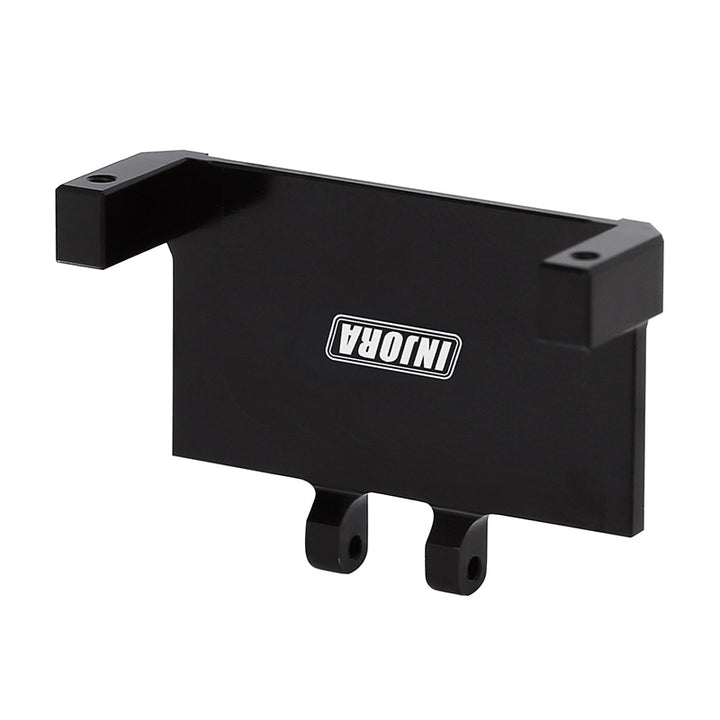

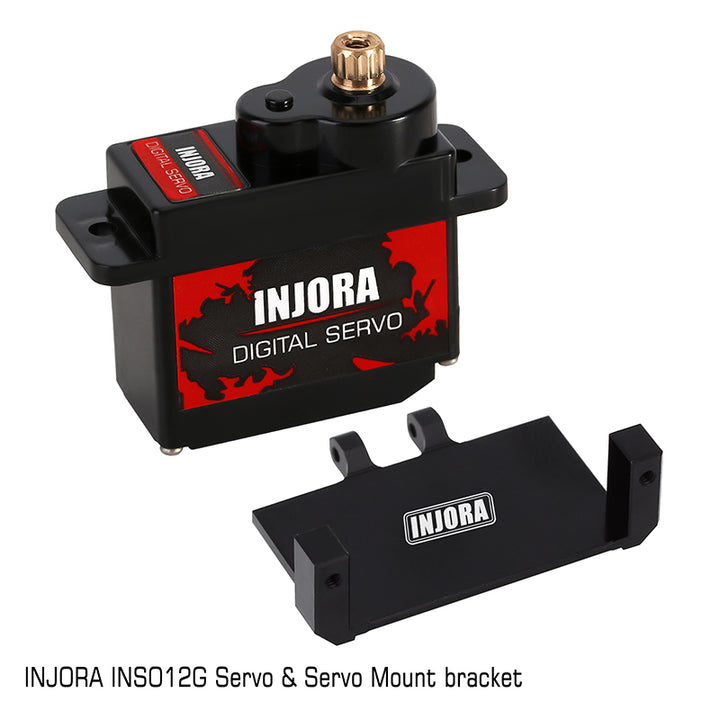

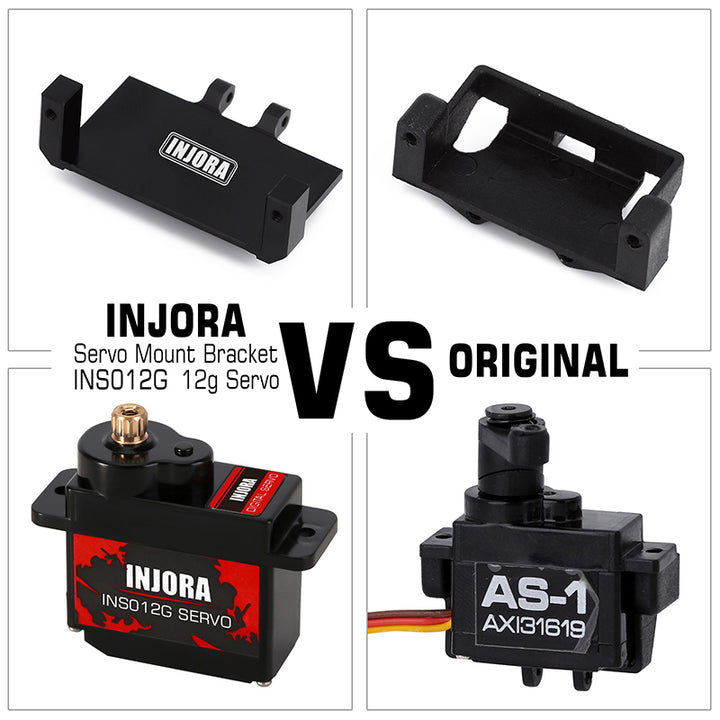

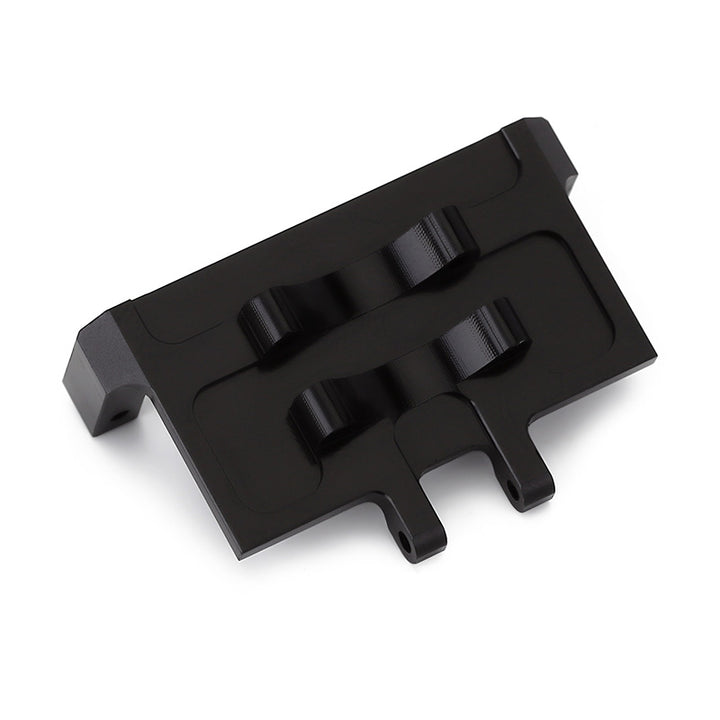

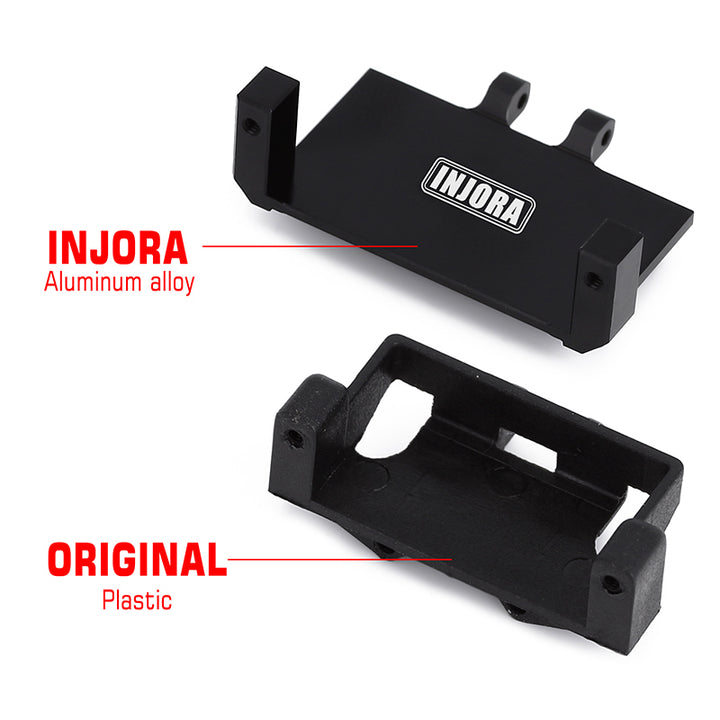

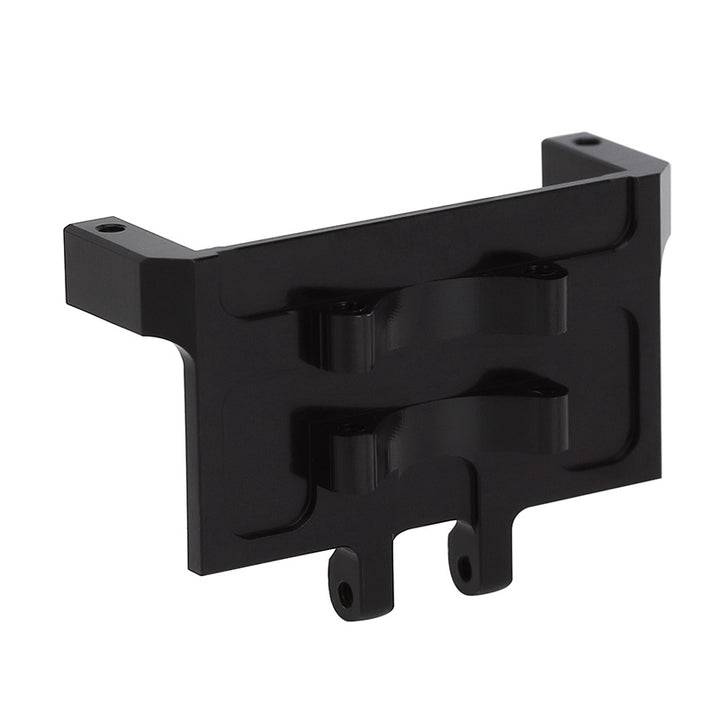

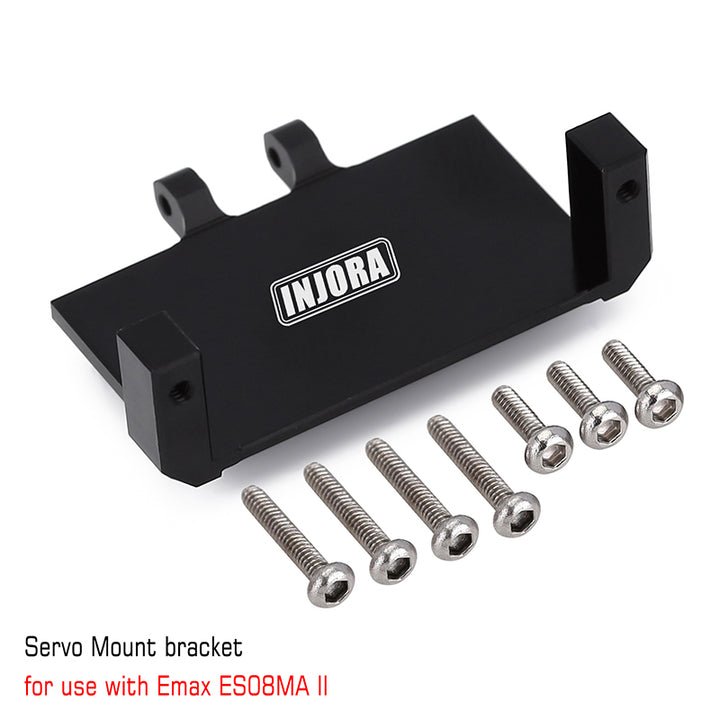

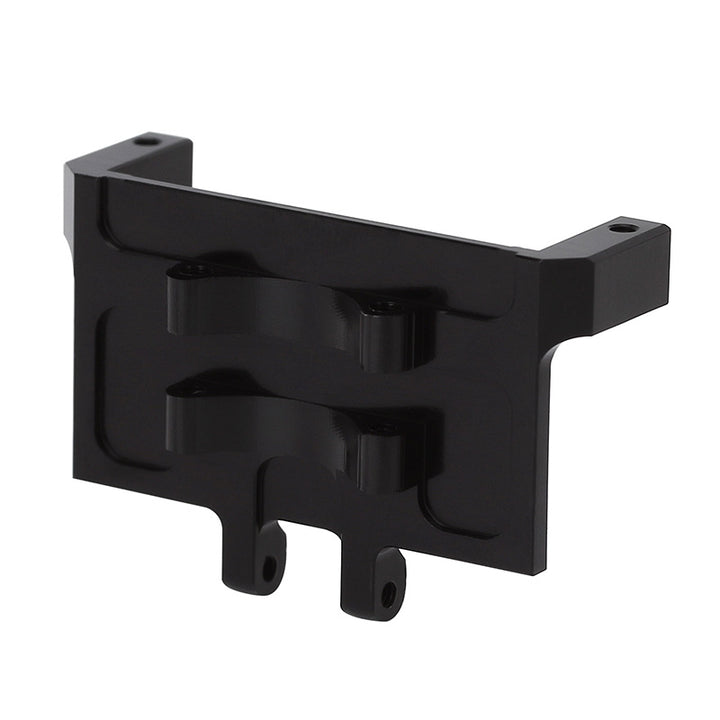

Servo Mount Bracket Specifications:
- Material: Aluminum
- Color: Black
- Use with scx24 stock axle or INJORA aluminium axle

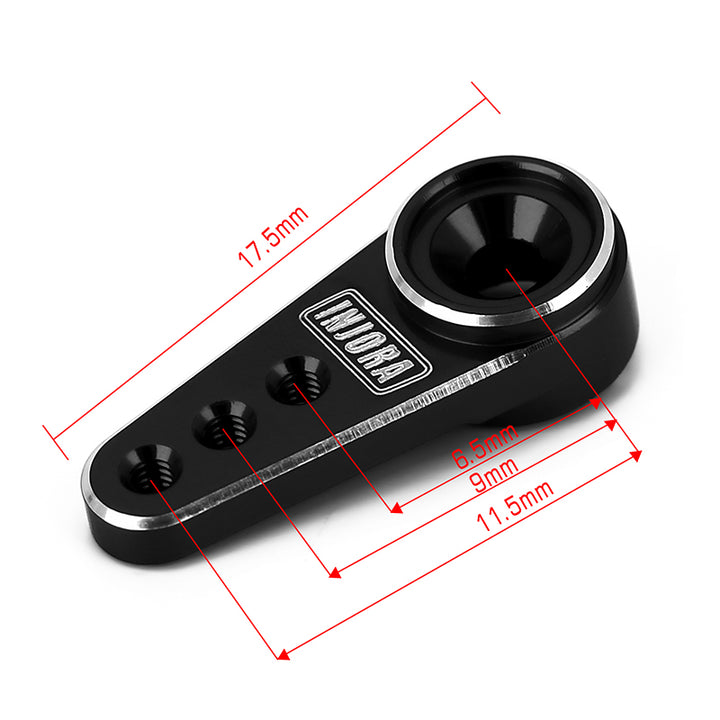

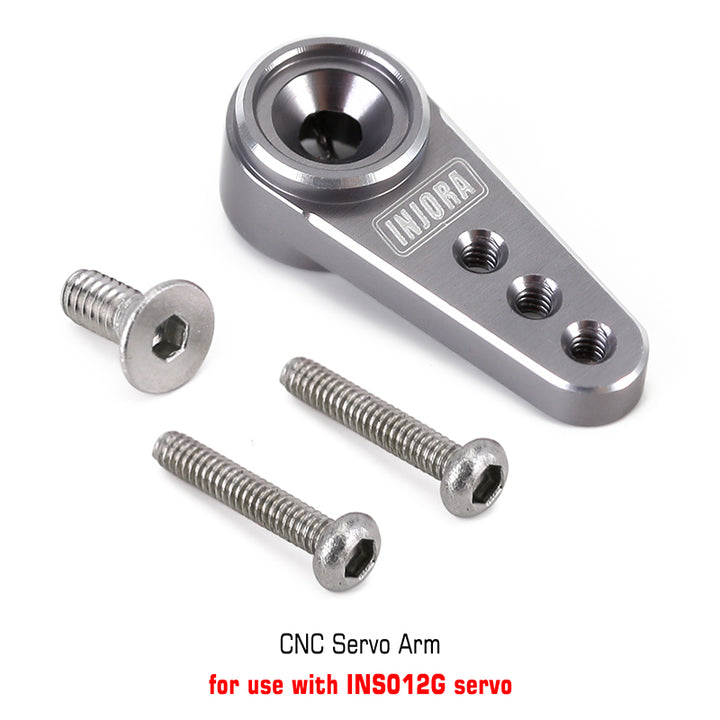

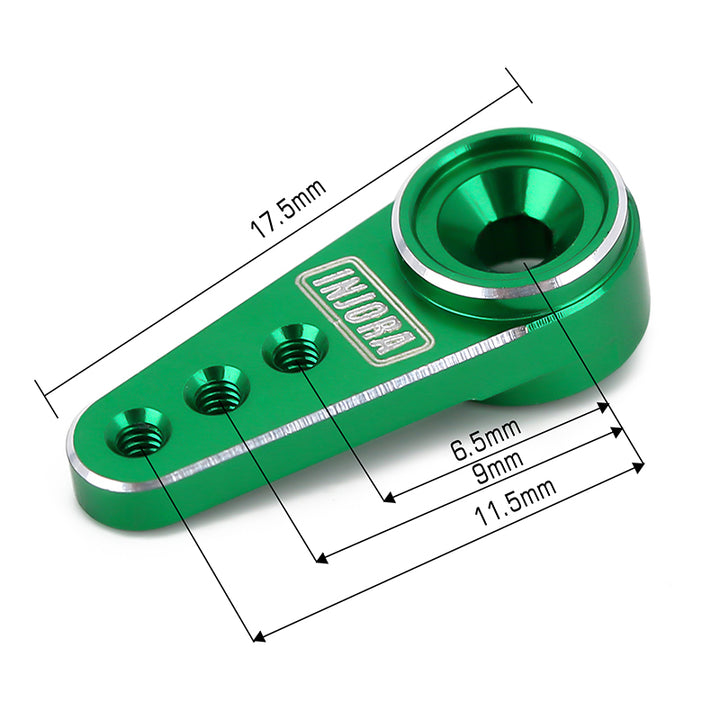

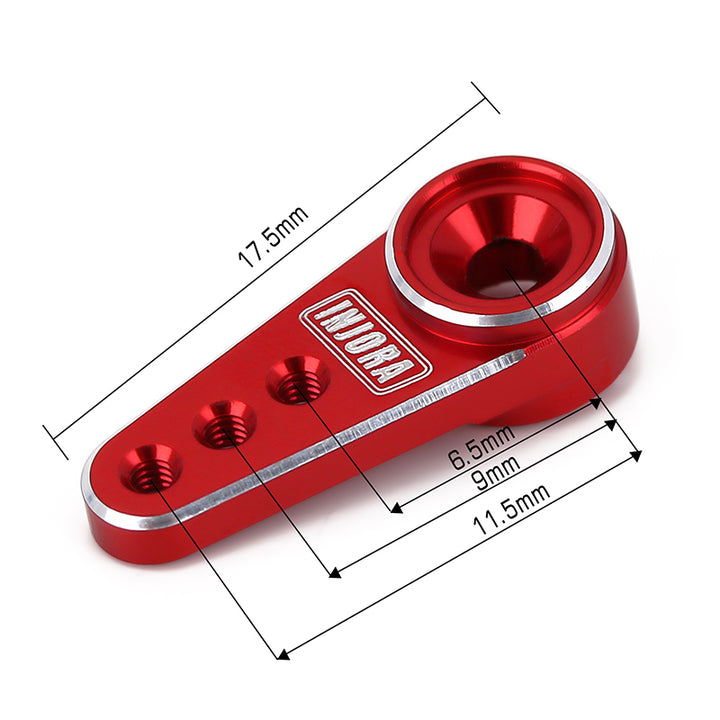

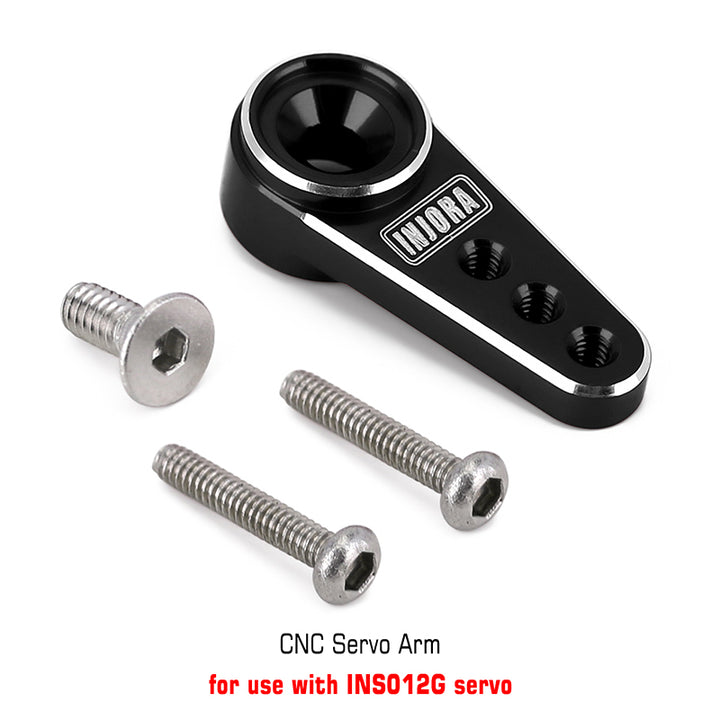

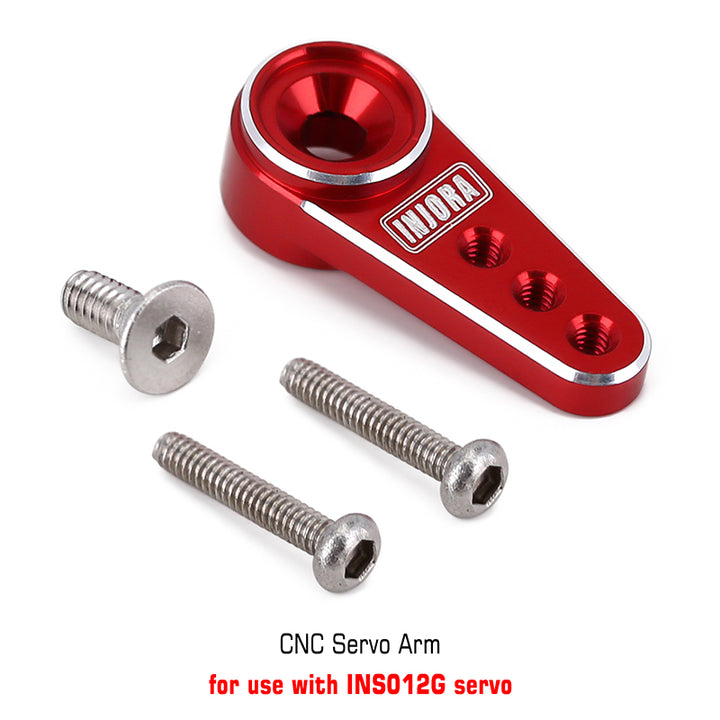

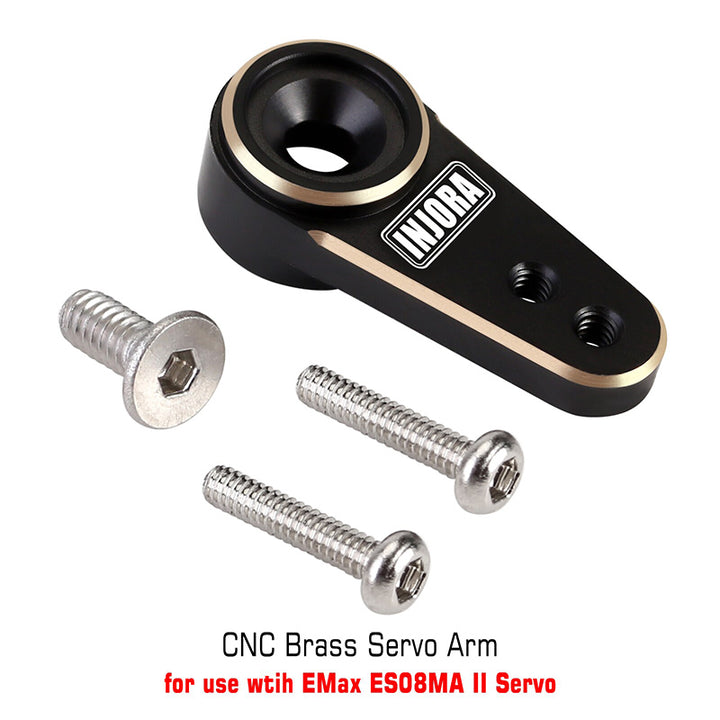

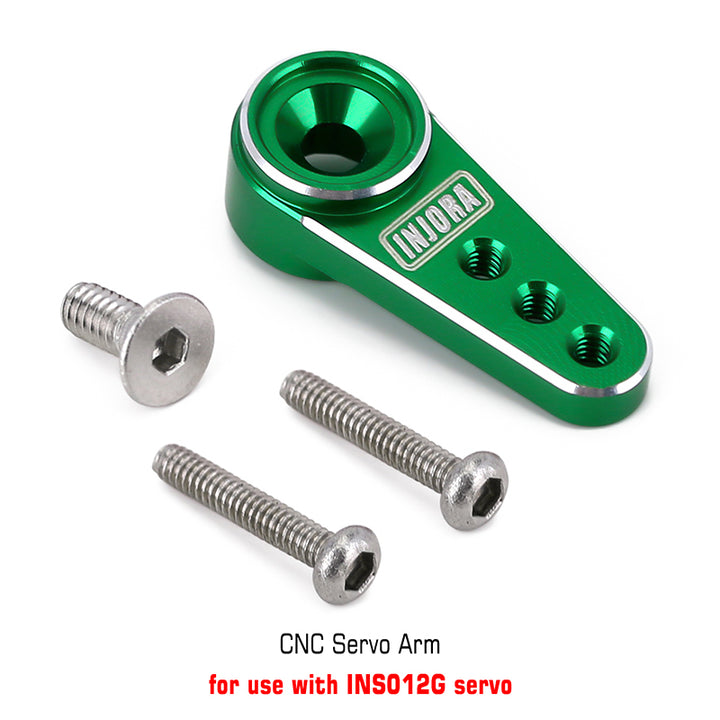

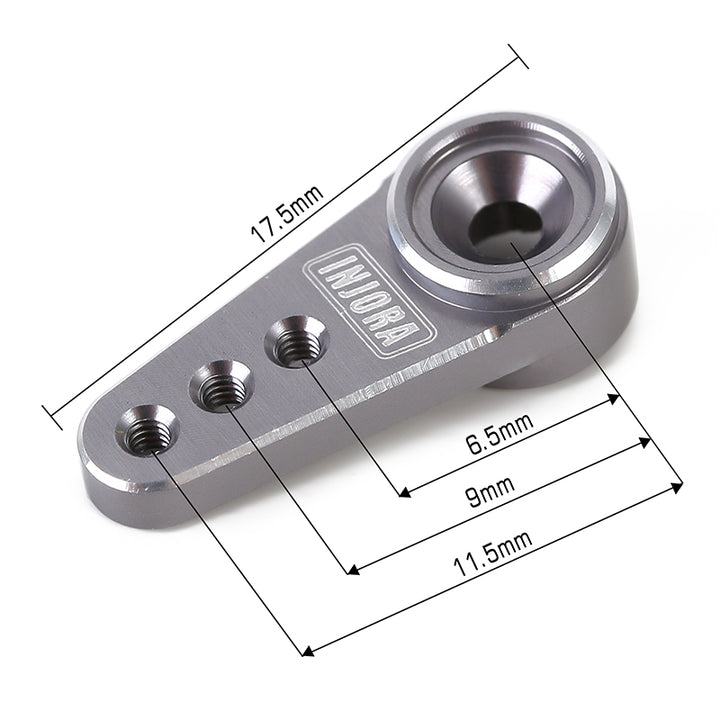

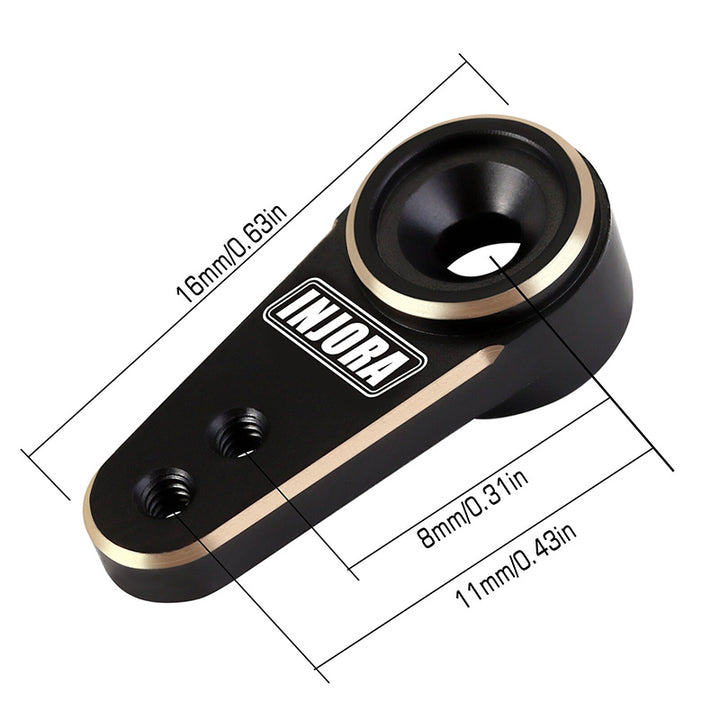

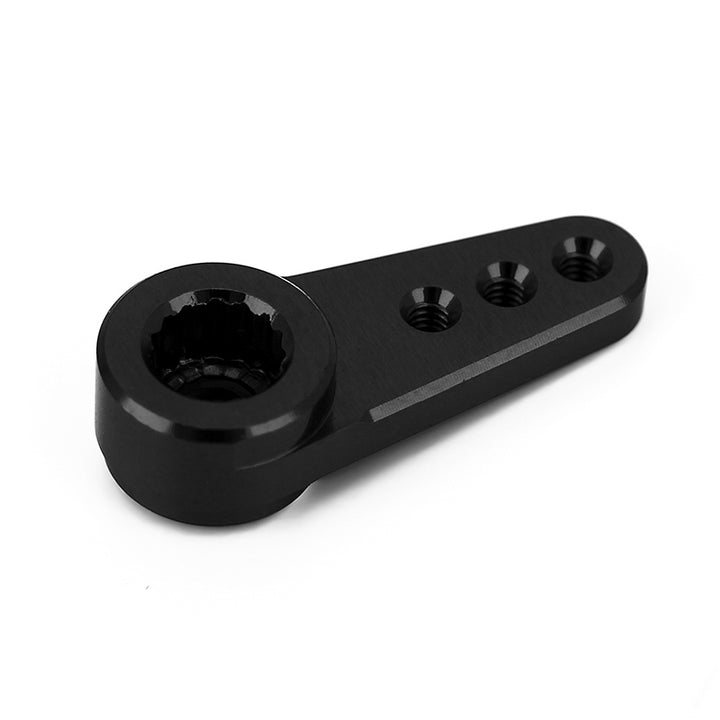

Servo Horns Specifications:
- Item: ES08MA II Servo Horn
- Material: Aluminum, Brass
- Color: Black, Red, Grey, Black Gold
- Use with Emax ES08MA II Servo (For Axial SCX24 Crawler)
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.
Fit perfect and looks great! Also much better steering performance vs the stock unit!
The servo is strong, and the mounting bracket adds a good amount of weight to the front axle
This fits perfectly in the SCX24. A lot more power over stock, and the aluminum horn looks great too.
Must have with weighted upgrades. I have one on all 3 of my scx24's
Perfect, no clearance issues with SCX24 frame. Fits perfectly to EMAX servo.
Color: Servo with Mount
ok
ok
This kit takes the steering of the SCX24 to a new level! Very strong and plenty of fast, easy to install. The only thing is that the top corners need a bit of cutting after installation to allow the full travel of the shocks under articulation.
Great service as usual and customer support, can’t wait to fit and run.
arrived a little late but we'll pleased with the product
Received with a few days delay but packing squished. Internally the packaging you see chafing and pressure.
Per ora sembra funzionare bene, anzi è indispensabile
Fit like it should, good price, shipping was ok, no issues here!
Been using there products for years with great results fit and finish is perfect
One of the first upgrades on my SCX24 C10, this is a much stronger servo than stock, with a well-made servo tray. The brass horn adds a touch of unsprung weight up front, where every little bit counts. Installed with Injora brass steering links, set the steering limits and trim on the remote, makes a world of difference!
These are great
Great product! Pairs well with all my other mods! Very simple plug and play install.
Looks great.
Bonne qualité
Worth every penny. Will be upgrading all my trucks. Good weight up front
This is a high quality part that will elevate your rig to a higher level.
Bonjour,
Est-ce que ce servo est compatible avec le FCX24 Unimog ?
Merci d'avance de votre reponse ?
Not compatible.
