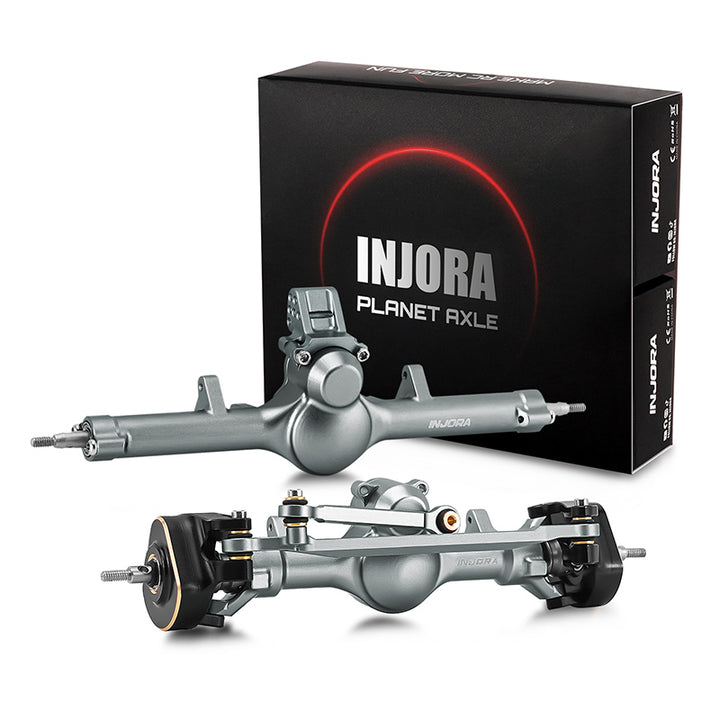

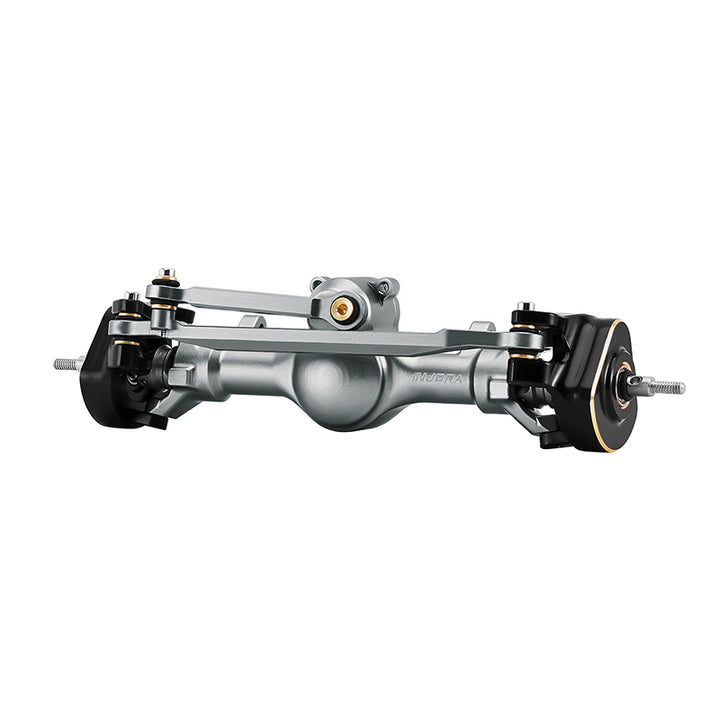

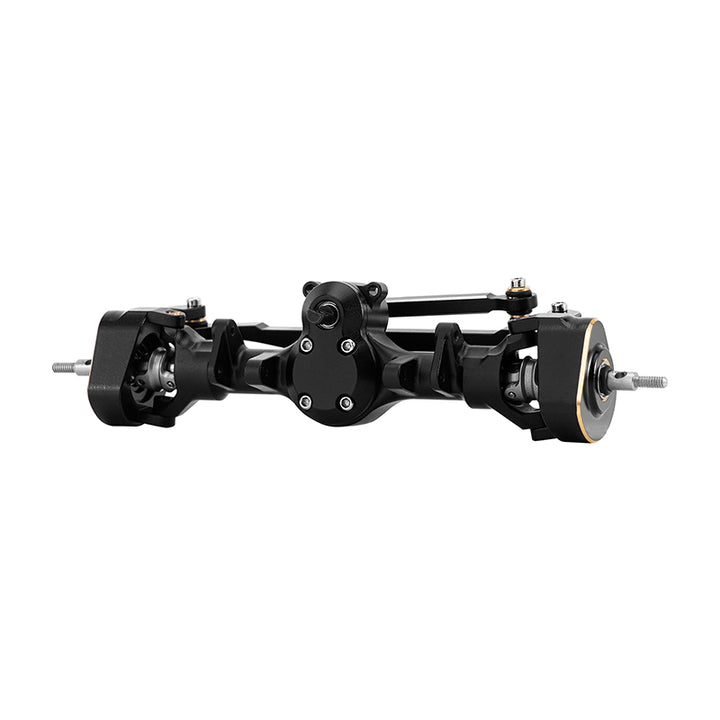

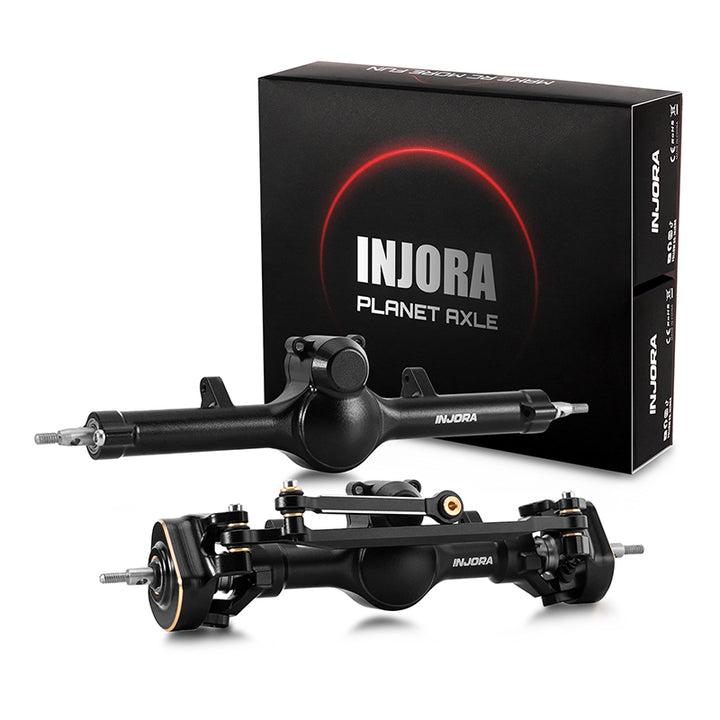

INJORA +4mm Planet Axles with Double Joint Shafts for 1/24 SCX24
INJORA +4mm Planet Axles with Double Joint Shafts & Brass Steering Knuckles for 1/24 Axial SCX24 Upgrade
- Rear link mount: Only compatible with the SCX24 stock rear link mount and INJORA rear axle truss upper link mount (SCX24-78).
- Compatible with both INJORA and stock SCX24 servo mounts, gears, chassis links.

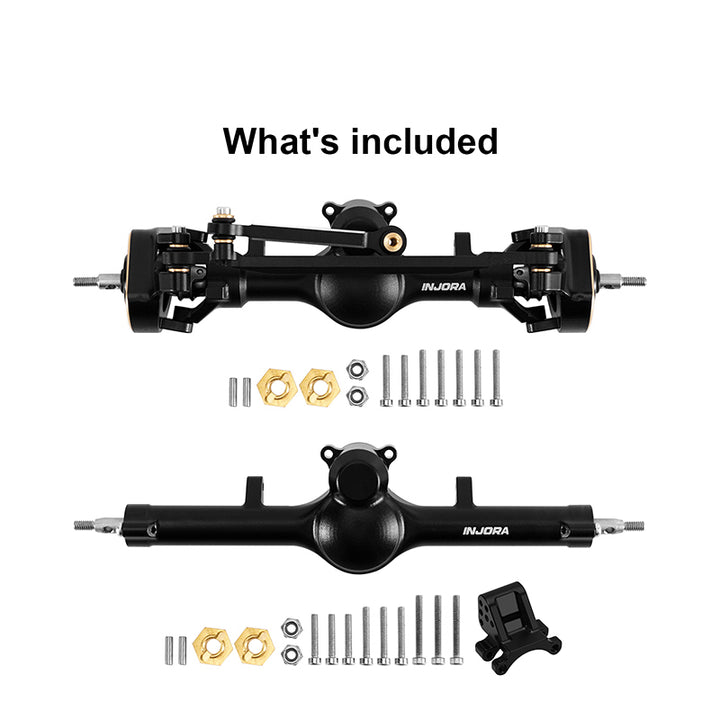

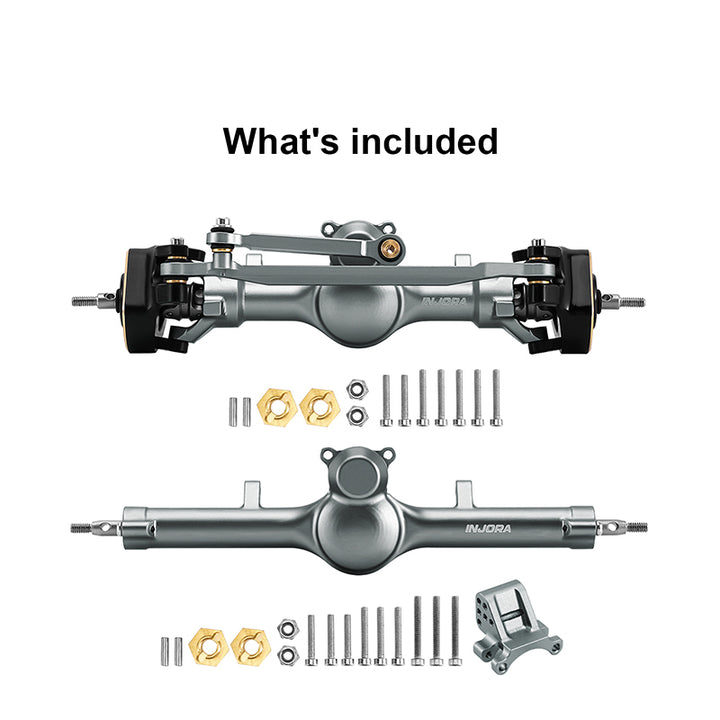

- Works only with included parts. Not compatible with other diff covers, steering knuckles, steering links, dogbone shafts
Features:

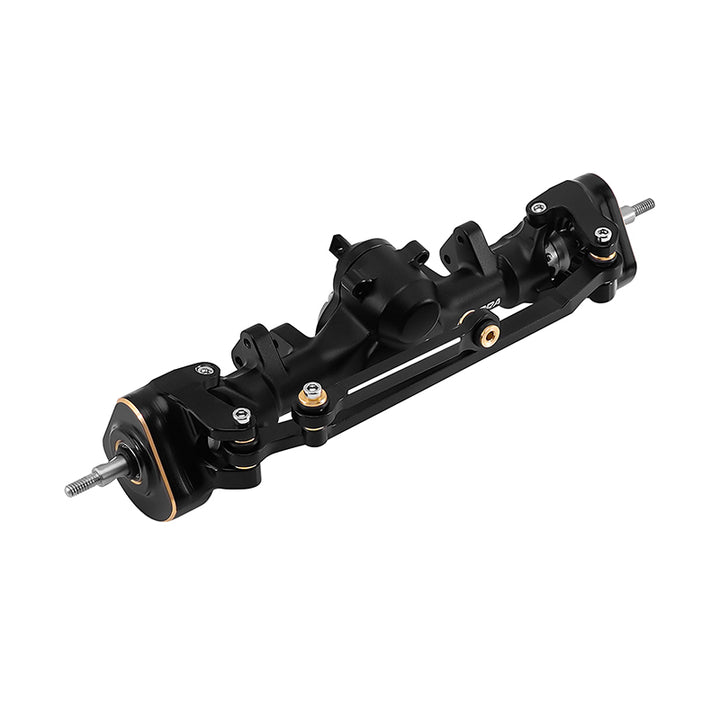

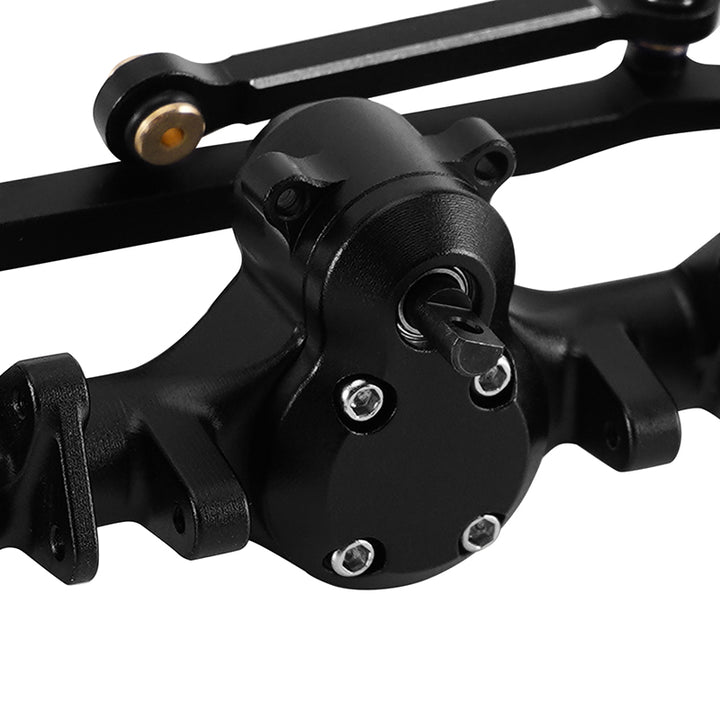

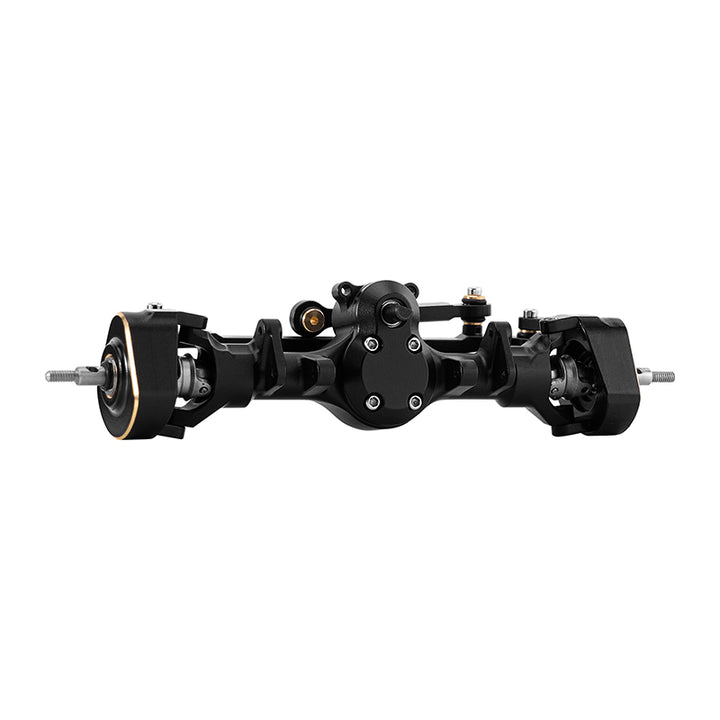

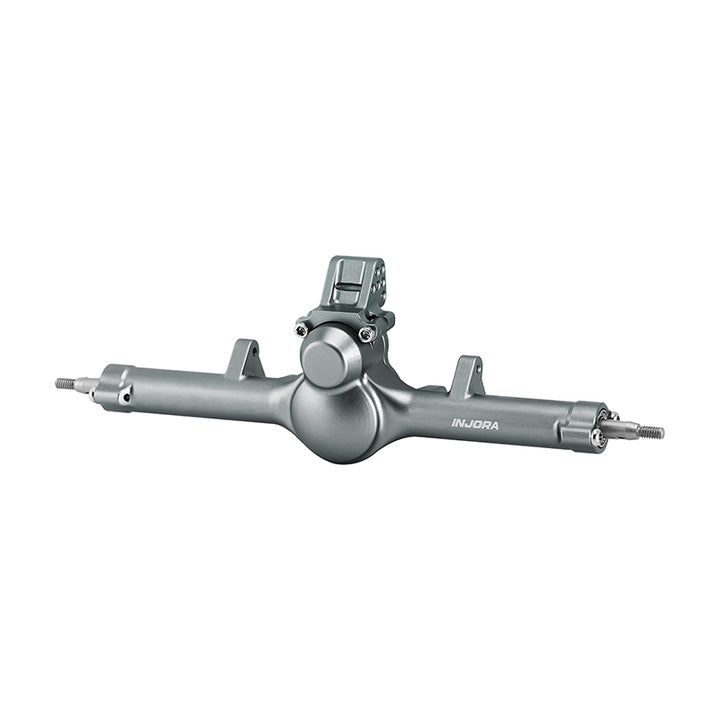

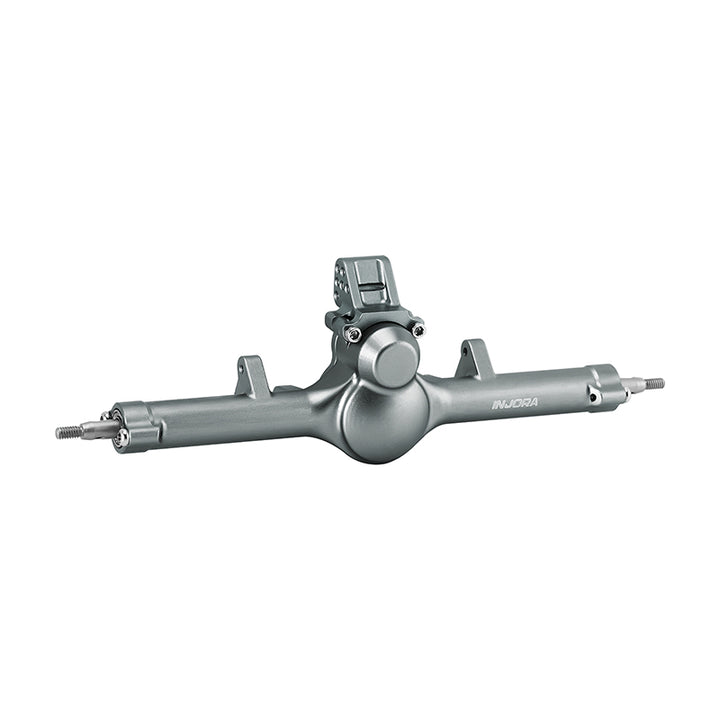

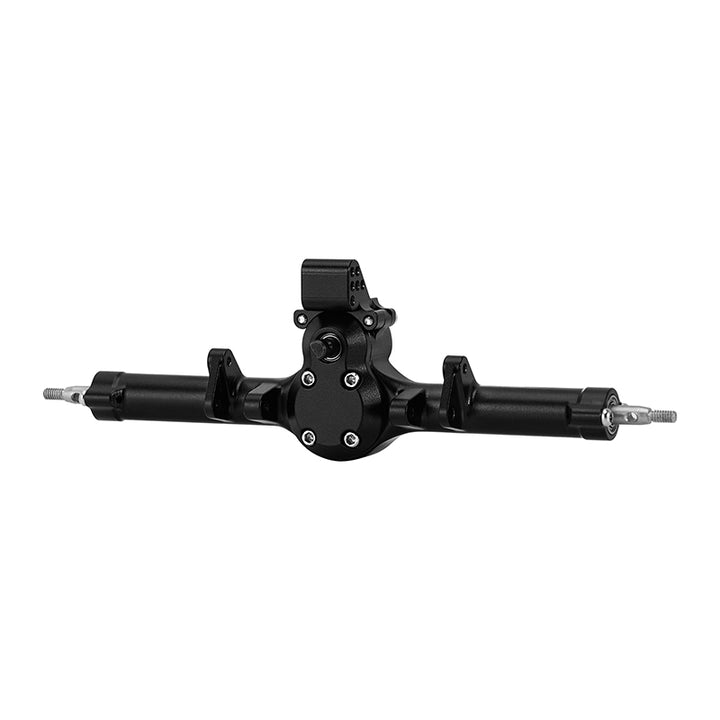

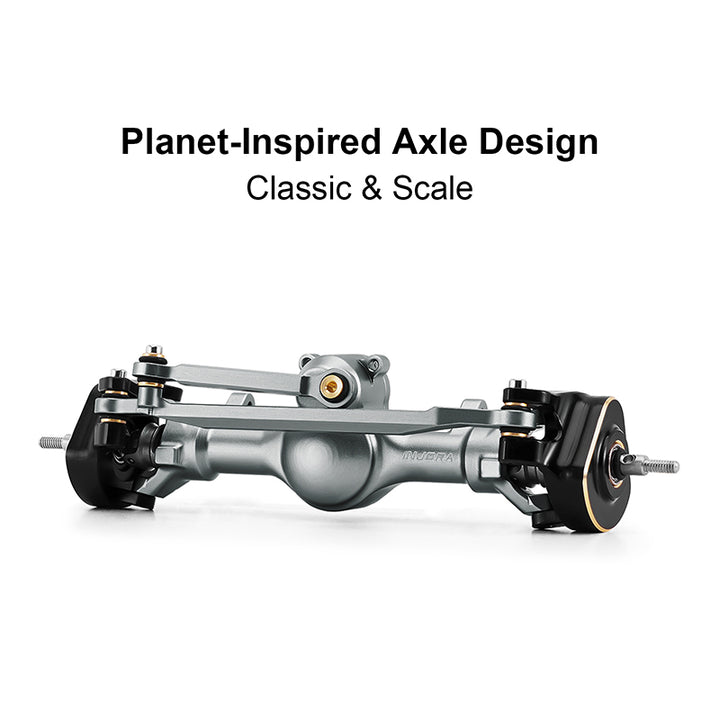

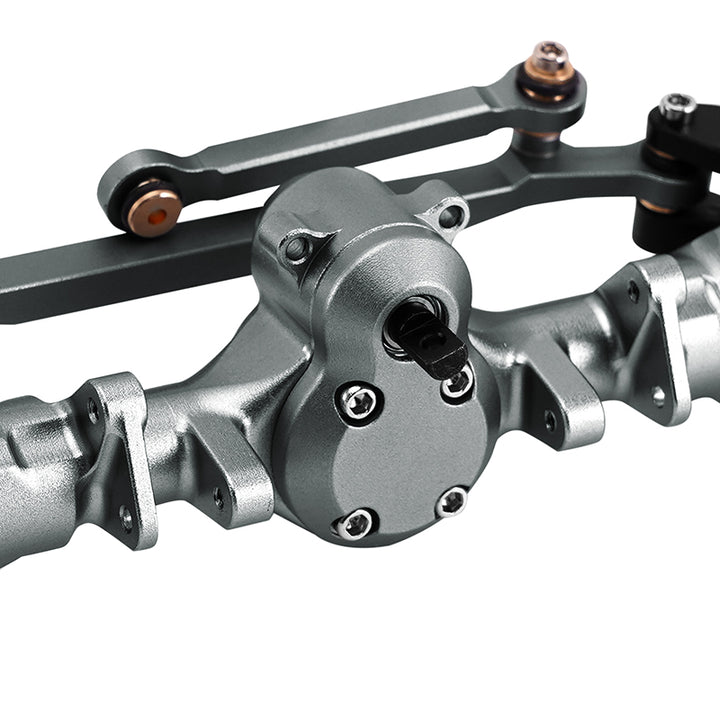

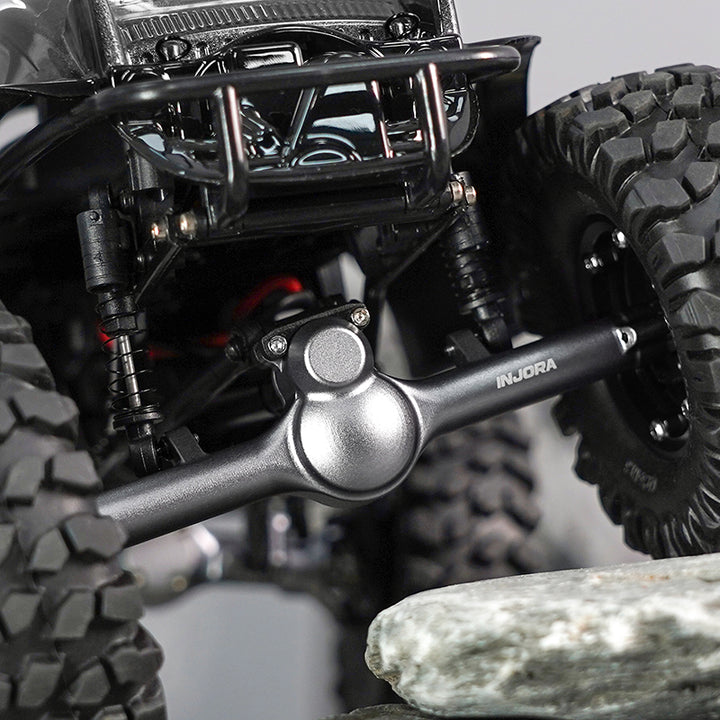

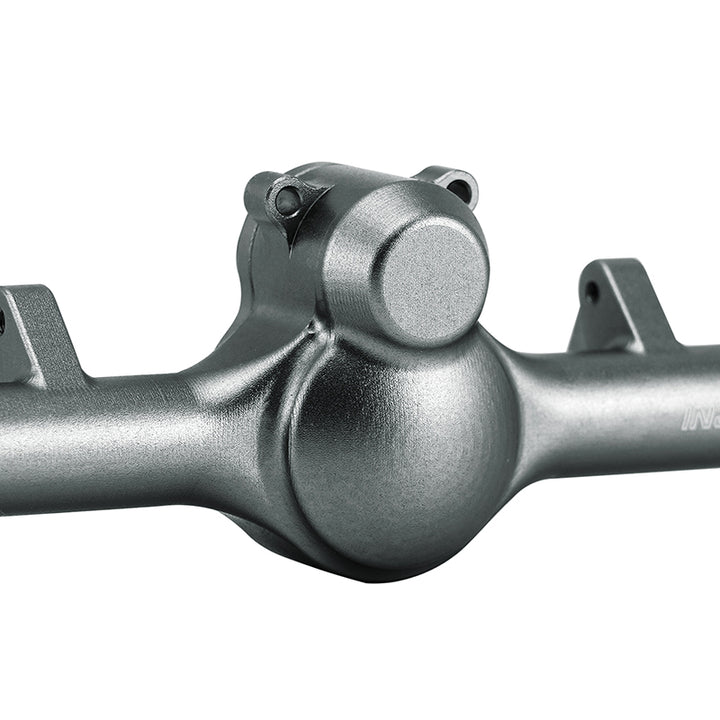

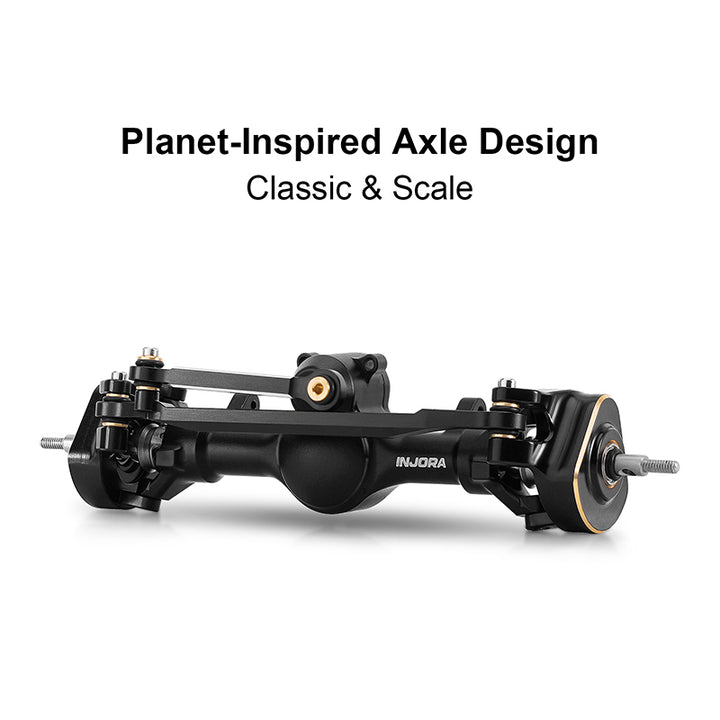

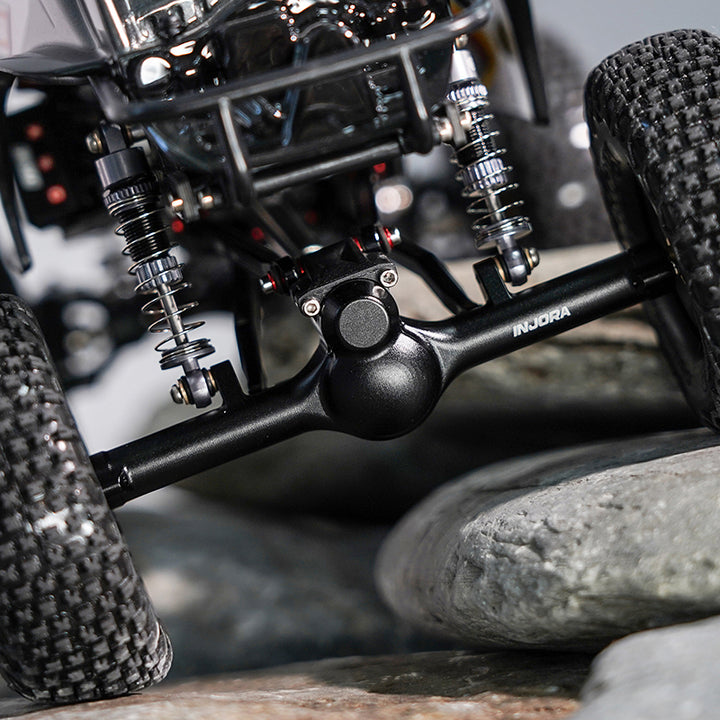

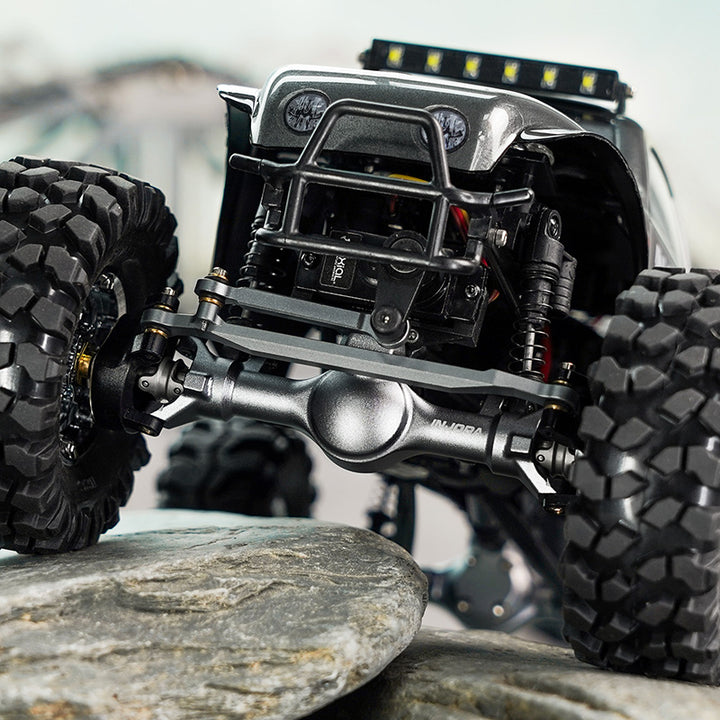

- Planet-Inspired Axle Design: Planet-shaped differential housing, precisely CNC-machined for a highly realistic scale appearance. Seamless integration with the axle tubes enhances visual accuracy.

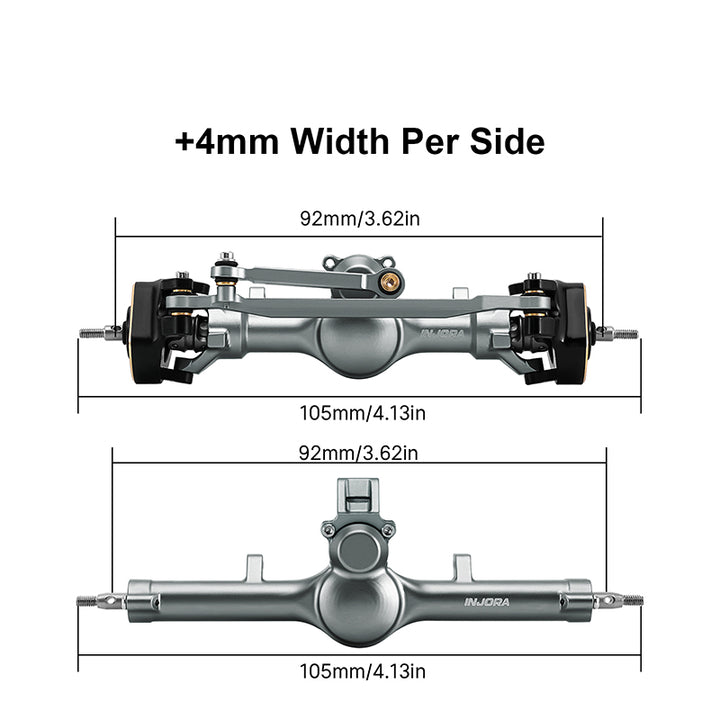

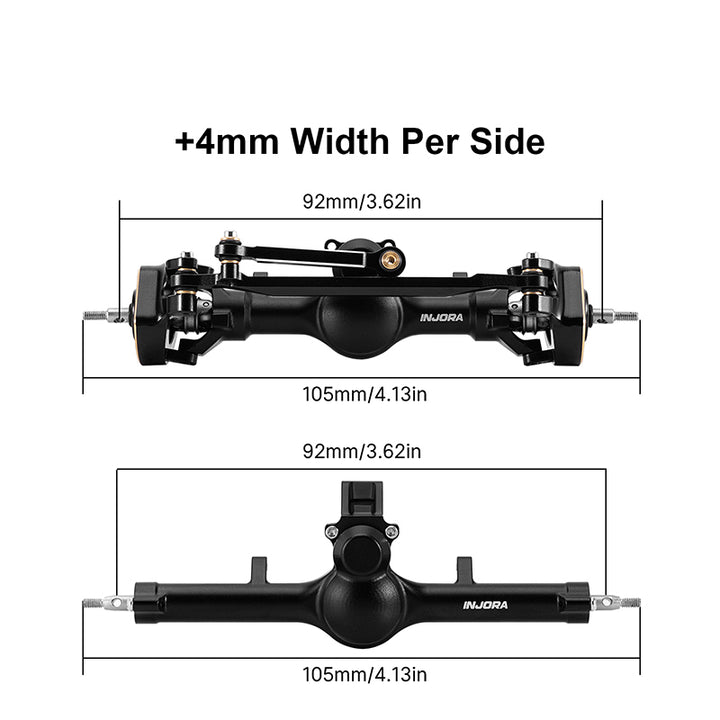

- +4mm Width Per Side: Adds a total of 8mm width to enhance stability while maintaining scale accuracy.

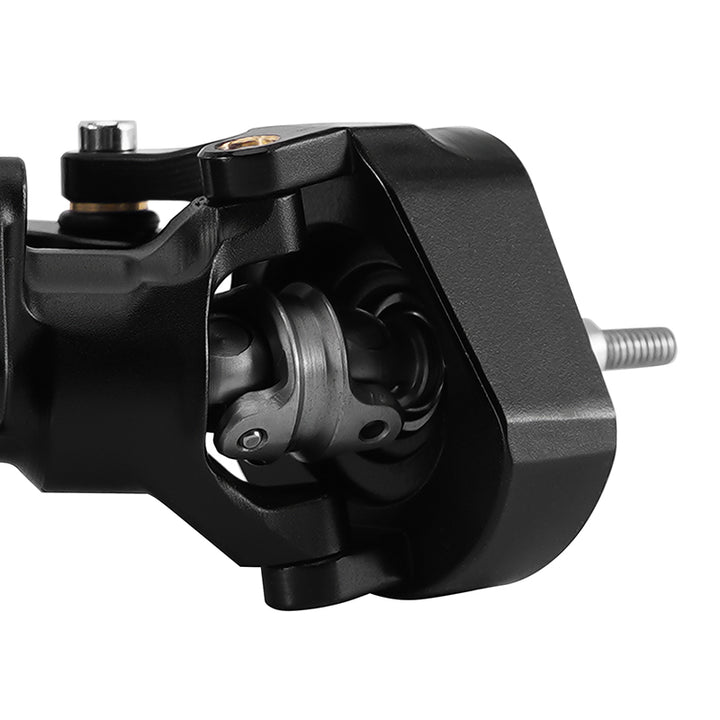

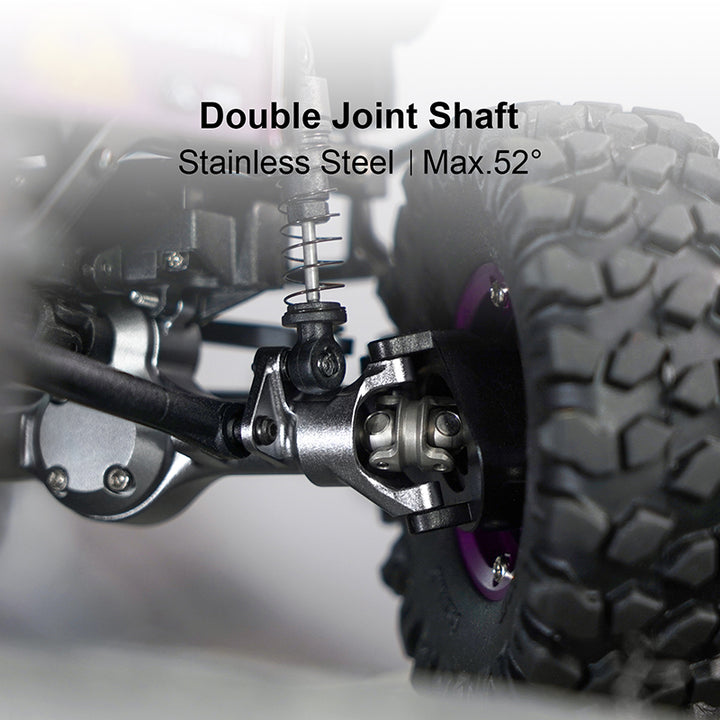

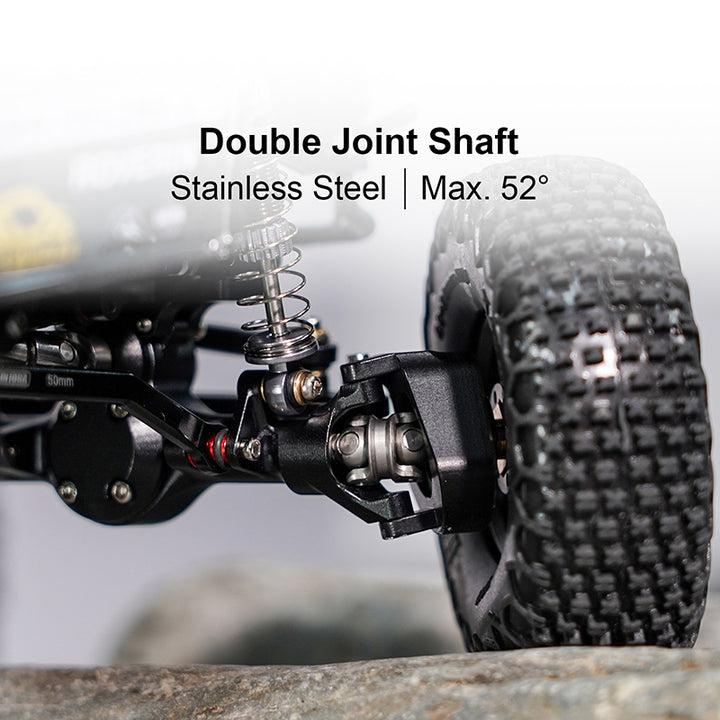

- Double Joint Shaft Design: Minimizes outer wheel vibration when turning at extreme angles.

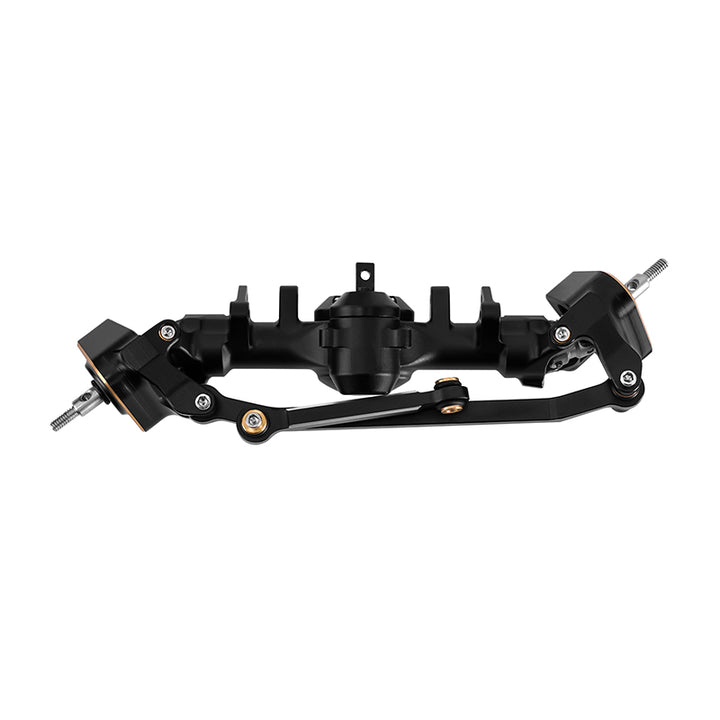

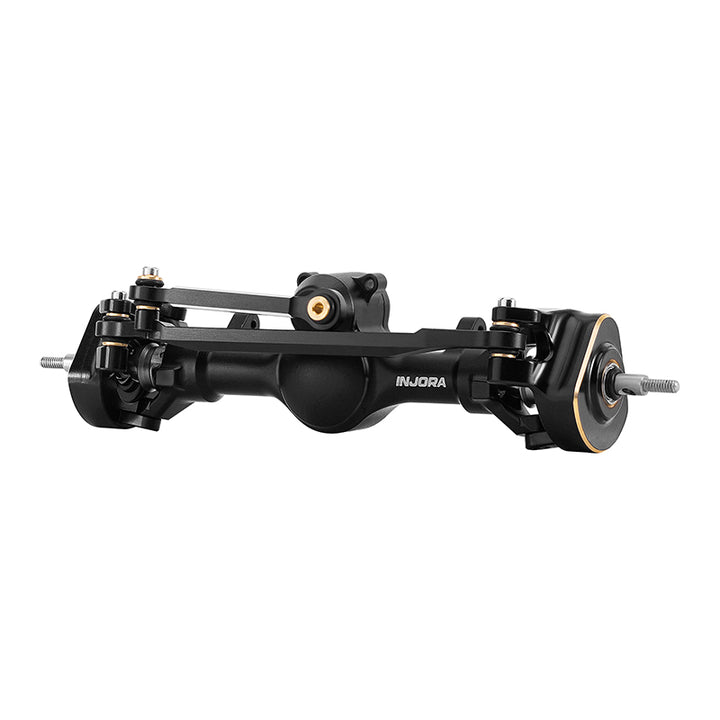

- Precision CNC Aluminum Steering Link: Shortens the distance between the steering link and the axle housing, ensuring a compact and clean design without excessive protrusion.

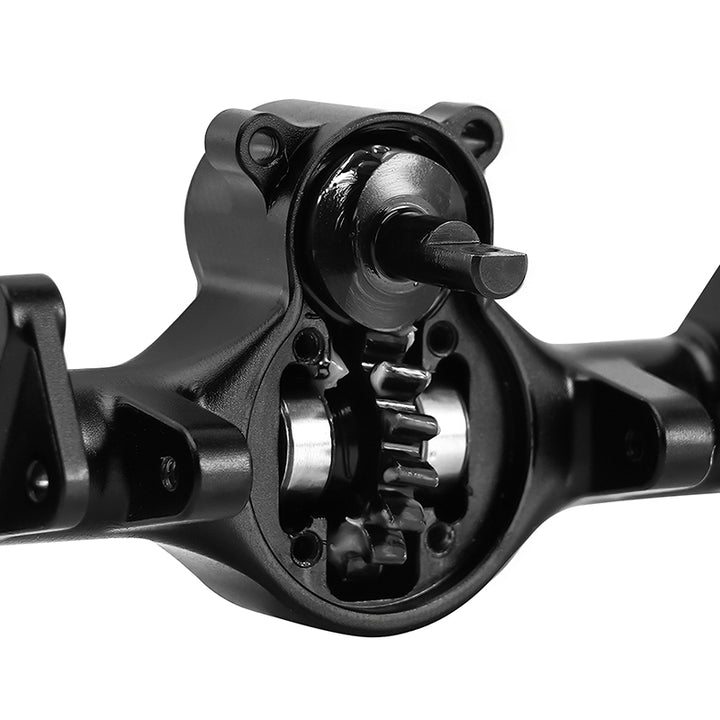

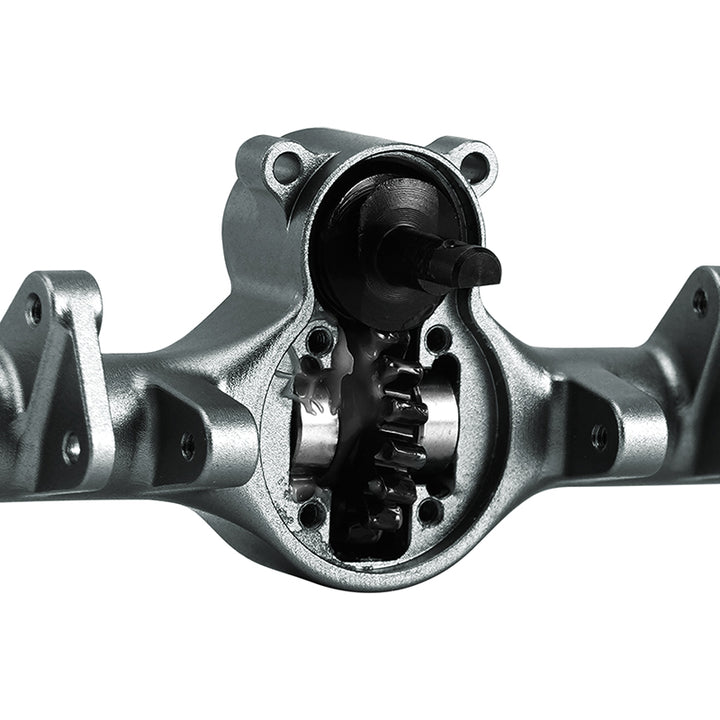

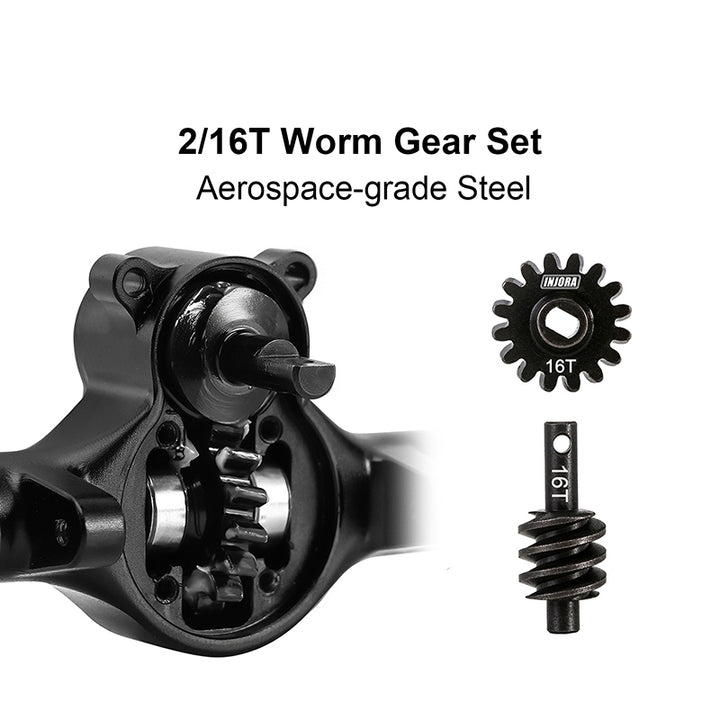

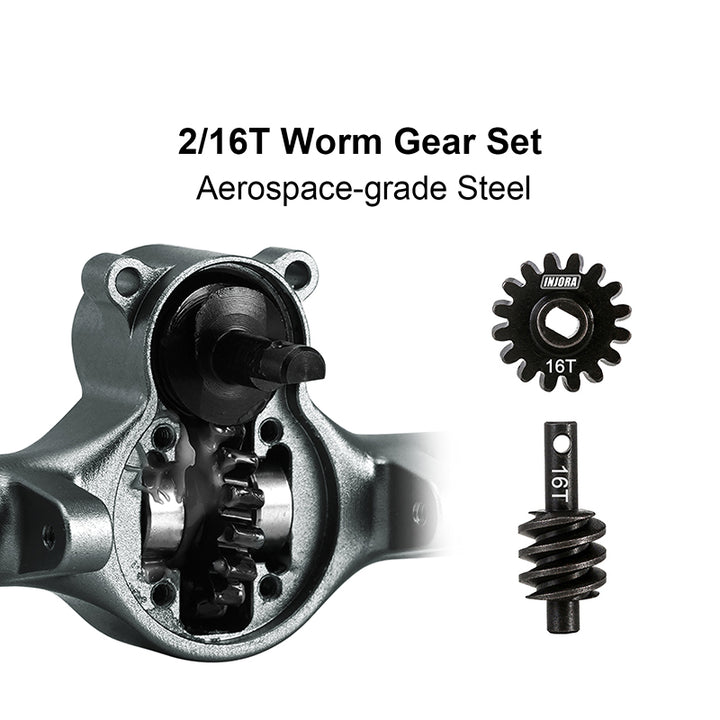

- Hardened Steel 2/16T Worm Gear Set: Made from aerospace-grade 20CrMnTi hardened steel for smooth, consistent performance and exceptional durability on tough terrain.

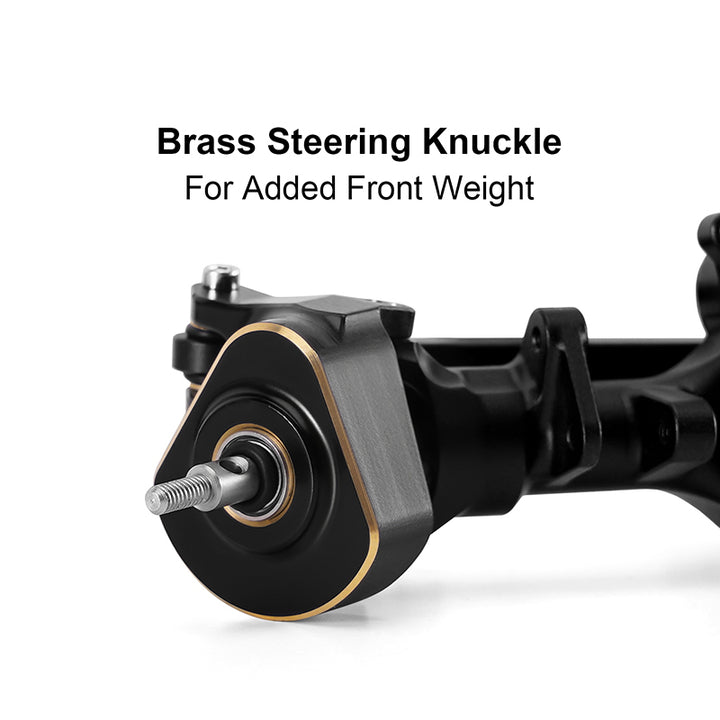

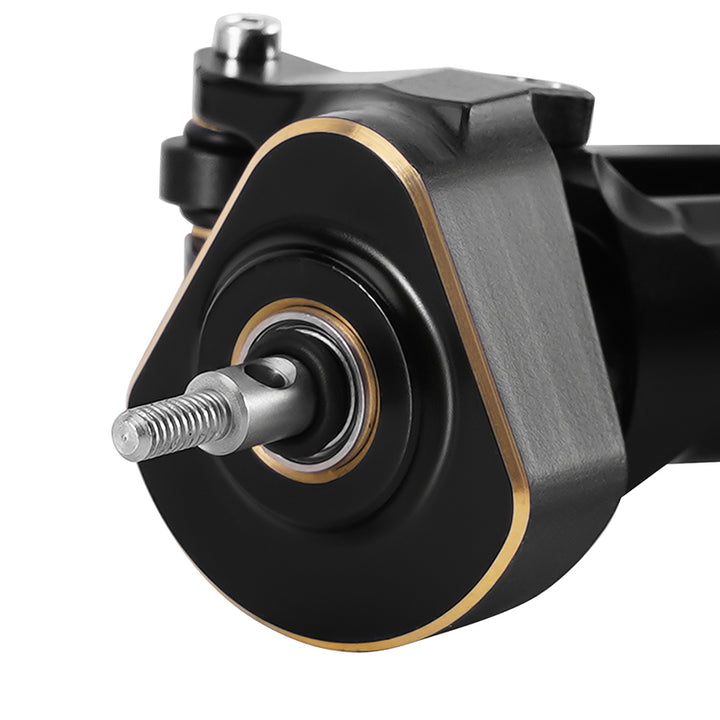

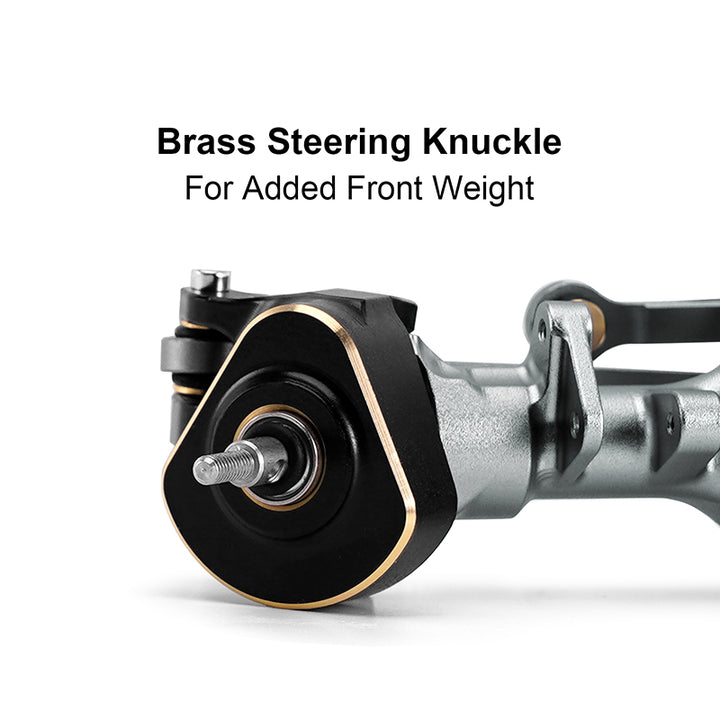

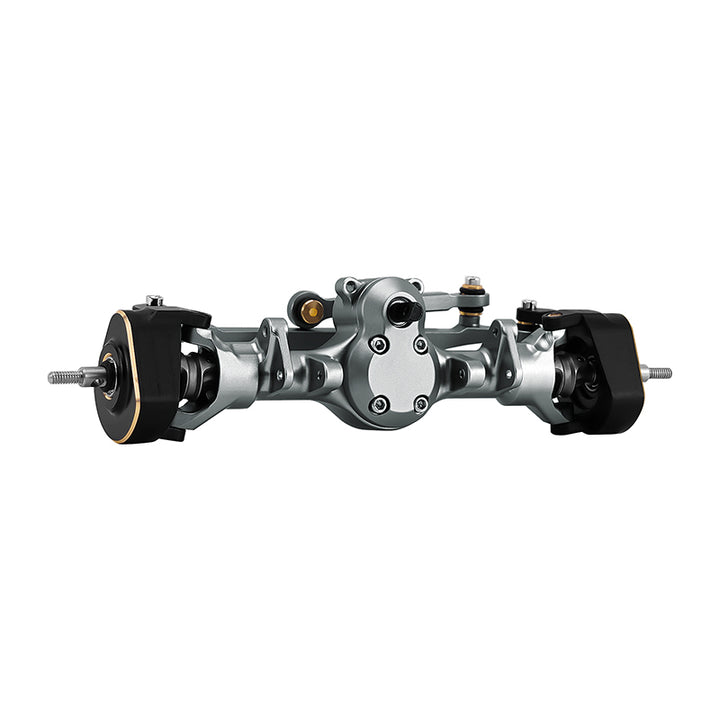

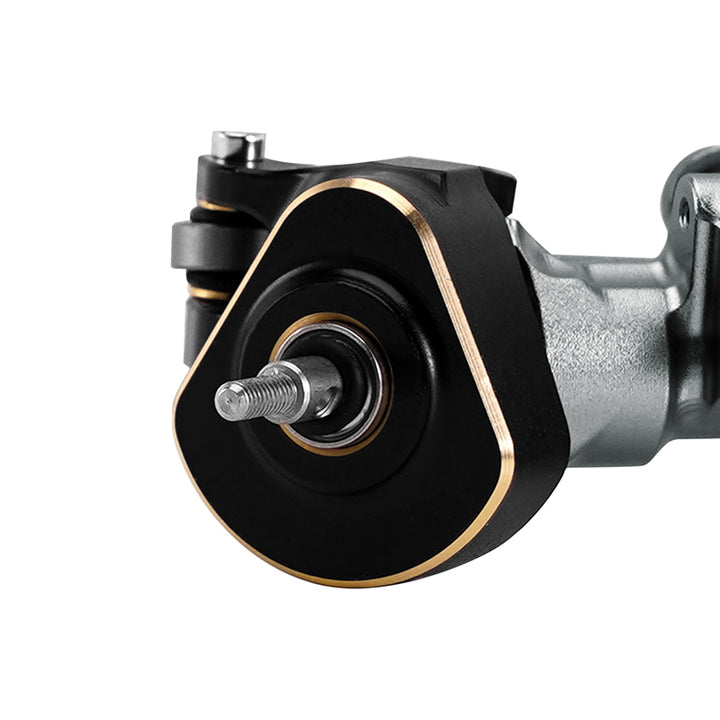

- Brass Steering Knuckles: Adds front axle weight for improved traction, better climbing capability, and enhanced steering response.

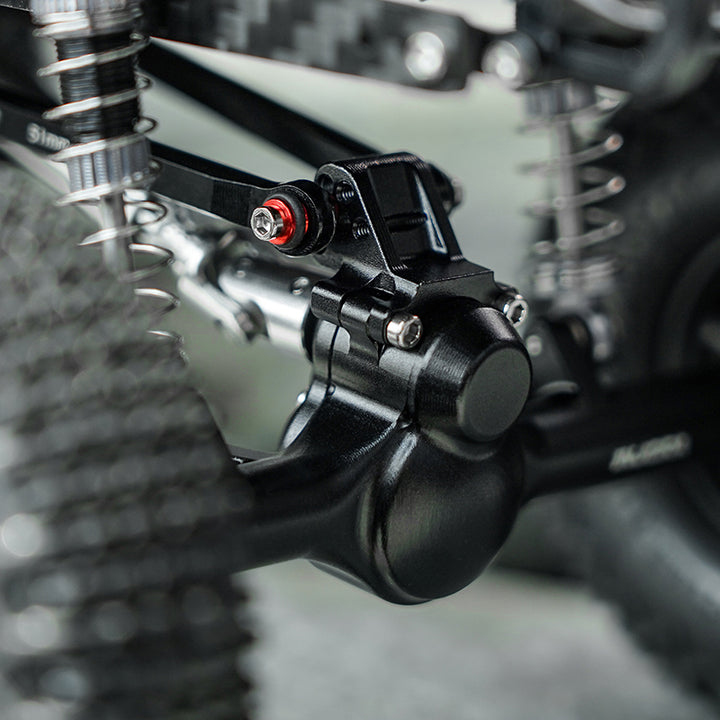

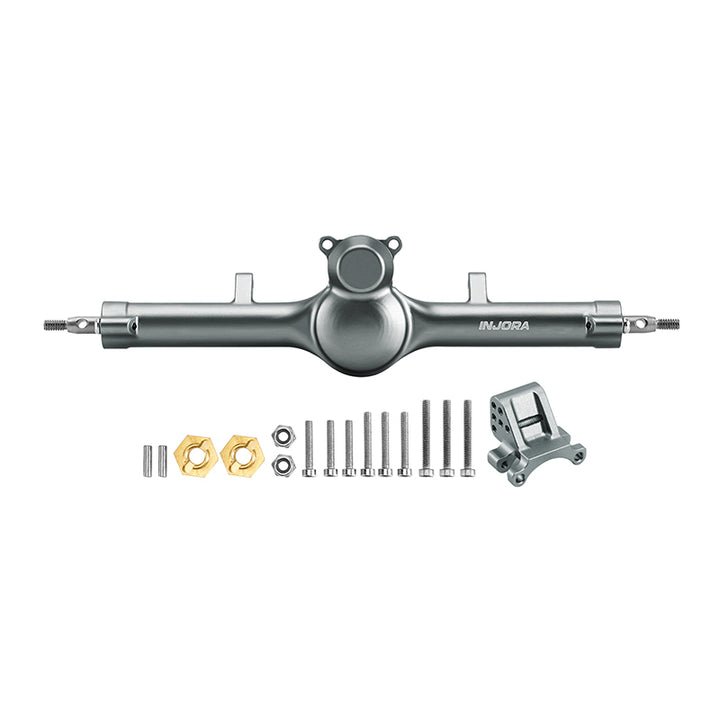

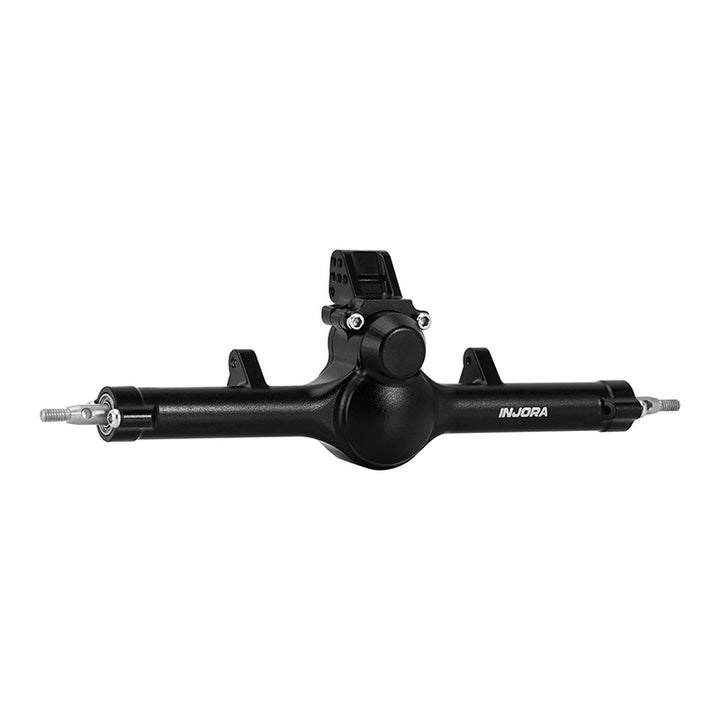

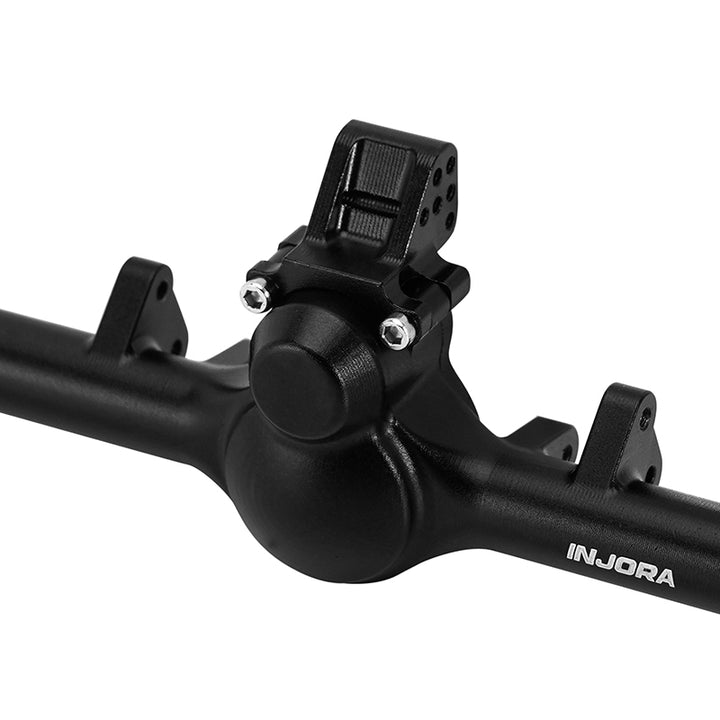

- Adjustable Rear Truss Link Mount: Widens upper-lower link spacing and enhances anti-squat geometry for better uphill performance.
Specifications:
- Housing Material: Aluminum
- Steering Links Material: Aluminum
- Steering Knuckles Material: Brass
- Axle Gear Material: 20CrMnTi Hardened Steel
- Gear Ratio: 2/16T (Front & Rear)
- Shaft Type: Double Joint Shaft (Stainless Steel)
- Maximum Steering Angle: Approx. 52°
- Front Axle Weight: 59g
- Rear Axle Weight: 24g
- Overall Length: 105mm
AGE & RECOMMENDATION: Not for children under 14 years. This is not a toy.
Prop 65: ⚠️ California Residents Prop 65 WARNINGS: www.p65warnings.ca.gov
Returns & Refunds: Return options may vary by region. Please see our Return & Refund Policy for details.

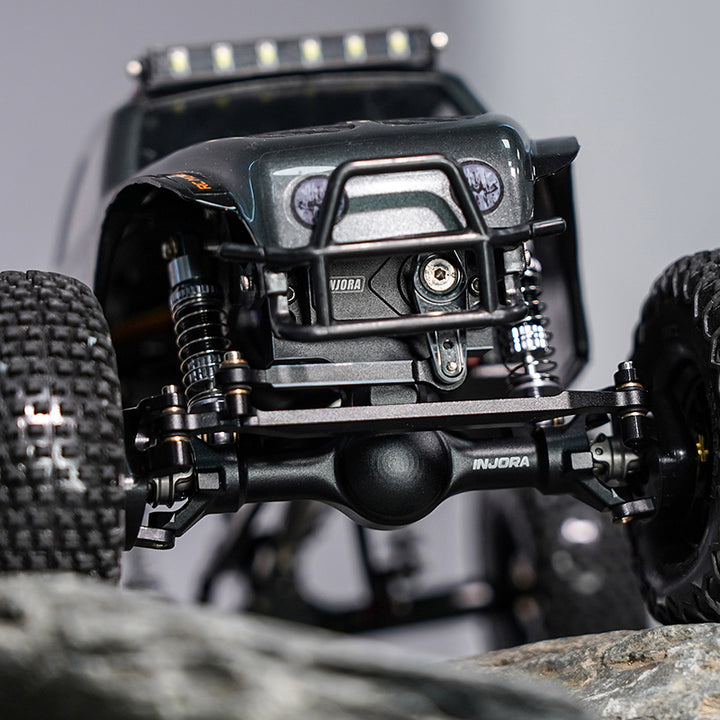

The axle has a solid build quality from INJORA and is easy to install. The turning radius is excellent, and it gives my rig a highly scale, realistic look.
What a great item for tiny crawlers. Delivery in a 1st class box.
they are the best axles on the marke, the quality is super premium and they come pre assembled for a super affordable price compared to others
Great
Happy with the performance, looks, increased weight, and steering angle. Im glad these axels have the knuckle screws recessed, but I would love to see a few extra knuckle screws included. I got plenty of other included extras that I will probably never need, but the one screw size thats not very common and in a spot thats most likely to get lost or damaged was not one of the extras. If you get these I highly recommend using locktite on those knuckle screws. Also Injora please consider adding extra knuckle screws with these.
Awesome axles, make sure you use some rubber o-rings as spacers if you run into it bindingor locking up.
These axles appear to be tougher than I expected. I am still working on the build and have not trail tested them yet but expect them to be awesome.
look great and work awesome
Great product and fitment but have not been able to try out the crawler yet.
Great product and fitment.
These are well made and could not ask for anything more
Hey there,
Just got my axles but i m a bit confused what screw size should go where? Any advice?
Please email us.
Hi friends! I have a question: can the INJORA EMax ES08MA II servo be installed on the INJORA +4mm Planet Axles (SCX24-190)?
Best regards. 🕊️
Yes.
Do these come pre filled with diff oil?
No.
If I get 2 of the front will they fit the ax24 xc-1?
No.
Will this fit the scx24 JLU ?
Yes.
Is this direct fit and plug n play? I prefer No need for modifications.
Yes.
Are you going to make them in a stock axle length so it looks more scale
Do they come with a servo mount?
No.
Are there repair parts for these axles? Front axle already broke….
Please contact us. Thanks.
Do you have 12t and 18t worm gears?
Are the SCX24-188 steering links compatible with these axles?
Can I have a strait answer, Yes or No
Are the SCX24-188 steering links compatible with these axles?
Ok, thanks
Are the SCX24-188 steering links compatible with these axles?
Sorry, not compatible.
Can you please make the axle available to buy separately
Are you going to make brass Diff covers for these axles?
Ok, I think it would be a good idea for the future tho
