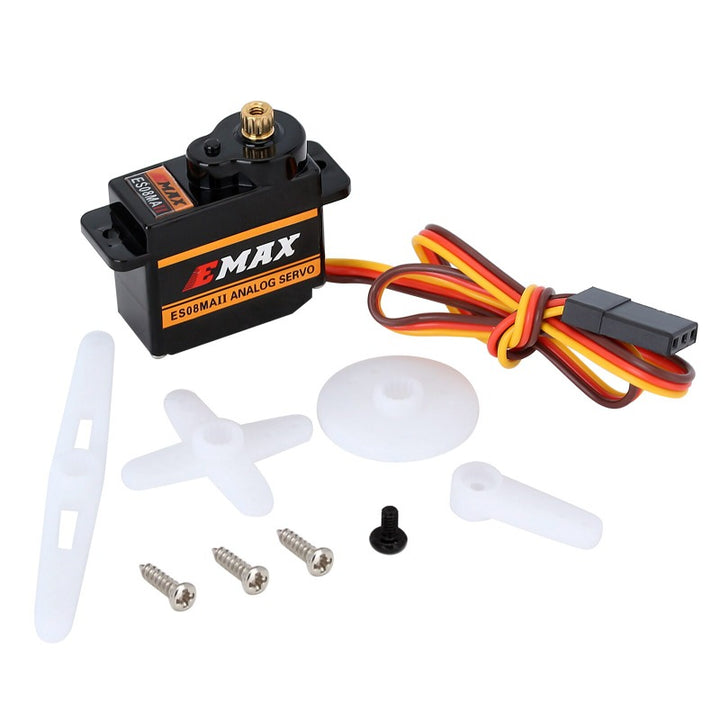

INJORA Emax servo and 4 servo horns
EMax servo kit

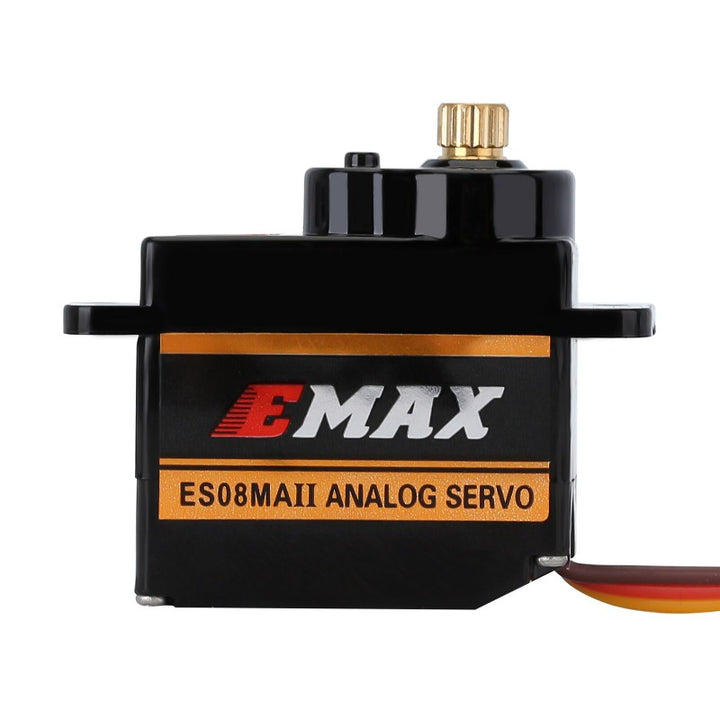

INJORA EMax Servo FRONT

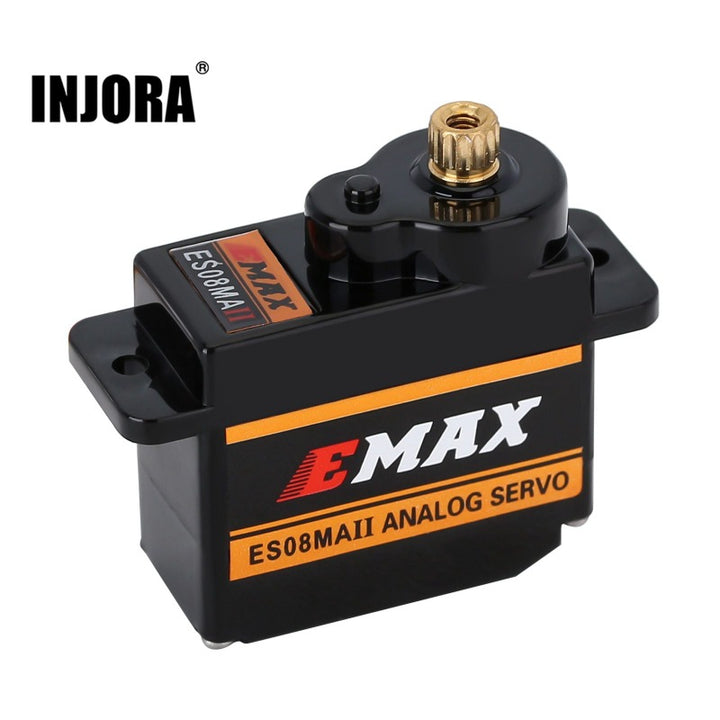

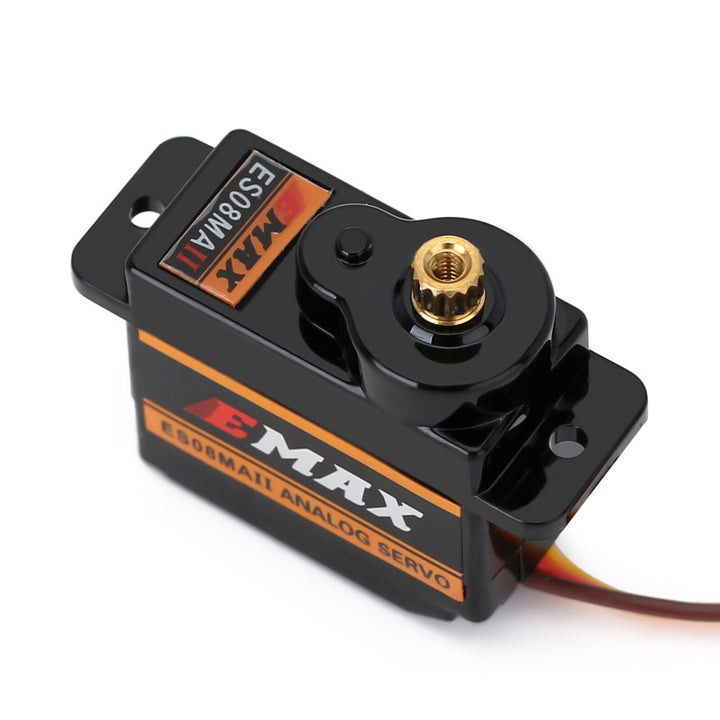

INJORA EMax Servo Top
EMax Servo front
EMax Servo front Parameter table

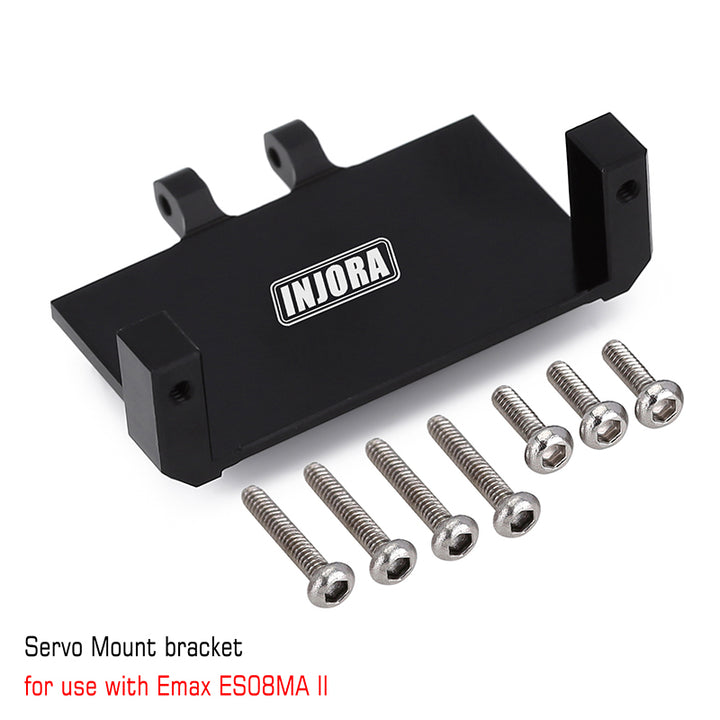

Emax servo mount and screws
Emax servo mount front

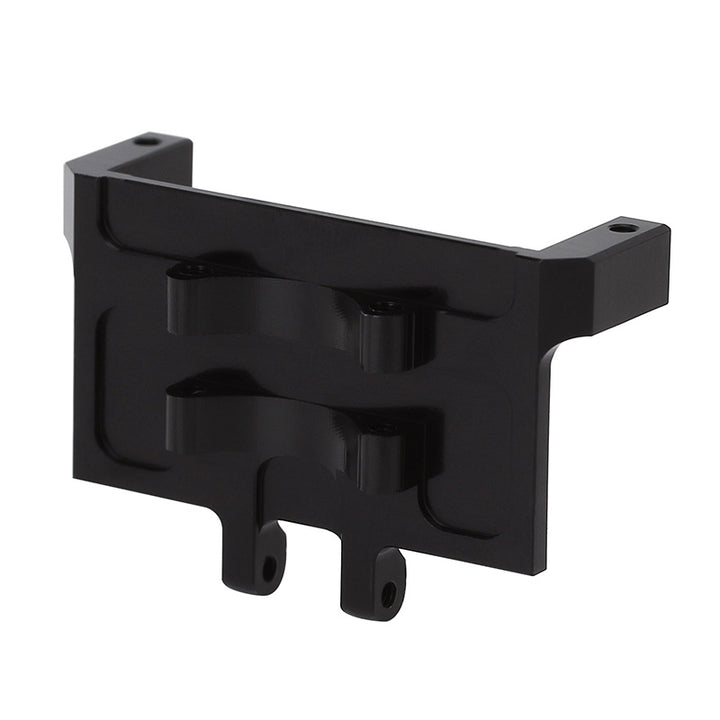

EMax Servo mount bracket back
Emax servo mount top
EMax Servo mount bracket side

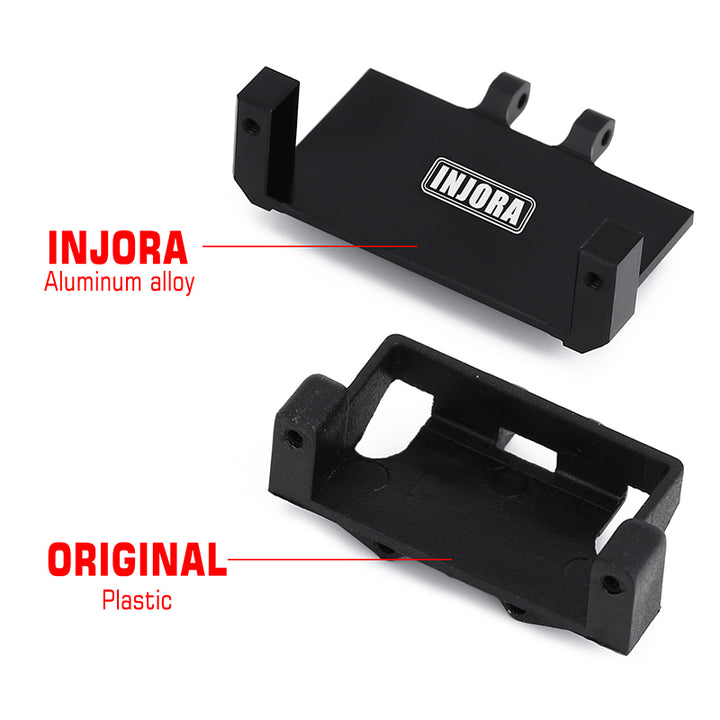

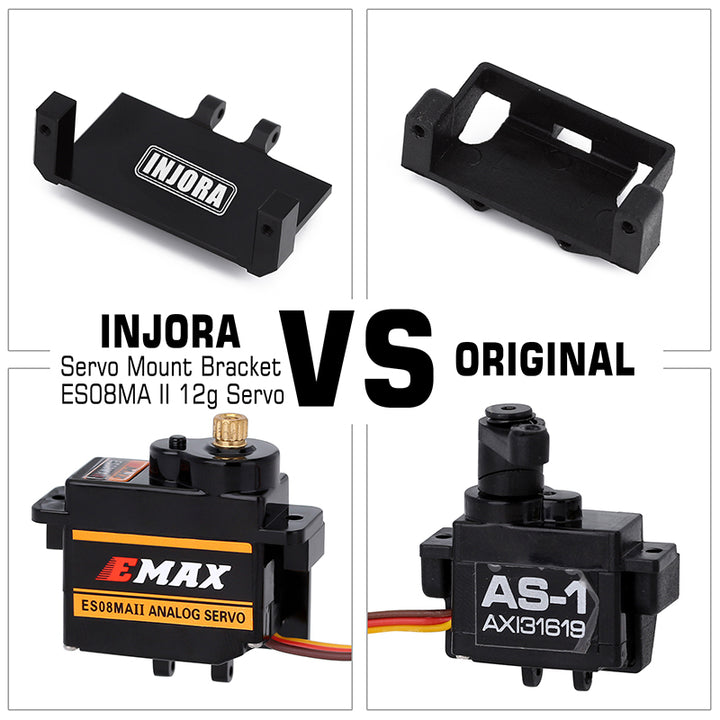

Compare Emax servo mount and original plastic servo mount

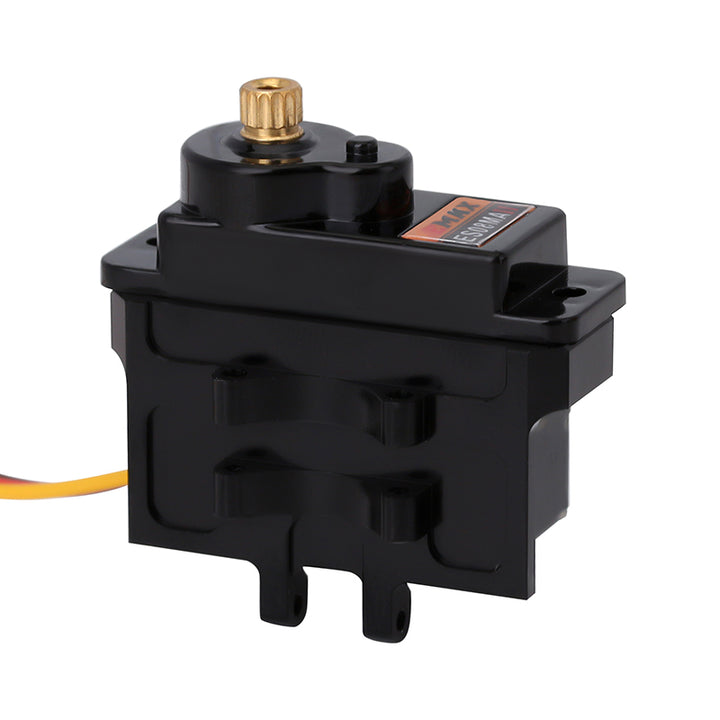

EMax Servo with Servo Mount

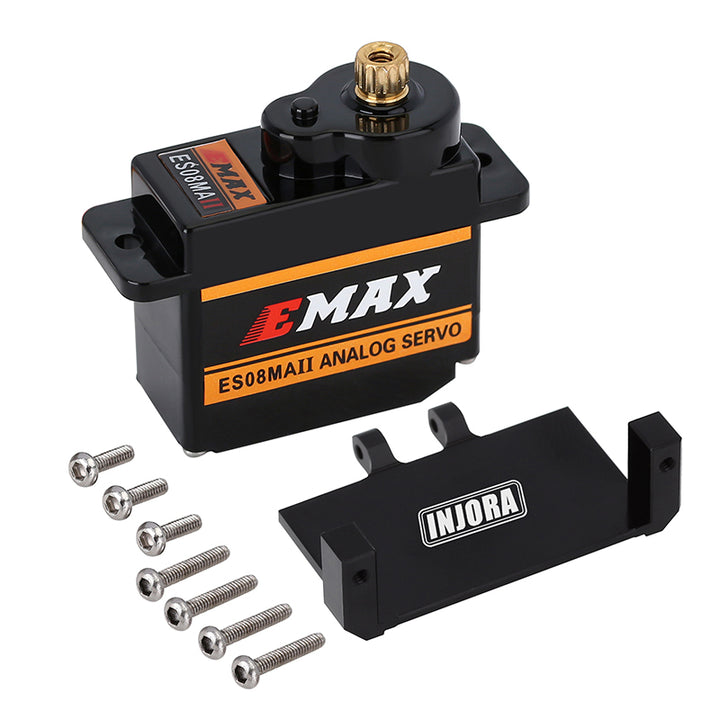

EMax Servo with Servo Mount and screws

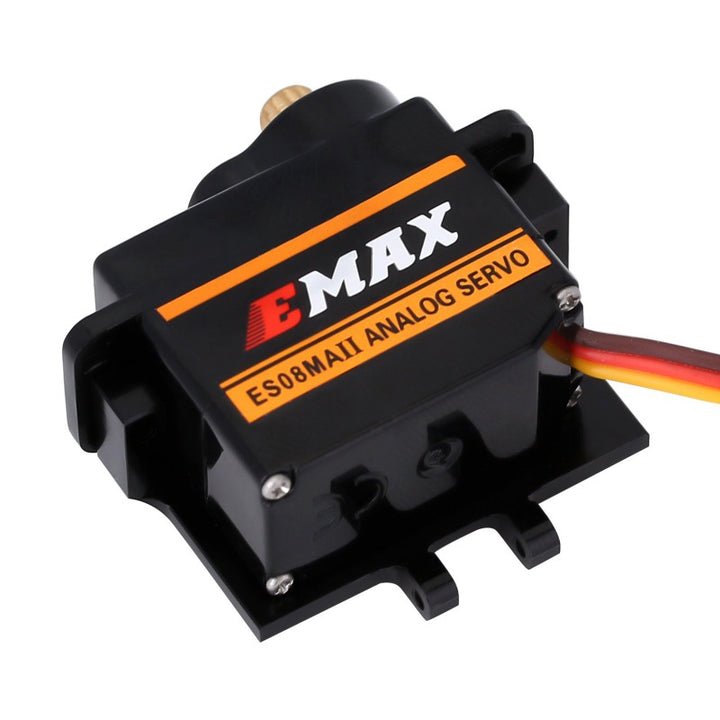

Assembled EMax Servo and Servo Mount
EMax Servo on servo mount back
compare EMax Servo and original Servo

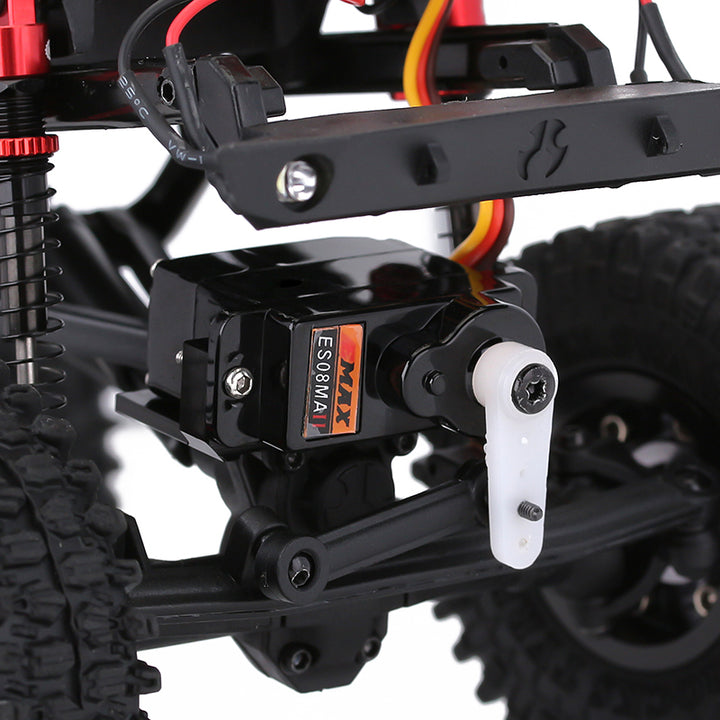

EMax Servo on a rc car
EMax Servo on a rc car left
INJORA Black servo arm with screws

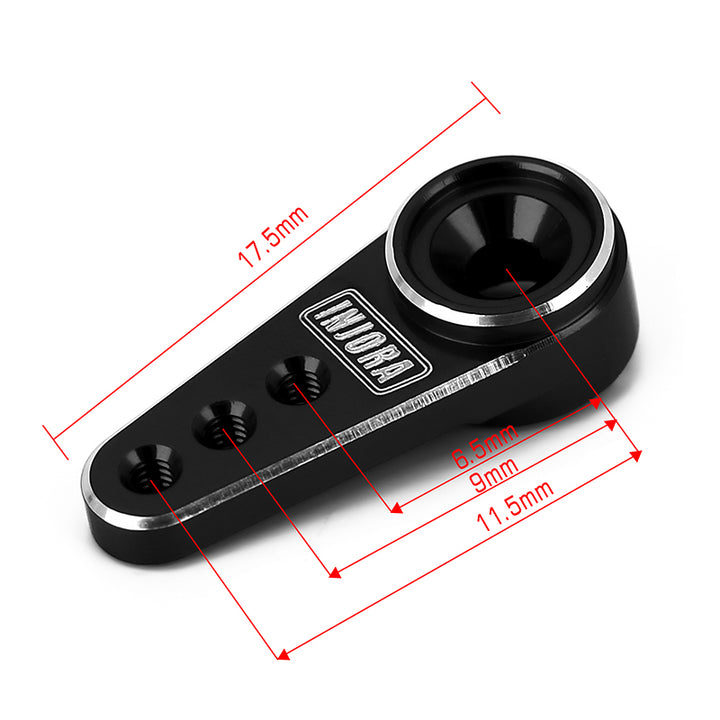

INJORA Black servo arm with size markings
INJORA Black servo arm back

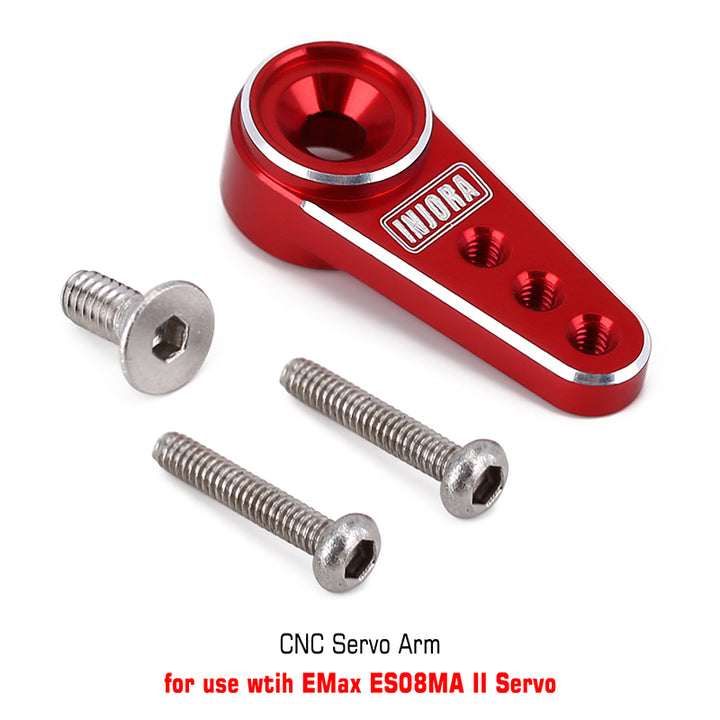

INJORA Red servo arm with screws

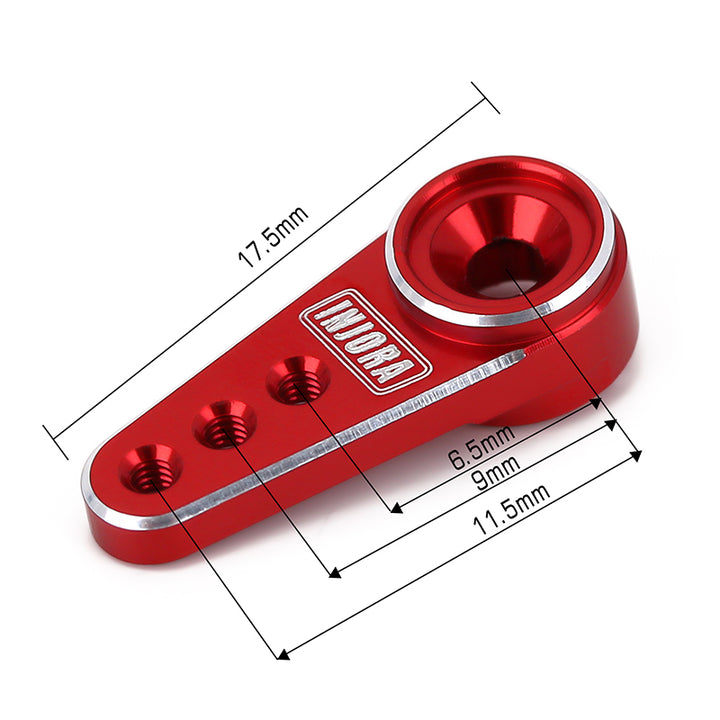

INJORA Red servo arm with size markings

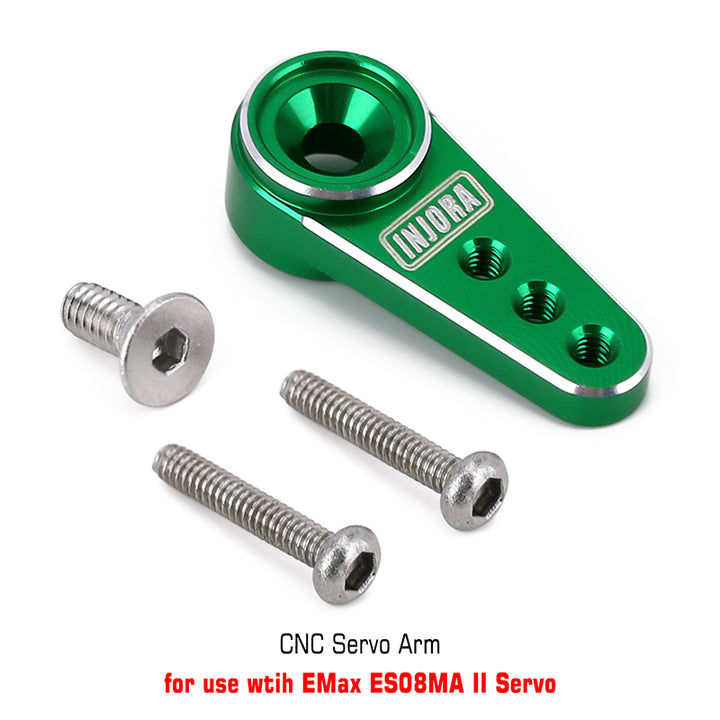

INJORA Green servo arm with screws
INJORA Green servo arm with size markings
INJORA Grey servo arm with screws
INJORA Grey servo arm with size markings

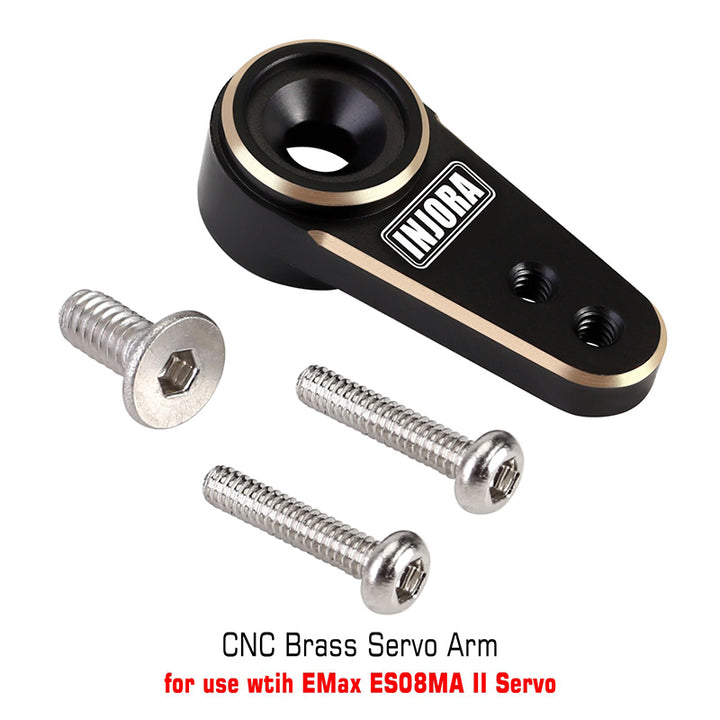

INJORA black brass servo arm with screws
INJORA black brass servo arm with size markings
INJORA Emax servo with mount and black arm
INJORA Emax servo with mount and red arm
INJORA Emax servo with mount and green arm

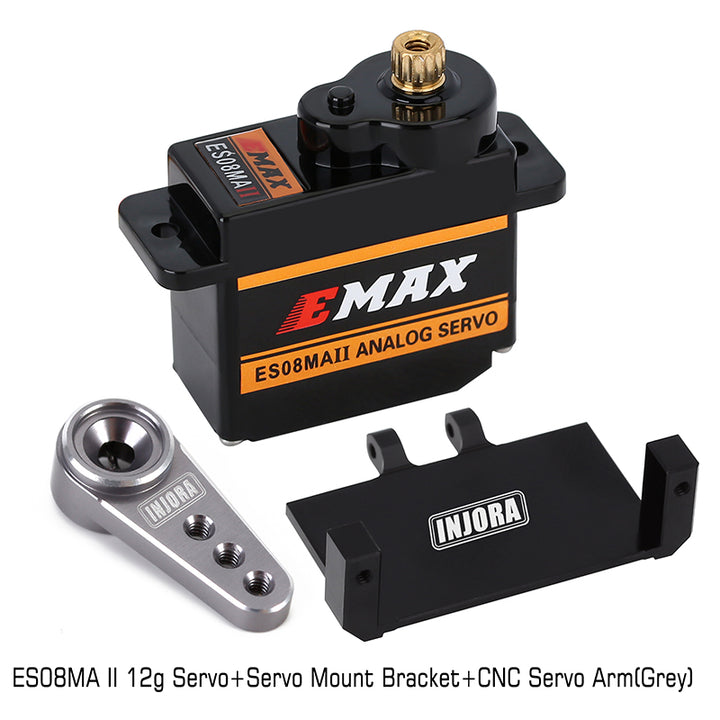

INJORA Emax servo with mount and grey arm

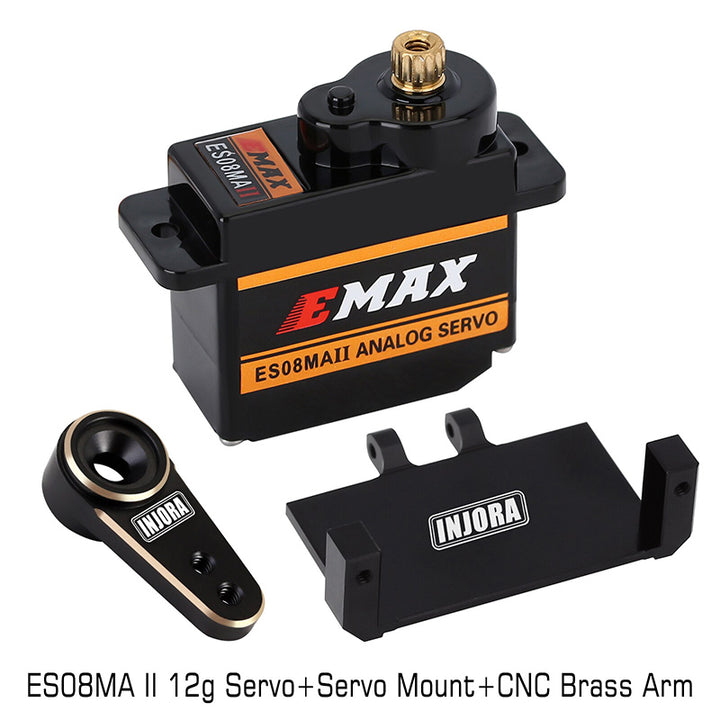

INJORA Emax servo with mount and black brass arm

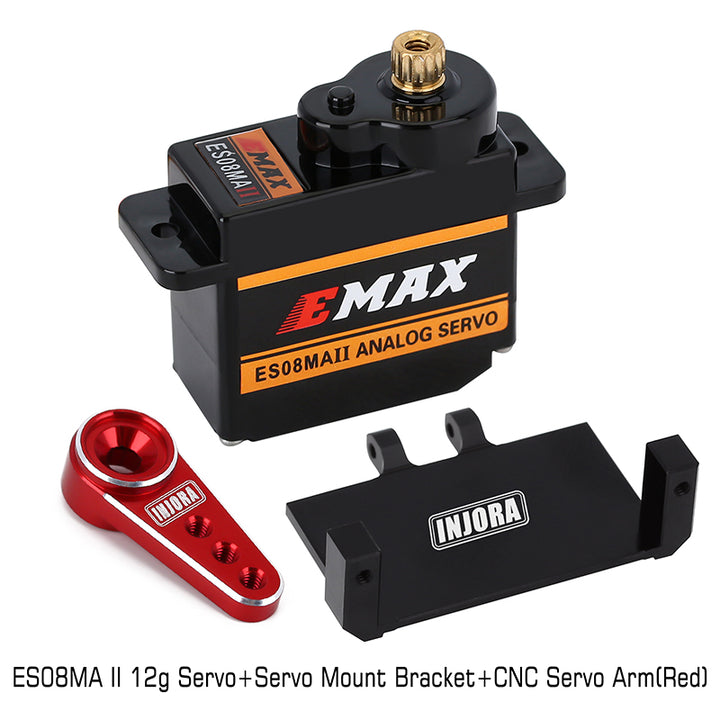

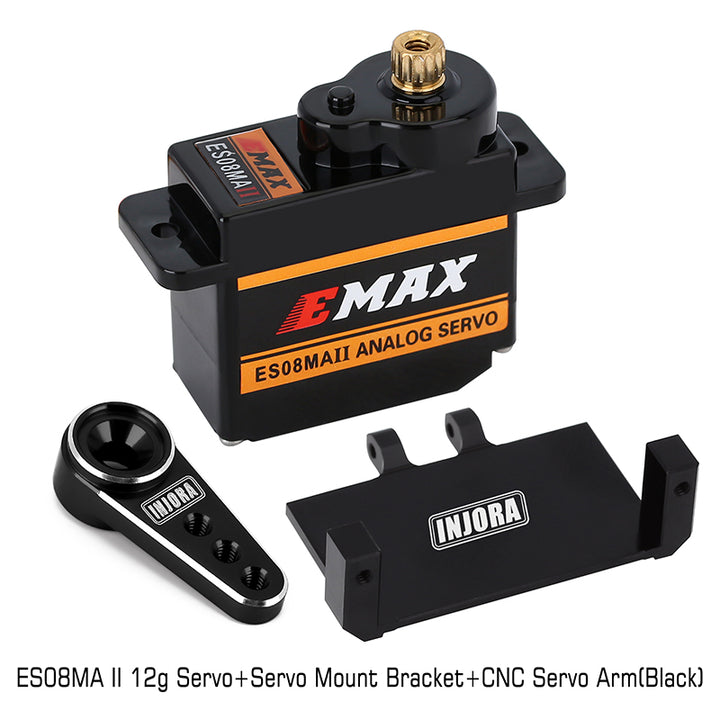

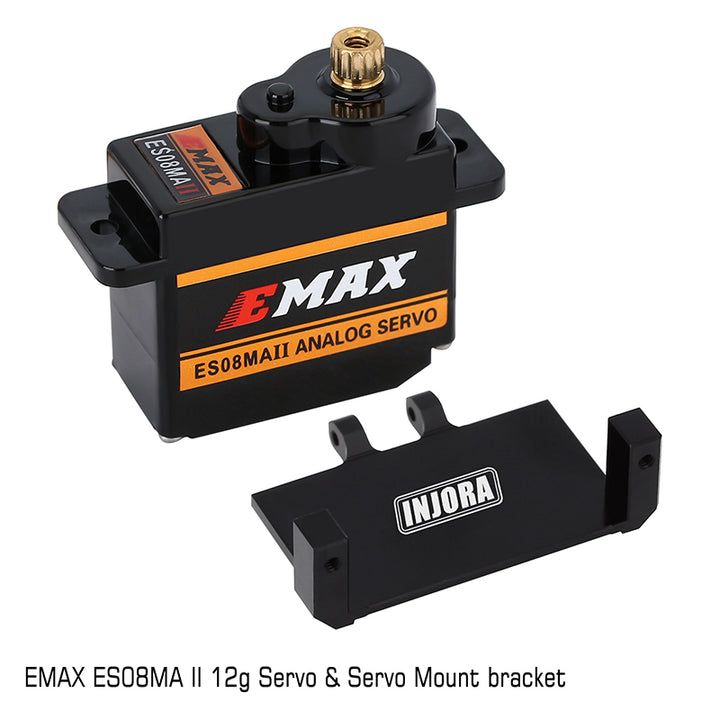

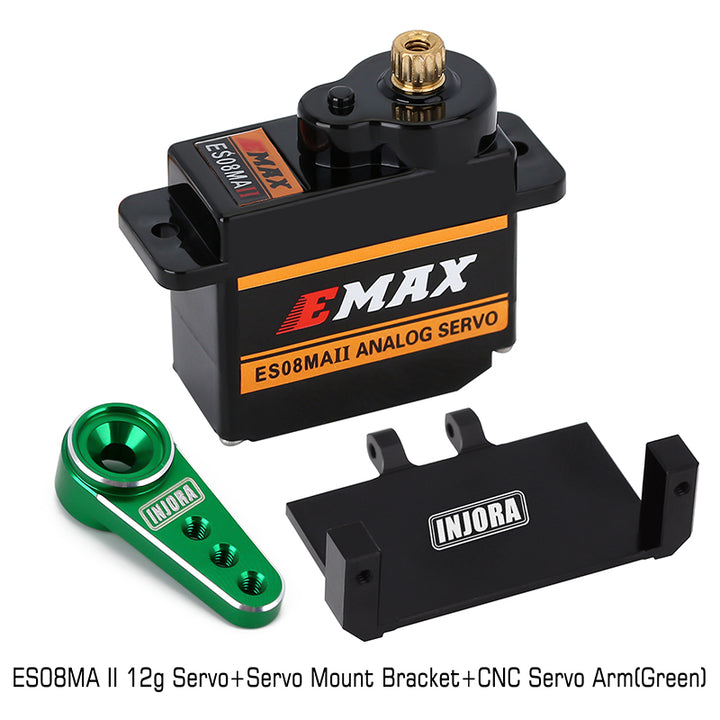

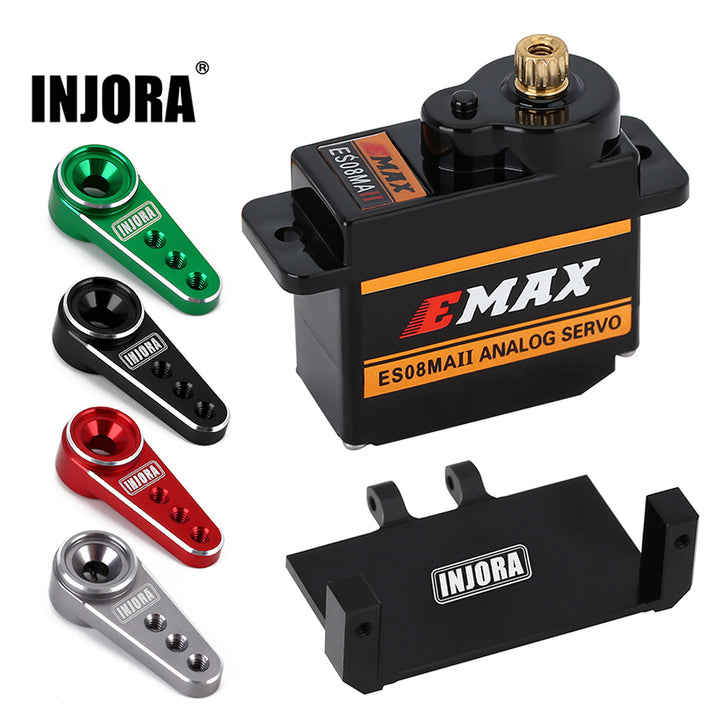

INJORA EMax ES08MA II 12g Analog Metal Gear Servo with Mount & Arm for Axial SCX24 AX24

SKU: SCX24-56BK
Availability: In Stock Pre order Out of stock
$4.99 USD

Option: Black Arm

Servo Only
Mount
Servo with Mount
Black Arm
Red Arm
Green Arm
Grey Arm
Black Brass Arm
Servo with Mount & Black Arm
Servo with Mount & Red Arm
Servo with Mount & Green Arm
Servo with Mount & Grey Arm
Servo with Mount & Black Brass Arm

Ask a Question
Product Detail

INJORA EMax ES08MA II 12g Analog Metal Gear Servo with Mount & Arm for RC Car Model Parts Axial SCX24 Upgrade Parts
Note:

  • Some new scx24 cars & AX24 cars use coarse deep thread screws on the steering links, which is not compatible with our servo horn. So I suggest you use the steering links that with normal threaded M1.4 screws.
  • Compatible with scx24 stock plastic axles and INJORA scx24 axles
  • Compatible with both Y link and front 4 links
  • Please use both this servo and the INJORA servo mount
  • Please set the endpoints correctly to avoid burning the servo!!!
  • Plug it into channel 1 and check that the yellow wire is at the top, don't make it upside down.

Suit for: 1/24 rc rock crawler Axial SCX24 AX24

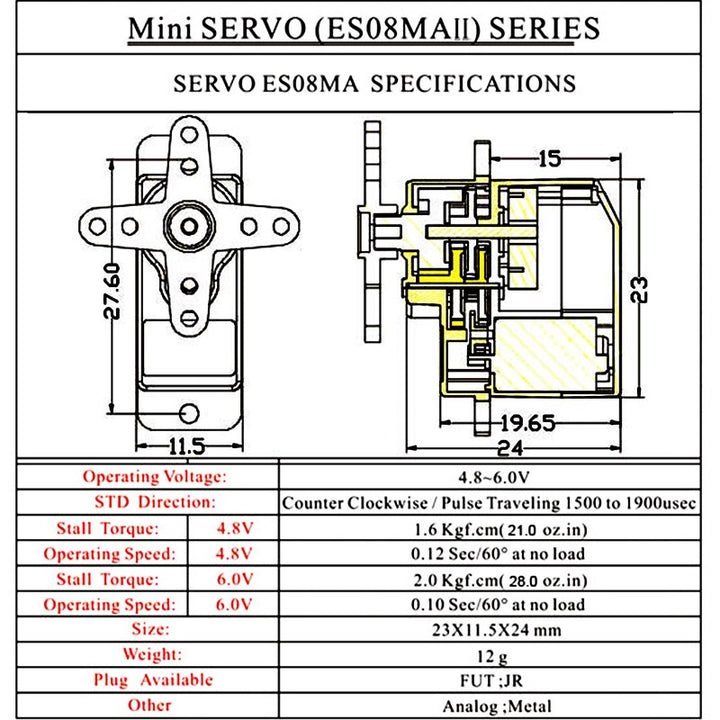

Servo Specifications:

  • Item: ES08MA II Servo
  • Voltage Input: 4.8-6V
  • Standard Direction: Counter Clockwise
  • Stall Torque: 4.8V: 21 oz/in , 6.0V: 25.2 oz/in
  • Operating Speed: 4.8V: 0.12 Sec/60° , 6.0V: 0.10 Sec/60°
  • Dimensions: 23x11.5x24mm (LxWxH)
  • Weight: 12g
  • Gear Train: Metal
  • Servo Type: Analog
  • Spline: Φ3.9 15T

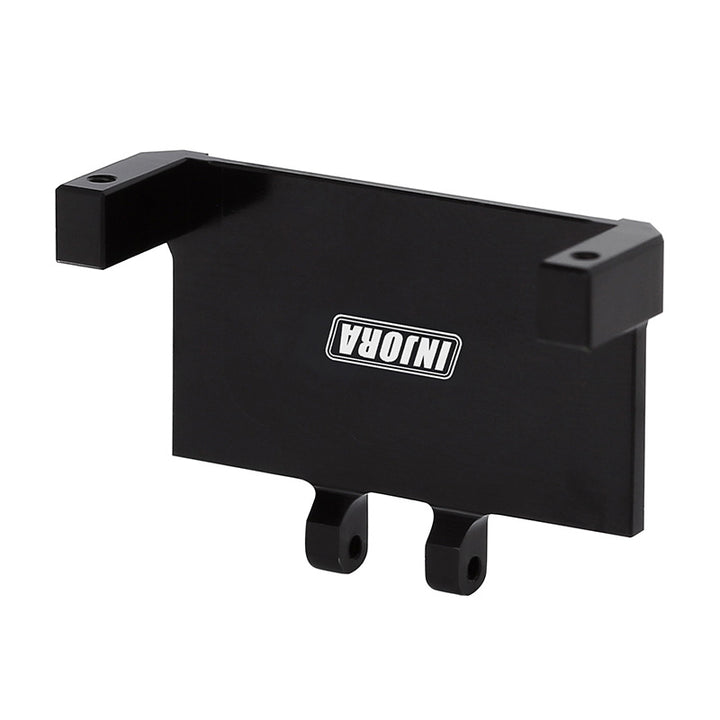

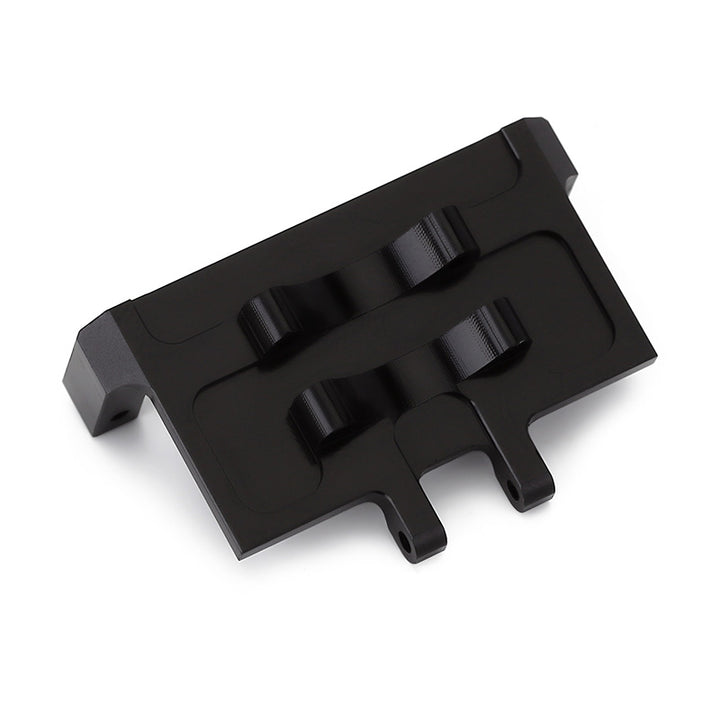

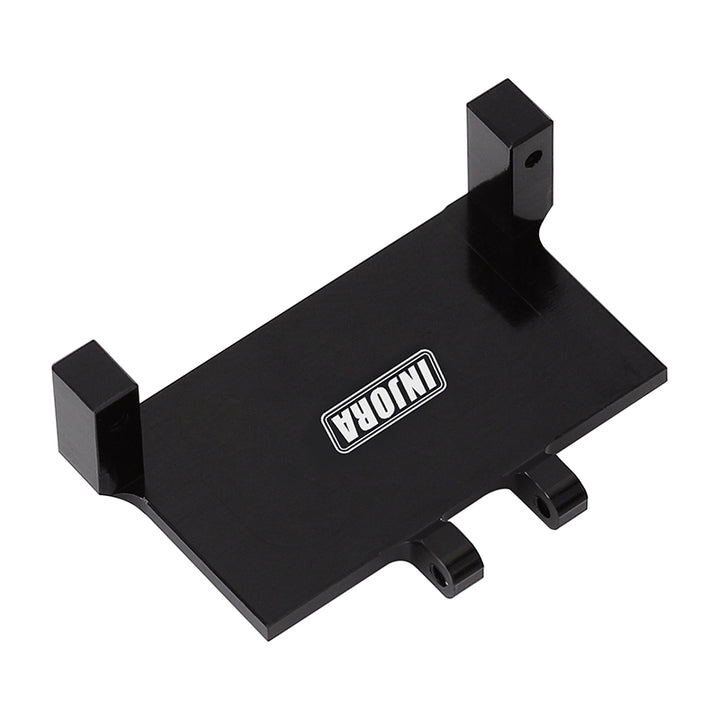

Servo Mount Bracket Specifications:

  • Material: Aluminum
  • Color: Black
  • Use with scx24 stock axle or INJORA aluminium axle

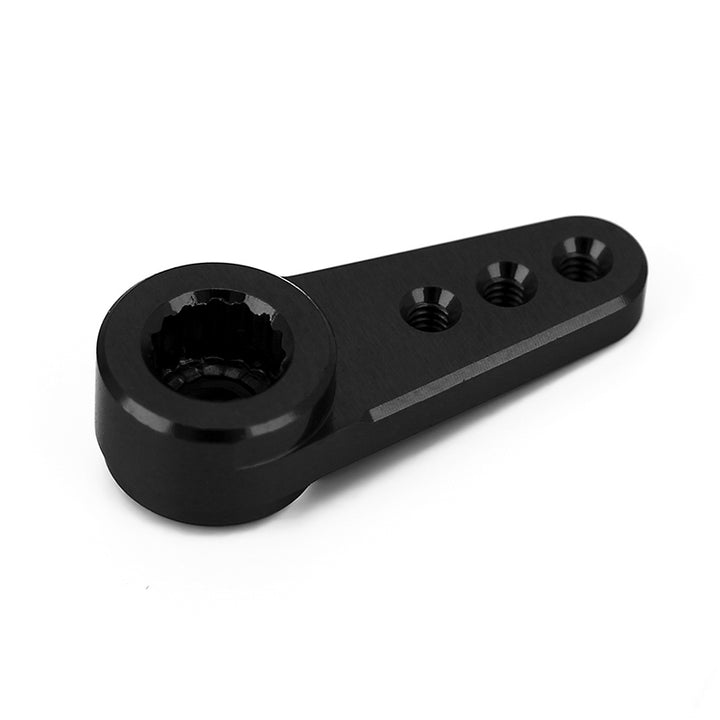

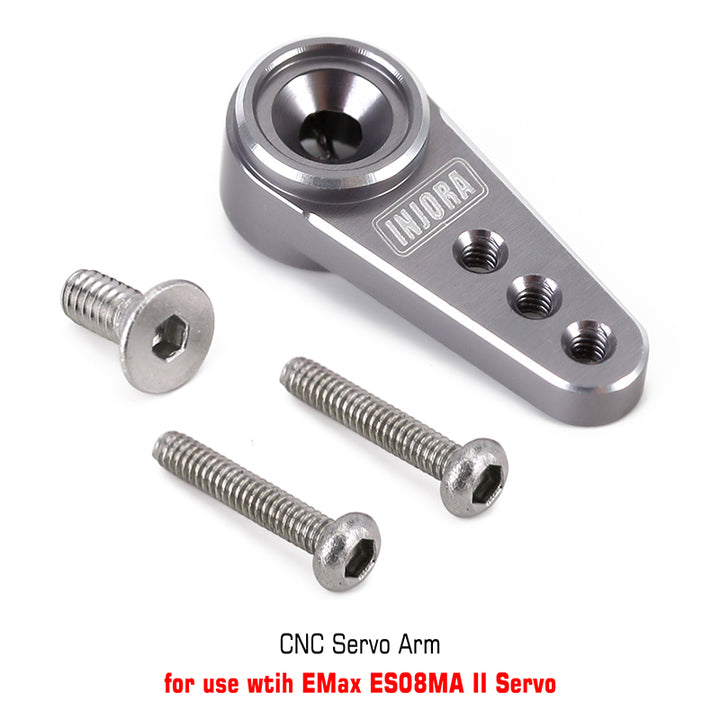

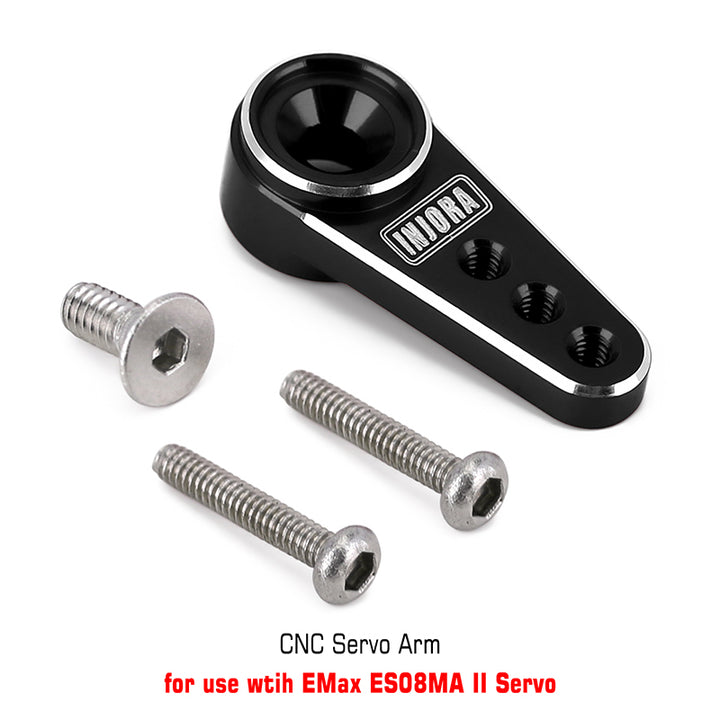

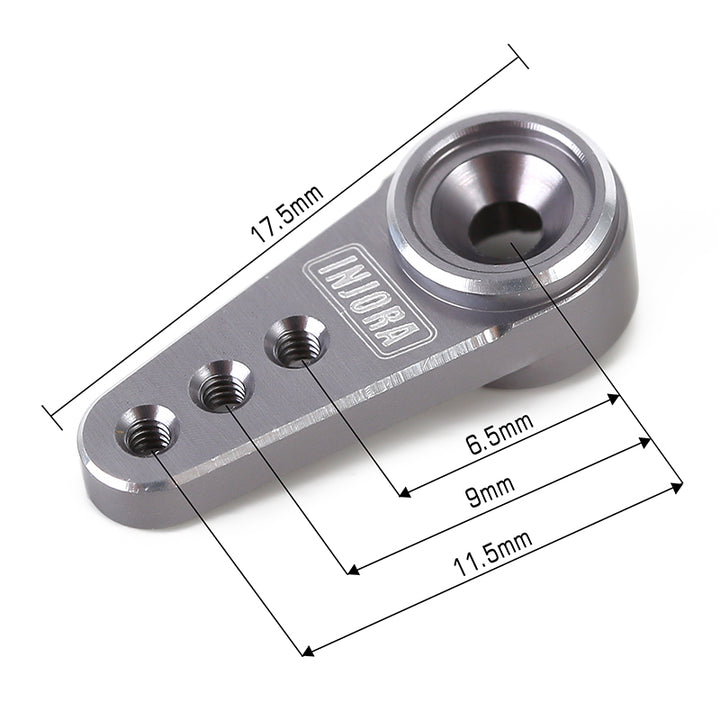

Servo Arms Specifications:

  • Item: ES08MA II Servo Arm
  • Material: Aluminum, Brass
  • Color: Black, Red, Green, Grey, Black Gold
  • Use with Emax ES08MA II Servo (For Axial SCX24 Crawler)
